EN 61076-3-103:2004

SLOVENSKI SIST EN 61076-3-103:2004

STANDARD
november 2004
Konektorji za elektronsko opremo - 3-103. del: Pravokotni konektorji -
Podrobna specifikacija za enoredne konektorje z neločljivimi kontakti za
tračne kable z medkontaktnim razmikom 1,25 mm, ki se uporabljajo za hitri
zaporedni prenos podatkov (HSSDC) (IEC 61076-3-103:2003)
Connectors for electronic equipment – Part 3-103: Rectangular connectors - Detail
specification for single row connectors with non-removable ribbon cable contacts on
1,25 mm pitch used for high speed serial data (HSSDC) (IEC 61076-3-103:2003)
ICS 31.220.10 Referenčna številka
©  Standard je založil in izdal Slovenski inštitut za standardizacijo. Razmnoževanje ali kopiranje celote ali delov tega dokumenta ni dovoljeno

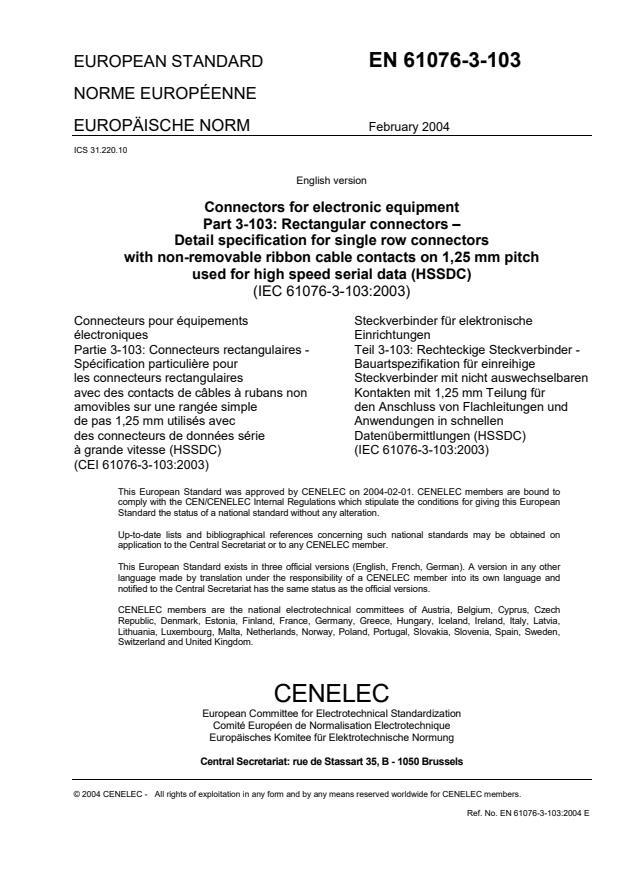

EUROPEAN STANDARD EN 61076-3-103
NORME EUROPÉENNE
EUROPÄISCHE NORM February 2004

ICS 31.220.10
English version
Connectors for electronic equipment
Part 3-103: Rectangular connectors –
Detail specification for single row connectors
with non-removable ribbon cable contacts on 1,25 mm pitch
used for high speed serial data (HSSDC)
(IEC 61076-3-103:2003)
Connecteurs pour équipements Steckverbinder für elektronische
électroniques Einrichtungen
Partie 3-103: Connecteurs rectangulaires - Teil 3-103: Rechteckige Steckverbinder -
Spécification particulière pour Bauartspezifikation für einreihige
les connecteurs rectangulaires Steckverbinder mit nicht auswechselbaren
avec des contacts de câbles à rubans non Kontakten mit 1,25 mm Teilung für
amovibles sur une rangée simple den Anschluss von Flachleitungen und
de pas 1,25 mm utilisés avec Anwendungen in schnellen
des connecteurs de données série Datenübermittlungen (HSSDC)
à grande vitesse (HSSDC) (IEC 61076-3-103:2003)
(CEI 61076-3-103:2003)
This European Standard was approved by CENELEC on 2004-02-01. CENELEC members are bound to
comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this European
Standard the status of a national standard without any alteration.

Up-to-date lists and bibliographical references concerning such national standards may be obtained on
application to the Central Secretariat or to any CENELEC member.

This European Standard exists in three official versions (English, French, German). A version in any other
language made by translation under the responsibility of a CENELEC member into its own language and
notified to the Central Secretariat has the same status as the official versions.

CENELEC members are the national electrotechnical committees of Austria, Belgium, Cyprus, Czech
Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia,
Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Slovakia, Slovenia, Spain, Sweden,
Switzerland and United Kingdom.

CENELEC
European Committee for Electrotechnical Standardization
Comité Européen de Normalisation Electrotechnique
Europäisches Komitee für Elektrotechnische Normung

Central Secretariat: rue de Stassart 35, B - 1050 Brussels

© 2004 CENELEC - All rights of exploitation in any form and by any means reserved worldwide for CENELEC members.

Ref. No. EN 61076-3-103:2004 E

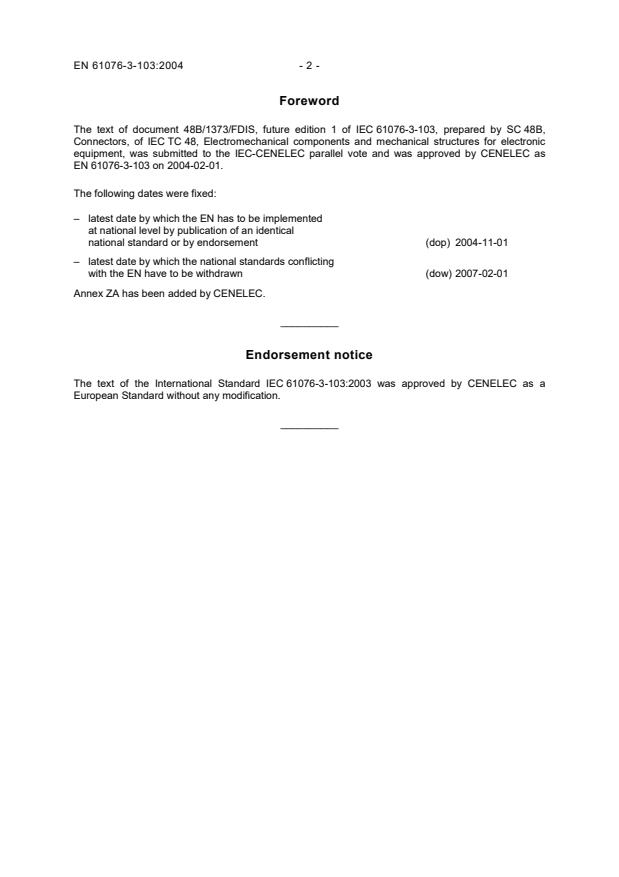

Foreword
The text of document 48B/1373/FDIS, future edition 1 of IEC 61076-3-103, prepared by SC 48B,
Connectors, of IEC TC 48, Electromechanical components and mechanical structures for electronic
equipment, was submitted to the IEC-CENELEC parallel vote and was approved by CENELEC as
EN 61076-3-103 on 2004-02-01.
The following dates were fixed:
– latest date by which the EN has to be implemented
at national level by publication of an identical
national standard or by endorsement (dop) 2004-11-01
– latest date by which the national standards conflicting
with the EN have to be withdrawn (dow) 2007-02-01
Annex ZA has been added by CENELEC.
__________
Endorsement notice
The text of the International Standard IEC 61076-3-103:2003 was approved by CENELEC as a
European Standard without any modification.
__________
- 3 - EN 61076-3-103:2004
Annex ZA
(normative)
Normative references to international publications
with their corresponding European publications
The following referenced documents are indispensable for the application of this document. For dated
references, only the edition cited applies. For undated references, the latest edition of the referenced
document (including any amendments) applies.
NOTE When an international publication has been modified by common modifications, indicated by (mod), the relevant
EN/HD applies.
Publication Year Title EN/HD Year
IEC 60512 Series Connectors for electronic equipment - EN 60512 Series
Tests and measurements
IEC 60512-1-100 2001 Connectors for electronic equipment - EN 60512-1-100 2001
Tests and measurements
Part 1-100: General - Applicable
publications
IEC 61076-1 1995 Connectors with assessed quality, for EN 61076-1 1995
use in d.c., low frequency analogue and
in digital high-speed data applications
Part 1: Generic specification - Capability
approval
IEC 61076-3 1999 Part 3: Rectangular connectors with EN 61076-3 2000
assessed quality - Sectional
specification
IEC 61076-3-001 1999 Part 3-001: Rectangular connectors with EN 61076-3-001 2000
assessed quality - Blank detail
specification
ISO 1302 2002 Geometrical Product Specifications EN ISO 1302 2002
(GPS) - Indication of surface texture in
technical product documentation

INTERNATIONAL IEC
STANDARD 61076-3-103
First edition
2003-11
Connectors for electronic equipment –
Part 3-103:
Rectangular connectors –
Detail specification for single row connectors
with non-removable ribbon cable contacts
on 1,25 mm pitch used for high speed
serial data (HSSDC)
 IEC 2003  Copyright - all rights reserved
No part of this publication may be reproduced or utilized in any form or by any means, electronic or
mechanical, including photocopying and microfilm, without permission in writing from the publisher.
International Electrotechnical Commission, 3, rue de Varembé, PO Box 131, CH-1211 Geneva 20, Switzerland
Telephone: +41 22 919 02 11 Telefax: +41 22 919 03 00 E-mail: inmail@iec.ch Web: www.iec.ch
PRICE CODE
Commission Electrotechnique Internationale
XA
International Electrotechnical Commission
МеждународнаяЭлектротехническаяКомиссия
For price, see current catalogue

– 2 – 61076-3-103  IEC:2003(E)
CONTENTS
FOREWORD.5
1 General.8
1.1 Scope.8
1.2 Recommended method of mounting.8
1.3 Ratings and characteristics.8
1.4 Reference documents.9
1.5 Marking.9
1.6 IEC type designation.10
1.7 Ordering information.11
2 Technical information.11
2.1 Terminology.11
2.2 Survey of styles and variants for fixed board connectors (XB).11
2.3 Survey of styles and variants for free cable connectors (EC) .11
2.4 Information on fixed board connector application.11
3 Dimensional information.12
3.1 General.12
3.2 Isometric view and common features for fixed board connector (XB) .12
3.3 Isometric view and common features for free cable connector (EC).20
3.4 Mating Information.24
3.5 Fixed board connector connectors interface dimensions.25
3.6 Free cable connectors interface dimensions.26
3.7 Mounting information for fixed board (XB) connectors .27
3.8 Panel mount information .35
3.9 Mounting bracket.38
4 Characteristics.44
4.1 Climatic category.44
4.2 Electrical.44
4.3 Mechanical.46
5 Test schedule.47
5.1 General.47
5.2 Test sequences.47
6 Quality assessment procedures .52
6.1 Qualification approval testing .52
6.2 Reinspection.52

Annex A (normative) Eye pattern .54
Annex B (normative) Characteristic impedance.58

61076-3-103 © IEC:2003(E) – 3 –

Figure 1 – Isometric view fixed board connector (XB) right angle (version 1) (RR).12
Figure 2 – Front view fixed board connector (XB) right angle (version 1) (RR).13
Figure 3 – Top view fixed board connector (XB) right angle (version 1) (RR) .13
Figure 4 – Side view fixed board connector (XB) right angle (version 1) (RR) .14
Figure 5 – Isometric view fixed board connector (XB) right angle (version 2) bulkhead
mount (RE) .14
Figure 6 – Front view fixed board connector (XB) right angle (version 2) bulkhead mount
(RE).15
Figure 7 – Top view fixed board connector (XB) right angle (version 2) bulkhead mount
(RE).15
Figure 8 – Side view fixed board connector (XB) right angle (version 2) bulkhead mount
(RE).15
Figure 9 – Isometric view fixed board connector (XB) right angle (version 2) PCI bracket
assembly (RP) .16
Figure 10 – Front view fixed board connector (XB) right angle (version 2) PCI bracket
assembly (RP) .16
Figure 11 – Top view fixed board connector (XB) right angle (version 2) PCI bracket
assembly (RP) .16
Figure 12 – Side view fixed board connector (XB) right angle (version 2) PCI bracket
assembly (RP) .17
Figure 13 – Isometric view fixed board connector (XB) straddle mount (version 1) (TA).17
Figure 14 – Front view fixed board connector (XB) straddle mount (version 1) (TA).17
Figure 15 – Top view fixed board connector (XB) straddle mount (version 1) (TA).18
Figure 16 – Side view fixed board connector (XB) straddle mount (version 1) (TA) .18
Figure 17 – Isometric view fixed board connector (XB) straddle mount (version 2) (TB).19
Figure 18 – Front view fixed board connector (XB) straddle mount (version 2) (TB).19
Figure 19 – Top view fixed board connector (XB) straddle mount (version 2) (TB).19
Figure 20 – Side view fixed board connector (XB) straddle mount (version 2) (TB) .20
Figure 21 – Isometric view free cable connector (EC) straight (version 1) (SA).20
Figure 22 – Free cable connector (EC) straight (version 1) (SA) .21
Figure 23 – Free cable connector (EC) straight (version 2) (SB) .22
Figure 24 – Free cable connector (EC) straight (version 3) (SC) .23
Figure 25 – Mating dimensions.24
Figure 26 – Fixed board connector connector interface dimensions .25
Figure 27 – Free cable connector connector interface dimensions .26
Figure 28 – Fixed board connector (XB) right angle (version 1) (RR) printed board
mounting pattern .27
Figure 29 – Fixed board connector (XB) right angle (version 2) bulkhead mount (RE) for
1 through 4 bay (05, 06, 07, and 08) printed board mounting pattern.28
Figure 30 – Fixed board connector (XB) right angle (version 2) PCI bracket assembly
(RP) with 1 through 4 bay (05, 06, 07, and 08) printed board mounting pattern.29
Figure 31 – Fixed board connector (XB) straddle mount (version 1) (TA) printed board
mounting pattern .30
Figure 32 – Fixed board connector (XB) straddle mount (version 2) (TB) printed board
mounting pattern .31
Figure 33 – Fixed board connector (XB) right angle (version 1) (RR) for 1-bay panel with
forward boardlocks (version 1) (01) printed board mounting pattern .32

– 4 – 61076-3-103  IEC:2003(E)
Figure 34 – Fixed board connector (XB) right angle (version 1) (RR) for 2-bay with
forward boardlocks (version 1) (02) printed board mounting pattern .33
Figure 35 – Fixed board connector (XB) right angle (version 1) (RR) for 2-bay with
rearward boardlocks (version 1) (03) printed board mounting pattern .34
Figure 36 – Fixed board connector (XB) right angle (version 1) (RR) panel cutout.35
Figure 37 – Fixed board connector (XB) right angle (version 2) bulkhead mount (RE)
panel cutout .35
Figure 38 – Fixed board connector (XB) right angle (version 2) PCI bracket mount (RP)
panel cutout .36
Figure 39 – Fixed board connector (XB) right angle (version 1) (RR) for 1-bay with
forward boardlocks (version 1) (01) panel cutout .36
Figure 40 – Fixed board connector (XB) right angle (version 1) (RR) for 2-bay with
forward and rearward boardlocks (version 1) (02) and (03) panel cutout .37
Figure 41 – Fixed board connector (XB) right angle (version 1) (RR) for 1-bay with
forward boardlocks (version 1) (01) mounting bracket.38
Figure 42 – Fixed board connector (XB) right angle (version 1) (RR) for 2-bay with
forward boardlocks (version 1) (02) mounting bracket.39
Figure 43 – Fixed board connector (XB) right angle (version 1) (RR) for 2-bay with
rearward boardlocks (version 1) (03) mounting bracket.40
Figure 44 – Fixed board connector (XB) right angle (version 2) bulkhead mount (RE)
with 1 through 4 bay (05, 06, 07, and 08) (continued).41
Figure 44 – Fixed board connector (XB) right angle (version 2) bulkhead mount (RE)
with 1 through 4 bay (05, 06, 07, and 08).42
Figure 45 – Fixed board connector (XB) right angle (version 2) PCI bracket assembly
(RP) with 1 through 4 bay (05, 06, 07 and 08).43
Figure 46 – Typical contact resistance measurement points.45
Figure 47 – Vibration and shock test fixture typical .46
Figure A.1 – Single-ended terminations .56
Figure A.2 – Differential (balanced) terminations .57

Table 1 – Styles and variants for fixed board connectors (XB).11
Table 2 – Styles and variants for free cable connectors (EC) .11
Table 3 – Printed circuit board layouts for fixed board (XB) connectors .27
Table 4 – Climatic category .44
Table 5 – Test group P – General examination .47
Table 6 – Test group AP.48
Table 7 – Test group BP.49
Table 8 – Test group CP .49
Table 9 – Test group DP .50
Table 10 – Test group EP.51
Table 11 – Test group FP.52
Table 12 – Qualification approval tests .52
Table 13 – Reinspection.53

61076-3-103 © IEC:2003(E) – 5 –
INTERNATIONAL ELECTROTECHNICAL COMMISSION
___________
CONNECTORS FOR ELECTRONIC EQUIPMENT –

Part 3-103: Rectangular connectors – Detail specification for single row
connectors with non-removable ribbon cable contacts on 1,25 mm pitch
used for high speed serial data (HSSDC)

FOREWORD
1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising
all national electrotechnical committees (IEC National Committees). The object of IEC is to promote
international co-operation on all questions concerning standardization in the electrical and electronic fields. To
this end and in addition to other activities, IEC publishes International Standards, Technical Specifications,
Technical Reports, Publicly Available Specifications (PAS) and Guides (hereafter referred to as “IEC
Publication(s)”). Their preparation is entrusted to technical committees; any IEC National Committee interested
in the subject dealt with may participate in this preparatory work. International, governmental and non-
governmental organizations liaising with the IEC also participate in this preparation. IEC collaborates closely
with the International Organization for Standardization (ISO) in accordance with conditions determined by
agreement between the two organizations.
2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international
consensus of opinion on the relevant subjects since each technical committee has representation from all
interested IEC National Committees.
3) IEC Publications have the form of recommendations for international use and are accepted by IEC National
Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC
Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any
misinterpretation by any end user.
4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications
transparently to the maximum extent possible in their national and regional publications. Any divergence
between any IEC Publication and the corresponding national or regional publication shall be clearly indicated in
the latter.
5) IEC provides no marking procedure to indicate its approval and cannot be rendered responsible for any
equipment declared to be in conformity with an IEC Publication.
6) All users should ensure that they have the latest edition of this publication.
7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and
members of its technical committees and IEC National Committees for any personal injury, property damage or
other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and
expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC
Publications.
8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is
indispensable for the correct application of this publication.
9) Attention is drawn to the possibility that some of the elements of this IEC Publication may be the subject of
patent rights. IEC shall not be held responsible for identifying any or all such patent rights.
International Standard IEC 61076-3-103 has been prepared by subcommittee 48B: Connectors,
of IEC technical committee 48: Electromechanical components and mechanical structures for
electronic equipment.
The text of this standard is based on the following documents:
FDIS Report on voting
48B/1373/FDIS 48B/1402/RVD
Full information on the voting for the approval of this standard can be found in the report on
voting indicated in the above table.
This publication has been drafted in accordance with the ISO/IEC Directives, Part 2.

– 6 – 61076-3-103  IEC:2003(E)
Future standards in this series will carry the new general title as cited above. Titles of existing
standards in this series will be updated when a new edition is prepared.
The committee has decided that the contents of this publication will remain unchanged until
2007. At this date, the publication will be
• reconfirmed;
• withdrawn;
• replaced by a revised edition, or
• amended.
A bilingual version of this standard may be issued at a later date.

61076-3-103 © IEC:2003(E) – 7 –
CONNECTORS FOR ELECTRONIC EQUIPMENT –

Part 3-103: Rectangular connectors – Detail specification for single row
connectors with non-removable ribbon cable contacts on 1,25 mm pitch
used for high speed serial data (HSSDC)

Specification available from: IEC Central Office or from the address shown on IEC 61076-3-103
the inside cover (electronic components of assessed quality)

Electronic components of assessed quality
DETAIL SPECIFICATION in accordance with IEC 61076-1:
See 3.2, 3.3, 3.4 and 3.5 for dimensions Two part modular connectors for
printed boards and backplanes. This

standard is applicable to HSSDC type
connectors
The connector fixed board connector

(receptacle) is suitable for mounting

on printed boards and the free cable
connector (plug) is suitable for
permanent attachment to cable.
Performance level(s): 1
Assessment levels:
Combination of performance levels
and assessment levels:
IEC  2660/03
Information on the availability of components qualified to this standard is given in the qualified
products list.
– 8 – 61076-3-103  IEC:2003(E)
1 General
1.1 Scope
This standard applies to a family of connectors having the following characteristics:
• shielded,
• rectangular-shaped mating interface,
• 1,25 mm pitch spacing of contacts on a single row,
• 8 positions,
• for wire-to-board applications.
All dimensions in this document apply to the unmated finished product after assembly to
printed circuit boards or cables.
This standard establishes uniform specifications, testing requirements and quality assessment
procedures. It is intended to be used in conjunction with sectional specification IEC 61076-3.
1.2 Recommended method of mounting
Fixed board connector is mounted on the printed circuit board with surface mount solder
terminations having board lock or holding fixtures.
1.2.1 Number of contacts or contact cavities
There are 8 positions.
1.3 Ratings and characteristics
Rated voltage: 30 V DC
Current rating: 1 A per contact (positions 2 and 7 (first make – last break)
contacts energized in parallel)
Insulation resistance: 100 MΩ minimum
Mechanical operation: 500 cycles
Contact resistance: signal contacts 35 mΩ maximum initial
shield contacts 42 mΩ maximum initial
Climatic category: –55 °C to +100 °C
Characteristic impedance: 140 Ω – 160 Ω
Near end crosstalk: 30 dB maximum
Transfer impedance: TBD
Printed board thickness: 1,60 mm ± 0,15 mm
Contact spacing: 1,25 mm
61076-3-103 © IEC:2003(E) – 9 –
1.4 Reference documents
IEC 60512 (all parts), Connectors for electronic equipment – Tests and measurements
IEC 60512-1-100:2001, Connectors for electronic equipment – Tests and measurements –
Part 1-100: General – Applicable publications
IEC 61076-1:1995, Connectors with assessed quality, for use in d.c., low frequency analogue
and in digital high speed data applications – Part 1: Generic specification
IEC 61076-3:1999, Connectors for use in d.c., low-frequency analogue and digital high-speed
data applications – Part 3: Rectangular connectors with assessed quality – Sectional
specification
IEC 61076-3-001:1999, Connectors for use in d.c., low-frequency analogue and digital high-
speed data applications – Part 3-001: Rectangular connectors with assessed quality – Blank
detail specification
ISO 1302:2002, Geometrical Product Specifications (GPS) – Indication of surface texture in
technical product documentation
1.5 Marking
The marking of the connector and package shall be in accordance with 2.6 of IEC 61076-3.

– 10 – 61076-3-103  IEC:2003(E)

1.6 IEC type designation
The designation shall be derived in accordance with 2.5 of IEC 61076-3.

IEC 61076-3-103 - LL LL NN
Number
of this
detail
specification
Letters denoting the style of
the connector
EC Free cable
XB Fixed board
Letters denoting connector
orientation
SA Straight (version 1)
SB Straight (version 2)
SC Straight (version 3)
RR Right angle (version 1)
RE Right angle (version 2)
bulkhead mount
RP Right angle (version 2) PCI
bracket assembly
TA Straddle mount (version 1)
TB Straddle mount (version 2)
Mounting bracket type
01 1 bay with forward boardlocks (version 1)
02 2 bay with forward boardlocks (version 1)
03 2 bay with rearward boardlocks (version 1)
05 1 bay for bulkhead mount
06 2 bay for bulkhead mount
07 3 bay for bulkhead mount
08 4 bay for bulkhead mount
“L” stands for letter.
“N” stands for number.
Example: IEC 61076-3-103 - XBRR02
Fixed board connector style, right angle (version 1) connector orientation, with 2 bay forward
boardlock (version 1) mounting brackets.

61076-3-103 © IEC:2003(E) – 11 –
1.7 Ordering information
For ordering connectors according to this detail specification, the type designation described in
1.6 shall be used.
2 Technical information
2.1 Terminology
2.1.1 Free connector (Plug connector)
A connector for attachment to the free end of the wire or cable. (Used to describe the gender of
the mating side of the connector that penetrates its mate upon mating. This gender is
frequently, but not always, associated with the common terminology “free”. Other terms
commonly used are “male” and “pin connector.)
2.1.2 Fixed connector (Receptacle connector)
A connector for attachment to a rigid surface. (Used to describe the gender of the mating side
of the connector that accepts its mate upon mating. This gender is frequently, but not always,
associated with the common terminology “fixed”. Other terms commonly used are “female” and
“socket” connector.)
2.1.3 Ribbon cable
A copper conductor cable in which the copper conductors are aligned in a flat ribbon.
2.2 Survey of styles and variants for fixed board connectors (XB)
Table 1 – Styles and variants for fixed board connectors (XB)
Connector orientation Figures
Right angle (version 1) (RR) 1 to 4
Right angle (version 2) bulkhead mount (RE) 5 to 8
Right angle (version 2) PCI bracket assembly (RP) 9 to 12
Straddle mount (version 1) (TA) 13 to 16
Straddle mount (version 2) (TB) 17 to 20
NOTE For applicable printed circuit board layout, see Table 4.

2.3 Survey of styles and variants for free cable connectors (EC)
Table 2 – Styles and variants for free cable connectors (EC)
Connector orientation Figure
Straight (version 1) (SA) 22
Straight (version 2) (SB) 23
Straight (version 3) (SC) 24
2.4 Information on fixed board connector application
Fixed board connectors fit only one way into the printed circuit board.

– 12 – 61076-3-103  IEC:2003(E)
3 Dimensional information
3.1 General
Original dimensions are millimeters.
Drawings are shown in third angle projection.
The shape of the connectors may deviate from those given in the following drawings as long as
the specified dimensions are not influenced.
3.2 Isometric view and common features for fixed board connector (XB)
3.2.1 Fixed board connector (XB) right angle (version 1) (RR)

IEC  2661/03
Figure 1 – Isometric view fixed board connector (XB)
right angle (version 1) (RR)
61076-3-103 © IEC:2003(E) – 13 –

3.2.1.1 Height dimensions
Position 1
19,69 ± 0,08
20,32 ± 0,15
IEC  2662/03
Figure 2 – Front view fixed board connector (XB)
right angle (version 1) (RR)
3.2.1.2 Width dimensions
IEC  2663/03
Figure 3 – Top view fixed board connector (XB)
right angle (version 1) (RR)
– 14 – 61076-3-103  IEC:2003(E)

3.2.1.3 Depth dimensions
9,85 ± 0,08
8,64 ± 0,11
16,19 ± 0,15
19,95 ± 0,40
IEC  2664/03
Figure 4 – Side view fixed board connector (XB)
right angle (version 1) (RR)
3.2.2 Fixed board connector (XB) right angle (version 2) bulkhead mount (RE)

IEC  2665/03
Figure 5 – Isometric view fixed board connector (XB) right angle (version 2)
bulkhead mount (RE)
61076-3-103 © IEC:2003(E) – 15 –
3.2.2.1 Height dimensions
16,5
IEC  2666/03
Figure 6 – Front view fixed board connector (XB) right angle (version 2)
bulkhead mount (RE)
3.2.2.2 Width dimensions
14,2
19,6
IEC  2667/03
Figure 7 – Top view fixed board connector (XB) right angle (version 2)
bulkhead mount (RE)
3.2.2.3 Depth dimensions
20,6
IEC  2668/03
Figure 8 – Side view fixed board connector (XB) right angle (version 2)
bulkhead mount (RE)
– 16 – 61076-3-103  IEC:2003(E)
3.2.3 Fixed board connector (XB) right angle (version 2) PCI bracket assembly (RP)

Position 1
IEC  2669/03
Figure 9 – Isometric view fixed board connector (XB) right angle (version 2)
PCI bracket assembly (RP)
3.2.3.1 Height dimensions
16,5
IEC  2670/03
Figure 10 – Front view fixed board connector (XB) right angle (version 2)
PCI bracket assembly (RP)
3.2.3.2 Width dimensions
Position 1
14,3
IEC  2671/03
Figure 11 – Top view fixed board connector (XB) right angle (version 2)
PCI bracket assembly (RP)
61076-3-103 © IEC:2003(E) – 17 –
3.2.3.3 Depth dimensions
20,6
17,0
IEC  2672/03
Figure 12 – Side view fixed board connector (XB) right angle (version 2)
PCI bracket assembly (RP)
3.2.4 Fixed board connector (XB) straddle mount (version 1) (TA)

IEC  2673/03
Figure 13 – Isometric view fixed board connector (XB)
straddle mount (version 1) (TA)

3.2.4.1 Height dimensions
19,69 ± 0,05
Position 1
IEC  2674/03
Figure 14 – Front view fixed board connector (XB)
straddle mount (version 1) (TA)

– 18 – 61076-3-103  IEC:2003(E)
3.2.4.2 Width dimensions
25,96 ± 0,30
IEC  2675/03
Figure 15 – Top view fixed board connector (XB)
straddle mount (version 1) (TA)

3.2.4.3 Depth dimensions
18,03 ± 0,21
2,98 ± 0,08
9,85 ± 0,08
IEC  2676/03
Figure 16 – Side view fixed board connector (XB)
straddle mount (version 1) (TA)

61076-3-103 © IEC:2003(E) – 19 –
3.2.5 Fixed board connector (XB) straddle mount (version 2) (TB)

IEC  2677/03
Figure 17 – Isometric view fixed board connector (XB)
straddle mount (version 2) (TB)

3.2.5.1 Depth dimensions
9,96
IEC  2678/03
Figure 18 – Front view fixed board connector (XB)
straddle mount (version 2) (TB)
3.2.5.2 Width dimensions
31,31
IEC  2679/03
Figure 19 – Top view fixed board connector (XB)
straddle mount (version 2) (TB)

– 20 – 61076-3-103  IEC:2003(E)

3.2.5.3 Depth dimensions
26,32
IEC  2680/03
Figure 20 – Side view fixed board connector (XB)
straddle mount (version 2) (TB)
3.3 Isometric view and common features for free cable connector (EC)
3.3.1 Free cable connector (EC) straight (version 1) (SA)

IEC  2681/03
Figure 21 – Isometric view free cable connector (EC)
straight (version 1) (SA)
61076-3-103 © IEC:2003(E) – 21 –
3.3.1.1 Dimensions
14,5
Max.
60,5
Max.
16,0
Min.
Position 1
19,5
4,04
Position 1
Max.
Ref.
Top view Bottom view
IEC  2682/03
Figure 22 – Free cable connector (EC) straight (version 1) (SA)

– 22 – 61076-3-103  IEC:2003(E)
3.3.2 Free cable connector (EC) straight (version 2) (SB)
15,4
54,5
Bottom view
5,5
17,8
IEC  2683/03
Figure 23 – Free cable connector (EC) straight (version 2) (SB)

61076-3-103 © IEC:2003(E) – 23 –
3.3.3 Free cable connector (EC) straight (version 3) (SC)

10,7 Max.
18,3 Max.
46,3 Max.
2,8 Max.
Position 1
Top view
Bottom view
IEC  2684/03
Figure 24 – Free cable connector (EC) straight (version 3) (SC)

– 24 – 61076-3-103  IEC:2003(E)
3.4 Mating Information
The process of mating an HSSDC connector pair should be accomplished in a “free fit” manner
where no excessive mechanical stresses are placed on the connectors during or after the
mating process. The mating process should be considered in the context of the packaging
surrounding the device, and cable harnessing and management after connection is made.
Stresses considered include those transmitted to the mated connector interface: for example,
cable weight, cable harnessing, and interference with enclosure parts.
The positional requirements in Figure 25 are those existing in the fully mated condition.
3.4.1 Mating direction
Reliable electrical contact is ensured when the free and fixed locking latches are fully engaged
as indicated in Figure 25.
12,1 Ref.
9,8/10,10
Front of
7,83/8,55
receptacle
Plug and receptacle
latching surface
Receptacle
housing
Plug contact
Long receptacle
contact
0,55/2,00
Short receptacle
contact
7,70 Max.
10,18/10,70
IEC  2685/03
Figure 25 – Mating dimensions
61076-3-103 © IEC:2003(E) – 25 –
3.5 Fixed board connector connectors interface dimensions
Dimensions are as indicated in Figure 26.
A 14,76 ± 0,05
Seating surface
5,28 ± 0,05
11,68 ± 0,04
C
Section Y-Y
(0,50)
0,13 B
C A
0,26 ± 0,22
Detail D 5,79 ± 0,05
0,05 M C A B
Position 1
2,95 ± 0,13
0,18
M C A B
2,19 ± 0,13
Latch surface
1,43 ± 0,13
1,17 ± 0,18
5,24 ± 0,05
Y Y
B
Detail D
7× 1,25
4,375
10,06 ± 0,13
0,08 C A B
Centre of datum A
IEC  2686/03
Figure 26 – Fixed board connector connector interface dimensions

– 26 – 61076-3-103  IEC:2003(E)
3.6 Free cable connectors interface dimensions
Dimensions are as indicated in Figure 27.
14,98 Max.
Across metal shield
2,80 Max.
0,08 M X Y
15,20 ± 0,13
X
5,39 ± 0,08
5,59 ± 0,08
0,08 M X Y
14,61 ± 0,05
Y
5,08 ± 0,08
(0,50)
Position 1
0,08 X Y
Centre of datum Y
Centre of the contact
4,375
7× 1,25
Position 1
IEC  2687/03
Figure 27 – Free cable connector connector interface dimensions

61076-3-103 © IEC:2003(E) – 27 –
3.7 Mounting information for fixed board (XB) connectors
For mounting pattern on printed boards, see Figures 28 to 35.
Table 3 – Printed circuit board layouts for fixed board (XB) connectors
Connector orientation Figure
Right angle (version 1) (RR) See Figure 28
Right angle (version 2) bulkhead mount (RE) See Figure 29
Right angle (version 2) PCI bracket assembly (RP) See Figure 30
Straddle mount (version 1) (TA) See Figure 31
Straddle mount (version 2) (TB) See Figure 32
Right angle (version 1) (RR) for 1-bay panel mount with forward boardlocks (version 1) See Figure 33
(01)
Right angle (version 1) for 2-bay panel mount with forward boardlocks (version 1) (02) See Figure 34
Right angle (version 1) for 2-bay panel mount with rearward boardlocks (version 1) (03) See Figure 35
NOTE For applicable styles and variants, see Table 1.

3.7.1 Fixed board connector (XB) right angle (version 1) (RR) printed board mounting
pattern
Fixed board connector (XB) right angle (version 1) (RR) printed board mounting pattern shall
be as defined in Figure 28.
20,06
X
11,83
,XXX
∅2,80 ± 0,05 (2×)
5,65
4,11
∅0,10 X Y
∅0,08
8,75
Edge of printed
circuit board
Edge of printed
circuit board 1,25
TYP.
Y
0,83
4,00 Max.
∅1,28 ± 0,05 (2×)
5,84
Plated through hole
X Y
∅0,10
5,01
∅0,08
TYP.
∅1,02 ± 0,05 (2×) 2,05 ± 0,08 TYP.
Plated through hole
0,15 X Y
X Y
∅0,10 0,05
∅0,08 0,76 ± 0,08 TYP.
0,10 X Y
0,05
IEC  2688/03
Figure 28 – Fixed board connector (XB) right angle (version 1) (RR)
printed board mounting pattern

– 28 – 61076-3-103  IEC:2003(E)
3.7.2 Fixed board connector (XB) right angle (version 2) bulkhead mount (RE) with 1
through 4 bay (05, 06, 07, and 08) printed board mounting pattern
Fixed board connector (XB) right angle (version 2) bulkhead mount (RE) with 1 through 4 bay
(05, 06, 07, and 08) printed board mounting pattern shall be as defined in Figure 29.

15,46
12,46
8,75
1,75 (7×)
0,76 ± 0,05 (8×)
0,12 M C D
Position 4 Position 3 Position 2 Position 1
2,54 ± 0,05
0,20 M C D
12,00
7,85 (2×)
7,60
0,20
See NOTE
2,70 (2×)
∅2,83 ± 0,05
∅1,30 Plated
D
4,00
through hole (8×)
8,00
∅0,12 M
F C D
VAR. “L”
∅0,08 M E
see NOTE
∅2,83 ± 0,05 Through hole
VAR. “L” + 20,00
∅0,10M C D
VAR. “L” + 40,00
C
VAR. “L” + 60,00
E
IEC  2689/03
4 bay shown
NOTE Datum and basic dimension to be established by user.
Figure 29 – Fixed board connector (XB) right angle (version 2) bulkhead mount (RE)
for 1 through 4 bay (05, 06, 07, and 08) printed board mounting pattern

61076-3-103 © IEC:2003(E) – 29 –
3.7.3 Fixed board connector (XB) right angle (version 2) PCI bracket assembly (RP)
with 1 through 4 bay (05, 06, 07, and 08) printed board mounting pattern
Fixed board connector (XB) right angle (version 2) PCI bracket assembly (RP) with 1 through 4
bay (05, 06, 07, and 08) printed board mounting pattern shall be as defined in Figure 30.

8,75
1,25 (7×)
0,76 ± 0,04 (8×)
0,15 M D E
0,05
M
2,54 ± 0,03
0,20 M D E
12,00
0,20
7,85 (2×)
2,70 (4×)
(7,60)
∅1,30 ± 0,08 Plated
8,90 NTS
through holes (8×)
0,20 M D E
M
0,05
(2,83)
8,00
0,15 D
∅2,83 ± 0,08 (2×)
12,46
E
D
15,46
Panel (REF.)
IEC  2690/03
1 bay shown
Figure 30 – Fixed board connector (XB) right angle (version 2) PCI bracket assembly (RP)
with 1 through 4 bay (05, 06, 07, and 08) printed board mounting pattern

– 30 – 61076-3-103  IEC:2003(E)
3.7.4 Fixed board connector (XB) straddle mount (version 1) (TA) printed board
mounting pattern
Fixed board connector (XB) straddle mount (version 1) (TA) printed board mounting pattern
shall be as defined in Figure 31.
8,75
3,48
Edge of printed
circuit board
1,25
TYP. Position 1
2,54 ± 0,05 (8×)
N
0,23 M N
1,83
0,05
,NNN
1,83 Max.
M
Edge of printed
circuit board
5,08
2,04 ± 0,08 (4×)
1,02 ± 0,05 (4×)
3,90 ± 0,08 (4×)
1,02 ± 0,05 (4×)
0,76 ± 0,03 (8×)
∅1,02 ± 0,08 (4×)
0,23 M N
Plated through hole
15,71
0,05
M N
∅0,15
∅0,08
IEC  2691/03
Figure 31 – Fixed board connector (XB) straddle mount (version 1) (TA)
printed board mounting pattern

61076-3-103 © IEC:2003(E) – 31 –
3.7.5 Fixed board connector (XB) straddle mount (version 2) (TB) printed board
mounting pattern
Fixed board connector (XB) straddle mount (version 2) (TB) printed board mounting pattern
shall be as defined in Figure 32.

8,75
1,25
0,760
2,39
2,540
IEC  2692/03
Figure 32 – Fixed board connector (XB) straddle mount (version 2) (TB)
printed board mounting pattern

----------------------
...
