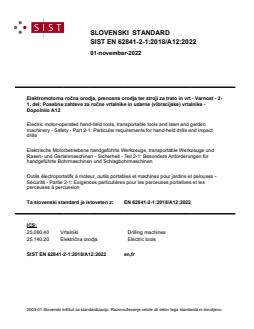

EN 62841-2-1:2018/A12:2022

SLOVENSKI STANDARD
01-november-2022
Elektromotorna ročna orodja, prenosna orodja ter stroji za trato in vrt - Varnost - 2-
1. del: Posebne zahteve za ročne vrtalnike in udarne (vibracijske) vrtalnike -
Dopolnilo A12
Electric motor-operated hand-held tools, transportable tools and lawn and garden
machinery - Safety - Part 2-1: Particular requirements for hand-held drills and impact
drills
Elektrische Motorbetriebene handgeführte Werkzeuge, transportable Werkzeuge und
Rasen- und Gartenmaschinen - Sicherheit - Teil 2-1: Besondere Anforderungen für
handgeführte Bohrmaschinen und Schlagbohrmaschinen
Outils électroportatifs à moteur, outils portables et machines pour jardins et pelouses -
Sécurité - Partie 2-1: Exigences particulières pour les perceuses portatives et les
perceuses à percussion
Ta slovenski standard je istoveten z: EN 62841-2-1:2018/A12:2022
ICS:
25.080.40 Vrtalniki Drilling machines
25.140.20 Električna orodja Electric tools
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

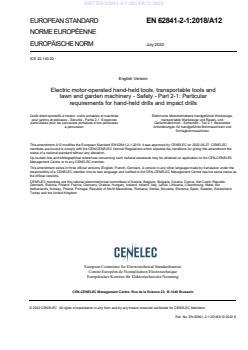

EUROPEAN STANDARD EN 62841-2-1:2018/A12

NORME EUROPÉENNE
EUROPÄISCHE NORM July 2022
ICS 25.140.20
English Version
Electric motor-operated hand-held tools, transportable tools and
lawn and garden machinery - Safety - Part 2-1: Particular
requirements for hand-held drills and impact drills
Outils électroportatifs à moteur, outils portables et machines Elektrische Motorbetriebene handgeführte Werkzeuge,
pour jardins et pelouses - Sécurité - Partie 2-1: Exigences transportable Werkzeuge und Rasen- und
particulières pour les perceuses portatives et les perceuses Gartenmaschinen - Sicherheit - Teil 2-1: Besondere
à percussion Anforderungen für handgeführte Bohrmaschinen und
Schlagbohrmaschinen
This amendment A12 modifies the European Standard EN 62841-2-1:2018; it was approved by CENELEC on 2022-06-27. CENELEC
members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this amendment the
status of a national standard without any alteration.
Up-to-date lists and bibliographical references concerning such national standards may be obtained on application to the CEN-CENELEC
Management Centre or to any CENELEC member.
This amendment exists in three official versions (English, French, German). A version in any other language made by translation under the
responsibility of a CENELEC member into its own language and notified to the CEN-CENELEC Management Centre has the same status as
the official versions.
CENELEC members are the national electrotechnical committees of Austria, Belgium, Bulgaria, Croatia, Cyprus, the Czech Republic,
Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, the
Netherlands, Norway, Poland, Portugal, Republic of North Macedonia, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland,
Turkey and the United Kingdom.

European Committee for Electrotechnical Standardization
Comité Européen de Normalisation Electrotechnique
Europäisches Komitee für Elektrotechnische Normung
CEN-CENELEC Management Centre: Rue de la Science 23, B-1040 Brussels
© 2022 CENELEC All rights of exploitation in any form and by any means reserved worldwide for CENELEC Members.
Ref. No. EN 62841-2-1:2018/A12:2022 E

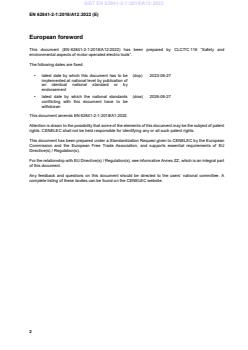

European foreword
This document (EN 62841-2-1:2018/A12:2022) has been prepared by CLC/TC 116 “Safety and
environmental aspects of motor-operated electric tools”.
The following dates are fixed:
• latest date by which this document has to be (dop) 2023-06-27
implemented at national level by publication of
an identical national standard or by
endorsement
• latest date by which the national standards (dow) 2026-06-27
conflicting with this document have to be
withdrawn
This document amends EN 62841-2-1:2018/A1:2022.
Attention is drawn to the possibility that some of the elements of this document may be the subject of patent
rights. CENELEC shall not be held responsible for identifying any or all such patent rights.
This document has been prepared under a Standardization Request given to CENELEC by the European
Commission and the European Free Trade Association, and supports essential requirements of EU
Directive(s) / Regulation(s).
For the relationship with EU Directive(s) / Regulation(s), see informative Annex ZZ, which is an integral part
of this document.
Any feedback and questions on this document should be directed to the users’ national committee. A
complete listing of these bodies can be found on the CENELEC website.
1 Modification to Clause 1, "Scope"
Add the following after the NOTE 102:
“This document covers all significant hazards, hazardous situations or hazardous events relevant for tools
covered by this document.
NOTE Z101 Essential requirements not mentioned in Table ZZ.1 are deemed to be not applicable, because the
corresponding hazards are either not relevant for tools covered by this document or do not require specific action by
the designer.”
2 Modification to Subclause I.2.9, "Declaration and verification of noise
emission values"
Replace the existing addition to I.2.9 as follows:
“Addition:
NOTE In order to include the noise emission under load, the values K and K for drills can be expected to be up
pA WA
to 5 dB.“
3 Modification to Clause K.21, "Construction"
Delete the new NOTE 101 and add the following new subclause:
“K.21.18.Z101  Isolation and disabling device
Tools with an integral battery, except for tools with M ≤ 25 Nm measured in accordance with 19.102 and
R
having only a single handle, shall either be equipped:
— with an isolation device to prevent the risk of injury from mechanical hazards during servicing or user
maintenance; or
— with a disabling device that prevents unintentional starting of the tool.
An isolation device shall:
— provide disconnection of at least one pole of the battery from the serviceable region of the tool;
— be equipped with an unambiguous indication of the state of the disconnection device which
corresponds to each position of its manual control (actuator);
— be provided with protection against accidental reconnection.
NOTE Examples of methods to achieve this disconnection include removable jumpers, integral batteries that
can be disconnected for servicing or user maintenance, or an electromechanical power switch with a direct
mechanical link between the actuator and the contact.
A disabling device may be achieved by any of the following:
— a self-restoring or non-self-restoring lock-off device where two separate and dissimilar actions are
necessary before the motor is switched on (e.g. a power switch which has to be pushed in before it
can be moved laterally to close the contacts to start the motor). It shall not be possible to achieve these
two actions with a single grasping motion or a straight-line motion;
— a removable disabling device provided with the tool where it shall not be possible for the tool to be
operated when either applied or removed.
Compliance is checked by inspection and by manual test.”
4 Modification to Clause L.21, "Construction"
Delete the new NOTE 101 and add the following new subclause:
“L.21.18.Z101  Isolation and disabling device
Tools with an integral battery, except fo
...
