EN 60352-2:2006/A1:2013
(Amendment)Solderless connections - Part 2: Crimped connections - General requirements, test methods and practical guidance
Solderless connections - Part 2: Crimped connections - General requirements, test methods and practical guidance
2013-08-05: Publication allocated to cpalagi@cencenelec.eu
Lötfreie Verbindungen - Teil 2: Crimpverbindungen - Allgemeine Anforderungen, Prüfverfahren und Anwendungshinweise
Connexions sans soudure - Partie 2: Connexions serties - Exigences générales, méthodes d'essai et guide pratique
Nespajkani spoji - 2. del: Nespajkani stisnjeni spoji - Splošne zahteve, preskusne metode in praktični napotki - Dopolnilo A1 (IEC 60352-2:2006/A1:2013)
General Information
- Status
- Published
- Publication Date
- 05-Sep-2013
- Withdrawal Date
- 31-Jul-2016
- Technical Committee
- CLC/SR 48B - Connectors
- Drafting Committee
- IEC/SC 48B - IEC_SC_48B
- Current Stage
- 6060 - Document made available - Publishing
- Start Date
- 06-Sep-2013
- Completion Date
- 06-Sep-2013
Relations
- Effective Date
- 25-Jan-2023
- Effective Date
- 29-Jan-2023
Overview
EN 60352-2:2006/A1:2013 (IEC 60352-2:2006/A1:2013) is the CENELEC amendment covering solderless crimped connections. It specifies general requirements, test methods and practical guidance for crimped contact joints used in electrical assemblies. Amendment A1 (approved 2013) updates the original 2006 edition and contains graphs, formulae and test-current recommendations for verifying contact performance.
Key topics and technical requirements
- Scope and purpose: Defines performance requirements and test procedures for crimped, solderless connections used with copper barrels and conductors.
- Contact resistance limits: The amendment provides a graph (Figure 6) and an equation to determine maximum allowed initial contact resistance (A) and the maximum allowed change after conditioning (B). The relationship is given as:
- A = 0.4596 × C^(–0.8843) (A in milliohms, C = conductor cross‑section in mm²)
- B = A / 2 (maximum allowed change in resistance after electrical or climatic conditioning)
- Test current guidance: Figure 8 and accompanying notes specify how to select test currents for different conductor cross‑sections:
- For conductor cross‑sections from 0.05 mm² to 1 mm², test current = 15 × C (C in mm²).
- Reference/test current values are provided for conductor cross‑sections above 1 mm².
- Conditioning and verification: The standard addresses electrical and climatic conditioning and sets limits for change in contact resistance after such conditioning.
- Graphical tools: Curves for initial resistance (Curve A) and maximum change after conditioning (Curve B) are included to facilitate compliance checks.
Practical applications and who uses this standard
EN 60352-2/A1 is used by industry professionals who design, manufacture, assemble or test crimped connections, including:
- Connector and terminal manufacturers (for product specifications)
- Cable-assembly and wiring-harness manufacturers (quality control and process validation)
- Design engineers (to specify acceptable contact performance)
- Test laboratories and inspectors (for verification and compliance testing)
- Quality assurance and regulatory teams (to support certification and conformity claims)
Typical application sectors include automotive, industrial control, consumer electronics, telecommunications, aerospace and electrical equipment manufacturing where reliable solderless crimp joints are critical.
Related standards
- IEC 60352 series (other parts covering different types of solderless connections)
- National and sector-specific wiring and connector standards (referencing EN/IEC connector requirements)
Keywords: EN 60352-2, IEC 60352-2, crimped connections, solderless connections, contact resistance, test current, wire cross-section, crimp test methods, connector reliability.
Frequently Asked Questions
EN 60352-2:2006/A1:2013 is a amendment published by CLC. Its full title is "Solderless connections - Part 2: Crimped connections - General requirements, test methods and practical guidance". This standard covers: 2013-08-05: Publication allocated to cpalagi@cencenelec.eu
2013-08-05: Publication allocated to cpalagi@cencenelec.eu
EN 60352-2:2006/A1:2013 is classified under the following ICS (International Classification for Standards) categories: 31.220.10 - Plug-and-socket devices. Connectors. The ICS classification helps identify the subject area and facilitates finding related standards.
EN 60352-2:2006/A1:2013 has the following relationships with other standards: It is inter standard links to EN IEC 60352-2:2024, EN 60352-2:2006. Understanding these relationships helps ensure you are using the most current and applicable version of the standard.
You can purchase EN 60352-2:2006/A1:2013 directly from iTeh Standards. The document is available in PDF format and is delivered instantly after payment. Add the standard to your cart and complete the secure checkout process. iTeh Standards is an authorized distributor of CLC standards.
Standards Content (Sample)
SLOVENSKI STANDARD
01-februar-2014
1HVSDMNDQLVSRMLGHO 1HVSDMNDQLVWLVQMHQLVSRML6SORãQH]DKWHYHSUHVNXVQH
PHWRGHLQSUDNWLþQLQDSRWNL'RSROQLOR$ ,(& $
Solderless connections - Part 2: Crimped connections - General requirements, test
methods and practical guidance
Lötfreie Verbindungen - Teil 2: Crimpverbindungen - Allgemeine Anforderungen,
Prüfverfahren und Anwendungshinweise
Connexions sans soudure - Partie 2: Connexions serties - Exigences générales,
méthodes d'essai et guide pratique
Ta slovenski standard je istoveten z: EN 60352-2:2006/A1:2013
ICS:
29.120.20 Spojni elementi Connecting devices
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.
EUROPEAN STANDARD
EN 60352-2/A1
NORME EUROPÉENNE
September 2013
EUROPÄISCHE NORM
ICS 31.220.10
English version
Solderless connections -
Part 2: Crimped connections -
General requirements, test methods and practical guidance
(IEC 60352-2:2006/A1:2013)
Connexions sans soudure - Lötfreie Verbindungen -
Partie 2: Connexions serties - Teil 2: Crimpverbindungen -
Exigences générales, méthodes d'essai et Allgemeine Anforderungen, Prüfverfahren
guide pratique und Anwendungshinweise
(CEI 60352-2:2006/A1:2013) (IEC 60352-2:2006/A1:2013)
This amendment A1 modifies the European Standard EN 60352-2:2006; it was approved by CENELEC on 2013-
08-01. CENELEC members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate
the conditions for giving this amendment the status of a national standard without any alteration.
Up-to-date lists and bibliographical references concerning such national standards may be obtained on
application to the CEN-CENELEC Management Centre or to any CENELEC member.
This amendment exists in three official versions (English, French, German). A version in any other language
made by translation under the responsibility of a CENELEC member into its own language and notified to the
CEN-CENELEC Management Centre has the same status as the official versions.
CENELEC members are the national electrotechnical committees of Austria, Belgium, Bulgaria, Croatia, Cyprus,
the Czech Republic, Denmark, Estonia, Finland, Former Yugoslav Republic of Macedonia, France, Germany,
Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, the Netherlands, Norway, Poland,
Portugal, Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland, Turkey and the United Kingdom.
CENELEC
European Committee for Electrotechnical Standardization
Comité Européen de Normalisation Electrotechnique
Europäisches Komitee für Elektrotechnische Normung
CEN-CENELEC Management Centre: Avenue Marnix 17, B - 1000 Brussels
© 2013 CENELEC - All rights of exploitation in any form and by any means reserved worldwide for CENELEC members.
Ref. No. EN 60352-2:2006/A1:2013 E

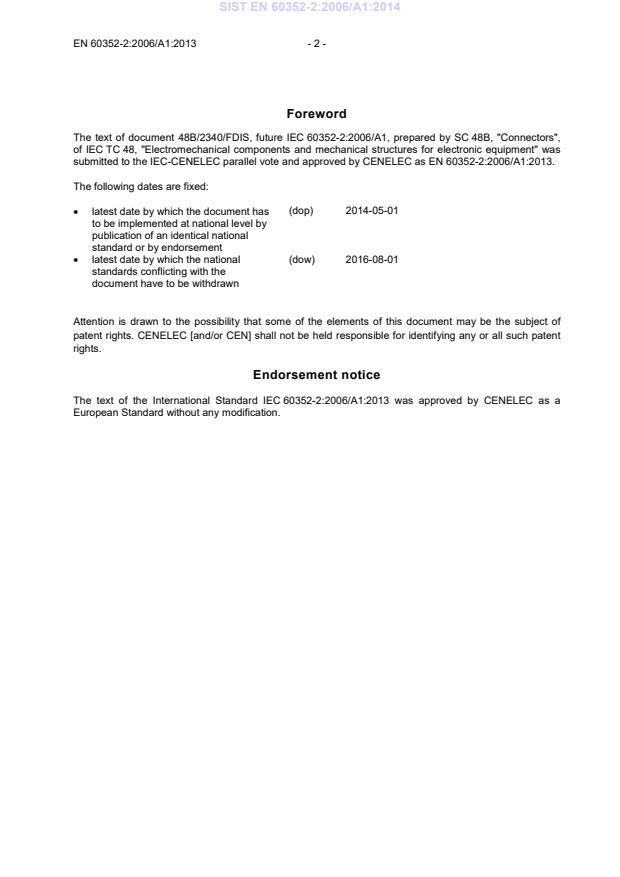

Foreword
