EN 50064:2018
(Main)High-voltage switchgear and controlgear - Gas-filled wrought aluminium and aluminium alloy enclosures
High-voltage switchgear and controlgear - Gas-filled wrought aluminium and aluminium alloy enclosures
This document applies to wrought aluminium and aluminium alloy enclosures and their welding. These enclosures are pressurized with dry air, inert gases, for example sulphur hexafluoride or nitrogen or a mixture of such gases, used in indoor and outdoor installations of high-voltage switchgear and controlgear with rated voltages above 1 kV, where the gas is used principally for its dielectric and/or arc-quenching properties with rated voltages. - above 1 kV and up to and including 52 kV concerning gas-filled compartments with design pressure higher than 300 kPa relative pressure (gauge); - above 52 kV concerning all gas-filled compartments. The enclosures comprise parts of electrical equipment not necessarily limited to the following examples: - circuit-breakers; - switch-disconnectors; - disconnectors; - earthing switches; - current transformers; - voltage transformers; - surge arrestors; - busbars and connections; - etc. The scope also covers enclosures of pressurized components such as the centre chamber of live tank switchgear, gas-insulated current transformers, etc.
Hochspannungs-Schaltgeräte und -Schaltanlagen - Gasgefüllte Kapselungen aus Aluminium und Aluminium-Knetlegierungen
Appareillage électrique haute tension - Enveloppes sous pression en aluminium corroyé et en alliage d’aluminium
Le présent document s’applique aux enveloppes en aluminium corroyé et en alliage d'aluminium et leur soudage. Ces enveloppes sont sous pression d'air sec et de gaz inertes, par exemple l'hexafluorure de soufre ou l'azote ou un mélange de tels gaz, utilisées dans les installations intérieures et extérieures d'appareillage à haute tension sous des tensions assignées supérieures à 1 kV. Le gaz est utilisé principalement pour ses propriétés diélectriques et/ou d'extinction de l'arc avec des tensions assignées. - supérieures à 1 kV et inférieures ou égales à 52 kV, en ce qui concerne les compartiments à remplissage de gaz dont la pression de calcul est supérieure à une pression relative (manométrique) de 300 kPa; - supérieures à 52 kV en ce qui concerne tous les compartiments à remplissage de gaz. Exemples de parties d'équipements électriques contenues dans les enveloppes: - disjoncteurs; - interrupteurs-sectionneurs; - sectionneurs; - sectionneurs de terre; - transformateurs de courant; - transformateurs de tension; - parafoudres; - jeux de barres et barres de raccordement; - etc. Le domaine d'application couvre également les enveloppes de composants sous pression tels que le carter d'appareillage à mécanisme sous tension, les transformateurs de courant à isolation gazeuse, etc.
Visokonapetostne stikalne in krmilne naprave - S plinom polnjena ohišja iz gnetljivega aluminija in aluminijevih zlitin
Ta evropski standard se uporablja za ohišja iz varjenega gnetljivega aluminija in aluminijeve zlitine s suhim zrakom ter inertnimi plini pod tlakom, npr. žveplov heksafluorid ali dušik ali mešanica takih plinov, ki se uporabljajo v notranjih in zunanjih namestitvah visokonapetostnih stikalnih ter krmilnih naprav z nazivnimi napetostmi nad 1kV, pri čemer se plin uporablja predvsem zaradi njegovih dielektričnih lastnosti in/ali lastnosti gašenja obloka z nazivnimi napetostmi:
– nad 1 kV in do vključno 52 kV ter s plinskimi razdelki s predvidenim tlakom, višjim od 300 kPa relativnega tlaka (merilnik);
– in z nazivno napetostjo nad 52 kV.
Ohišja zajemajo dele električne opreme, ki niso nujno omejeni na naslednje primere delov:
– odklopniki,
– stikala/ločilna stikala,
– ločilniki,
– ozemljitvena stikala,
– tokovni transformatorji,
– napetostni transformatorji,
– prenapetostni odvodniki,
– zbiralke in priključki,
– drugi deli.
Področje uporabe zajema tudi ohišja s komponentami pod tlakom, kot so sredinska komora stikalne komore pod napetostjo, plinsko izolirani tokovni transformatorji itd.
General Information
Relations
Standards Content (Sample)
SLOVENSKI STANDARD
01-januar-2019
1DGRPHãþD
SIST EN 50064:1998
SIST EN 50064:1998/A1:1998
Visokonapetostne stikalne in krmilne naprave - S plinom polnjena ohišja iz
gnetljivega aluminija in aluminijevih zlitin
High-voltage switchgear and controlgear - Gas-filled wrought aluminium and aluminium
alloy enclosures
Hochspannungs-Schaltgeräte und Schaltanlagen - Gasgefüllte Kapselungen aus
Aluminium und Aluminium-Knetlegierungen
Appareillage électrique haute tension - Enveloppes sous pression en aluminium corroyé
et en alliage d’aluminium
Ta slovenski standard je istoveten z: EN 50064:2018
ICS:
29.130.10 Visokonapetostne stikalne in High voltage switchgear and
krmilne naprave controlgear
77.150.10 Aluminijski izdelki Aluminium products
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.
EUROPEAN STANDARD EN 50064
NORME EUROPÉENNE
EUROPÄISCHE NORM
November 2018
ICS 29.130.10 Supersedes EN 50064:1989
English Version
High-voltage switchgear and controlgear - Gas-filled wrought
aluminium and aluminium alloy enclosures
Appareillage électrique haute tension - Enveloppes sous Hochspannungs-Schaltgeräte und Schaltanlagen -
pression en aluminium corroyé et en alliage d'aluminium Gasgefüllte Kapselungen aus Aluminium und Aluminium-
Knetlegierungen
This European Standard was approved by CENELEC on 2018-08-27. CENELEC members are bound to comply with the CEN/CENELEC
Internal Regulations which stipulate the conditions for giving this European Standard the status of a national standard without any alteration.
Up-to-date lists and bibliographical references concerning such national standards may be obtained on application to the CEN-CENELEC
Management Centre or to any CENELEC member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by translation
under the responsibility of a CENELEC member into its own language and notified to the CEN-CENELEC Management Centre has the
same status as the official versions.
CENELEC members are the national electrotechnical committees of Austria, Belgium, Bulgaria, Croatia, Cyprus, the Czech Republic,
Denmark, Estonia, Finland, Former Yugoslav Republic of Macedonia, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia,
Lithuania, Luxembourg, Malta, the Netherlands, Norway, Poland, Portugal, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden,
Switzerland, Turkey and the United Kingdom.
European Committee for Electrotechnical Standardization
Comité Européen de Normalisation Electrotechnique
Europäisches Komitee für Elektrotechnische Normung
CEN-CENELEC Management Centre: Rue de la Science 23, B-1040 Brussels
© 2018 CENELEC All rights of exploitation in any form and by any means reserved worldwide for CENELEC Members.
Ref. No. EN 50064:2018 E

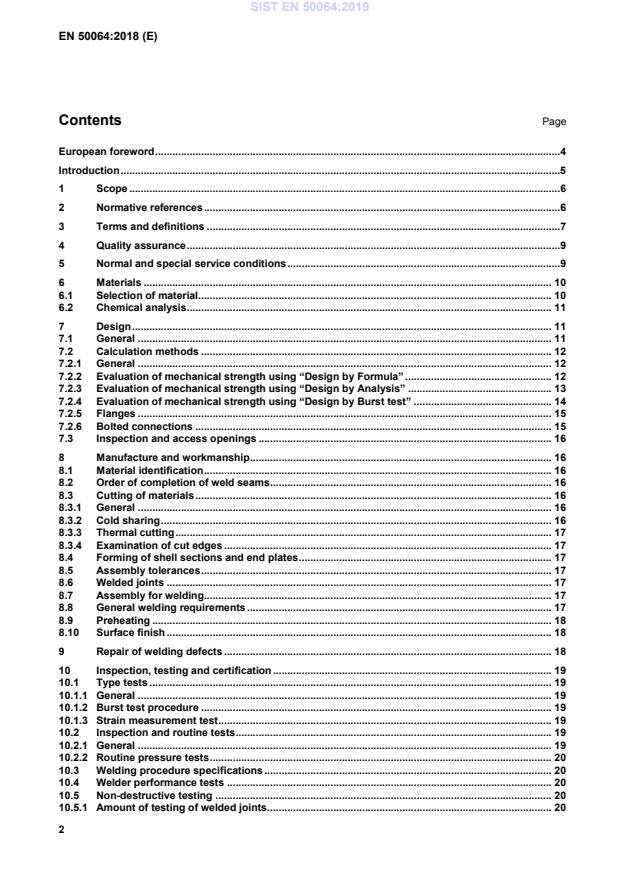

Contents Page
European foreword .4
Introduction .5
1 Scope .6
2 Normative references .6
3 Terms and definitions .7
4 Quality assurance .9
5 Normal and special service conditions .9
6 Materials . 10
6.1 Selection of material. 10
6.2 Chemical analysis. 11
7 Design . 11
7.1 General . 11
7.2 Calculation methods . 12
7.2.1 General . 12
7.2.2 Evaluation of mechanical strength using “Design by Formula” . 12
7.2.3 Evaluation of mechanical strength using “Design by Analysis” . 13
7.2.4 Evaluation of mechanical strength using “Design by Burst test” . 14
7.2.5 Flanges . 15
7.2.6 Bolted connections . 15
7.3 Inspection and access openings . 16
8 Manufacture and workmanship . 16
8.1 Material identification . 16
8.2 Order of completion of weld seams . 16
8.3 Cutting of materials . 16
8.3.1 General . 16
8.3.2 Cold sharing . 16
8.3.3 Thermal cutting . 17
8.3.4 Examination of cut edges . 17
8.4 Forming of shell sections and end plates . 17
8.5 Assembly tolerances . 17
8.6 Welded joints . 17
8.7 Assembly for welding. 17
8.8 General welding requirements . 17
8.9 Preheating . 18
8.10 Surface finish . 18
9 Repair of welding defects . 18
10 Inspection, testing and certification . 19
10.1 Type tests . 19
10.1.1 General . 19
10.1.2 Burst test procedure . 19
10.1.3 Strain measurement test . 19
10.2 Inspection and routine tests . 19
10.2.1 General . 19
10.2.2 Routine pressure tests . 20
10.3 Welding procedure specifications . 20
10.4 Welder performance tests . 20
10.5 Non-destructive testing . 20
10.5.1 Amount of testing of welded joints . 20
10.5.2 Test methods for weld seams . 21
10.5.3 Surface conditions and preparations for testing . 21
10.5.4 Marking of the enclosure welds . 22
10.5.5 Reporting . 22
10.5.6 Minimum acceptance levels . 22
10.5.7 Assessment of imperfections . 22
10.6 Design specification, drawings and data sheets . 24
10.7 Certificate . 24
10.8 Stamping . 24
10.9 Final inspection . 24
11 Pressure relief devices . 25
11.1 General . 25
11.2 Bursting discs . 25
11.3 Self-closing pressure relief valves . 25
11.4 Non-self-closing pressure relief devices . 25
Annex A (informative) A-deviation . 27
Bibliography . 28
European foreword
This document (EN 50064:2018) has been prepared by CLC/TC 17AC, “High-voltage switchgear and
controlgear”.
The following dates are fixed:
• latest date by which this document has (dop) 2019-08-27
to be implemented at national level by
publication of an identical national
standard or by endorsement
• latest date by which the national (dow) 2021-08-27
standards conflicting with this document
have to be withdrawn
Attention is drawn to the possibility that some of the elements of this document may be the subject of patent
rights. CENELEC shall not be held responsible for identifying any or all such patent rights.
This document supersedes EN 50064:1989.
This European Standard has been revised by CENELEC Technical Committee 17AC High-voltage
switchgear and controlgear. It supplements the relevant product standards on gas-insulated switchgear and
controlgear in that it provides specific requirements for pressurized high-voltage switchgear and controlgear.
The present EN has been written to get a European specification for the design, construction, testing,
inspection and certification of pressurized enclosures used in high-voltage switchgear and controlgear.
In this respect this European Standard constitutes the exclusion of HV switchgear from the scope of the
Directive 2014/68/EU (superseding 97/23/EC) concerning pressure equipment. Article 1, 2. (l) excludes
“enclosures for high-voltage electrical equipment such as switchgear, controlgear, transformers, and rotating
machines” from the scope of the Directive.
This standard deals with gas-insulated switchgear enclosures of wrought aluminium and aluminium alloy and
their welding. For different enclosure materials, other European Standards a
...
