EN 50525-2-72:2011
(Main)Electric cables - Low voltage energy cables of rated voltages up to and including 450/750 V (U0/U) - Part 2-72: Cables for general applications - Flat divisible cables (cords) with thermoplastic PVC insulation
Electric cables - Low voltage energy cables of rated voltages up to and including 450/750 V (U0/U) - Part 2-72: Cables for general applications - Flat divisible cables (cords) with thermoplastic PVC insulation
This European Standard applies to thermoplastic (PVC) insulated flat divisible flexible cables. The cables are of rated voltage U0/U 300/300 V. The cables are intended for use indoors as internal wiring or direct supply connection to luminaires. The maximum conductor operating temperature for the cables in this standard is 60 °C. NOTE HD 516 contains extensive guidance on the safe use of cables in this standard. This EN 50525-2-72 should be read in conjunction with EN 50525-1, which specifies general requirements.
Kabel und Leitungen - Starkstromleitungen mit Nennspannungen bis 450/750 V (U0/U) - Teil 2-72: Starkstromleitungen für allgemeine Anwendungen - Trennbare Zwillingsleitung mit thermoplastischer PVC-Isolierung
Câbles électriques - Câbles d’énergie basse tension de tension assignée au plus égale à 450/750 V (U0/U) - Partie 2-72: Câbles pour applications générales - Câbles méplats séparables, isolés en PVC thermoplastique
Električni kabli - Nizkonapetostni energetski kabli z nazivno napetostjo do vključno 450/750 V (U0/U) - 2-72. del: Kabli za splošno uporabo - Ploščati deljivi kabli (vrvice) s termoplastično PVC izolacijo
Ta evropski standard velja za ploščate zvijave deljive kable s termoplastično (PVC) izolacijo. Ti kabli imajo nazivno napetost U0/U 300/300 V. Uporabljajo se v zaprtih prostorih kot notranje ožičenje ali neposredna povezana svetila z napajanjem. Maksimalna delovna temperatura pretvornika za kable iz tega standarda je 60 °C.
General Information
- Status
- Published
- Publication Date
- 05-May-2011
- Withdrawal Date
- 16-Jan-2014
- Technical Committee
- CLC/TC 20 - Electric cables
- Drafting Committee
- CLC/TC 20 - Electric cables
- Current Stage
- 9093 - Decision to confirm - Review Enquiry
- Start Date
- 23-Oct-2024
- Completion Date
- 20-Feb-2026
- Directive
- Not Harmonized2006/95/EC - Directive 2006/95/EC of the European Parliament and of the Council of 12 December 2006 on the harmonisation of the laws of Member States relating to electrical equipment designed for use within certain voltage limits (codified version)OJ Ref: C 256/01, C 256/01, C 256/01, C 256/01, C 256/01,, OJ Date: 28-Nov-2013
Harmonized Standard2014/35/EU - Directive 2014/35/EU of the European Parliament and of the Council of 26 February 2014 on the harmonisation of the laws of the Member States relating to the making available on the market of electrical equipment designed for use within certain voltage limitsOJ Ref: C 249/03, C 249/03, C 249/03, C 249/03, C 249/03,, OJ Date: 08-Jul-2016
Relations
- Effective Date
- 28-Jan-2023
- Effective Date
- 28-Jan-2023
- Effective Date
- 09-Feb-2026
- Effective Date
- 09-Feb-2026
- Effective Date
- 09-Feb-2026
- Effective Date
- 09-Feb-2026
- Effective Date
- 09-Feb-2026
- Effective Date
- 03-Feb-2026
Overview
EN 50525-2-72:2011 is a CENELEC European standard that specifies requirements and tests for flat divisible flexible cables (cords) with thermoplastic PVC insulation used as low voltage energy cables. It covers flat divisible cables of rated voltage U0/U 300/300 V intended for indoor use - typically as internal wiring or for direct supply connections to luminaires. These cables are marked H03VH7H-F, have class 5 flexible conductors and a maximum conductor operating temperature of 60 °C. This Part must be read together with EN 50525-1 (general requirements) and refers to material and test standards such as EN 50363-3, EN 50395 and EN 50396.
Key topics and technical requirements
- Cable construction
- Two-core, flat, divisible design (twin parallel cores that can be separated).
- Conductors: flexible, class 5 (EN 60228).
- Insulation: inner and outer layers of PVC (Type TI 2); outer layer in a contrasting colour; outer layer may adhere to cores.
- Standard marking: H03VH7H-F per EN 50525-1.
- Electrical and mechanical limits
- Rated voltage: 300/300 V (U0/U).
- Max conductor operating temperature: 60 °C.
- Typical conductor size referenced: 2 × 0.5 mm².
- Testing requirements
- Electrical tests: conductor resistance, 2 000 V voltage test on completed cable, insulation resistance at elevated temperature.
- Mechanical/dimensional tests: thickness and overall dimension checks, flexing and separation tests.
- Environmental and safety tests: impact at −5 °C, flexing after water immersion, and vertical flame propagation test (EN 60332-1-2).
- Material tests for PVC per EN 50363-3 and non-electrical tests per EN 50396.
- Insulation checks
- Insulation thickness and insulation resistance requirements are specified; outer layer thickness measured after division of cores. Separation test ensures inner layer remains concealed after testing.
Applications
- Indoor internal wiring where a slim, flat, divisible twin cable is required.
- Direct supply connections to luminaires, lamps and lighting fixtures.
- Flexible cord applications in appliances or devices requiring separable twin conductors for simple terminations.
Who uses this standard
- Cable manufacturers and product designers specifying flat PVC insulated cords.
- Electrical installers and lighting manufacturers needing compliant connection cords.
- Test laboratories and conformity assessment bodies performing EN-type tests.
- Procurement/specification engineers and compliance officers specifying cables to harmonized European requirements.
Related standards
- EN 50525-1 (general requirements for low voltage energy cables)
- EN 50363-3 (PVC insulating compounds)
- EN 50395 / EN 50396 (electrical and non-electrical test methods)
- EN 60228, EN 60332-1-2, EN 60811-1-4
- HD 516 (guidance on safe use of low voltage harmonized cables)
Keywords: EN 50525-2-72:2011, flat divisible cables, PVC insulation, low voltage energy cables, H03VH7H-F, luminous fittings, 300/300 V.
Get Certified
Connect with accredited certification bodies for this standard
Intertek Testing Services NA Inc.
Intertek certification services in North America.
UL Solutions
Global safety science company with testing, inspection and certification.
ANCE
Mexican certification and testing association.
Sponsored listings
Frequently Asked Questions
EN 50525-2-72:2011 is a standard published by CLC. Its full title is "Electric cables - Low voltage energy cables of rated voltages up to and including 450/750 V (U0/U) - Part 2-72: Cables for general applications - Flat divisible cables (cords) with thermoplastic PVC insulation". This standard covers: This European Standard applies to thermoplastic (PVC) insulated flat divisible flexible cables. The cables are of rated voltage U0/U 300/300 V. The cables are intended for use indoors as internal wiring or direct supply connection to luminaires. The maximum conductor operating temperature for the cables in this standard is 60 °C. NOTE HD 516 contains extensive guidance on the safe use of cables in this standard. This EN 50525-2-72 should be read in conjunction with EN 50525-1, which specifies general requirements.
This European Standard applies to thermoplastic (PVC) insulated flat divisible flexible cables. The cables are of rated voltage U0/U 300/300 V. The cables are intended for use indoors as internal wiring or direct supply connection to luminaires. The maximum conductor operating temperature for the cables in this standard is 60 °C. NOTE HD 516 contains extensive guidance on the safe use of cables in this standard. This EN 50525-2-72 should be read in conjunction with EN 50525-1, which specifies general requirements.
EN 50525-2-72:2011 is classified under the following ICS (International Classification for Standards) categories: 29.060.20 - Cables. The ICS classification helps identify the subject area and facilitates finding related standards.
EN 50525-2-72:2011 has the following relationships with other standards: It is inter standard links to HD 21.11 S1:1995/A1:2001, HD 21.11 S1:1995, EN 1648-1:2018, EN 16282-3:2016, EN 16282-2:2016, EN 1648-2:2018, EN 16282-3:2016+A1:2021, EN 60335-1:2012/A13:2017. Understanding these relationships helps ensure you are using the most current and applicable version of the standard.
EN 50525-2-72:2011 is associated with the following European legislation: EU Directives/Regulations: 2006/95/EC, 2014/35/EU, 2014/53/EU. When a standard is cited in the Official Journal of the European Union, products manufactured in conformity with it benefit from a presumption of conformity with the essential requirements of the corresponding EU directive or regulation.
EN 50525-2-72:2011 is available in PDF format for immediate download after purchase. The document can be added to your cart and obtained through the secure checkout process. Digital delivery ensures instant access to the complete standard document.
Standards Content (Sample)
SLOVENSKI STANDARD
01-september-2011
(OHNWULþQLNDEOL1L]NRQDSHWRVWQLHQHUJHWVNLNDEOL]QD]LYQRQDSHWRVWMRGR
YNOMXþQR9 88 GHO .DEOL]DVSORãQRXSRUDER3ORãþDWLGHOMLYL
NDEOL YUYLFH VWHUPRSODVWLþQR39&L]RODFLMR
Electric cables - Low voltage energy cables of rated voltages up to and including 450/750
V (U0/U) - Part 2-72: Cables for general applications - Flat divisible cables (cords) with
thermoplastic PVC insulation
Kabel und Leitungen - Starkstromleitungen mit Nennspannungen bis 450/750 V (U0/U) -
Teil 2-72: Starkstromleitungen für allgemeine Anwendungen - Trennbare Zwillingsleitung
mit thermoplastischer PVC-Isolierung
Câbles électriques - Câbles d’énergie basse tension de tension assignée au plus égale à
450/750 V (U0/U) - Partie 2-72: Câbles pour applications générales - Câbles méplats
séparables, isolés en PVC thermoplastique
Ta slovenski standard je istoveten z: EN 50525-2-72:2011
ICS:
29.060.20 Kabli Cables
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.
EUROPEAN STANDARD
EN 50525-2-72
NORME EUROPÉENNE
May 2011
EUROPÄISCHE NORM
ICS 29.060.20 Supersedes HD 21.11 S1:1995 + A1:2001
English version
Electric cables -
Low voltage energy cables of rated voltages up to and including 450/750 V
(U /U) -
Part 2-72: Cables for general applications -
Flat divisible cables (cords) with thermoplastic PVC insulation
Câbles électriques - Kabel und Leitungen -
Câbles d’énergie basse tension de tension Starkstromleitungen mit Nennspannungen
assignée au plus égale à 450/750 V bis 450/750 V (U /U) -
(U /U) -
Teil 2-72: Starkstromleitungen für
Partie 2-72: Câbles pour applications allgemeine Anwendungen -
générales - Trennbare Zwillingsleitung mit
Câbles méplats séparables, isolés en thermoplastischer PVC-Isolierung
PVC thermoplastique
This European Standard was approved by CENELEC on 2011-01-17. CENELEC members are bound to comply
with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this European Standard
the status of a national standard without any alteration.
Up-to-date lists and bibliographical references concerning such national standards may be obtained on
application to the Central Secretariat or to any CENELEC member.
This European Standard exists in three official versions (English, French, German). A version in any other
language made by translation under the responsibility of a CENELEC member into its own language and notified
to the Central Secretariat has the same status as the official versions.
CENELEC members are the national electrotechnical committees of Austria, Belgium, Bulgaria, Croatia, Cyprus,
the Czech Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy,
Latvia, Lithuania, Luxembourg, Malta, the Netherlands, Norway, Poland, Portugal, Romania, Slovakia, Slovenia,
Spain, Sweden, Switzerland and the United Kingdom.
CENELEC
European Committee for Electrotechnical Standardization
Comité Européen de Normalisation Electrotechnique
Europäisches Komitee für Elektrotechnische Normung
Management Centre: Avenue Marnix 17, B - 1000 Brussels
© 2011 CENELEC - All rights of exploitation in any form and by any means reserved worldwide for CENELEC members.
Ref. No. EN 50525-2-72:2011 E

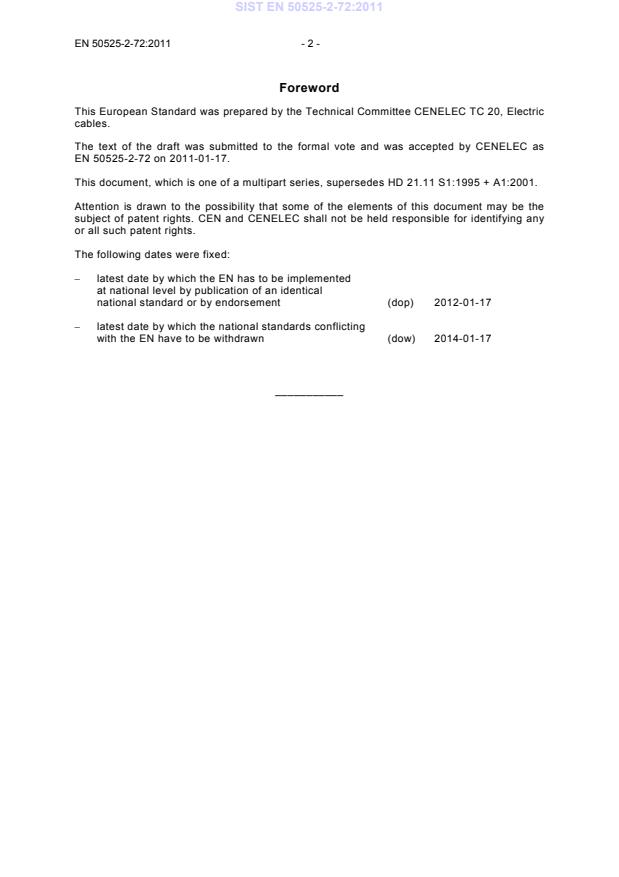

Foreword
This European Standard was prepared by the Technical Committee CENELEC TC 20, Electric
cables.
The text of the draft was submitted to the formal vote and was accepted by CENELEC as
EN 50525-2-72 on 2011-01-17.
This document, which is one of a multipart series, supersedes HD 21.11 S1:1995 + A1:2001.
Attention is drawn to the possibility that some of the elements of this document may be the
subject of patent rights. CEN and CENELEC shall not be held responsible for identifying any
or all such patent rights.
The following dates were fixed:
– latest date by which the EN has to be implemented
at national level by publication of an identical
national standard or by endorsement (dop) 2012-01-17
– latest date by which the national standards conflicting
with the EN have to be withdrawn (dow) 2014-01-17
___________
- 3 - EN 50525-2-72:2011
Contents
Page
1 Scope . 4
2 Normative references . 4
3 Terms and definitions . 5
4 Flexible cables – H03VH7H-F . 5
4.1 Construction . 5
4.2 Requirements . 6
Annex A (normative) Tests for cables to EN 50525-2-72 . 7
Annex B (normative) General data . 8
Bibliography . 9
Figure
Figure 1 ― Cross-sectional diagram of cable. 5
Tables
Table A.1 . 7
Table B.1 . 8
1 Scope
This European Standard applies to thermoplastic (PVC) insulated flat divisible flexible cables.
The cables are of rated voltage U /U 300/300 V.
The cables are intended for use indoors as internal wiring or direct supply
...
