EUROPEAN STANDARD
EN 61000-4-3/A1
NORME EUROPÉENNE
February 2008
EUROPÄISCHE NORM
ICS 33.100.20
English version
Electromagnetic compatibility (EMC) -
Part 4-3: Testing and measurement techniques -
Radiated, radio-frequency, electromagnetic field immunity test
(IEC 61000-4-3:2006/A1:2007)
Compatibilité électromagnétique (CEM) -  Elektromagnetische Verträglichkeit (EMV) -
Partie 4-3: Techniques d'essai Teil 4-3: Prüf- und Messverfahren -
et de mesure - Prüfung der Störfestigkeit gegen
Essai d'immunité aux champs hochfrequente elektromagnetische Felder
électromagnétiques rayonnés (IEC 61000-4-3:2006/A1:2007)
aux fréquences radioélectriques
(CEI 61000-4-3:2006/A1:2007)
This amendment A1 modifies the European Standard EN 61000-4-3:2006; it was approved by CENELEC on
2008-02-01. CENELEC members are bound to comply with the CEN/CENELEC Internal Regulations which
stipulate the conditions for giving this amendment the status of a national standard without any alteration.

Up-to-date lists and bibliographical references concerning such national standards may be obtained on
application to the Central Secretariat or to any CENELEC member.

This amendment exists in three official versions (English, French, German). A version in any other language
made by translation under the responsibility of a CENELEC member into its own language and notified to the
Central Secretariat has the same status as the official versions.

CENELEC members are the national electrotechnical committees of Austria, Belgium, Bulgaria, Cyprus, the
Czech Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia,
Lithuania, Luxembourg, Malta, the Netherlands, Norway, Poland, Portugal, Romania, Slovakia, Slovenia, Spain,
Sweden, Switzerland and the United Kingdom.

CENELEC
European Committee for Electrotechnical Standardization
Comité Européen de Normalisation Electrotechnique
Europäisches Komitee für Elektrotechnische Normung

Central Secretariat: rue de Stassart 35, B - 1050 Brussels

© 2008 CENELEC - All rights of exploitation in any form and by any means reserved worldwide for CENELEC members.
Ref. No. EN 61000-4-3:2006/A1:2008 E

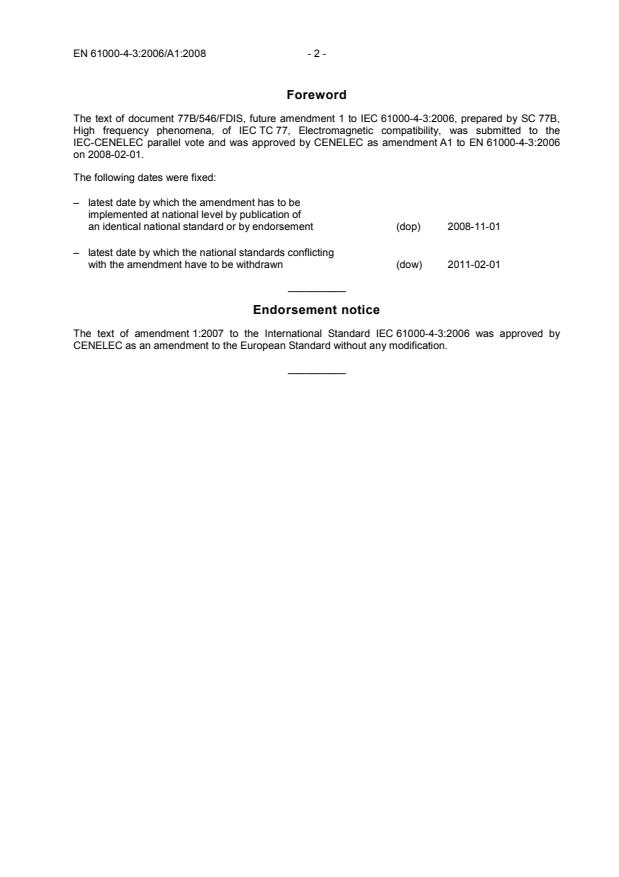

Foreword
The text of document 77B/546/FDIS, future amendment 1 to IEC 61000-4-3:2006, prepared by SC 77B,
High frequency phenomena, of IEC TC 77, Electromagnetic compatibility, was submitted to the
IEC-CENELEC parallel vote and was approved by CENELEC as amendment A1 to EN 61000-4-3:2006
on 2008-02-01.
The following dates were fixed:
– latest date by which the amendment has to be
implemented at national level by publication of
(dop) 2008-11-01
an identical national standard or by endorsement
– latest date by which the national standards conflicting
(dow) 2011-02-01
with the amendment have to be withdrawn
__________
Endorsement notice
The text of amendment 1:2007 to the International Standard IEC 61000-4-3:2006 was approved by
CENELEC as an amendment to the European Standard without any modification.
__________
IEC 61000-4-3
Edition 3.0 2007-11
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
AMENDMENT 1
AMENDEMENT 1
Electromagnetic compatibility (EMC) –
Part 4-3: Testing and measurement techniques – Radiated, radio-frequency,
electromagnetic field immunity test

Compatibilité électromagnétique (CEM) –
Partie 4-3: Techniques d’essai et de mesure – Essai d’immunité aux champs
électromagnétiques rayonnés aux fréquences radioélectriques

INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
COMMISSION
ELECTROTECHNIQUE
PRICE CODE
INTERNATIONALE
R
CODE PRIX
ICS 33.100.20 ISBN 2-8318-9354-2

– 2 – 61000-4-3 Amend.1 © IEC:2007
FOREWORD
This amendment has been prepared by subcommittee 77B: High frequency phenomena of IEC
technical committee 77: Electromagnetic compatibility.
The text of this amendment is based on the following documents:
FDIS Report on voting
77B/546/FDIS 77B/556/RVD
Full information on the voting for the approval of this amendment can be found in the report
on voting indicated in the above table.
The committee has decided that the contents of this amendment and the base publication will
remain unchanged until the maintenance result date indicated on the IEC web site under
"http://webstore.iec.ch" in the data related to the specific publication. At this date, the
publication will be
• reconfirmed,
• withdrawn,
• replaced by a revised edition, or
• amended.
_____________
Page 3
CONTENTS
Add, to the existing list of annexes, the following new title:
Annex I (informative) Calibration method for E-field probes

Page 25
Add, at the end of the sixth dashed item (beginning with “– An isotropic field sensor”), the
following new sentence:
Annex I provides a calibration method for E-field probes.

Page 111
Add the following new annex:
61000-4-3 Amend.1 © IEC:2007 – 3 –
Annex I
(informative)
Calibration method for E-field probes

I.1 Overview
E-field probes with broad frequency range and large dynamic response are extensively used
in the field uniformity calibration procedures in accordance with IEC 61000-4-3. Among other
aspects, the quality of the field probe calibration directly impacts the uncertainty budget of a
radiated immunity test.
Generally, probes are subject to relatively low field strengths, e.g. 1 V/m – 30 V/m, during the
field uniformity calibration in accordance with IEC 61000-4-3. Therefore a calibration of the E-
field probes used within IEC 61000-4-3 shall take the intended frequency and dynamic ranges
into consideration.
Currently probe calibration results may show differences when the probe is calibrated in
different calibration laboratories. Therefore the environment and method for a field probe
calibration are to be specified. This annex provides relevant information on calibration of
probes to be used in IEC 61000-4-3.
For frequencies above the several hundred megahertz to gigahertz range, using standard gain
horn antennas to establish a standard field inside an anechoic chamber is one of the most
widely used methods for calibrating probes for IEC 61000-4-3 applications. However, there is
a lack of an established method for validating the test environment for field probe calibrations.
In using this method, differences have been observed between calibration laboratories,
beyond their reported measurement uncertainties.
Field probe calibrations in the 80 MHz to a few hundred megahertz range that are usually
carried out in TEM waveguides are generally found to be more reproducible.
This informative annex therefore concentrates on improving the probe calibration procedures
with horn antennas in anechoic chambers to which a comprehensive calibration procedure is
depicted.
I.2 Probe calibration requirements
I.2.1 General
The calibration of E-Field probes intended to be used for UFA calibration procedure as
defined in IEC 61000-4-3 shall satisfy the following requirements.
I.2.2 Calibration frequency range
The frequency range shall normally cover 80 MHz to 6 GHz but it may be limited to the
frequency range required by the tests.
I.2.3 Frequency steps
To be able to compare test results between different calibration laboratories, it is necessary to
use fixed frequencies for the calibration.

– 4 – 61000-4-3 Amend.1 © IEC:2007
80 MHz to 1 GHz:
Use the following frequencies for the calibration of E-field probes (typically 50 MHz step
width)
80, 100, 150, 200,…, 950, 1 000 MHz
1 GHz to 6 GHz:
Use the following frequencies for the calibration of E-field probes (200 MHz step width)
1 000, 1 200, 1 400,…, 5 800, 6 000 MHz
NOTE It is not intended to measure a probe at 1 GHz twice, but in case it is used up to or from 1 GHz, the probe
needs to be measured at that frequency.
I.2.4 Field strength
The field strength at which a probe is calibrated should be based on the field strength
required for the immunity test. As the preferred method for uniformity field calibration is
carried out at field strength of at least 1,8 times the field strength to be applied to the EUT, it
is recommended that the probe calibration be carried out at twice the intended test field
strength (see Table I.1). If a probe is to be used at different field levels, it has to be calibrated
at multiple levels according to its linearity, at least the minimum and maximum levels. See
also I.3.2.
NOTE 1 This also covers the 1 dB compression requirement of the power amplifier.
NOTE 2 The calibration is performed using CW signals without modulation.
Table I.1 – Calibration field strength level
Calibration level Calibration field strength
1 2 V/m
2 6 V/m
3 20 V/m
4 60 V/m
X Y V/m
NOTE X,Y is an open calibration level which can be higher
or lower than one of the other levels 1-4. This level may be
given in the product specification or test laboratory.
I.3 Requirements for calibration instrumentation
I.3.1 Harmonics and spurious signals
Any harmonics or spurious signals from the power amplifiers shall be at least 20 dB below the
level at the carrier frequency. This is required for all field strength levels used during
calibration and linearity check. Since the harmonic content of power amplifiers is usually
worse at higher power levels, the harmonic measurement may be performed only at the
highest calibration field strength. The harmonic measurement can be performed using a
calibrated spectrum analyzer which is connected to the amplifier output through an attenuator,
or through a directional coupler.
NOTE 1 The antenna may have additional influence on harmonic content and may need to be checked separately.
Calibration laboratories shall perform a measurement to validate that the harmonic and/or
spurious signals from the amplifier satisfy the requirements for all measurement setups. This

61000-4-3 Amend.1 © IEC:2007 – 5 –
may be done by connecting a spectrum analyzer to Port 3 of the directional coupler (replacing
the power meter sensor with the spectrum analyzer input – see Figure I.2).
NOTE 2 It should be assured that the power level does not exceed the maximum allowable input power of the
spectrum analyzer. An attenuator may be used.
The frequency span shall cover at least the third harmonic of the intended frequency. The
validation measurement shall be performed at the power level that will generate the highest
intended field strength.
Harmonic suppression filters may be used to improve the spectrum purity of the power
amplifier(s) (see Annex D).
I.3.2 Linearity check for probe
The linearity of the probe which is used for the chamber validation according to I.4.2.5 shall
be within ±0,5 dB from an ideal linear response in the required dynamic range (see Figure I.1).
Linearity shall be confirmed for all intended range settings if the probe has multiple ranges or
gain settings.
In general probe linearity does not change significantly with frequency. Linearity checking can
be performed at a spot frequency that is close to the central region of the intended use of
frequency range, and where the probe response versus frequency is relatively flat. The
selected spot frequency is to be documented in the calibration certificate.
The field strength for which the linearity of the probe is measured should be within –6 dB to
+6 dB of the field strength which is used during the validation of the chamber, with a
sufficiently small step size, e.g. 1 dB. Table I.2 shows an example of the field strength levels
to be checked for a 20 V/m application.
Table I.2 – Example for the probe linearity check
Calibration field
Signal level
strength
dB V/m
-6,0 13,2
-5,0 14,4
-4,0 14,8
-3,0 15,2
-2,0 16,3
-1,0 18,0
0 20,0
1,0 22,2
2,0 24,7
3,0 27,4
4,0 30,5
5,0 34,0
6,0 38,0
– 6 – 61000-4-3 Amend.1 © IEC:2007

100,0
Nonlinear curve
10,0
1,0
–6,0 –4,0 –2,0 0,0 2,0 4,0 6,0
Signal level  dB
IEC  2043/07
Figure I.1 – Example of linearity for probe
I.3.3 Determination of the gain of the standard horn antennas
Far field gain of the standard pyramidal horn antennas can be determined fairly accurately
(less than 0,1 dB of uncertainties have been reported in [1] ). The far-field gain is typically
valid for distances greater than 8D / λ (where D is the largest dimension of the horn aperture,
and λ is the wavelength). Calibrations of field probes at such distances may not be practical
due to the large anechoic chamber and high power amplifiers required. Field probes are
typically calibrated in the near field region of the transmitting antennas. The near-field gain of
standard gain horn antennas have been determined by using equations such as those
described in [2]. The gain is computed based on the physical dimensions of a standard
pyramidal horn, and by assuming a quadratic phase distribution at the horn aperture. The gain
determined in this manner is inadequate for use in performing the chamber VSWR test and
subsequent probe calibrations.
The equations (as given in [2]) were derived using aperture integration, by assuming that no
reflection occurs at the aperture of the horn and that the field incident on the aperture is a
TE mode, but with a quadratic phase distribution across the aperture. Some approximations
were applied during the integration to obtain the close form result. Other effects such as
multiple reflections from the horn edge, and higher order modes at the aperture are not
accounted for. Depending on the frequency and horn design, the error is generally in the
order of ±0,5 dB, but can be larger.
For better accuracy, a numerical method using full wave integration can be used. For example,
the uncertainties in the gain calculation by a numerical method can be reduced to less than
5 % [3].
The gain of a horn antenna can also be determined experimentally. For example, the gain can
be determined at reduced distances with a three-antenna method by an extrapolation
technique, such as that described in [4], or some variations of the method.
___________
1)
Figures in square brackets refer to the reference documents in Clause I.6.
Calibration field strength  V/m

61000-4-3 Amend.1 © IEC:2007 – 7 –
It is recommended that the distance between the horn antenna and the probe under test be at
least 0,5D / λ during the calibration. Large uncertainties in determining gains can result from
a closer distance. The standing waves between the antenna and the probe can also be large
for closer distances, which again would result in large measurement uncertainties in the
calibration.
I.4 Field probe calibration in anechoic chambers
I.4.1 Calibration environments
The probe calibration should be performed in a fully anechoic room (FAR) or in a semi-
anechoic chamber with absorbers on the ground plane which satisfies the requirement of I.4.2.
When a FAR is used, the recommended minimum size of the FAR internal working volume for
performing the probe calibration is 5 m (D) × 3 m (W) × 3 m (H).
NOTE 1 For frequencies above several hundred MHz, using standard gain horn antennas to establish a standard
field inside an anechoic chamber is one of the most widely used methods for calibrating field probes for
IEC 61000-4-3 applications. At lower frequencies, such as 80 MHz to several hundred MHz, the use of an anechoic
chamber may not be practical. So the field probe may be calibrated in other facilities also used for immunity tests
against electromagnetic fields. Therefore, TEM waveguides etc. are included in this annex as alternative calibration
environments for these lower frequencies.
The system and the environment used for probe calibration shall meet the following
requirements.
NOTE 2 Alternatively, the electric field can be established using a transfer probe (see I.5.4).
I.4.2 Validation of anechoic chambers for field probe calibration
The probe calibration measurements assume a free space environment. A chamber VSWR
test using a field probe shall be performed to determine whether it is acceptable for
subsequent probe or sensor calibration. The validation method characterizes the performance
of the chamber and absorbing material.
Each probe has a specific volume and physical size, for example the battery case and/or the
circuit board. In other calibration procedures, a spherical quiet zone is guaranteed in the
calibration volume. The specific requirements of this annex concentrate on a VSWR test for
test points located at the antenna beam axes.
Test fixtures and their influences (such as the fixtures to hold the probe, which may be
exposed to electromagnetic fields and interfere with the calibration) cannot be entirely
evaluated. A separate test is required to validate the influences of the fixtures.
I.4.2.1 Measuring net power to a transmitting device using directional couplers
Net power delivered to a transmitting device can be measured with a 4-port bi-directional
coupler, or two 3-port single directional couplers connected back-to-back (forming the so-
called “dual directional coupler”). A common setup using a bi-directional coupler to measure
the net power to a transmitting device is shown in Figure I.2.

– 8 – 61000-4-3 Amend.1 © IEC:2007

Power meters
PM1 PM2
3 4
Antenna
Forward Reverse
Input Output
Source
IEC  2044/07
Figure I.2 – Setup for measuring net power to a transmitting device
The forward coupling, reverse coupling and transmission coupling are defined as the following
equations in case where each port is connected with a matched load and a matched source:
P
C = ,
fwd
P
P
C = ,
rev
P
P
C = ,
trans
P
where P , P , P , P are the respective powers at each port of the directional coupler.
1 2 3 4
The net power delivered to the transmitting device is then:
C PM
trans 2
P = PM − ,
net 1
C C
fwd rev
where PM and PM are the power meter readings in linear units.
1 2
Where the VSWR of the antenna is known, then a single three-port coupler can be used. For
example, when the antenna has a VSWR of 1,5 this is equivalent to a voltage reflection
coefficient (VRC) of 0,2.
The accuracy is affected by the directivity of the coupler. The directivity is a measure of the
coupler’s ability to isolate the forward and the reverse signals. For a well-matched
transmitting device, the reverse power is much smaller than the forward power. The effect of
the directivity is therefore less important than in a reflectivity application. For example, when
the transmitting antenna has a VSWR of 1,5 and the coupler has a directivity of 20 dB, the
absolute maximum uncertainty in the net power due to the finite directivity is 0,22 dB –
0,18 dB = 0,04 dB with a U-shaped distribution (where the 0,22 dB is the loss of the apparent
...
