EUROPEAN STANDARD EN 62625-2
NORME EUROPÉENNE
EUROPÄISCHE NORM
September 2016
ICS 45.060
English Version
Electronic railway equipment - On board driving data recording
system - Part 2: Conformity testing
(IEC 62625-2:2016)
Matériel électronique ferroviaire - Système embarqué Elektronische Betriebsmittel für Bahnen - Bordsystem zur
d'enregistrement de données de conduite - Partie 2: Essais Fahrdatenaufzeichnung - Teil 2: Konformitätsprüfungen
de conformité (IEC 62625-2:2016)
(IEC 62625-2:2016)
This European Standard was approved by CENELEC on 2016-03-02. CENELEC members are bound to comply with the CEN/CENELEC
Internal Regulations which stipulate the conditions for giving this European Standard the status of a national standard without any alteration.
Up-to-date lists and bibliographical references concerning such national standards may be obtained on application to the CEN-CENELEC
Management Centre or to any CENELEC member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by translation
under the responsibility of a CENELEC member into its own language and notified to the CEN-CENELEC Management Centre has the
same status as the official versions.
CENELEC members are the national electrotechnical committees of Austria, Belgium, Bulgaria, Croatia, Cyprus, the Czech Republic,
Denmark, Estonia, Finland, Former Yugoslav Republic of Macedonia, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia,
Lithuania, Luxembourg, Malta, the Netherlands, Norway, Poland, Portugal, Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland,
Turkey and the United Kingdom.

European Committee for Electrotechnical Standardization
Comité Européen de Normalisation Electrotechnique
Europäisches Komitee für Elektrotechnische Normung
CEN-CENELEC Management Centre: Avenue Marnix 17, B-1000 Brussels
© 2016 CENELEC All rights of exploitation in any form and by any means reserved worldwide for CENELEC Members.
Ref. No. EN 62625-2:2016 E

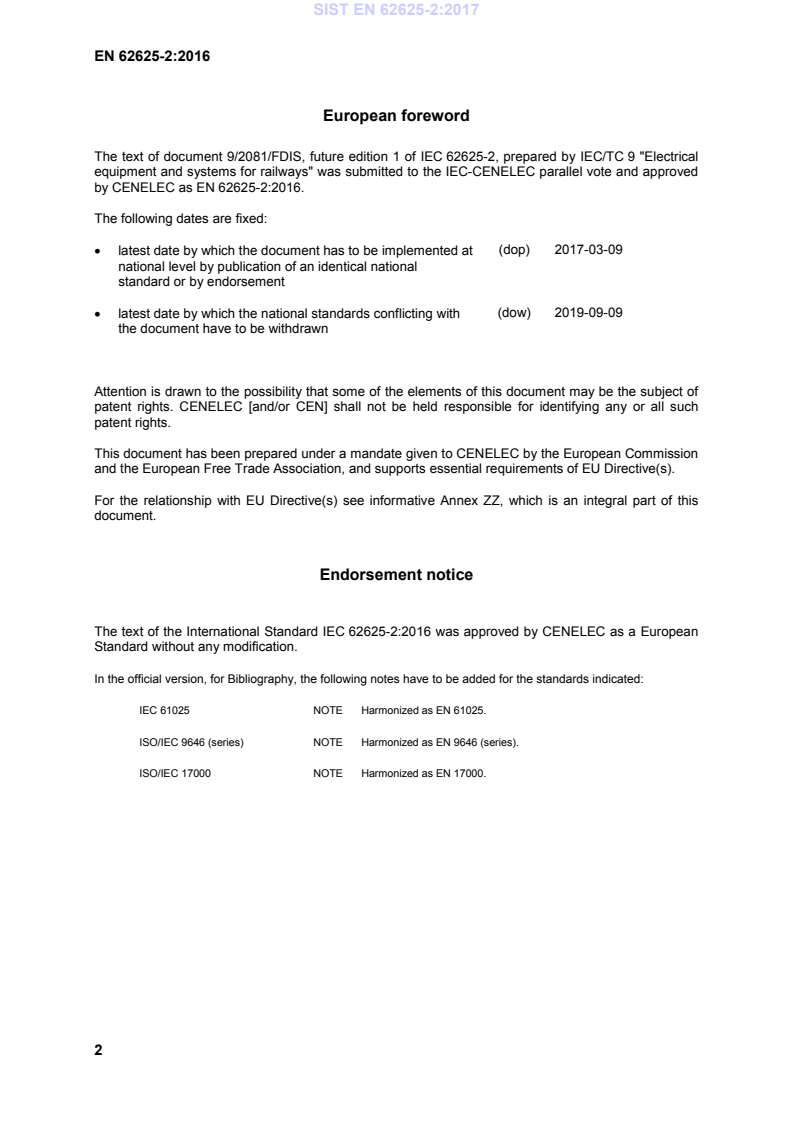

European foreword
The text of document 9/2081/FDIS, future edition 1 of IEC 62625-2, prepared by IEC/TC 9 "Electrical
equipment and systems for railways" was submitted to the IEC-CENELEC parallel vote and approved
by CENELEC as EN 62625-2:2016.
The following dates are fixed:
(dop) 2017-03-09
• latest date by which the document has to be implemented at
national level by publication of an identical national
standard or by endorsement
• latest date by which the national standards conflicting with (dow) 2019-09-09
the document have to be withdrawn

Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. CENELEC [and/or CEN] shall not be held responsible for identifying any or all such
patent rights.
This document has been prepared under a mandate given to CENELEC by the European Commission
and the European Free Trade Association, and supports essential requirements of EU Directive(s).
For the relationship with EU Directive(s) see informative Annex ZZ, which is an integral part of this
document.
Endorsement notice
The text of the International Standard IEC 62625-2:2016 was approved by CENELEC as a European
Standard without any modification.
In the official version, for Bibliography, the following notes have to be added for the standards indicated:
IEC 61025 NOTE Harmonized as EN 61025.
ISO/IEC 9646 (series) NOTE Harmonized as EN 9646 (series).
ISO/IEC 17000 NOTE Harmonized as EN 17000.

Annex ZA
(normative)
Normative references to international publications
with their corresponding European publications
The following documents, in whole or in part, are normatively referenced in this document and are
indispensable for its application. For dated references, only the edition cited applies. For undated
references, the latest edition of the referenced document (including any amendments) applies.
NOTE 1 When an International Publication has been modified by common modifications, indicated by (mod), the relevant
EN/HD applies.
NOTE 2 Up-to-date information on the latest versions of the European Standards listed in this annex is available here:
www.cenelec.eu.
Publication Year Title EN/HD Year
IEC 60571 -  Railway applications - Electronic - -
equipment used on rolling stock
IEC 61375 series Electronic railway equipment - Train EN 61375 series
communication network (TCN) -- Part 1:
General architecture
IEC 62498-1 -  Railway applications - Environmental - -
conditions for equipment - Part 1:
Equipment on board rolling stock
IEC 62625-1 2013 Electronic railway equipment - On board EN 62625-1 2013
driving data recording system -- Part 1:
System specification
ISO/IEC 8824 series Information technology -- Abstract Syntax - series
Notation One (ASN.1): Specification of
basic notation
Annex ZZ
(informative)
Relationship between this European Standard and the
Essential Requirements of EU Directive 2008/57/EC

This European Standard has been prepared under a mandate given to CENELEC by the
European Commission and the European Free Trade Association and within its scope the
standard covers all relevant essential requirements as given in Annex lll of the EC Directive
2008/57/EC (also named as New Approach Directive 2008/57/EC Rail Systems: Interoperability).

Once this standard is cited in the Official Journal of the European Union under that Directive and
has been implemented as a national standard in at least one Member State, compliance with the
clauses of this standard given in Table ZZ.1 relating to the ‘rolling stock - locomotives and
passenger rolling stock’ subsystem of the rail system in the European Union, confers, within the
limits of the scope of this standard, a presumption of conformity with the corresponding Essential
Requirements of that Directive and associated EFTA regulations.

Table ZZ.1 - Correspondence between this European Standard, the RST LOC&PAS TSI
(published in the Official Journal L 356 on 12 December 2014, p. 228) and Directive

2008/57/EC
Clauses of this Chapter / § / points / Essential Comments
European Standard of RST LOC&PAS TSI Requirements (ER) of
Directive 2008/57/EC
2. Requirements specific
to each sub-subsystem
4.2.9.6 Recording
device
2.4. Rolling Stock
2.4.3. Technical
compatibility
Clauses 1 to 7 are
2.4.4 Controls
applicable
WARNING: Other requirements and other EU Directives may be applicable to the products
falling within the scope of this standard.
IEC 62625-2 ®
Edition 1.0 2016-01
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
colour
inside
Electronic railway equipment – On board driving data recording system –

Part 2: Conformity testing
Matériel électronique ferroviaire – Système embarqué d'enregistrement de

données de conduite –
Partie 2: Essais de conformité

INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
COMMISSION
ELECTROTECHNIQUE
INTERNATIONALE
ICS 45.060 ISBN 978-2-8322-3106-7

– 2 – IEC 62625-2:2016 © IEC 2016
CONTENTS
FOREWORD .5
INTRODUCTION .7
1 Scope .8
2 Normative references .8
3 Terms, definitions, abbreviations, acronyms, and conventions .8
3.1 Terms and definitions .8
3.2 Abbreviations and acronyms .9
4 Conformity testing . 10
4.1 Overview . 10
4.1.1 General . 10
4.1.2 Applicability . 10
4.1.3 Methodology . 10
4.2 Implementation conformity statements . 13
4.2.1 General . 13
4.2.2 FICS and SICS . 13
4.2.3 IXIT . 13
5 Functional requirements conformity testing . 14
5.1 Implementation statement for functional requirements conformity testing . 14
5.1.1 General . 14
5.1.2 Record train data . 14
5.1.3 Ensure on board protection of recorded data . 14
5.1.4 Ensure retrieval of recorded data . 15
5.1.5 Recorded data analysis . 15
5.1.6 List of provided optional functions . 15
5.2 Standardized test methods for functional requirements . 16
6 System requirements conformity testing . 26
6.1 Implementation statement for system requirements conformity testing . 26
6.1.1 General . 26
6.1.2 ODDRS mode . 26
6.1.3 Recording èerformance . 26
6.1.4 Environment . 26
6.1.5 Availability and reliability . 26
6.1.6 Security of records . 27
6.1.7 Maintainability and diagnostic . 27
6.1.8 Recorded data survivability . 27
6.1.9 Recording resolution and frequency . 27
6.1.10 Time of day and date . 28
6.1.11 Train location . 29
6.1.12 The unit of train speed . 29
6.1.13 Input requirements . 29
6.1.14 Software identification and upgrading . 30
6.1.15 Replacement time of ODDR unit . 30
6.1.16 Power consumption . 30
6.1.17 Data interface to subsystems and service interface . 30
6.1.18 Optional mode switching time . 31

IEC 62625-2:2016 © IEC 2016 – 3 –
6.2 Standardized test methods for system requirements . 31
7 Arrangements for ODDR Unit type test . 44
7.1 Type test with the integrated ODDRS . 44
7.1.1 General . 44
7.1.2 Equivalent signal generator, power supply . 44
7.1.3 Setup of the test environment . 45
Annex A (informative) FICS and SICS structure and instruction . 46
A.1 FICS and SICS pro-forma.
...
