EN IEC 61133:2021
(Main)Railway applications - Rolling stock - Testing of rolling stock on completion of construction and before entry into service
Railway applications - Rolling stock - Testing of rolling stock on completion of construction and before entry into service
To replace EN 50215:2009 with IEC 61133:2016 according to SC9XB Decision 53/09
Bahnanwendungen - Fahrzeuge - Prüfung von Bahnfahrzeugen nach Fertigstellung und vor Indienststellung
Applications ferroviaires - Matériel roulant - Essais de matériel roulant après achèvement et avant mise en service
L'IEC 61133:2016 spécifie des critères généraux permettant de démontrer par des essais que les véhicules ferroviaires nouvellement construits et achevés satisfont aux normes ou autres documents normatifs. La présente Norme internationale s'applique en tout ou en partie à tous les véhicules ferroviaires, à l'exception des véhicules spéciaux tels les véhicules de pose de voies, les nettoyeurs de ballast et les véhicules de transport de personnel. L'étendue de l'application de la norme à ces véhicules spéciaux sera précisément mentionnée au contrat afin de prendre en compte, si nécessaire, les exigences législatives. Cette édition inclut les modifications techniques majeures suivantes par rapport à l'édition précédente: - les références à des normes autres que des normes internationales ont été supprimées du texte principal; - les notes ne font donc référence qu'à l'Annexe B; - l'Annexe B a été mise à jour avec les informations européennes les plus récentes; - les références croisées des STI et des EN avec les articles de l'IEC 61133 ont été ajoutées.
Železniške naprave - Vozna sredstva - Preskušanje voznih sredstev po končani gradnji in pred rednim obratovanjem
Ta mednarodni standard določa splošna merila, s katerimi se s preskušanjem dokaže, da so na novo izdelana železniška vozila skladna s standardi ali drugimi normativnimi dokumenti. Ta mednarodni standard se v celoti ali delno uporablja za vsa železniška vozila, razen za vozila za posebne namene, kot so stroji za polaganje tirnic, odstranjevalci balasta in vozila za prevoz osebja. Obseg uporabe standarda za posamezna vozila bo posebej naveden v pogodbi, da se po potrebi upoštevajo vse zakonodajne zahteve. OPOMBA 1: Deli standarda, ki se uporabljajo, so odvisni od vrste vozila (npr. potniško, tovorno, vlečna prikolica itd.). OPOMBA 2: Področje uporabe tega standarda izključuje železniška in cestno-železniška vozila za gradnjo in vzdrževanje železniške infrastrukture. OPOMBA 3: Ta standard ne obravnava preskusov, opravljenih na komponentah ali opremi pred vgradnjo v vozilo. Če se uporablja ta mednarodni standard, velja za naslednje: – generatorske agregate, nameščene na vozilo za pomožne namene; – električne prenose, ki se uporabljajo na trolejbusih ali podobnih vozilih; – krmilno in pomožno opremo vozil z neelektričnimi pogonskimi sistemi; – vozila, ki jih vodijo, podpirajo ali poganjajo sistemi brez oprijema med kolesom in tirnico. OPOMBA 4: Za vozila, ki vozijo po železnici v Evropski uniji, veljajo posebne tehnične zahteve. Vir teh zahtev je naveden v dodatku B. Kadar za dano točko velja evropska zahteva, je na koncu točke vstavljena opomba.
General Information
Relations
Standards Content (Sample)

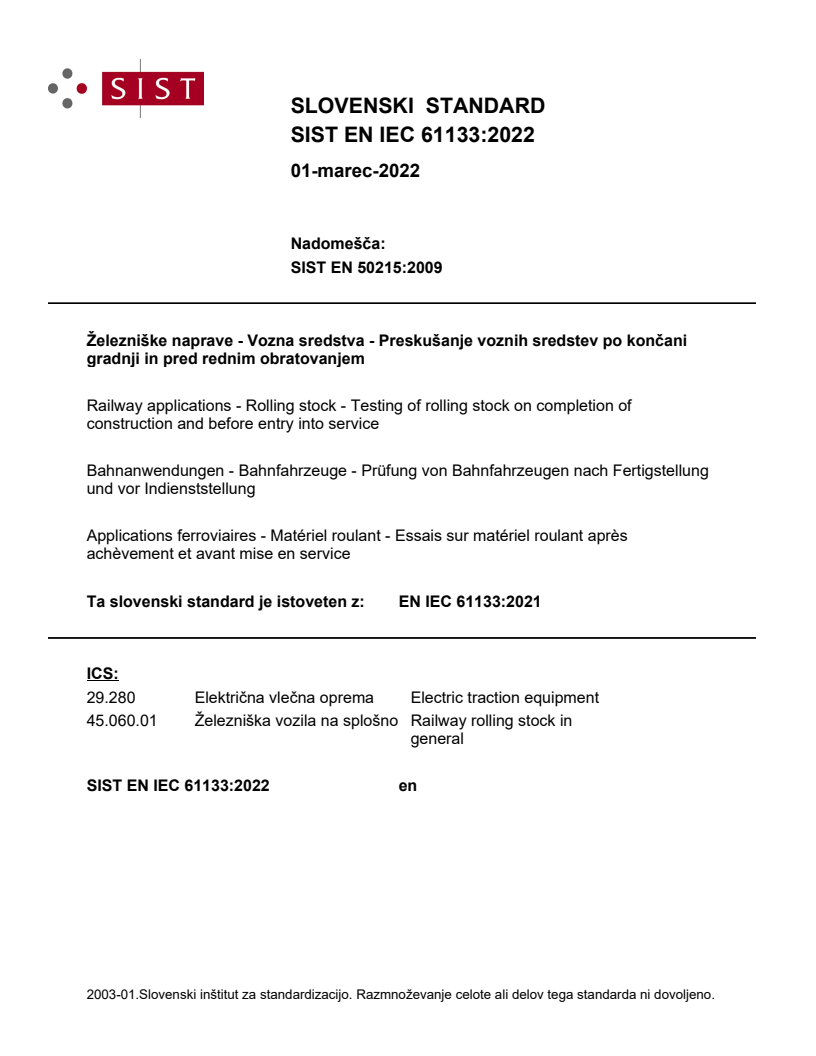

SLOVENSKI STANDARD
01-marec-2022
Nadomešča:
SIST EN 50215:2009
Železniške naprave - Vozna sredstva - Preskušanje voznih sredstev po končani
gradnji in pred rednim obratovanjem
Railway applications - Rolling stock - Testing of rolling stock on completion of
construction and before entry into service
Bahnanwendungen - Bahnfahrzeuge - Prüfung von Bahnfahrzeugen nach Fertigstellung
und vor Indienststellung
Applications ferroviaires - Matériel roulant - Essais sur matériel roulant après
achèvement et avant mise en service
Ta slovenski standard je istoveten z: EN IEC 61133:2021
ICS:
29.280 Električna vlečna oprema Electric traction equipment
45.060.01 Železniška vozila na splošno Railway rolling stock in
general
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

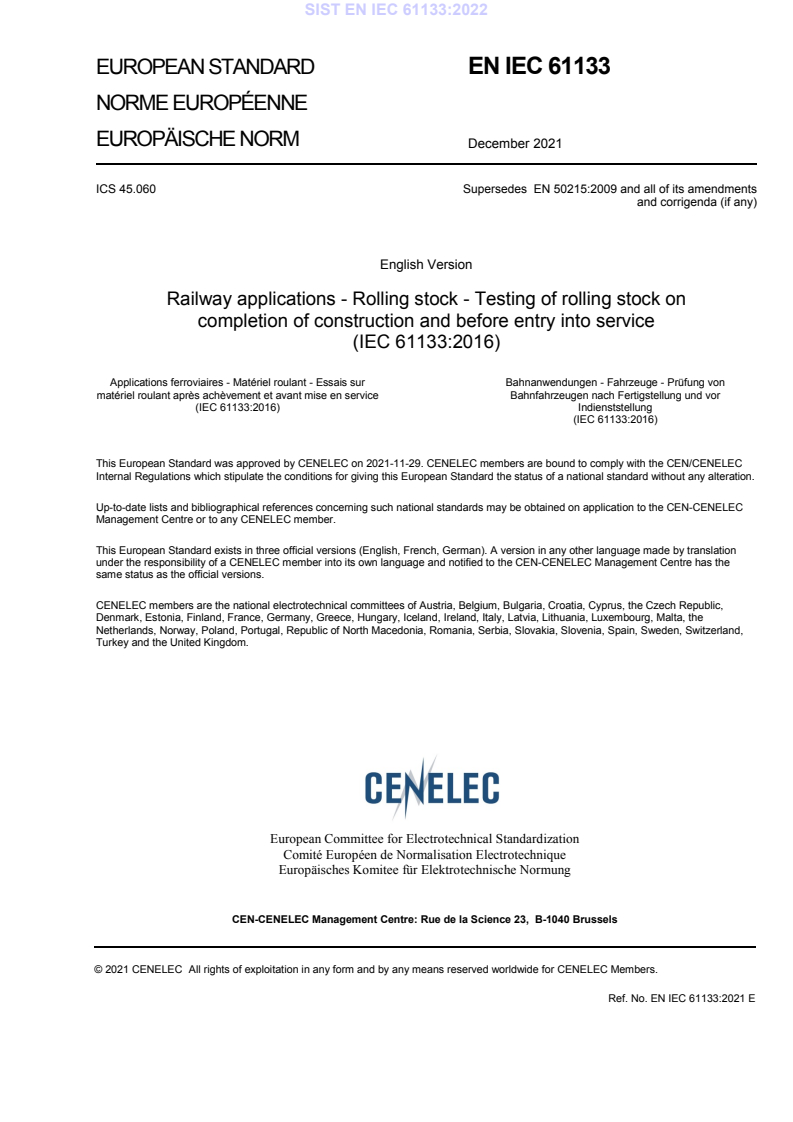

EUROPEAN STANDARD EN IEC 61133
NORME EUROPÉENNE
EUROPÄISCHE NORM
December 2021
ICS 45.060 Supersedes EN 50215:2009 and all of its amendments
and corrigenda (if any)
English Version
Railway applications - Rolling stock - Testing of rolling stock on
completion of construction and before entry into service
(IEC 61133:2016)
Applications ferroviaires - Matériel roulant - Essais sur Bahnanwendungen - Fahrzeuge - Prüfung von
matériel roulant après achèvement et avant mise en service Bahnfahrzeugen nach Fertigstellung und vor
(IEC 61133:2016) Indienststellung
(IEC 61133:2016)
This European Standard was approved by CENELEC on 2021-11-29. CENELEC members are bound to comply with the CEN/CENELEC
Internal Regulations which stipulate the conditions for giving this European Standard the status of a national standard without any alteration.
Up-to-date lists and bibliographical references concerning such national standards may be obtained on application to the CEN-CENELEC
Management Centre or to any CENELEC member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by translation
under the responsibility of a CENELEC member into its own language and notified to the CEN-CENELEC Management Centre has the
same status as the official versions.
CENELEC members are the national electrotechnical committees of Austria, Belgium, Bulgaria, Croatia, Cyprus, the Czech Republic,
Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, the
Netherlands, Norway, Poland, Portugal, Republic of North Macedonia, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland,
Turkey and the United Kingdom.
European Committee for Electrotechnical Standardization
Comité Européen de Normalisation Electrotechnique
Europäisches Komitee für Elektrotechnische Normung
CEN-CENELEC Management Centre: Rue de la Science 23, B-1040 Brussels
© 2021 CENELEC All rights of exploitation in any form and by any means reserved worldwide for CENELEC Members.
Ref. No. EN IEC 61133:2021 E

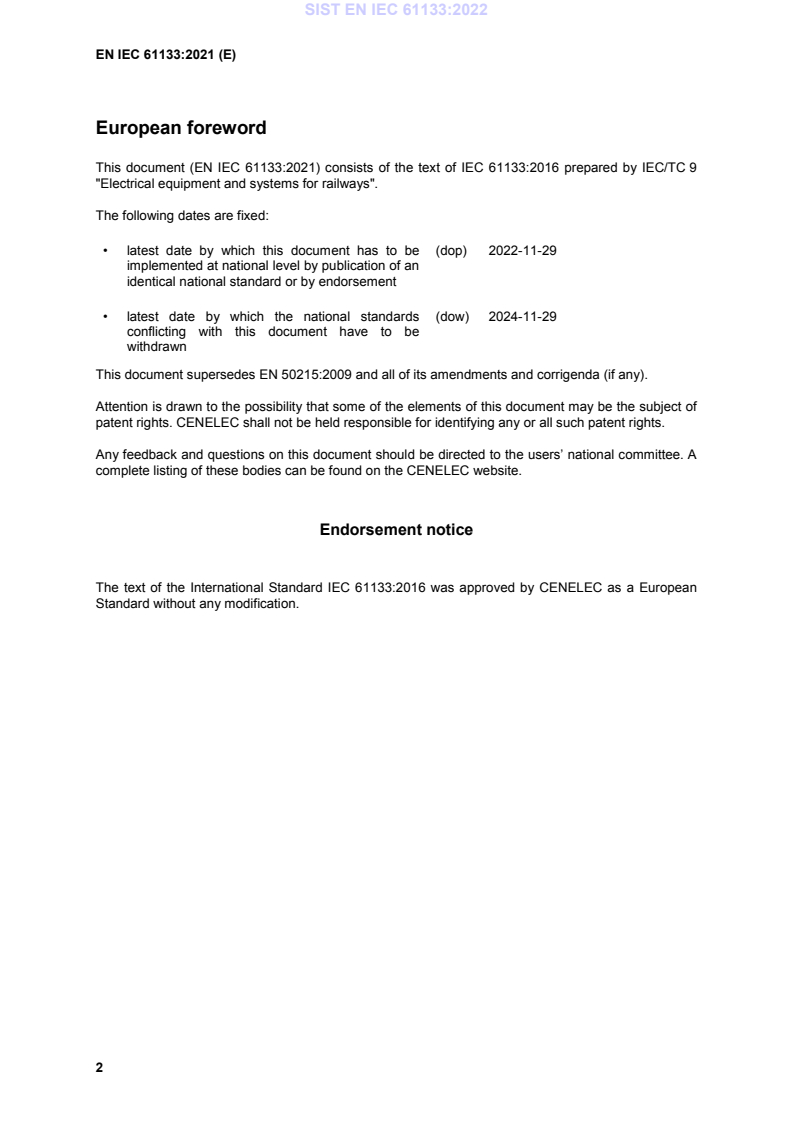

European foreword
This document (EN IEC 61133:2021) consists of the text of IEC 61133:2016 prepared by IEC/TC 9
"Electrical equipment and systems for railways".
The following dates are fixed:
• latest date by which this document has to be (dop) 2022-11-29
implemented at national level by publication of an
identical national standard or by endorsement
• latest date by which the national standards (dow) 2024-11-29
conflicting with this document have to be
withdrawn
This document supersedes EN 50215:2009 and all of its amendments and corrigenda (if any).
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. CENELEC shall not be held responsible for identifying any or all such patent rights.
Any feedback and questions on this document should be directed to the users’ national committee. A
complete listing of these bodies can be found on the CENELEC website.
Endorsement notice
The text of the International Standard IEC 61133:2016 was approved by CENELEC as a European
Standard without any modification.
Annex ZA
(normative)
Normative references to international publications
with their corresponding European publications
The following documents are referred to in the text in such a way that some or all of their content
constitutes requirements of this document. For dated references, only the edition cited applies. For
undated references, the latest edition of the referenced document (including any amendments) applies.
NOTE 1 When an International Publication has been modified by common modifications, indicated by (mod), the
relevant EN/HD applies.
NOTE 2 Up-to-date information on the latest versions of the European Standards listed in this annex is available
here: www.cenelec.eu.
Publication Year Title EN/HD Year
IEC 60077 series Railway applications - Electric EN 60077 series
equipment for rolling stock
IEC 60310 2016 Railway applications - Traction EN 60310 2016
transformers and inductors on board
rolling stock
IEC 60322 2001 Railway applications - Electric EN 60322 2001
equipment for rolling stock - Rules for
power resistors of open construction
IEC 60349 series Electric traction - Rotating electrical EN 60349 series
machines for rail and road vehicles
IEC 60494-1 2013 Railway applications - Rolling stock - EN 50206-1 2010
Pantographs - Characteristics and tests
- Part 1: Pantographs for main line
vehicles
IEC 60494-2 2013 Railway applications - Rolling stock - EN 50206-2 2010
Pantographs - Characteristics and tests
- Part 2: Pantographs for metros and
light rail vehicles
IEC 60529 1989 Degrees of protection provided by EN 60529 1991
enclosures (IP Code)
+AC 1993
+A1 2000
+A2 2013
+AC 2016
+AC 2019
IEC 60571 2012 Railway applications - Electronic EN 50155 2021
equipment used on rolling stock
For this standard, the directly equivalent European standard has been withdrawn; the standard listed
is the current version.
Publication Year Title EN/HD Year
IEC 60850 2014 Railway applications - Supply voltages EN 50163 2004
of traction systems
+ A1 2007
+ corrigendum May 2010
+ AC 2013
+ A2 2020
IEC 61287 series Railway applications - Power EN 61287 series
converters installed on board rolling
stock
IEC 61377-1 - Electric traction - Rolling stock - EN 61377 -
Combined testing - Part 1: Combined
testing of inverter-fed alternating
current motors and their control
IEC 61377-2 - Railway applications - Rolling stock - EN 61377 -
Combined testing - Part 2: Chopper-fed
direct current traction motors and their
control
IEC 61377-3 - Railway applications - Rolling stock - EN 61377 -
Part 3: Combined testing of alternating
current motors, fed by an indirect
convertor, and their control system
IEC 61991 2000 Railway applications - Rolling stock - EN 50153 2014
Protective provisions against electrical 1
+ A1 2017
hazards
+ A2 2020
IEC 62236-3-1 2008 Railway applications - Electromagnetic EN 50121-3-1 2017
compatibility - Part 3-1: Rolling stock - 1
+ A1 2019
Train and complete vehicle
IEC 62236-3-2 2008 Railway applications - Electromagnetic EN 50121-3-2 2016
compatibility - Part 3-2: Rolling stock - 1
+ A1 2019
Apparatus
IEC 62278 2002 Railway applications - Specification and EN 50126-1 2017
demonstration of reliability, availability, 1
EN 50126-2 2017
maintainability and safety (RAMS)
IEC 62313 2009 Railway applications - Power supply EN 50388 2012
and rolling stock - Technical criteria for 1
+ AC 2013
the coordination between power supply
(substation) and rolling stock
IEC 62425 - Railway applications - Communication, EN 50129 -
signalling and processing systems -
Safety related electronic systems for
signalling
IEC 62427 2007 Railway applications - Compatibility EN 50238-1 2019
between rolling stock and train
detection systems
IEC 62845 - Railway applications - Radio remote EN 50239 -
control system of traction vehicles for
shunting application
Publication Year Title EN/HD Year
IEC 62846 - Railway applications - Current EN 50317 -
collection systems - Requirements for
and validation of measurements of the
dynamic interaction between
pantograph and overhead contact line
ISO/IEC 17025 - General requirements for the EN ISO/IEC 17025 -
competence of testing and calibration
laboratories
ISO 3095 - Acoustics - Railway applications - EN ISO 3095 -
Measurement of noise emitted by
railbound vehicles
ISO 3381 - Railway applications - Acoustics - EN ISO 3381 -
Measurement of noise inside railbound
vehicles
ISO 9001 2015 Quality management systems - EN ISO 9001 2015
Requirements
IEC 61133 ®
Edition 3.0 2016-02
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
Railway applications – Rolling stock – Testing of rolling stock on completion of
construction and before entry into service
Applications ferroviaires – Matériel roulant – Essais de matériel roulant après
achèvement et avant mise en service
INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
COMMISSION
ELECTROTECHNIQUE
INTERNATIONALE
ICS 45.060 ISBN 978-2-8322-3178-4
– 2 – IEC 61133:2016 © IEC 2016
CONTENTS
FOREWORD . 6
1 Scope . 8
2 Normative references. 8
3 Terms, definitions and abbreviations . 10
4 Requirements . 12
4.1 General . 12
4.2 Third party test facilities . 13
4.3 Test plan . 13
5 Categories of tests . 14
5.1 General . 14
5.2 Preliminary adjustment tests . 14
5.3 Acceptance tests . 14
5.3.1 Type tests . 14
5.3.2 Routine tests. 15
5.3.3 Tests required by Approval Authority . 15
5.4 Investigation tests . 15
6 Test conditions . 16
6.1 General . 16
6.2 Static tests . 16
6.3 Dynamic tests . 16
7 Validation documentation . 17
8 Schedule of static tests . 17
8.1 General . 17
8.2 Dimensional tests . 17
8.2.1 Objective . 17
8.2.2 Type tests . 18
8.2.3 Routine tests. 19
8.3 Gauging test . 19
8.3.1 Objective . 19
8.3.2 General (type and safety-related test) . 19
8.3.3 Coefficient of flexibility test (type test and safety-related test, voluntary
or obligatory) . 19
8.3.4 Routine test or equivalent (safety-related test) . 19
8.4 Lifting ability test (type and safety-related test) . 19
8.4.1 Objective . 19
8.4.2 Type test . 20
8.5 Weigh
...
