EN 61969-3:2012

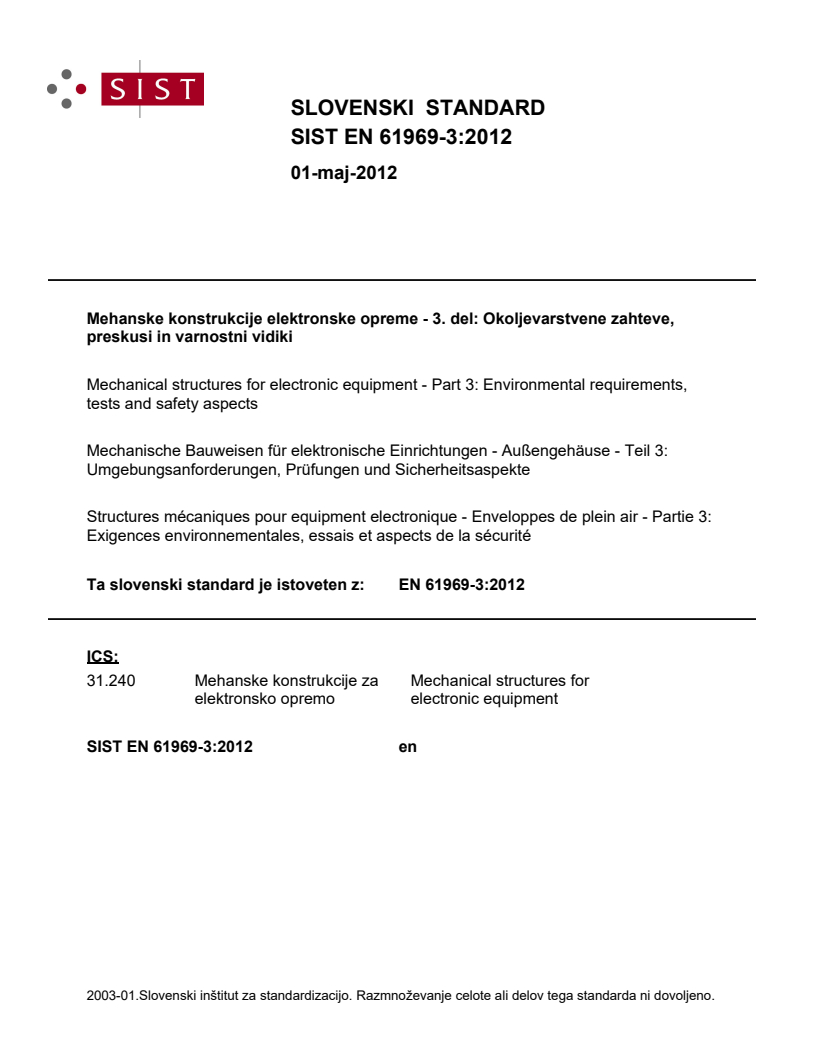

SLOVENSKI STANDARD
01-maj-2012
Mehanske konstrukcije elektronske opreme - 3. del: Okoljevarstvene zahteve,
preskusi in varnostni vidiki
Mechanical structures for electronic equipment - Part 3: Environmental requirements,
tests and safety aspects
Mechanische Bauweisen für elektronische Einrichtungen - Außengehäuse - Teil 3:
Umgebungsanforderungen, Prüfungen und Sicherheitsaspekte
Structures mécaniques pour equipment electronique - Enveloppes de plein air - Partie 3:
Exigences environnementales, essais et aspects de la sécurité
Ta slovenski standard je istoveten z: EN 61969-3:2012
ICS:
31.240 Mehanske konstrukcije za Mechanical structures for
elektronsko opremo electronic equipment
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

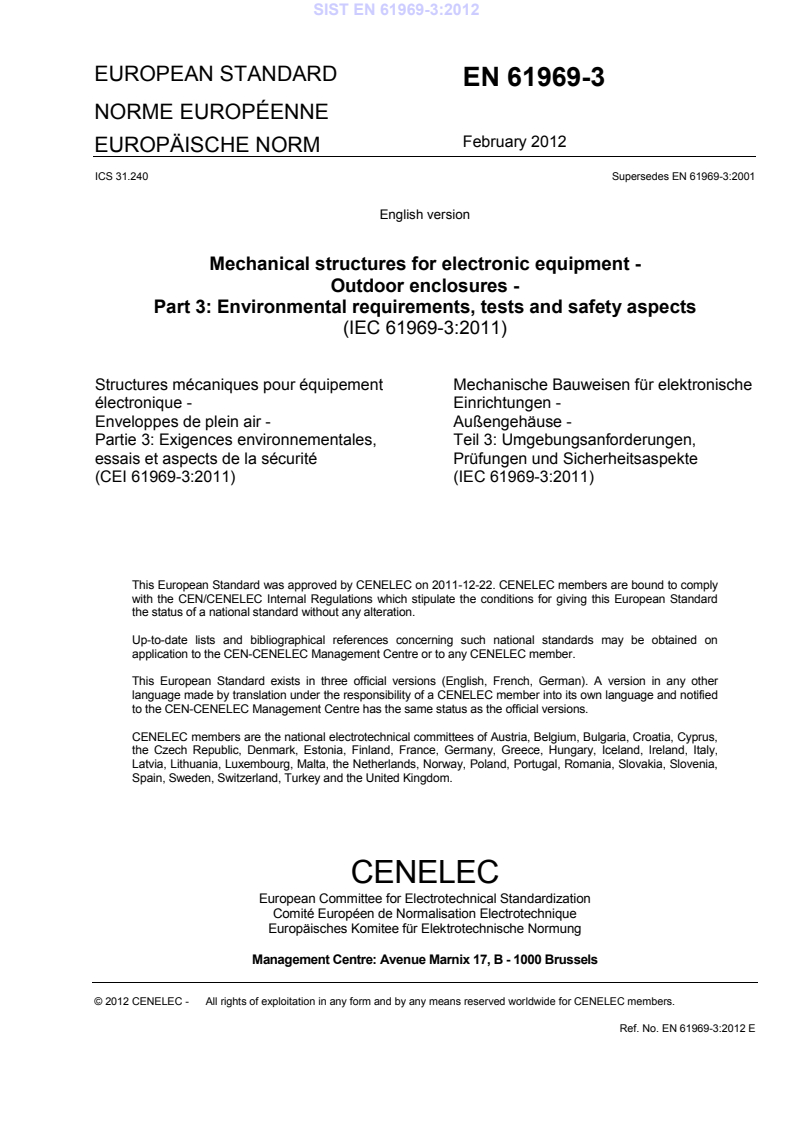

EUROPEAN STANDARD
EN 61969-3
NORME EUROPÉENNE
February 2012
EUROPÄISCHE NORM
ICS 31.240 Supersedes EN 61969-3:2001

English version
Mechanical structures for electronic equipment -
Outdoor enclosures -
Part 3: Environmental requirements, tests and safety aspects
(IEC 61969-3:2011)
Structures mécaniques pour équipement Mechanische Bauweisen für elektronische
électronique - Einrichtungen -
Enveloppes de plein air - Außengehäuse -
Partie 3: Exigences environnementales, Teil 3: Umgebungsanforderungen,
essais et aspects de la sécurité Prüfungen und Sicherheitsaspekte
(CEI 61969-3:2011) (IEC 61969-3:2011)

This European Standard was approved by CENELEC on 2011-12-22. CENELEC members are bound to comply
with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this European Standard
the status of a national standard without any alteration.

Up-to-date lists and bibliographical references concerning such national standards may be obtained on
application to the CEN-CENELEC Management Centre or to any CENELEC member.

This European Standard exists in three official versions (English, French, German). A version in any other
language made by translation under the responsibility of a CENELEC member into its own language and notified
to the CEN-CENELEC Management Centre has the same status as the official versions.

CENELEC members are the national electrotechnical committees of Austria, Belgium, Bulgaria, Croatia, Cyprus,
the Czech Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy,
Latvia, Lithuania, Luxembourg, Malta, the Netherlands, Norway, Poland, Portugal, Romania, Slovakia, Slovenia,
Spain, Sweden, Switzerland, Turkey and the United Kingdom.

CENELEC
European Committee for Electrotechnical Standardization
Comité Européen de Normalisation Electrotechnique
Europäisches Komitee für Elektrotechnische Normung

Management Centre: Avenue Marnix 17, B - 1000 Brussels

© 2012 CENELEC - All rights of exploitation in any form and by any means reserved worldwide for CENELEC members.
Ref. No. EN 61969-3:2012 E

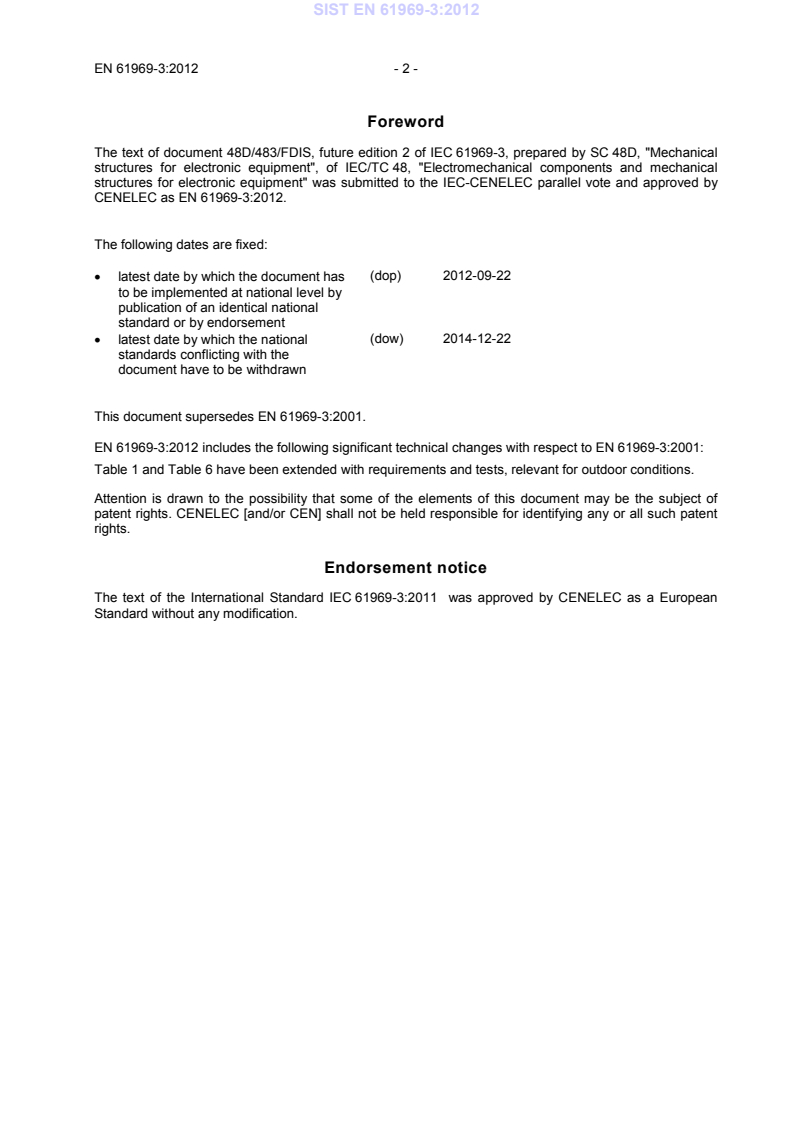

Foreword
The text of document 48D/483/FDIS, future edition 2 of IEC 61969-3, prepared by SC 48D, "Mechanical
structures for electronic equipment", of IEC/TC 48, "Electromechanical components and mechanical
structures for electronic equipment" was submitted to the IEC-CENELEC parallel vote and approved by
CENELEC as EN 61969-3:2012.
The following dates are fixed:
(dop) 2012-09-22
• latest date by which the document has
to be implemented at national level by
publication of an identical national
standard or by endorsement
• latest date by which the national (dow) 2014-12-22

standards conflicting with the
document have to be withdrawn
This document supersedes EN 61969-3:2001.
Table 1 and Table 6 have been extended with requirements and tests, relevant for outdoor conditions.
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. CENELEC [and/or CEN] shall not be held responsible for identifying any or all such patent
rights.
Endorsement notice
The text of the International Standard IEC 61969-3:2011 was approved by CENELEC as a European
Standard without any modification.

- 3 - EN 61969-3:2012
Annex ZA
(normative)
Normative references to international publications
with their corresponding European publications

The following documents, in whole or in part, are normatively referenced in this document and are
indispensable for its application. For dated references, only the edition cited applies. For undated
references, the latest edition of the referenced document (including any amendments) applies.

NOTE  When an international publication has been modified by common modifications, indicated by (mod), the relevant EN/HD
applies.
Publication Year Title EN/HD Year

IEC 60068 Series Environmental testing EN 60068 Series

IEC 60417 Data- Graphical symbols for use on equipment - -
base
IEC 60529 - Degrees of protection provided by enclosures - -
(IP Code)
IEC 60695-11-10 - Fire hazard testing - EN 60695-11-10 -
Part 11-10: Test flames - 50 W horizontal and
vertical flame test methods
IEC 60721-3-2 - Classification of environmental conditions - EN 60721-3-2 -
Part 3: Classification of groups of
environmental parameters and their
severities - Section 2: Transportation

IEC 60721-3-4 - Classification of environmental conditions - EN 60721-3-4 -
Part 3: Classification of groups of
environmental parameters and their
severities - Section 4: Stationary use at non-
weatherprotected locations
IEC 60825-1 - Safety of laser products - EN 60825-1 -
Part 1: Equipment classification and
requirements
IEC 60950 Series Information technology equipment - Safety EN 60950 Series

IEC 61010 - Safety requirements for electrical equipment EN 61010 -
for measurement, control and laboratory use

IEC 61140 - Protection against electric shock - Common EN 61140 -
aspects for installation and equipment

IEC 61439-5 - Low-voltage switchgear and controlgear EN 61439-5 -
assemblies -
Part 5: Assemblies for power distribution in
public networks
IEC 61587-1 - Mechanical structures for electronic EN 61587-1 -
equipment - Tests for IEC 60917 and IEC
60297 -
Part 1: Climatic, mechanical tests and safety
aspects for cabinets, racks, subracks and
chassis
IEC 61587-2 - Mechanical structures for electronic EN 61587-2 -
equipment - Tests for IEC 60917 and
IEC 60297 -
Part 2: Seismic tests for cabinets and racks

Publication Year Title EN/HD Year

IEC 61587-3 - Mechanical structures for electronic EN 61587-3 -
equipment - Tests for IEC 60917 and
IEC 60297 -
Part 3: Electromagnetic shielding performance
tests for cabinets, racks and subracks

IEC 62194 - Method of evaluating the thermal EN 62194 -
performance of enclosures
IEC 62262 - Degrees of protection provided by enclosures EN 62262 -
for electrical equipment against external
mechanical impacts (IK code)
IEC 62305-4 - Protection against lightning - EN 62305-4 -
Part 4: Electrical and electronic systems within
structures
ISO 2533 - Standard atmosphere - -

ISO 3744 - Acoustics - Determination of sound power EN ISO 3744 -
levels of noise sources using sound pressure -
Engineering method in an essentially free field
over a reflecting plane
ISO 3864 - Safety colours and safety signs - -

ISO 4892-2 - Plastics - Methods of exposure to laboratory EN ISO 4892-2 -
light sources -
Part 2: Xenon-arc lamps
ETSI EN 300019-2-2 - Equipment Engineering (EE) - Environmental - -
conditions and environmental tests for
telecommunications equipment -
Part 2-2: Specification of environmental tests -
Transportation
IEC 61969-3 ®
Edition 2.0 2011-11
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
Mechanical structures for electronic equipment – Outdoor enclosures –
Part 3: Environmental requirements, tests and safety aspects

Structures mécaniques pour équipement électronique – Enveloppes de
plein air –
Partie 3: Exigences environnementales, essais et aspects de la sécurité

INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
COMMISSION
ELECTROTECHNIQUE
PRICE CODE
INTERNATIONALE
CODE PRIX M
ICS 31.240 ISBN 978-2-88912-761-0
