EN ISO/IEC 15423:2005

SLOVENSKI STANDARD
01-september-2005
1DGRPHãþD
SIST ENV 12646:2003
,QIRUPDFLMVNDWHKQRORJLMD±7HKQLNH]DVDPRGHMQRUD]SR]QDYDQMHLQ]DMHP
SRGDWNRY±3UHVNXãDQMHVNHQHUMHYLQGHNRGLUQLNRYþUWQLKNRG,62,(&
Information technology - Automatic identification and data capture techniques - Bar code
scanner and decoder performance testing (ISO/IEC 15423:2004)
Informationstechnik - Automatische Identifikation und Datenerfassungsverfahren -
Leistunsungsanforderungen an Strichcode-Scanner und -Decoder (ISO/IEC 15423:2004)
Technologies de l'information - Techniques d'identification automatique et de capture des
données - Contrôle de scanner de code a barres et de performance du décodeur
(ISO/IEC 15423:2004)
Ta slovenski standard je istoveten z: EN ISO/IEC 15423:2005
ICS:
35.040 Nabori znakov in kodiranje Character sets and
informacij information coding
35.180 Terminalska in druga IT Terminal and other
periferna oprema IT peripheral equipment
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

EUROPEAN STANDARD
EN ISO/IEC 15423
NORME EUROPÉENNE
EUROPÄISCHE NORM
July 2005
ICS 35.040 Supersedes ENV 12646:1997
English Version
Information technology - Automatic identification and data
capture techniques - Bar code scanner and decoder
performance testing (ISO/IEC 15423:2004)
Technologies de l'information - Techniques d'identification Informationstechnik - Automatische Identifikation und
automatique et de capture des données - Contrôle de Datenerfassungsverfahren - Leistunsungsanforderungen an
scanner de code à barres et de performance du décodeur Strichcode-Scanner und -Decoder (ISO/IEC 15423:2004)
(ISO/IEC 15423:2004)
This European Standard was approved by CEN on 7 July 2005.
CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this European
Standard the status of a national standard without any alteration. Up-to-date lists and bibliographical references concerning such national
standards may be obtained on application to the Central Secretariat or to any CEN member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by translation
under the responsibility of a CEN member into its own language and notified to the Central Secretariat has the same status as the official
versions.
CEN members are the national standards bodies of Austria, Belgium, Cyprus, Czech Republic, Denmark, Estonia, Finland, France,
Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Slovakia,
Slovenia, Spain, Sweden, Switzerland and United Kingdom.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION
EUROPÄISCHES KOMITEE FÜR NORMUNG
Management Centre: rue de Stassart, 36  B-1050 Brussels
© 2005 CEN All rights of exploitation in any form and by any means reserved Ref. No. EN ISO/IEC 15423:2005: E
worldwide for CEN national Members.

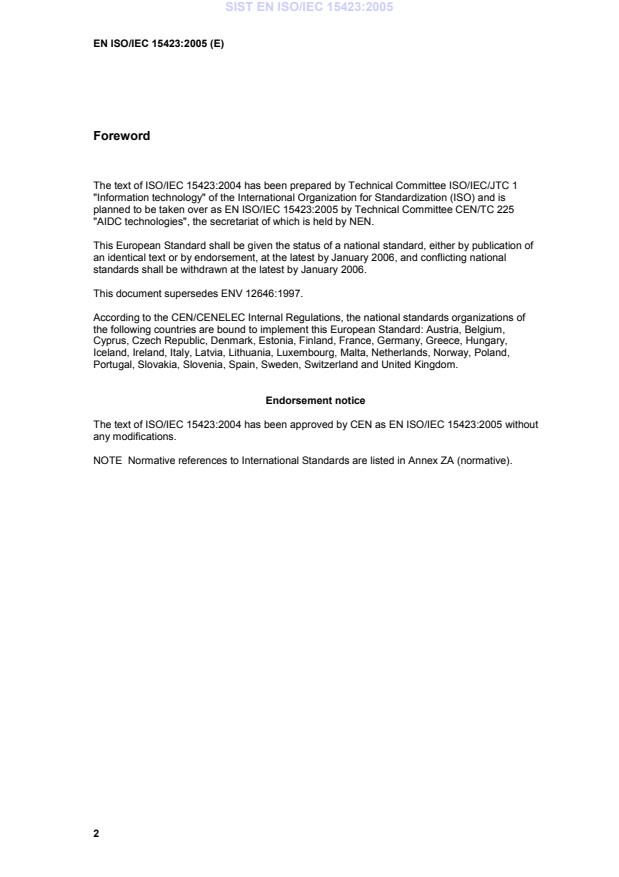

Foreword
The text of ISO/IEC 15423:2004 has been prepared by Technical Committee ISO/IEC/JTC 1
"Information technology" of the International Organization for Standardization (ISO) and is
planned to be taken over as EN ISO/IEC 15423:2005 by Technical Committee CEN/TC 225
"AIDC technologies", the secretariat of which is held by NEN.

This European Standard shall be given the status of a national standard, either by publication of
an identical text or by endorsement, at the latest by January 2006, and conflicting national
standards shall be withdrawn at the latest by January 2006.

This document supersedes ENV 12646:1997.

According to the CEN/CENELEC Internal Regulations, the national standards organizations of
the following countries are bound to implement this European Standard: Austria, Belgium,
Cyprus, Czech Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary,
Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland,
Portugal, Slovakia, Slovenia, Spain, Sweden, Switzerland and United Kingdom.

Endorsement notice
The text of ISO/IEC 15423:2004 has been approved by CEN as EN ISO/IEC 15423:2005 without
any modifications.
NOTE Normative references to International Standards are listed in Annex ZA (normative).
Annex ZA
(normative)
Normative references to international publications
with their relevant European publications

This European Standard incorporates by dated or undated reference, provisions from other
publications. These normative references are cited at the appropriate places in the text and the
publications are listed hereafter. For dated references, subsequent amendments to or revisions of
any of these publications apply to this European Standard only when incorporated in it by
amendment or revision. For undated references the latest edition of the publication referred to
applies (including amendments).

NOTE Where an International Publication has been modified by common modifications, indicated
by (mod.), the relevant EN/HD applies.

Publication Year Title EN Year

ISO 9001 2000 Quality management systems EN ISO 9001 2000
— Requirements
ISO/IEC 15416 2000 Information technology - EN ISO/IEC 15416 2001
Automatic identification and
data capture techniques - Bar
code print quality test
specification - Linear symbols

ISO/IEC 15438 2001 Information technology — EN ISO/IEC 15438 2003
Automatic identification and data
capture techniques — Bar code
symbology specifications —
PDF417
INTERNATIONAL ISO/IEC
STANDARD 15423
First edition
2004-06-15
Information technology — Automatic
identification and data capture
techniques — Bar code scanner and
decoder performance testing
Technologies de l'information — Techniques d'identification
automatique et de capture des données — Contrôle de scanner de
code à barres et de performance du décodeur

Reference number
ISO/IEC 15423:2004(E)
©
ISO/IEC 2004
ISO/IEC 15423:2004(E)
PDF disclaimer
This PDF file may contain embedded typefaces. In accordance with Adobe's licensing policy, this file may be printed or viewed but
shall not be edited unless the typefaces which are embedded are licensed to and installed on the computer performing the editing. In
downloading this file, parties accept therein the responsibility of not infringing Adobe's licensing policy. The ISO Central Secretariat
accepts no liability in this area.
Adobe is a trademark of Adobe Systems Incorporated.
Details of the software products used to create this PDF file can be found in the General Info relative to the file; the PDF-creation
parameters were optimized for printing. Every care has been taken to ensure that the file is suitable for use by ISO member bodies. In
the unlikely event that a problem relating to it is found, please inform the Central Secretariat at the address given below.

©  ISO/IEC 2004
All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form or by any means,
electronic or mechanical, including photocopying and microfilm, without permission in writing from either ISO at the address below or
ISO's member body in the country of the requester.
ISO copyright office
Case postale 56 • CH-1211 Geneva 20
Tel. + 41 22 749 01 11
Fax + 41 22 749 09 47
E-mail copyright@iso.org
Web www.iso.org
Published in Switzerland
ii © ISO/IEC 2004 – All rights reserved

ISO/IEC 15423:2004(E)
Contents Page
Foreword. v
Introduction . vi
1 Scope. 1
2 Normative references. 1
3 Terms and definitions. 2
4 Abbreviated terms. 5
5 Categories of scanning equipment . 5
5.1 Scanners with single-axis reading diagram. 6
5.2 Scanners with two-axis reading diagram . 6
5.3 Scanners with three-axis reading diagram. 6
5.3.1 Multi-line Scanners. 6
5.3.2 Image Scanners. 6
6 Test requirements. 6
6.1 Test methods. 6
6.2 Selection of equipment for testing. 7
6.3 Test conditions. 7
6.3.1 Environment. 7
6.3.2 Equipment configuration. 7
6.4 Test Charts. 7
6.4.1 Test Charts for linear symbologies. 8
6.4.2 Test charts for multi-row and composite symbols. 10
6.4.3 Test charts – 2D matrix symbols – Data Matrix . 13
6.5 Test equipment. 15
6.5.1 Test equipment for scanners with single axis reading diagram. 15
6.5.2 Test equipment for scanners with two axis reading diagram . 15
6.5.3 Test equipment for scanners with three axis reading diagram. 15
6.5.4 Additional test equipment. 15
6.5.5 Test equipment for complete reading systems .15
6.6 Test criteria. 15
6.6.1 Test criterion for complete reading systems and decoders. 16
6.6.2 Test criterion for scanners. 16
6.7 Parameters to be tested and test methods . 16
6.7.1 Scanners with single axis reading diagram . 17
6.7.2 Scanners with two axis reading diagram . 20
6.7.3 Scanners with three axis reading diagram – Multi-line scanners. 23
6.7.4 Scanners with three axis reading diagram – Image scanners . 24
6.7.5 Decoder. 24
6.7.6 Complete Reading Systems. 26
6.8 Test report. 26
7 Certification and labelling. 26
8 Equipment specification. 27
8.1 General. 27
8.2 Scanner/decoder interface. 28
8.3 Human interface. 28
8.4 Computer interface. 28
8.5 Digital input and output (I/O). 29
8.6 Programming and configuration. 29
© ISO/IEC 2004 – All rights reserved iii

ISO/IEC 15423:2004(E)
Annex A (normative) General operational requirements.30
A.1 Installation, operation and maintenance – general.30
A.2 Power supply.30
A.3 Temperature.30
A.3.1 Operating temperature range.30
A.3.2 Storage temperature range.30
A.4 Humidity.30
Annex B (informative) Classification of scanners .31
B.1 Types of scanner.31
B.1.1 Scanners with single axis reading diagram .31
B.1.2 Scanners with two axis reading diagram.32
B.1.3 Scanners with three axis reading diagram .33
B.2 Additional methods of categorization.36
Annex C (informative) Example of decodability calculation.37

iv © ISO/IEC 2004 – All rights reserved

ISO/IEC 15423:2004(E)
Foreword
ISO (the International Organization for Standardization) and IEC (the International Electrotechnical
Commission) form the specialized system for worldwide standardization. National bodies that are members of
ISO or IEC participate in the development of International Standards through technical committees
established by the respective organization to deal with particular fields of technical activity. ISO and IEC
technical committees collaborate in fields of mutual interest. Other international organizations, governmental
and non-governmental, in liaison with ISO and IEC, also take part in the work. In the field of information
technology, ISO and IEC have established a joint technical committee, ISO/IEC JTC 1.
International Standards are drafted in accordance with the rules given in the ISO/IEC Directives, Part 2.
The main task of the joint technical committee is to prepare International Standards. Draft International
Standards adopted by the joint technical committee are circulated to national bodies for voting. Publication as
an International Standard requires approval by at least 75 % of the national bodies casting a vote.
Attention is drawn to the possibility that some of the elements of this document may be the subject of patent
rights. ISO and IEC shall not be held responsible for identifying any or all such patent rights.
ISO/IEC 15423 was prepared by Joint Technical Committee ISO/IEC JTC 1, Information technology,
Subcommittee SC 31, Automatic identification and data capture techniques.
This first edition cancels and replaces ISO/IEC 15423-1:2001, which has been technically revised.
© ISO/IEC 2004 – All rights reserved v

ISO/IEC 15423:2004(E)
Introduction
The technology of bar coding is based on the recognition of patterns encoded in bars and spaces of defined
dimensions or arrangements of marks in matrix patterns both of which are constructed according to rules
defining the translation of characters into such patterns, known as the symbology specification.
Bar code symbols can be produced with a wide variety of printing and other techniques, and the overall
symbol dimensions can be uniformly scaled to suit particular requirements.
There is a wide range of bar code reading equipment using various scanning techniques, which enable bar
code symbols to be read under many different conditions.
Bar code symbols may be a) “linear” i.e. read in a single dimension, where the height of the bars provides
redundancy of information, or b) “two dimensional”, either in stacked rows to be read unidimensionally with
multiple scans, or as a matrix of elements requiring two dimensional reading.
Bar code reading equipment must be capable of reliably converting the information represented as a bar code
symbol into a form meaningful to the host computer system or otherwise to the user.
Manufacturers of bar code equipment, the producers of bar code symbols and the users of bar code
technology require publicly available standard test specifications for bar code reading equipment to ensure the
accuracy and consistency of performance of this equipment.

vi © ISO/IEC 2004 – All rights reserved

INTERNATIONAL STANDARD ISO/IEC 15423:2004(E)

Information technology — Automatic identification and data
capture techniques — Bar code scanner and decoder
performance testing
1 Scope
This International Standard defines the test equipment and procedures to be used to determine the
performance of bar code scanning and decoding equipment. It deals with bar code scanning and decoding
equipment both as integrated reading systems and as discrete units. It defines performance of the equipment
in a particular configuration (e.g. a specific model) irrespective of the individual components used. It also
defines in a normative annex operational parameters for the test equipment, and describes, in an informative
annex, a means of classifying scanners.
2 Normative references
The following referenced documents are indispensable for the application of this document. For dated
references, only the edition cited applies. For undated references, the latest edition of the referenced
document (including any amendments) applies.
ISO 9001, Quality management systems — Requirements
ISO/IEC 15415, Information technology — Automatic identification and data capture techniques — Bar code
print quality test specification — Two-dimensional symbols
ISO/IEC 15416, Information technology — Automatic identification and data capture techniques — Bar code
print quality test specification — Linear symbols
ISO/IEC 15417, Information technology — Automatic identification and data capture techniques — Bar code
symbology specification — Code 128
ISO/IEC 15424, Information technology — Automatic identification and data capture techniques — Data
Carrier Identifiers (including Symbology Identifiers)
ISO/IEC 15426-1, Information technology — Automatic identification and data capture techniques — Bar code
verifier conformance specifications — Part 1: Linear symbols
ISO/IEC 15426-2, Information technology — Automatic identification and data capture techniques — Bar code
verifier conformance specifications — Part 2: Two-dimensional verifiers
ISO/IEC 15438, Information technology — Automatic identification and data capture techniques — Bar code
symbology specifications — PDF417
ISO/IEC 16022, Information technology — International symbology specification — Data matrix
ISO/IEC 16388, Information technology — Automatic identification and data capture techniques — Bar code
symbology specification — Code 39
ISO/IEC 19762 (all parts), Information technology — Automatic identification and data capture techniques —
Harmonized vocabulary
© ISO/IEC 2004 – All rights reserved 1

ISO/IEC 15423:2004(E)
ITS/99-001, International Symbology Specification — Reduced Space Symbology (RSS) (AIM Inc.)
ITS/99-002, International Symbology Specification — EAN.UCC Composite Symbology (AIM Inc.)
NOTE The specification referenced ITS/99-001 will be superseded by ISO/IEC 24724, which is under development,
and that referenced ITS/99-002 will be superseded by ISO/IEC 24723, which is also under development, on publication of
the International Standards in question.
3 Terms and definitions
For the purposes of this document, the terms and definitions given in ISO/IEC 19762 and the following apply.
3.1
contact scanner
particular type of scanner in which the scanning action takes place with the scanner in actual or near contact
with the symbol, e.g. wand or light pen
3.2
composite symbology
bar code symbol composed of both a linear bar code symbol and a two-dimensional bar code symbol
3.3
decode redundancy
acquisition of a predetermined number of identical decodes before acceptance by a decoder of a valid decode
EXAMPLE Decode redundancy of 2 requires two identical decodes.
3.4
exit window
datum point from which the reading diagram is measured, positioned on the beam midpoint and closest to the
reading end of the scanner
3.5
maximum reading distance
distance from the exit window to the end of the depth of field
NOTE See R in Figure 2.
3.6
minimum reading distance
distance from the exit window to the beginning of the depth of field
NOTE See A in Figure 2.
3.7
raster
projection of a laser beam to create multiple, nearly parallel scan lines instead of a single line
3.8
raster distance
distance between the two most widely spaced adjacent scan lines projected on a plane at a defined distance
from the scanner exit window
NOTE See E in Figure B.3.
2 © ISO/IEC 2004 – All rights reserved

ISO/IEC 15423:2004(E)
3.9
raster width
distance between the two outermost scan lines projected on a plane at a defined distance from the scanner
exit window
NOTE This covers a reading field which depends on the construction of the scanner and on the reading distance.
See D in Figure B.3.
3.10
reading angle
angular rotation of a symbol in an axis relative to a scan line
NOTE Three different reading angles, tilt, skew and pitch are illustrated in Figure 1. Tilt refers to rotation around the
z axis, skew to rotation around the x axis and pitch to rotation around the y axis.

X Axis
Y Axis
skew pitch
tilt
Z Axis
Figure 1 — Reading angles
3.11
reading diagram
graphical representation of the reading zone for a specific X dimension (or other parameters) of the bar code
symbol
NOTE The parameters of the reading diagram are:
 measurements made from the exit window of the reader;
 reading distance, measured on the z axis;
 X dimension (in mm);
 skew, tilt and pitch angles;
 symbol contrast value;
 ambient light level; and
 symbology.
See Annex B.
3.12
reading zone
whole region (line, area or volume) in front of the exit window of a non-contact scanner in which defined
symbols can be read
NOTE See zone MNOP in Figure 2.
© ISO/IEC 2004 – All rights reserved 3

ISO/IEC 15423:2004(E)
O
Two-axis
Scanner
N
C
M
P
A
B
R
Reading zone
Figure 2 — Example of reading zone (MNOP)
NOTE Certain application requirements, for example in automated conveyor scanning systems, may restrict the
effective reading zone to that shown in Figure 3 (MNO’P’).

Two-axis
Scanner
N
O’
C´
M
P’
A B
R
Restricted reading zone
Figure 3 — Example of restricted reading zone (MNO’P’)
3.13
read rate
percentage representing the number of good reads per 100 attempts to read a particular symbol
4 © ISO/IEC 2004 – All rights reserved

ISO/IEC 15423:2004(E)
3.14
resolution
width of the narrowest element capable of being read by the equipment under test
3.15
scan, noun
single pass of the scanning beam over the symbol or a portion of the symbol, or a single image capture with
an image capture device
scan, verb
to pass the scanning beam over the symbol or a portion of the symbol, or to capture a single image with an
image capture device
3.16
scan attempt
single pass of the scanner relative to the symbol (or vice versa), or a single activation of the scanner, e.g.
triggering, for a period not exceeding two seconds or a time period specified by the manufacturer
3.17
scanning rate
number of times the bar code symbol is scanned per second, expressed in scans per second, or scan lines
per second
3.18
scanning speed
speed at which the scanning spot of a scanner with a single axis reading diagram is passed across a bar code
symbol
3.19
X axis
direction parallel to the motion of the scan beam, nominally perpendicular to the bars of a linear symbol
3.20
Y axis
direction perpendicular to the motion of the scan beam, nominally parallel to the bars of a linear symbol
3.21
Z axis
direction from the exit window to the symbol, nominally normal to the plane of the symbol
4 Abbreviations
Abbreviations:
CCD Charge Coupled Device.
CMOS Complementary Metal Oxide Semiconductor.
LED Light Emitting Diode.
5 Categories of scanning equipment
In order to enable the most appropriate set of tests for a given scanning device or unit to be selected,
scanners are grouped for the purposes of this International Standard into three categories. The basis for this
categorisation is the nature of the reading diagram applicable. Examples of various types of scanners are
given in Annex B. Each category may be further subdivided into ‘continuously operating’ scanners, in which
the scanning operation is already in progress when the symbol enters the reading zone, and ‘triggered’
scanners, where the symbol is already in the reading zone when the scanning operation is initiated.
© ISO/IEC 2004 – All rights reserved 5

ISO/IEC 15423:2004(E)
5.1 Scanners with single-axis reading diagram
These are defined as scanners with a reading diagram which extends as a single line from the exit window of
the scanner to the maximum reading distance along the z axis. The scanning action therefore has to be
created by moving either the scanner or the symbol relative to the other in a direction nominally perpendicular
to the height of the bars.
The reading diagram for such scanners can be represented as a single line extending outwards from the exit
window of the scanner. See Figure B.1.
5.2 Scanners with two-axis reading diagram
These are defined as scanners with a reading diagram which extends in a single plane from the exit window of
the scanner to the maximum reading distance along the z axis and perpendicularly in both directions along the
x axis. The scanning action is created either by sweeping the scanner beam across the symbol in a direction
nominally perpendicular to the height of the bars, or by electronically sampling in turn individual elements of a
photosensitive array on which an image of the bar code symbol is focussed.
The reading diagram for such scanners can be represented in a two-dimensional form. See Figure B.2.
5.3 Scanners with three-axis reading diagram
These are defined as scanners with a reading diagram which extends from the exit window of the scanner to
the maximum reading distance along the z axis, and perpendicularly to this in both directions along the x and
y axes which are also perpendicular to each other.
The reading diagram for such scanners is the representation of a three-dimensional solid.
5.3.1 Multi-line Scanners
The scanning action is created either by sweeping the scanner beam across the symbol in a series of
nominally parallel scans in a direction nominally perpendicular to the height of the bars, see Figure B.3 or in a
pattern of scan lines at various angles, or multi-window scanners, see Figure B.5.
5.3.2 Image Scanners
The scanning action is created by electronically sampling in turn individual photosensitive elements of an area
array on which an image of the bar code symbol is focussed; see Figure B.4.
6 Test requirements
6.1 Test methods
Manufacturers’ test procedures should be in accordance with the requirements of ISO 9001.
Tests should wherever possible be carried out on a complete reading system comprising both scanner and
decoder.
Where it is required to report the performance of a scanner or a decoder independently, the unit shall be
tested in conjunction with one or more representative decoder or scanner unit(s) respectively, but only the
parameters relative to scanning or decoding performance, as applicable, shall be reported. The decoder or
scanner units used shall be reported with the test results.
Manufacturers may optionally test scanner or decoder performance independently using the equipment
defined in 6.5.4.1 or 6.5.4.2 but it should be noted that the results may not correspond exactly to those
obtained when tested as a complete system.
6 © ISO/IEC 2004 – All rights reserved

ISO/IEC 15423:2004(E)
6.2 Selection of equipment for testing
Tests shall be carried out on at least one unit which has been selected from a production batch in accordance
with the manufacturer's quality control sampling scheme.
NOTE It is in the manufacturer's interest to ensure that the unit selected is representative of its type. Guidance on
sampling is given in ISO 2859-1.
6.3 Test conditions
6.3.1 Environment
Tests shall be conducted under manufacturer-specified environmental conditions (power supply, temperature,
relative humidity and ambient light conditions) and the test conditions shall be recorded as part of the test
report.
Test charts to be used shall have been stored under the temperature and humidity conditions specified for a
sufficient time to ensure their dimensional stability during the test period.
6.3.2 Equipment configuration
The following information on the installation of the equipment under test shall be recorded:
 description of configuration, including type/model of scanner and decoder, and other Physical
conditions, e.g. type of interface, etc.;
 logical conditions such as the type of output by the scanner, or sent to the decoder e.g. analogue
waveform, digital output (where a scanner or decoder is being tested rather than a complete reader).
6.4 Test Charts
Test charts should be produced on dimensionally stable materials with image characteristics which are
consistent within the image or symbol area used for the test. As an example, Kodak Kodagraph Continuous
Tone White Film (CTW7) is one material that has been found to be suitable when backed with a black opaque
material to minimize the effects of show-through.
When equipment which is unable to process any of the symbologies in the test charts is to be tested, an
equivalent set of test symbols in another appropriate symbology should be used. When other symbologies are
being used, certain parameters may require to be modified to comply with the parameters of the symbology
specification, e.g. row height or wide-to-narrow ratio.
When selecting materials for this use it is important to consider:
 high dimensional stability
 high substrate opacity (minimized show-through)
 high consistency of substrate surface reflectance
 bars (regions of low reflectivity) should appear black and have a low reflectivity over the entire visible
portion of the spectrum
 space (regions of high reflectivity) should appear white and have a high reflectivity over the entire visible
portion of the spectrum
 high consistency of image reflectance
 high image sharpness (edge definition or acuity)
© ISO/IEC 2004 – All rights reserved 7

ISO/IEC 15423:2004(E)
 surface finish (low gloss with low surface roughness)
 broad range of achievable image reflectance (continuous tone).
Manufacturers may extend the range of symbol parameter values (e.g. X dimension) beyond those specified.
Test charts with other symbologies may be produced for testing using data messages that result in similar size
symbols as the test charts of the most similar symbology type.
6.4.1 Test Charts for linear symbologies
A set of bar code test charts is defined, which shall be used for the tests indicated in the following sections.
Test charts shall be measured in accordance with ISO/IEC 15416, using a verifier complying with
ISO/IEC 15426-1, and shall achieve overall symbol grade 3,5 or better (in the case of test chart no. 2 the
grades for symbol contrast and edge contrast shall be ignored and an overall grade shall be calculated based
on remaining parameters). Measuring apertures shall be in accordance with Table 1 of ISO/IEC 15416.
Decodability values for the test symbols shall be not less than 0,80. Additionally, the Z dimension shall be
measured and shall be within the tolerances specified for the test chart in question. Symbols shall comply with
ISO/IEC 15417 or ISO/IEC 16388. When measured with a light source of the same wavelength as that of the
scanner under test, the reflectance and symbol contrast values of the test charts shall be as specified below.
The measured quiet zones shall be the minimum width defined by the symbology specification (with
tolerances of +1Z, -0Z), and the outer boundary of each quiet zone shall be indicated by a vertical bar. This
bar shall be at least 10Z wide and shall have a maximum reflectance no greater than [R + max(R )] / 2,
min
D
where R and R are as defined in ISO/IEC 15416.
min D
TEST CHART no. 1 – Resolution, scanning speed, reading diagram, reading angles, lateral motion
This chart comprises two sets of symbols, one in each symbology, with a range of values of the X dimension
and with a Y dimension equal to 1,5 times the symbol width.
Table 1 — Parameters for Test Chart no. 1
Parameter Value
Symbology Code 39 and Code 128
X dimension From 0,10 mm to 0,50 mm in steps of 0,05 mm
Step tolerance
± 0,01mm., i.e. the maximum value of Z is (X + 0,01 mm) and the minimum value of Z is
(X - 0,01 mm).
Element width tolerance ± 0,05Z
Average bar width
± 0,02Z
tolerance
Y dimension 1,5 times symbol width (excluding quiet zones)
Wide:narrow ratio 3:1 in the case of Code 39 or other two width symbologies
R 85% ± 5%
max
R
min 3% ± 3%
Symbol content 6 symbol characters including start, mandatory check characters, and stop. The
recommended data for Code 39 is “ABCD” and for Code 128 it is “ABC”.

NOTE R and R are as defined in ISO/IEC 15416.
max min
8 © ISO/IEC 2004 – All rights reserved

ISO/IEC 15423:2004(E)
TEST CHART no. 2 – Symbol Contrast
This group of charts comprises two sets of symbols, one in each symbology, each with two values of X
dimension and, for each value of X, with nine different nominal values of symbol contrast as shown in Table 3
below. The tolerance on symbol contrast shall be ± 4 percentage points and this will limit the combined effect
of the individual dark or light reflectance tolerances. The values of symbol contrast, R and R shall be
max min
measured using a light source of 660 nanometres peak wavelength and stated on the Test Charts. Values of
symbol contrast when measured at 633 nanometres and 900 nanometres with the same apertures shall also
be stated on the Test Charts. The measurement geometry shall be as defined in ISO/IEC 15416.
Table 2 — Parameters for Test Chart no. 2
Parameter Value
Symbology Code 39 and Code 128
X dimension 0,20 mm and 0,40 mm
Element width tolerance ± 0,05Z
Average bar width
± 0,02Z
tolerance
Y dimension 20 mm
Wide:narrow ratio 3:1 in the case of Code 39 or other two width symbologies
Symbol contrast as per Table 3 below
Symbol contrast tolerance
± 4 percentage points
R and R as per Table 3 below
max min
R and R tolerances ± 4 percentage points but subject to overriding symbol contrast tolerance
max min
Symbol content 6 symbol characters including start, mandatory check characters, and stop. The
recommended data for Code 39 is “ABCD” and for Code 128 it is “ABC”.

Table 3 — Symbol contrast
Nominal Symbol R R ISO/IEC 15416
max min
Contrast Symbol Contrast grade
47% 80% 33% 2
30% 80% 50% 1
25% 80% 55% 1
20% 80% 60% 1
47% 57% 10% 2
25% 35% 10% 1
20% 30% 10% 1
15% 25% 10% 0
10% 20% 10% 0
© ISO/IEC 2004 – All rights reserved 9

ISO/IEC 15423:2004(E)
6.4.2 Test charts for multi-row and composite symbols
6.4.2.1 PDF417
A set of PDF417 test charts defined in Table 4 shall be used.
Test charts shall be measured in accordance with ISO/IEC 15415 and ISO/IEC 15438, using a verifier
complying with ISO/IEC 15426 and shall achieve overall symbol grade 3,5 or better (in the case of test chart
no. 4 the grades for symbol contrast and edge contrast shall be ignored and an overall grade shall be
calculated based on remaining parameters). Measuring apertures shall be in accordance with ISO/IEC 15415.
Decodability values for the test symbols shall be not less than 0,8. Additionally, the X dimension shall be
measured and shall be within the tolerances specified for the test chart in question. Symbols shall comply with
the ISO/IEC 15438 symbology specification. Manufacturers may extend the range of symbol parameter values
(e.g. X dimension) beyond those specified.
When measured with a light source of the same wavelength as that of the scanner under test, the reflectance
and symbol contrast values of the test charts shall be as specified below. The measured quiet zones shall be
the minimum width defined by the symbology specification.
TEST CHART no. 3 – PDF417 resolution, reading diagram, reading angles, ambient illumination and
sensitivity.
This chart comprises high contrast symbols with a range of values of the X dimension
Table 4 — Parameters for Test Chart no. 3
Parameter Value
Symbology PDF417
Error correction level 3
X-dimension 0,10 mm to 0,50 mm in steps of 0,05 mm
Step tolerance ± 0,01 mm, i.e. the maximum value of Z is (X + 0,01 mm) and the
minimum value of Z is (X - 0,01 mm).
Element width tolerance
± 0,05Z
Average element width tolerance ± 0,02Z
Y dimension or row height 3X
Symbol format 12 rows by three data columns
R 85% ± 5%
max
R 3% ± 3%
min
R G G R E
Symbol content [)> 06 12V043325711 1P123456 O
S S S S T
NOTE R and R are as defined in ISO/IEC 15415.
max min
10 © ISO/IEC 2004 – All rights reserved

ISO/IEC 15423:2004(E)
TEST CHART no. 4 – PDF417 Symbol Contrast
This group of charts comprises a set of symbols, with two values of X dimension and, for each value of X, with
nine different nominal values of symbol contrast as shown in Table 5 and Table 3. The tolerance on symbol
contrast shall be ± 4 percentage points and this will limit the combined effect of the individual dark or light
reflectance tolerances. The values of symbol contrast, R and R shall be measured using a light source of
max min
660 nanometers peak wavelength and stated on the Test Charts. Values of symbol contrast measured at
633 nanometers shall also be stated on the Test Charts. The measurement geometry shall be as defined in
ISO/IEC 15415.
Table 5 — Parameters for Test Chart no. 4
Parameter Value
Symbology PDF417
Error correction level 3
X-dimension 0,20 mm and 0,40 mm
Element width tolerance ± 0,05Z
Average element width tolerance ± 0,02Z
Y dimension or row height 3X
Symbol format 12 rows by three data columns
Symbol contrast as per Table 3
Symbol contrast tolerance
± 4 percentage points
R and R as per Table 3
max min
R and R tolerances
max min ± 4 percentage points but subject to overriding symbol contrast
tolerance
R G G R E
Symbol content [)> 06 12V043325711 1P123456 O
S S S S T
6.4.2.2 Composite symbology RSS-14 Composite (with CC-A)
A set of RSS-14 Composite test charts in accordance with AIM ITS/99-001 and AIM ITS/99-002 defined in
Table 6 shall be used.
Test charts shall be measured in accordance with ISO/IEC 15415, using a verifier complying with
ISO/IEC 15426 and shall achieve overall symbol grade 3,5 or better (in the case of test chart no. 6 the grades
for symbol contrast and edge contrast shall be ignored and an overall grade shall be calculated based on the
remaining parameters). Measuring apertures shall be in accordance with ISO/IEC 15415. Decodability values
for the test symbols shall be not less than 0,8. Additionally, the X dimension shall be measured and shall be
within the tolerances specified for the test chart in question. Symbols shall comply with the appropriate
symbology specifications.
When measured with a light source of the same wavelength as that of the scanner under test, the ref
...
