EN 13770:2002
(Main)Textiles - Determination of the abrasion resistance of knitted footwear garments
Textiles - Determination of the abrasion resistance of knitted footwear garments
This standard specifies two test methods for the determination of abrasion resistance of knitted footwear garments, e.g. ankle socks, socks, and heavy tights. The test methods apply to any of these articles, irrespective of size, composition and structure.
Textilien - Bestimmung der Scheuerbeständigkeit von gestrickter Fußbekleidung
Diese Norm legt zwei Prüfverfahren zur Bestimmung der Scheuerbeständigkeit von gestrickter Fußbekleidung fest, wie z. B. von Fesselsocken, Socken, Strümpfen und dicken Strumpfhosen. Die Prüfverfahren sind auf sämtliche genannten Artikel anwendbar, unabhängig von deren Größe, Zusammensetzung und Ausführung.
Textiles - Détermination de la résistance à l'abrasion des articles chaussants tricotés
La présente Norme européenne spécifie deux méthodes d'essai permettant de déterminer la résistance à l'abrasion des articles chaussants tricotés, tels que les socquettes, les chaussettes et les collants épais. Les méthodes d'essai s'appliquent à tous ces articles, quelles que soient leur taille, composition et structure.
Tekstilije - Ugotavljanje odpornosti proti odrgnjenju pletenih nogavic
General Information
- Status
- Published
- Publication Date
- 09-Jul-2002
- Withdrawal Date
- 30-Jan-2003
- Technical Committee
- CEN/TC 248 - Textiles and textile products
- Drafting Committee
- CEN/TC 248/WG 12 - Physical testing of knitted fabrics and garments
- Current Stage
- 9093 - Decision to confirm - Review Enquiry
- Start Date
- 24-Oct-2024
- Completion Date
- 14-Apr-2025
Overview
EN 13770:2002 (CEN) - Textiles: Determination of the abrasion resistance of knitted footwear garments - defines laboratory methods to measure how knitted footwear garments (ankle socks, socks, heavy tights) resist wear. The standard applies irrespective of size, composition or knit structure and specifies two distinct test methods whose results are not directly comparable: the Martindale abrasion machine method and the abrasion on leg forms method.
Key topics and technical requirements
- Two test methods
- Method 1 - Martindale: Circular specimens (38 mm diameter) are stretched over a modified holder (rubber sphere with a 20 mm flat test area) and abraded against a reference abradant following EN ISO 12947‑1 motions (Lissajous). Endpoints are recorded as number of rubs to thinning or hole. Important consumables and settings: woven felt substrate, abradant dimensions (≥140 mm), pressing weight (≈2.5 kg) and abradant replacement (start of test or after 50 000 rubs). Loading piece applies about 12 kPa.
- Method 2 - Abrasion on leg forms: Whole garments are stretched on volumetric leg forms (sizes based on MONDOPOINT) and abraded by a reciprocating slipper fitted with an abradant shoe. Typical test settings include a 10 mm stroke, periodic inspection intervals (100–500 cycles) and abradant paper such as SiC P1000. Foam backing, elastic retaining collars and soft brush are specified accessories.
- Sampling & conditioning
- Minimum specimen counts (e.g., at least two specimens from heel and two from sole for Method 1); Method 2 commonly uses two pairs tested in three areas (total 12 specimens).
- Tests must be performed after conditioning in the standard atmosphere per EN 20139.
- Endpoints & reporting
- Endpoint definitions: hole or thinning; test report must state the method used, sample reference/area, endpoint type, individual rub/cycle counts, statistical expression (mean/range) and any deviations from the standard.
- Normative annexes
- Annex A (specimen holders) and Annex D (leg form sizes) are normative; other annexes provide informative guidance (abrasive paper specs, foam characteristics).
Applications and who uses it
- Manufacturers of socks, ankle socks, tights and knitted footwear use EN 13770 for product development, material selection and durability benchmarking.
- Testing laboratories and quality control teams perform standardized abrasion testing for conformity, supplier comparison and complaint investigation.
- Retailers and specifiers may use results for performance claims or grading product durability.
- R&D teams apply the methods to evaluate yarns, knit constructions, reinforcements and finishing treatments.
Related standards
- EN 20139 - Standard atmospheres for conditioning and testing
- EN ISO 12947‑1 - Martindale abrasion testing apparatus (referenced for Method 1)
Keywords: EN 13770, abrasion resistance, knitted footwear garments, socks testing, Martindale, leg forms, abrasion tester, knitted socks durability, CEN standard.
Frequently Asked Questions
EN 13770:2002 is a standard published by the European Committee for Standardization (CEN). Its full title is "Textiles - Determination of the abrasion resistance of knitted footwear garments". This standard covers: This standard specifies two test methods for the determination of abrasion resistance of knitted footwear garments, e.g. ankle socks, socks, and heavy tights. The test methods apply to any of these articles, irrespective of size, composition and structure.
This standard specifies two test methods for the determination of abrasion resistance of knitted footwear garments, e.g. ankle socks, socks, and heavy tights. The test methods apply to any of these articles, irrespective of size, composition and structure.
EN 13770:2002 is classified under the following ICS (International Classification for Standards) categories: 61.020 - Clothes. The ICS classification helps identify the subject area and facilitates finding related standards.
You can purchase EN 13770:2002 directly from iTeh Standards. The document is available in PDF format and is delivered instantly after payment. Add the standard to your cart and complete the secure checkout process. iTeh Standards is an authorized distributor of CEN standards.
Standards Content (Sample)
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.Tekstilije - Ugotavljanje odpornosti proti odrgnjenju pletenih nogavicTextilien - Bestimmung der Scheuerbeständigkeit von gestrickter FußbekleidungTextiles - Détermination de la résistance a l'abrasion des articles chaussants tricotésTextiles - Determination of the abrasion resistance of knitted footwear garments61.0202EODþLODClothesICS:Ta slovenski standard je istoveten z:EN 13770:2002SIST EN 13770:2002en01-september-2002SIST EN 13770:2002SLOVENSKI
STANDARD
EUROPEAN STANDARDNORME EUROPÉENNEEUROPÄISCHE NORMEN 13770July 2002ICS 61.020English versionTextiles - Determination of the abrasion resistance of knittedfootwear garmentsTextiles - Détermination de la résistance à l'abrasion desarticles chaussants tricotésTextilien - Bestimmung der Scheuerbeständigkeit vongestrickter FußbekleidungThis European Standard was approved by CEN on 11 April 2002.CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this EuropeanStandard the status of a national standard without any alteration. Up-to-date lists and bibliographical references concerning such nationalstandards may be obtained on application to the Management Centre or to any CEN member.This European Standard exists in three official versions (English, French, German). A version in any other language made by translationunder the responsibility of a CEN member into its own language and notified to the Management Centre has the same status as the officialversions.CEN members are the national standards bodies of Austria, Belgium, Czech Republic, Denmark, Finland, France, Germany, Greece,Iceland, Ireland, Italy, Luxembourg, Malta, Netherlands, Norway, Portugal, Spain, Sweden, Switzerland and United Kingdom.EUROPEAN COMMITTEE FOR STANDARDIZATIONCOMITÉ EUROPÉEN DE NORMALISATIONEUROPÄISCHES KOMITEE FÜR NORMUNGManagement Centre: rue de Stassart, 36
B-1050 Brussels© 2002 CENAll rights of exploitation in any form and by any means reservedworldwide for CEN national Members.Ref. No. EN 13770:2002 ESIST EN 13770:2002

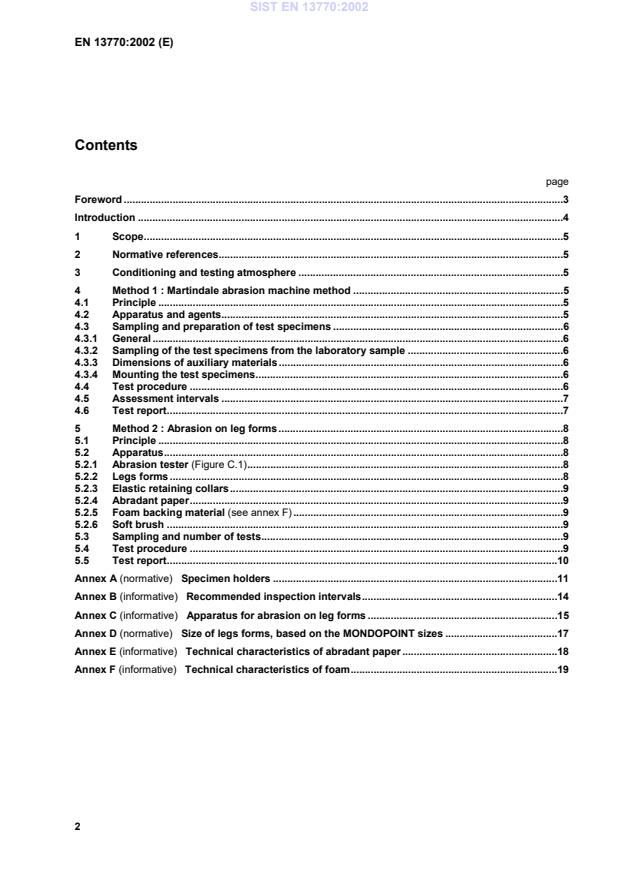

Specimen holders.11Annex B (informative)
Recommended inspection intervals.14Annex C (informative)
Apparatus for abrasion on leg forms.15Annex D (normative)
Size of legs forms, based on the MONDOPOINT sizes.17Annex E (informative)
Technical characteristics of abradant paper.18Annex F (informative)
Technical characteristics of foam.19SIST EN 13770:2002
— Standard atmospheres for conditioning and testing (ISO 139:1973).EN ISO 12947-1, Textiles
— Determination of the abrasion resistance of fabrics by the Martindalemethod — Part 1: Martindale abrasion testing apparatus (ISO 12947-1:1998).3 Conditioning and testing atmosphereThe standard temperate atmosphere for conditioning and testing textiles as defined in EN 20139 shallbe used.4 Method 1 : Martindale abrasion machine method4.1 PrincipleCircular specimens of the hosiery are selected from the known wear areas of the socks, stretchedover a flattened rubber surface and abraded against a reference abradant under a known pressurewith a cyclic planar motion in the form of a Lissajous figure which is the resultant of two simpleharmonic motions at right angles to each other. The resistance to abrasion is estimated by thenumber of cycles to either total breakdown or thinning of one component.4.2 Apparatus and agents4.2.1Martindale abrasion machine as specified in EN ISO 12947–1.4.2.2Modified specimen holders for the evaluation of abrasion of knitted footwear garments (inaccordance with annex A), consisting of a guide spindle, holder body, needle ring, holder nut andrubber sphere with flattened surfaces (20 mm being the test area).4.2.3Springloaded tightening block spanner which enables the tightening of the holder body andholder nut whilst ensuring the flat surface of the rubber sphere remains flat and horizontal.4.2.4Abradant and woven felt as specified in EN ISO 12947–1.SIST EN 13770:2002
...
記事のタイトル：EN 13770:2002-テキスタイル-ニットのフットウェアガーメントの耐摩耗性の測定 記事内容：この規格は、アンクルソックス、ソックス、ヘビータイツなどのニットのフットウェアガーメントの耐摩耗性を測定するための2つの試験方法を規定しています。これらの試験方法は、サイズ、組成、構造に関係なく、これらのアイテムに適用されます。
이 기사는 EN 13770:2002에 대해 설명하고 있습니다. 이는 뜯어짐에 대한 압력 저항력을 측정하기 위한 두 가지 시험 방법을 제공하는 표준입니다. 이는 발목 양말, 양말 및 두꺼운 타이즈와 같은 직물 신발 의류에 대해서 적용됩니다. 이러한 시험 방법은 이러한 의류의 크기, 구성 및 구조에 관계없이 사용할 수 있습니다.
The article discusses EN 13770:2002, which is a standard that provides two test methods for determining the abrasion resistance of knitted footwear garments, such as ankle socks, socks, and heavy tights. These test methods can be used for any size, composition, and structure of these garments.
기사 제목: EN 13770:2002 - 직물 - 직물 신발 의복의 마모 저항성 결정 기사 내용: 이 표준은 직물 신발 의복인 발목 양말, 양말 및 두꺼운 타이즈와 같은 마모 저항성을 결정하기 위한 두 가지 시험 방법을 명시한다. 이러한 시험 방법은 크기, 구성 및 구조와 상관없이 이러한 제품에 적용된다.
この記事はEN 13770:2002について述べており、ニットの履物の衝撃耐久性を測定するための2つの試験方法を提供する標準について説明しています。これらの試験方法は、くるぶしのソックス、靴下、ヘビータイツなどの衣類に適用されます。これらの衣類のサイズ、組成、構造に関わらず、これらの試験方法を使用することができます。
The article discusses the EN 13770:2002 standard, which outlines two test methods for determining the abrasion resistance of knitted footwear garments such as ankle socks, socks, and heavy tights. These test methods are applicable to garments of any size, composition, and structure.
