Mobile road construction machinery - Safety - Part 4: Specific requirements for compaction machines

This part of EN 500 specifies the safety requirements for compaction machines as defined in clause 3 and deals with the significant hazards pertinent to compaction machines, when used as intended and in conditions foreseen by the manufacturer.

Bewegliche Straßenbaumaschinen - Sicherheit - Teil 4: Besondere Anforderungen an Verdichtungsmaschinen

Teil 4 dieser Norm legt die sicherheitstechnischen Anforderungen für Verdichtungsmaschinen - wie in Abschnitt 3 definiert - fest und behandelt die artspezifischen Gefährdungen, die von Verdichtungsmaschinen ausgehen, wenn sie bestimmungsgemäß entsprechend den Empfehlungen des Herstellers verwendet werden.

Machines mobiles pour la construction de routes - Sécurité - Partie 4: Exigences spécifiques pour engins de compactage

La partie 4 de cette norme prescrit les exigences de sécurité applicables aux engins de compactage - tels qu'ils sont définis dans l'article 3 - et traite les phénomènes dangereux significatifs résultant des engins de compactage, quand ils sont utilisés normalement et conformément aux recommandations du fabricant.

Mobile road construction machinery - Safety - Part 4: Specific requirements for compaction machines

General Information

Status: Withdrawn
Publication Date: 19-Sep-1995
Withdrawal Date: 10-Oct-2006

ICS: 91.220 - Construction equipment

Technical Committee: CEN/TC 151 - Construction equipment and building material machines - Safety
Drafting Committee: CEN/TC 151/WG 5 - Road construction machines - Safety

Current Stage: 9960 - Withdrawal effective - Withdrawal
Start Date: 11-Oct-2006
Completion Date: 11-Oct-2006

Directive: 89/392/EEC - Machinery - Safety of machinery: general essential health and safety requirements
Directive: 98/37/EC - Machinery

Mandate: M/BC/CEN/91/1 - Standardization request to CEN/CENELEC concerning machines presenting hazards due to mobility or load lifting

Ref Project: SIST EN 500-4:2000 - Mobile road construction machinery - Safety - Part 4: Specific requirements for compaction machines

Relations

Replaced By: EN 500-4:2006 - Mobile road construction machinery - Safety - Part 4: Specific requirements for compaction machines
Effective Date: 22-Dec-2008

Parent: EN 500-2:1995 - Mobile road construction machinery - Safety - Part 2: Specific requirements for road-milling machines
Effective Date: 22-Dec-2008

Standard

EN 500-4:2000

English language

21 pages

Preview

e-Library read for

AI-Chat

1 day

Create e-Library subscription and get permanent access to the document. Subscriptions are available for: 91 91.220

Get Certified

Connect with accredited certification bodies for this standard

ICC Evaluation Service

Building products evaluation and certification.

ANAB United States Verified

Visit Website

QAI Laboratories

Building and construction product testing and certification.

ANAB United States Verified

Visit Website

Aboma Certification B.V.

Specialized in construction, metal, and transport sectors.

RVA Netherlands Verified

Visit Website

Frequently Asked Questions

What is EN 500-4:1995?

EN 500-4:1995 is a standard published by the European Committee for Standardization (CEN). Its full title is "Mobile road construction machinery - Safety - Part 4: Specific requirements for compaction machines". This standard covers: This part of EN 500 specifies the safety requirements for compaction machines as defined in clause 3 and deals with the significant hazards pertinent to compaction machines, when used as intended and in conditions foreseen by the manufacturer.

What is the scope of EN 500-4:1995?

What ICS categories does EN 500-4:1995 belong to?

EN 500-4:1995 is classified under the following ICS (International Classification for Standards) categories: 91.220 - Construction equipment. The ICS classification helps identify the subject area and facilitates finding related standards.

What standards are related to EN 500-4:1995?

EN 500-4:1995 has the following relationships with other standards: It is inter standard links to EN 500-4:2006; is excused to EN 500-2:1995. Understanding these relationships helps ensure you are using the most current and applicable version of the standard.

Is EN 500-4:1995 a harmonized European standard?

EN 500-4:1995 is associated with the following European legislation: EU Directives/Regulations: 89/392/EEC, 98/37/EC; Standardization Mandates: M/BC/CEN/91/1. When a standard is cited in the Official Journal of the European Union, products manufactured in conformity with it benefit from a presumption of conformity with the essential requirements of the corresponding EU directive or regulation.

How can I access EN 500-4:1995?

EN 500-4:1995 is available in PDF format for immediate download after purchase. The document can be added to your cart and obtained through the secure checkout process. Digital delivery ensures instant access to the complete standard document.

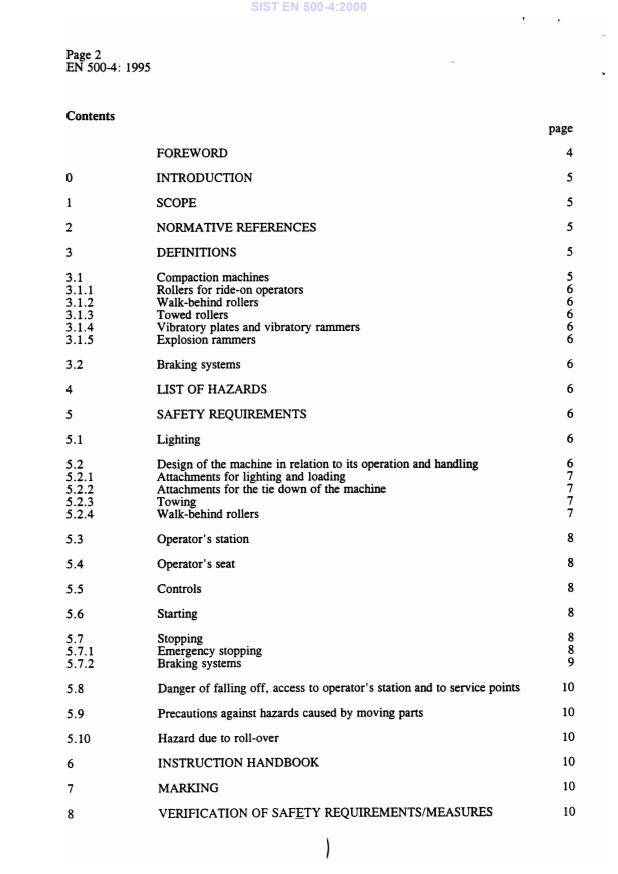

Standards Content (Sample)

EN 500-4:2000

SLOVENSKI STANDARD
01-april-2000
Mobile road construction machinery - Safety - Part 4: Specific requirements for
compaction machines
Mobile road construction machinery - Safety - Part 4: Specific requirements for
compaction machines
Bewegliche Straßenbaumaschinen - Sicherheit - Teil 4: Besondere Anforderungen an
Verdichtungsmaschinen
Machines mobiles pour la construction de routes - Sécurité - Partie 4: Exigences
spécifiques pour engins de compactage
Ta slovenski standard je istoveten z: EN 500-4:1995
ICS:
93.080.10 Gradnja cest Road construction
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.
...
