Heating systems in buildings - Design of heat pump heating systems

This standard specifies design criteria for heating systems in buildings using electrically driven heat pumps alone or in combination with other heat generators. Heat pump systems considered include (see Table 1):
-   water - water;
-   water - air;
-   brine - water;
-   refrigerant - water (direct expansion systems);
-   refrigerant - refrigerant;
-   air - air;
-   air - water.
This standard takes into account the heating requirements of attached systems (e.g. domestic hot water) in the design of heat supply, but does not cover the design of these systems. This standard covers only the aspects dealing with the heat pump, the interface with the heat distribution system and heat emission system (e.g. buffering system), the control of the whole system and the aspects dealing with energy source of the system.
Systems designed primarily for cooling and systems which can operate simultaneously in cooling and heating mode are not within the scope of this standard.

Heizungsanlagen in Gebäuden - Planung von Heizungsanlagen mit Wärmepumpen

Diese Norm legt Kriterien für die Planung von Heizungsanlagen in Gebäuden fest, die entweder nur mit elektrisch betriebenen Wärmepumpen oder mit Wärmepumpen in Verbindung mit anderen Wärmeerzeugern arbeiten. Dazu gehören folgende Systeme (siehe Tabelle 1):
   Wasser/Wasser;
   Wasser/Luft;
   Sole/Wasser;
   Kältemittel/Wasser (Direktverdampfungssysteme);
   Kältemittel/Kältemittel;
   Luft/Luft;
   Luft/Wasser.
Diese Norm berücksichtigt die für die Planung der Wärmeerzeugung maßgeblichen Heizungsanforderungen sämtlicher verbundener Systeme (z. B. Trinkwarmwasser), behandelt jedoch nicht die Planung dieser Systeme. Diese Norm behandelt nur die für die Wärmepumpe, die Schnittstelle mit dem Wärmeverteilungs  und Wärmeübergabesystem (z. B. Puffersystem) und die Regelung des gesamten Systems sowie die für die Energiequelle des Systems geltenden Aspekte.
Systeme, die hauptsächlich zur Kühlung ausgelegt sind, sowie Systeme, die gleichzeitig im Kühl  und Heizbetrieb laufen können, liegen nicht im Anwendungsbereich dieser Norm.

Systèmes de chauffage dans les bâtiments - Conception des systèmes de chauffage par pompe à chaleur

La présente norme spécifie les critères de conception des systèmes de chauffage dans les bâtiments qui utilisent des pompes à chaleur à moteur électrique seules ou combinées à d’autres générateurs de chaleur. Les systèmes de chauffage par pompe à chaleur suivants sont pris en compte (voir Tableau 1) :
   eau  eau ;
   eau  air ;
   eau glycolée  eau ;
   fluide frigorigène  eau (systèmes à détente directe) ;
   fluide frigorigène  fluide frigorigène ;
   air  air ;
   air  eau.
La présente norme tient compte des besoins en chauffage des systèmes auxiliaires (par exemple, eau chaude sanitaire) dans la conception de la production de chaleur, mais ne couvre pas la conception de ces systèmes. La présente norme couvre uniquement les aspects concernant la pompe à chaleur, l’interface avec le système de distribution de chaleur et le système d’émission de chaleur (par exemple, le système tampon) et la régulation de l’ensemble du système, ainsi que les aspects liés à la source d’énergie du système.
Les systèmes conçus principalement pour le refroidissement et les systèmes qui peuvent fonctionner soit en mode de refroidissement soit en mode de chauffage n’entrent pas dans le cadre la présente norme.

Grelni sistemi v stavbah - Načrtovanje toplotno črpalnih ogrevalnih sistemov

General Information

Status
Published
Publication Date
02-Oct-2007
Withdrawal Date
29-Apr-2008
Current Stage

Buy Standard

Standard
EN 15450:2007
English language
47 pages
sale 10% off
Preview
sale 10% off
Preview
e-Library read for
1 day

Standards Content (Sample)

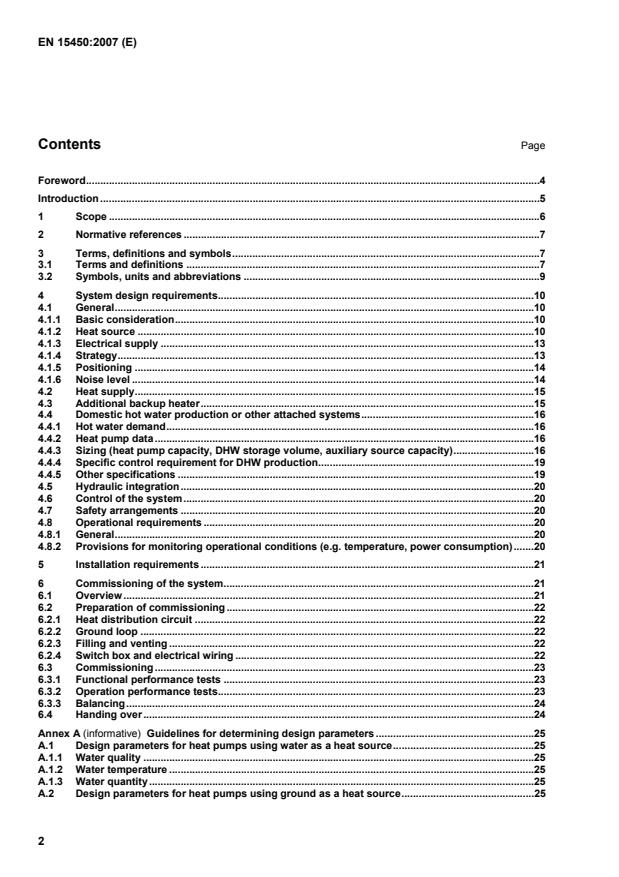

2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.Heating systems in buildings - Design of heat pump heating systemsSystemes de chauffage dans les bâtiments - Conception des systemes de pompes de chauffageHeizsysteme Gebäuden - Planung von Heizsystemen mit WärmepumpenTa slovenski standard je istoveten z:EN 15450:2007SIST EN 15450:2007en,de91.140.10Sistemi centralnega ogrevanjaCentral heating systems27.080Heat pumpsICS:SLOVENSKI
