EN 13230-1:2002

2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.Železniške naprave – Zgornji ustroj – Betonski pragi in kretniški betonski pragi – 1. del: Splošne zahteveBahnanwendungen - Oberbau - Gleis- und Weichenschwellen aus Beton - Teil 1: Allgemeine AnforderungenApplications ferroviaires - Voie - Traverses et supports en béton - Partie 1: Prescriptions généralesRailway applications - Track - Concrete sleepers and bearers - Part 1: General requirements91.100.30Beton in betonski izdelkiConcrete and concrete products45.080Rails and railway componentsICS:Ta slovenski standard je istoveten z:EN 13230-1:2002SIST EN 13230-1:2004en01-marec-2004SIST EN 13230-1:2004SLOVENSKI
STANDARD
EUROPEAN STANDARDNORME EUROPÉENNEEUROPÄISCHE NORMEN 13230-1December 2002ICS 45.080English versionRailway applications - Track - Concrete sleepers and bearers -Part 1: General requirementsApplications ferroviaires - Voie - Traverses et supports enbéton - Partie 1: Prescriptions généralesBahnanwendungen - Oberbau - Gleis- undWeichenschwellen aus Beton - Teil 1: AllgemeineAnforderungenThis European Standard was approved by CEN on 9 October 2002.CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this EuropeanStandard the status of a national standard without any alteration. Up-to-date lists and bibliographical references concerning such nationalstandards may be obtained on application to the Management Centre or to any CEN member.This European Standard exists in three official versions (English, French, German). A version in any other language made by translationunder the responsibility of a CEN member into its own language and notified to the Management Centre has the same status as the officialversions.CEN members are the national standards bodies of Austria, Belgium, Czech Republic, Denmark, Finland, France, Germany, Greece,Iceland, Ireland, Italy, Luxembourg, Malta, Netherlands, Norway, Portugal,
Spain, Sweden, Switzerland and United Kingdom.EUROPEAN COMMITTEE FOR STANDARDIZATIONCOMITÉ EUROPÉEN DE NORMALISATIONEUROPÄISCHES KOMITEE FÜR NORMUNGManagement Centre: rue de Stassart, 36
B-1050 Brussels© 2002 CENAll rights of exploitation in any form and by any means reservedworldwide for CEN national Members.Ref. No. EN 13230-1:2002 ESIST EN 13230-1:2004

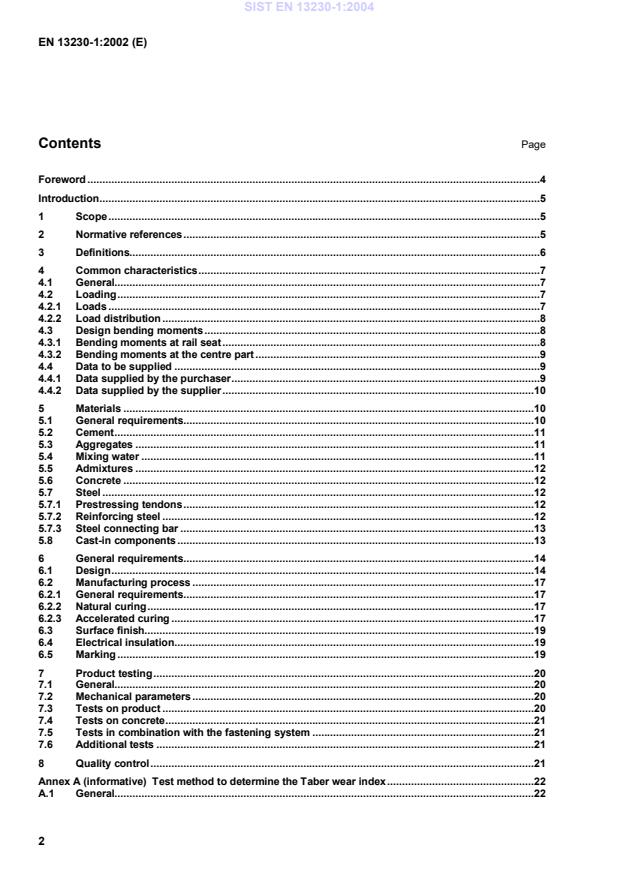

Test method to determine the Taber wear index.22 A.1 General.22 SIST EN 13230-1:2004

Test method for measuring the water absorption of concrete at atmospheric pressure.25 C.1 Introduction.25 C.2 Samples.25 C.3 Test sequence.25 C.4 Results.25 C.5 Requirements.26 Annex D (informative)
Gauge used to measure the relative twist between rail seats.27 Annex E (informative)
Bending moment calculation.28 E.1 Design bending moment calculation.28 E.2 Impact coefficients.29 Annex ZA (informative)
Clauses of this European Standard addressing essential requirements or other provisions of EU Directives.30 Bibliography.32
This document has been prepared under two mandates given to CEN by the European Commission and the European Free Trade Association and supports essential requirements of EU Directive(s) For relationship with EU Directive(s), see informative annex ZA which is an integral part of this document. This European Standard is one of the series EN 13230 "Railway applications -Track  Concrete sleepers and bearers" which consists of the following parts:  Part 1: General requirements;  Part 2: Prestressed monobloc sleepers;  Part 3: Twin-block reinforced sleepers;  Part 4: Prestressed bearers for switches and crossings;  Part 5: Special elements. The following terms are used in the standard to define the parties involved in using the EN as the technical bases for a transaction:  purchaser: the operator or user of the equipment or the purchaser of the equipment
on the user’s behalf;  supplier: the body responsible for the use of the EN in response to the purchaser’s requirement. The supplier is also responsible for requirements which apply to the producer or manufacturer. Annexes A, B, C, D and E are informative. This document contains bibliographical references. No other European Standard is superseded or replaced by this European Standard. According to the CEN/CENELEC Internal Regulations, the national standards organizations of the following countries are bound to implement this European Standard: Austria, Belgium, Czech Republic, Denmark, Finland, France, Germany, Greece, Iceland, Ireland, Italy, Luxembourg, Malta, Netherlands, Norway, Portugal, Spain, Sweden, Switzerland and the United Kingdom. SIST EN 13230-1:2004

Scope This part of prEN 13230 defines technical criteria and control procedures which have to be satisfied by the constituent materials and the finished concrete sleepers and bearers, i.e.: precast concrete sleepers, bearers for switches and crossings, and special elements for railway tracks. The main requirement of concrete sleepers and bearers is the transmission of vertical, lateral and longitudinal loads from the rails to the ballast or other support. In use, they are also exposed to moisture which can result in detrimental chemical reactions within the sleeper and to frost damage. In this standard, mechanical tests are defined which provide assurance of the capability of sleepers or bearers to resist repetitive loading and provide sufficient durability. In addition, controls are introduced in the manufacturing process and tests set out which will ensure that the concrete will not suffer degradation in service through chemical reaction and frost damage. 2 Normative references This European Standard incorporates by dated or undated reference, provisions from other publications. These normative references are cited at the appropriate places in the text and the publications are listed hereafter. For dated references, subsequent amendments to or revisions of any of these publications apply to this European Standard only when incorporated in it by amendment or revision. For undated references the latest edition of the publication referred to applies (including amendments). ENV 10080, Steel for reinforcement of concrete - Weldable ribbed reinforcing steel B 500.-Technical delivery conditions
for bars, coils and welded fabric. EN 206-1, Concrete - Part 1: Specification, performance, production and conformity. prEN 10138, Prestressing steels. EN 13146-5, Railway applications - Track - Test methods for fastening systems - Part 5: Determination of electrical resistance. EN 13230-2:2002, Railway applications - Track – Concrete sleepers and bearers – Part 2: Prestressed monobloc sleepers. SIST EN 13230-1:2004

The track is an assembly of transverse concrete sleepers or bearers secured to the rails by means of a fastening system and supported by the ballast or other support. It is characterized by the gauge of the track, the rail profile, the inclination of the rails and the spacing of the concrete sleepers and bearers. 4.2 Loading 4.2.1 Loads The track is subjected to repeated loads in three different directions, generally applied simultaneously: - vertical loads depending on support conditions,
- transverse loads from guiding forces, transverse resistance, etc. - longitudinal loads from acceleration and braking, thermal stresses in continuous welded rail, etc. SIST EN 13230-1:2004

and minimum weight of the concrete sleeper and bearer (kg/sleeper or kg/m);  any additional technical specification;  rail profile definition;  minimum strength class of concrete (optional). SIST EN 13230-1:2004
...
