EN 15811:2014
(Main)Agricultural machinery - Fixed guards and interlocked guards with or without guard locking for moving transmission parts (ISO/TS 28923:2012 modified)
Agricultural machinery - Fixed guards and interlocked guards with or without guard locking for moving transmission parts (ISO/TS 28923:2012 modified)
This European Standard specifies the safety requirements and their verification for the design and construction of fixed guards to be opened or removed by the use of a tool and interlocking guards with or without guard locking for moving parts of the power transmission on self-propelled ride-on machines and mounted, semi-mounted or trailed machines used in agriculture. In addition, it specifies the type of information on safe working practices (including residual risks) to be provided by the manufacturer.
It deals with the significant hazards (as listed in Annex A), hazardous situations and events relevant for fixed guards to be opened or removed by the use of a tool and interlocking movable guards of moving parts of power transmission used as intended and under the conditions reasonably foreseeable by the manufacturer (see Clause 4 and Clause 5).
It is not applicable to guards of moving parts of the power transmission of:
- agricultural and forestry tractors,
- aircraft and air cushion vehicles used in agriculture,
- lawn and garden equipment, or
- PTO drive shafts between agricultural and forestry tractors and mounted or towed implements.
Landmaschinen - Feststehende trennende Schutzeinrichtungen und trennende Schutzeinrichtungen mit Verriegelung mit oder ohne Verriegelungseinrichtung für bewegliche Teile der Kraftübertragung (ISO/TS 28923:2012, modifiziert)
Diese Europäische Norm enthält sicherheitstechnische Anforderungen und deren Überprüfung für Gestaltung und Konstruktion von feststehenden trennenden Schutzeinrichtungen, die mittels Werkzeug geöffnet oder entfernt werden, und von trennenden Schutzeinrichtungen mit Verriegelung mit oder ohne Verriegelungseinrichtung für bewegliche Teile der Kraftübertragung von selbstfahrenden Maschinen mit Fahrersitz und angebauten, aufgesattelten oder gezogenen Maschinen, die in der Landwirtschaft eingesetzt werden. Außerdem legt sie fest, welche Informationen über sicheres Arbeiten (einschließlich zu Restgefahren) vom Hersteller zur Verfügung zu stellen sind.
Sie behandelt signifikante Gefährdungen (siehe Anhang A), Gefährdungssituationen und Gefährdungs-ereignisse in Bezug auf feststehenden trennenden Schutzeinrichtungen, die mittels Werkzeug geöffnet oder entfernt werden, und von trennenden Schutzeinrichtungen mit Verriegelung mit oder ohne Verriegelungseinrichtung für bewegliche Teile der Kraftübertragung, wenn sie bestimmungsgemäß und unter den vom Hersteller vernünftigerweise vorhersehbaren Bedingungen verwendet werden (siehe Abschnitte 4 und 5).
Sie gilt nicht für Schutzeinrichtungen für bewegliche Teile der Kraftübertragung von:
- land- und forstwirtschaftlichen Traktoren;
- Luftfahr- und Luftkissenfahrzeuge, die in der Landwirtschaft eingesetzt werden;
- Rasen- und Gartengeräte;
- Schutzeinrichtungen von Zapfwellen-Gelenkwellen zwischen land- und forstwirtschaftlichen Traktoren und angebauten oder gezogenen Geräten.
Matériel agricole - Protecteurs fixes et protecteurs avec dispositif de verrouillage ou d'interverrouillage pour éléments mobiles de transmission de puissance (ISO/TS 28923:2012 modifiée)
La présente Norme européenne spécifie les exigences de sécurité et leurs vérifications pour la conception et la construction des protecteurs fixes s'ouvrant à l'aide d'un outil et des protecteurs mobiles avec dispositif de verrouillage pour les éléments mobiles de transmission de puissance des machines automotrices à conducteur porté et des machines portées, semi-portées ou traînées utilisées en agriculture. En outre, elle spécifie le type d'informations que le fabricant doit donner sur les pratiques d'utilisation sûre (y compris les risques résiduels).
Elle traite tous les phénomènes dangereux (tels que listés dans l'Annexe A), les situations et les événements dangereux significatifs applicables aux protecteurs fixes s'ouvrant à l'aide d'un outil et aux protecteurs mobiles avec dispositif de verrouillage pour les éléments mobiles de transmission de puissance lorsqu'ils sont utilisés normalement et dans les conditions prévues par le fabricant (voir l'Article 4 et l'Article 5).
Elle ne s'applique pas aux protecteurs des éléments mobiles de transmission de puissance des:
- tracteurs agricoles ou forestiers,
- aéronefs et véhicules sur coussin d'air utilisés en agriculture,
- matériels de jardinage ou horticole, ni
- arbres de transmission à cardans de prise de force entre tracteurs agricoles ou forestiers et machines portées ou traînées.
Kmetijski stroji - Pritrjeni ščitniki in spojeni ščitniki s ščitnikom ali brez njega za premične dele prenosov (ISO/TS 28923:2012, spremenjen)
Ta evropski standard določa varnostne zahteve in njihovo preverjanje pri načrtovanju in izdelavi pritrjenih ščitnikov, ki se odpirajo z uporabo orodja, in spojenih premičnih ščitnikov za premične dele prenosa moči na samognanih strojih s sedežem ter na priklopnih, polpriklopnih ali vlečenih strojih, ki se uporabljajo v kmetijstvu. Določa tudi vrsto informacij o varnih delovnih praksah (vključno z ostalimi tveganji), ki jih mora zagotoviti proizvajalec. Obravnava vse velike nevarnosti (kot je navedeno v dodatku A), nevarne situacije in primere, ki se nanašajo na pritrjene ščitnike, ki se odpirajo z uporabo orodja, in spojene premične ščitnike za premične dele prenosa moči, kadar se uporabljajo v skladu z namembnostjo in pod pogoji, ki jih je predvidel proizvajalec (glej točki 4 in 5). Ne velja za ščitnike za premične dele prenosa moči kmetijskih in gozdarskih traktorjev, letal in vozil z zračno blazino, ki se uporabljajo v kmetijstvu, ter opreme za nego trate in vrta ali varovala za pogonske gredi PTO med kmetijskimi in gozdarskimi traktorji in priklopnimi ali vlečenimi stroji.
General Information
- Status
- Published
- Publication Date
- 02-Dec-2014
- Withdrawal Date
- 29-Jun-2015
- Technical Committee
- CEN/TC 144 - Tractors and machinery for agriculture and forestry
- Drafting Committee
- CEN/TC 144/WG 1 - General safety requirements
- Current Stage
- 9060 - Closure of 2 Year Review Enquiry - Review Enquiry
- Start Date
- 02-Dec-2025
- Completion Date
- 02-Dec-2025
Relations
- Effective Date
- 10-Dec-2014
- Effective Date
- 01-May-2013
Overview
EN 15811:2014 is a European Standard developed by CEN that sets forth safety requirements for fixed guards and interlocked guards, with or without guard locking, designed for moving transmission parts in agricultural machinery. This standard applies specifically to self-propelled ride-on machines and mounted, semi-mounted, or trailed machines used in agriculture. Its primary objective is to minimize the risk of mechanical hazards by ensuring the design and construction of guards meet stringent safety criteria. The standard also mandates manufacturers to provide relevant information on safe working practices, including residual risks.
The scope excludes guards for agricultural and forestry tractors, agricultural aircraft, lawn and garden equipment, and PTO drive shafts between tractors and implements. EN 15811:2014 is aligned with ISO/TS 28923:2012 but includes modifications tailored for European agricultural machinery.
Key Topics
Safety Requirements: Defines essential design and construction requirements for fixed guards that can be opened or removed using a tool, and interlocked guards which may include guard locking mechanisms. Guards must prevent access to moving power transmission parts that pose hazards such as crushing, shearing, entanglement, drawing-in, or trapping.
Risk Assessment Integration: Requires the selection of guards based on a thorough risk assessment conforming to EN ISO 12100 principles. The frequency of operator access to hazard zones is a key factor in deciding between fixed or interlocked guards.
Fixed Guards: Must be securely attached and require a tool for opening or removal. Safety signs warning of hazards and indications (visible or audible) must be provided when hazardous parts continue moving after power disengagement.
Interlocking Guards: Feature devices that prevent machine operation when guards are open and disengage hazardous parts automatically. For components with long run-down times, guard locking devices must keep guards locked until dangerous motion ceases.
Verification and Testing: Safety requirements need to be verified through inspections, measurements, and operational tests based on manufacturer manuals to ensure guards perform properly without introducing new risks like debris accumulation or hindering machine function.
Information for Users: Manufacturers must provide detailed operator manuals including warnings about residual risks, necessary training, and clear safety signage to promote safe working environments.
Applications
EN 15811:2014 is essential for manufacturers, designers, and safety engineers involved in the production and maintenance of agricultural machinery where moving power transmission parts pose mechanical hazards. Typical applications include:
- Self-propelled ride-on agricultural machines
- Mounted, semi-mounted, and trailed agricultural implements
- Machinery components requiring guarded access for maintenance or operation
- Safety audits and conformity assessments in agricultural equipment manufacturing
- Compliance with EU machinery directives to ensure market access in European countries
By following EN 15811, manufacturers can enhance workplace safety, reduce the risk of injury related to moving transmission parts, and meet regulatory compliance for agricultural machinery in Europe.
Related Standards
EN ISO 4254-1:2013 – Agricultural machinery - Safety - General requirements: Provides overarching safety principles that complement the specific guard requirements of EN 15811.
EN ISO 12100:2010 – Safety of machinery - General principles for design - Risk assessment and risk reduction: Guides the risk assessment process critical to guard selection and design.
EN ISO 13857:2008 – Safety of machinery - Safety distances to prevent hazard zones being reached: Specifies permissible openings and clearance distances in guards relative to risk zones.
EU Directive 2006/42/EC – Machinery Directive: EN 15811 supports compliance with essential safety requirements of this directive for agricultural machinery marketed in the EU.
Implementing EN 15811:2014 along with these related standards ensures a comprehensive approach to machinery safety focused on protecting operators from hazards associated with moving parts of power transmission in agricultural environments.
Keywords: EN 15811:2014, agricultural machinery safety, fixed guards, interlocked guards, guard locking, moving transmission parts, power transmission safety, CEN standards, machinery risk assessment, agricultural equipment safety, EU machinery directive compliance.
Frequently Asked Questions
EN 15811:2014 is a standard published by the European Committee for Standardization (CEN). Its full title is "Agricultural machinery - Fixed guards and interlocked guards with or without guard locking for moving transmission parts (ISO/TS 28923:2012 modified)". This standard covers: This European Standard specifies the safety requirements and their verification for the design and construction of fixed guards to be opened or removed by the use of a tool and interlocking guards with or without guard locking for moving parts of the power transmission on self-propelled ride-on machines and mounted, semi-mounted or trailed machines used in agriculture. In addition, it specifies the type of information on safe working practices (including residual risks) to be provided by the manufacturer. It deals with the significant hazards (as listed in Annex A), hazardous situations and events relevant for fixed guards to be opened or removed by the use of a tool and interlocking movable guards of moving parts of power transmission used as intended and under the conditions reasonably foreseeable by the manufacturer (see Clause 4 and Clause 5). It is not applicable to guards of moving parts of the power transmission of: - agricultural and forestry tractors, - aircraft and air cushion vehicles used in agriculture, - lawn and garden equipment, or - PTO drive shafts between agricultural and forestry tractors and mounted or towed implements.
This European Standard specifies the safety requirements and their verification for the design and construction of fixed guards to be opened or removed by the use of a tool and interlocking guards with or without guard locking for moving parts of the power transmission on self-propelled ride-on machines and mounted, semi-mounted or trailed machines used in agriculture. In addition, it specifies the type of information on safe working practices (including residual risks) to be provided by the manufacturer. It deals with the significant hazards (as listed in Annex A), hazardous situations and events relevant for fixed guards to be opened or removed by the use of a tool and interlocking movable guards of moving parts of power transmission used as intended and under the conditions reasonably foreseeable by the manufacturer (see Clause 4 and Clause 5). It is not applicable to guards of moving parts of the power transmission of: - agricultural and forestry tractors, - aircraft and air cushion vehicles used in agriculture, - lawn and garden equipment, or - PTO drive shafts between agricultural and forestry tractors and mounted or towed implements.
EN 15811:2014 is classified under the following ICS (International Classification for Standards) categories: 65.060.01 - Agricultural machines and equipment in general. The ICS classification helps identify the subject area and facilitates finding related standards.
EN 15811:2014 has the following relationships with other standards: It is inter standard links to EN 15811:2009/AC:2010, EN 15811:2009. Understanding these relationships helps ensure you are using the most current and applicable version of the standard.
EN 15811:2014 is associated with the following European legislation: EU Directives/Regulations: 2006/42/EC; Standardization Mandates: M/396. When a standard is cited in the Official Journal of the European Union, products manufactured in conformity with it benefit from a presumption of conformity with the essential requirements of the corresponding EU directive or regulation.
EN 15811:2014 is available in PDF format for immediate download after purchase. The document can be added to your cart and obtained through the secure checkout process. Digital delivery ensures instant access to the complete standard document.
Standards Content (Sample)
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.Landmaschinen - Feststehende trennende Schutzeinrichtungen und trennende Schutzeinrichtungen mit Verriegelung mit oder ohne Verriegelungseinrichtung für bewegliche Teile der Kraftübertragung (ISO/TS 28923:2012, modifiziert)Matériel agricole - Protecteurs fixes et protecteurs avec dispositif de verrouillage ou d'interverrouillage pour éléments mobiles de transmission de puissance (ISO/TS 28923:2012 modifiée)Agricultural machinery - Fixed guards and interlocked guards with or without guard locking for moving transmission parts (ISO/TS 28923:2012 modified)65.060.01Kmetijski stroji in oprema na splošnoAgricultural machines and equipment in generalICS:Ta slovenski standard je istoveten z:EN 15811:2014SIST EN 15811:2015en,fr,de01-februar-2015SIST EN 15811:2015SLOVENSKI
STANDARDSIST EN 15811:2010/AC:2011SIST EN 15811:20101DGRPHãþD
EUROPEAN STANDARD NORME EUROPÉENNE EUROPÄISCHE NORM
EN 15811
December 2014 ICS 65.060.01 Supersedes EN 15811:2009English Version
Agricultural machinery - Fixed guards and interlocked guards with or without guard locking for moving transmission parts (ISO/TS 28923:2012 modified)
Matériel agricole - Protecteurs fixes et protecteurs avec dispositif de verrouillage ou d'interverrouillage pour éléments mobiles de transmission de puissance (ISO/TS 28923:2012 modifiée)
Landmaschinen - Feststehende trennende Schutzeinrichtungen und trennende Schutzeinrichtungen mit Verriegelung mit oder ohne Verriegelungseinrichtung für bewegliche Teile der Kraftübertragung (ISO/TS 28923:2012, modifiziert) This European Standard was approved by CEN on 18 October 2014.
CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this European Standard the status of a national standard without any alteration. Up-to-date lists and bibliographical references concerning such national standards may be obtained on application to the CEN-CENELEC Management Centre or to any CEN member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by translation under the responsibility of a CEN member into its own language and notified to the CEN-CENELEC Management Centre has the same status as the official versions.
CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia, Finland, Former Yugoslav Republic of Macedonia, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland, Turkey and United Kingdom.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION EUROPÄISCHES KOMITEE FÜR NORMUNG
CEN-CENELEC Management Centre:
Avenue Marnix 17,
B-1000 Brussels © 2014 CEN All rights of exploitation in any form and by any means reserved worldwide for CEN national Members. Ref. No. EN 15811:2014 ESIST EN 15811:2015

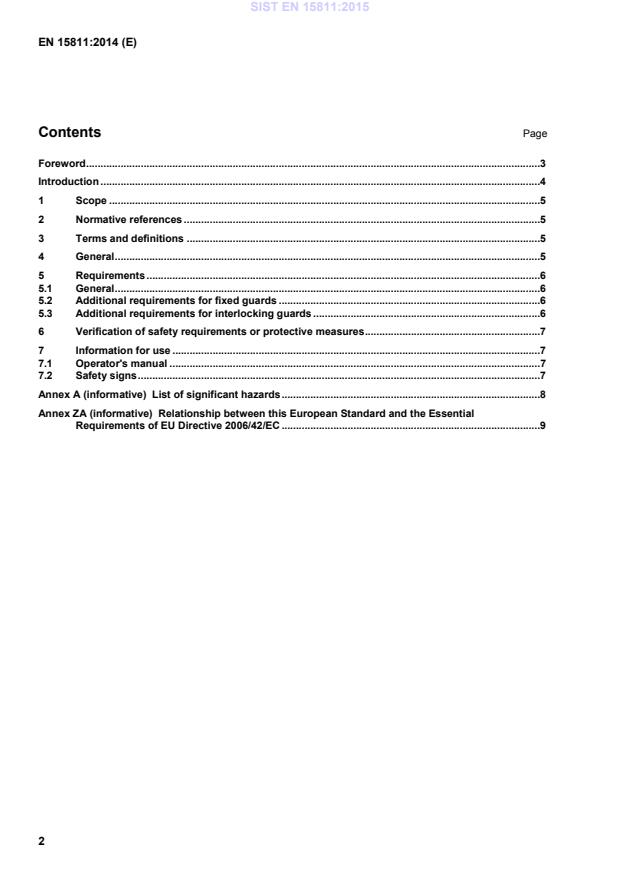

List of significant hazards .8 Annex ZA (informative)
Relationship between this European Standard and the Essential Requirements of EU Directive 2006/42/EC .9
...
