Toplotnoizolacijski proizvodi za stavbe – Razsuti celulozni proizvodi za
oblikovanje na mestu vgradnje – 2. del: Specifikacija za vgrajene proizvode
Thermal insulation products for buildings - In-situ formed loose-fill cellulose
products - Part 2: Specification for the installed products
ICS 91.120.10 Referenčna številka
oSIST prEN 15101-2:2005(en)
©  Standard je založil in izdal Slovenski inštitut za standardizacijo. Razmnoževanje ali kopiranje celote ali delov tega dokumenta ni dovoljeno

EUROPEAN STANDARD
DRAFT
prEN 15101-2
NORME EUROPÉENNE
EUROPÄISCHE NORM
March 2005
ICS
English version
Thermal insulation products for buildings - In-situ formed loose-
fill cellulose products - Part 2: Specification for the installed
products
Produits isolant thermiques pour le bâtiment - Isolation en Wärmedämmstoffe für Gebäude - An der
vrac formée en place à base de cellulose - Partie 2: Anwendungsstelle hergestellte Wärmedämmung aus losem
Spécification des produits mis en place Zellulosefüllstoff - Teil 2: Spezifikation für die einbauten
Produkte
This draft European Standard is submitted to CEN members for enquiry. It has been drawn up by the Technical Committee CEN/TC 88.
If this draft becomes a European Standard, CEN members are bound to comply with the CEN/CENELEC Internal Regulations which
stipulate the conditions for giving this European Standard the status of a national standard without any alteration.
This draft European Standard was established by CEN in three official versions (English, French, German). A version in any other language
made by translation under the responsibility of a CEN member into its own language and notified to the Management Centre has the same
status as the official versions.
CEN members are the national standards bodies of Austria, Belgium, Cyprus, Czech Republic, Denmark, Estonia, Finland, France,
Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Slovakia,
Slovenia, Spain, Sweden, Switzerland and United Kingdom.
Warning : This document is not a European Standard. It is distributed for review and comments. It is subject to change without notice and
shall not be referred to as a European Standard.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION
EUROPÄISCHES KOMITEE FÜR NORMUNG
Management Centre: rue de Stassart, 36  B-1050 Brussels
© 2005 CEN All rights of exploitation in any form and by any means reserved Ref. No. prEN 15101-2:2005: E
worldwide for CEN national Members.

prEN 15101-2:2004 (E)

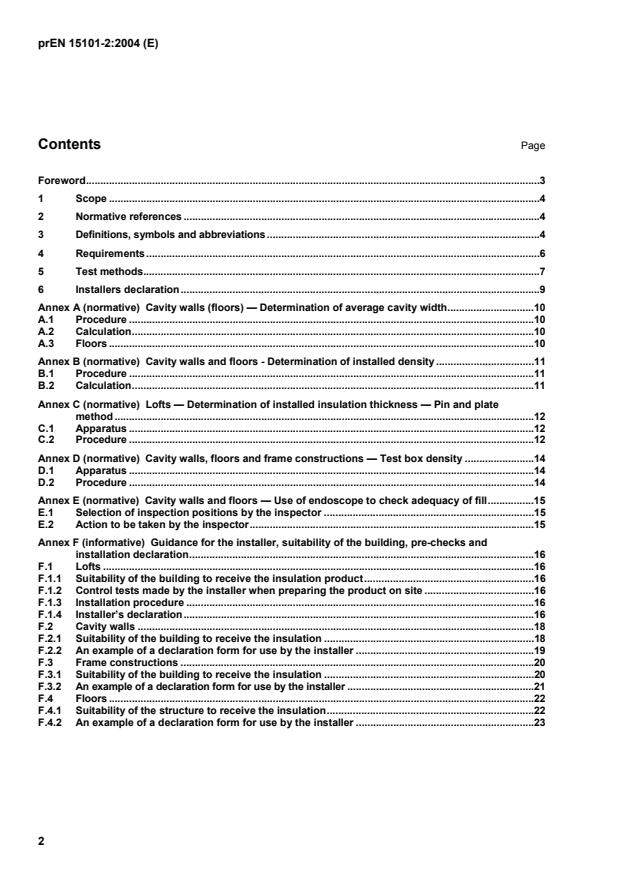

Contents Page
Foreword.3
1 Scope .4
2 Normative references .4
3 Definitions, symbols and abbreviations .4
4 Requirements.6
5 Test methods.7
6 Installers declaration.9
Annex A (normative) Cavity walls (floors) — Determination of average cavity width.10
A.1 Procedure .10
A.2 Calculation.10
A.3 Floors .10
Annex B (normative) Cavity walls and floors - Determination of installed density .11
B.1 Procedure .11
B.2 Calculation.11
Annex C (normative) Lofts — Determination of installed insulation thickness — Pin and plate
method .12
C.1 Apparatus .12
C.2 Procedure .12
Annex D (normative) Cavity walls, floors and frame constructions — Test box density .14
D.1 Apparatus .14
D.2 Procedure .14
Annex E (normative) Cavity walls and floors — Use of endoscope to check adequacy of fill.15
E.1 Selection of inspection positions by the inspector .15
E.2 Action to be taken by the inspector.15
Annex F (informative) Guidance for the installer, suitability of the building, pre-checks and
installation declaration.16
F.1 Lofts .16
F.1.1 Suitability of the building to receive the insulation product.16
F.1.2 Control tests made by the installer when preparing the product on site .16
F.1.3 Installation procedure .16
F.1.4 Installer’s declaration.16
F.2 Cavity walls .18
F.2.1 Suitability of the building to receive the insulation .18
F.2.2 An example of a declaration form for use by the installer .19
F.3 Frame constructions .20
F.3.1 Suitability of the building to receive the insulation .20
F.3.2 An example of a declaration form for use by the installer .21
F.4 Floors .22
F.4.1 Suitability of the structure to receive the insulation.22
F.4.2 An example of a declaration form for use by the installer .23

prEN 15101-2:2004 (E)
Foreword
This document (prEN 15101-2:2004) has been prepared by Technical Committee CEN/TC 88 “Thermal
insulating materials and products”, the secretariat of which is held by DIN.
This document is currently submitted to the CEN Enquiry.
This document has been prepared under a mandate given to CEN by the European Commission and the
European Free Trade Association, and supports the essential requirements of EU Directive(s).
For relationship with EU Directive(s), see informative Annex ZA, which is an integral part of this document
This European Standard is one of a series for mineral wool, expanded clay, expanded perlite, exfoliated
vermiculite, polyurethane/polyisocyanurate, cellulose and urea formaldehyde in-situ formed insulation products
used in buildings, but this standard may be used in other areas where appropriate.
prEN 15101-2:2004 (E)
1 Scope
This document specifies requirements for in-situ formed loose-fill cellulose thermal insulation (LFCI) products
when installed in internal walls, external walls, floors, galleries, roofs and ceilings.
This document is a specification for the installed products.
This document describes, when taken together with Part 1, the product characteristics that are linked to the
essential requirements of the EU Construction Products Directive. This document also specifies the checks and
tests to be used for the declarations made by the installer of the product and the rules for the evaluation of
conformity.
This document does not specify the required level of all properties to be achieved by a product to demonstrate
fitness for purpose in a particular application. The required levels are to be found in regulations or non-conflicting
standards.
Products with a declared thermal conductivity at 10 °C (mean temperature) greater than 0,060 W/(m.K) or a
declared thermal resistance lower than 0,25 m · K/W are not covered by this document.
This document does not cover factory made cellulose products intended to be used for the insulation of
buildings or in-situ cellulose products for the insulation of building equipment and industrial installations.
This document does not specific performance requirements for load-bearing applications.
2 Normative references
The following referenced documents are indispensable for the application of this document. For dated
references, only the edition cited applies. For undated references, the latest edition of the referenced
document (including any amendments) applies.
EN 823, Thermal insulating products for building applications — Determination of thickness
EN ISO 6946, Building components and building elements - Thermal resistance and thermal transmittance.
Calculation method
ISO 10456:2000, Building materials and products - Procedures for determining declared and design thermal
values
prEN xxxx-1:CCYY-MM, Thermal insulation products for buildings - In-situ formed loose-fill cellulose
products - Part 1: Specification for the products before installation
prEN ISO 9229:CCYY-MM, Thermal insulation - Definitions of materials, products, components, applications and
terms
3 Definitions, symbols and abbreviations
3.1 Definitions
For the purpose of this document, the definitions given in prEN ISO 9229 and the following apply.
3.1.1
installed insulation thickness
insulation thickness as installed by the installer
prEN 15101-2:2004 (E)
3.1.2
frame construction
walls with wood or metal studs, sloping roof with insulation between rafters.
3.1.3
floor
horizontal division between 2 stories, over a crawl space or a floor directly on the ground.
3.1.4
settlement
the decrease of installed insulation thickness in lofts or height in cavities and frame constructions with time,
expressed as a percentage of the initial installed thickness (after compaction if prescribed).
3.1.5
coverage
mass of insulation per unit area
3.1.6
performance chart
a table giving thickness and coverage requirements for different values of declared thermal resistance
3.1.7
system
a particular type of loose fill cellulose insulation used in conjunction with a defined blowing machine with a
blowing hose and defined nozzle.
3.1.8
blowing hole
a hole, cut or formed, in a masonry cavity wall or frame construction, through which the cellulose is blown.
3.2 Symbols and abbreviations
Symbols used in this document:
d is the installed declared insulation thickness  m
R is the thermal resistance    m ·K/W
R is the installed declared thermal resistance  m ·K/W
D
R is the declared thermal resistance   m ·K/W
λ is one test result of thermal conductivity   W/(m·K)
i
λ is the declared thermal conductivity   W/(m·K)
d
s is the relative reduction in thickness, due to settlement %
W is the short-term water absorption   kg/rn
p
S is the symbol of the declared class for settlement
Abbreviations used in this document:
LFCI is Loose- Fill Cellulose Insulation
prEN 15101-2:2004 (E)
4 Requirements
4.1 General
The installer shall use an insulation product that complies with Part 1 of this document.
The installer shall inspect the building in accordance with manufacturers guidelines and National Rules, in
order to determine whether it is suitable for application of the product in accordance with the information given
in Annex F.
Properties of the installed product shall be assessed in accordance with clause 5. To comply with document,
products shall meet the requirements of 4.2, and the requirements of 4.3 as appropriate.
One test result on a product property is the average of the measured values on the number of test specimens
given in table 1.
The declared thermal resistance level is for the installed insulation only, disregarding the effects of studs,
beams, rafters etc.
NOTE 1 EN ISO 10456 describes how the design thermal conductivity is calculated from the declared thermal
conductivity.
NOTE 2 For calculating the thermal resistance of complete building elements involving the use of these products the
procedures given in EN ISO 6946 can be used.
4.2 Installed declared thermal resistance of loft insulation
The installed declared thermal resistance shall be assessed by measure
...
