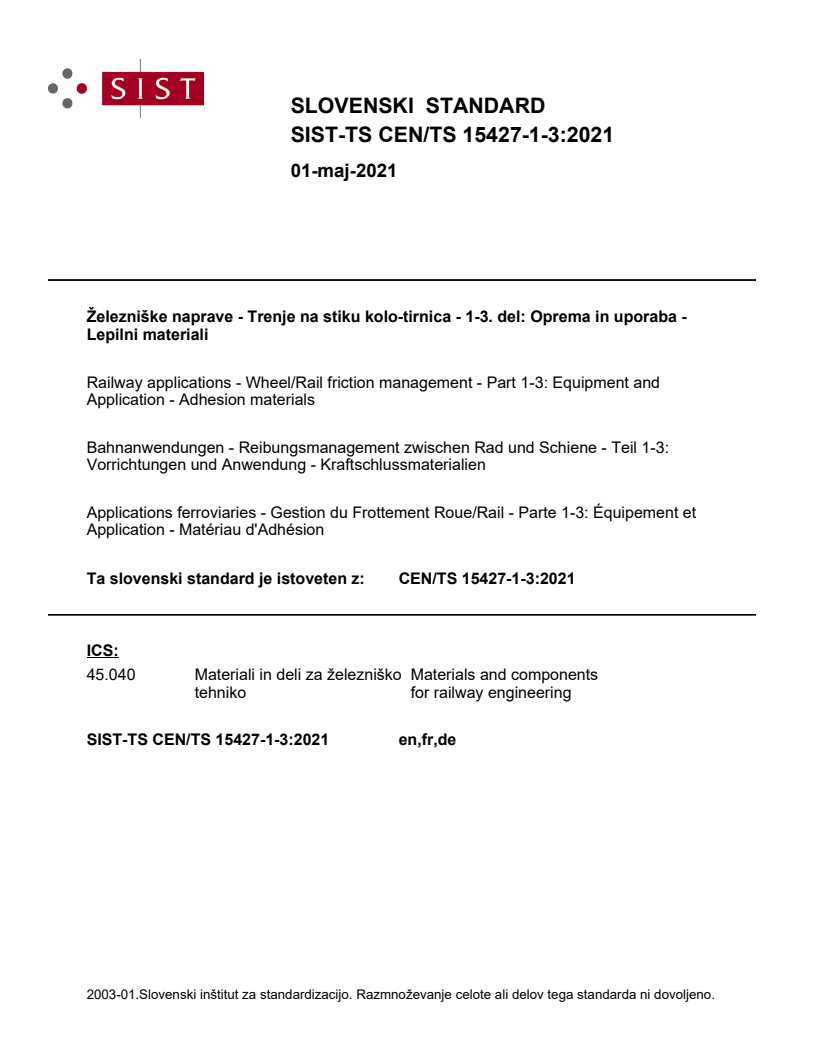

CEN/TS 15427-1-3:2021

SLOVENSKI STANDARD
01-maj-2021
Železniške naprave - Trenje na stiku kolo-tirnica - 1-3. del: Oprema in uporaba -
Lepilni materiali
Railway applications - Wheel/Rail friction management - Part 1-3: Equipment and
Application - Adhesion materials
Bahnanwendungen - Reibungsmanagement zwischen Rad und Schiene - Teil 1-3:
Vorrichtungen und Anwendung - Kraftschlussmaterialien
Applications ferroviaries - Gestion du Frottement Roue/Rail - Parte 1-3: Équipement et
Application - Matériau d'Adhésion
Ta slovenski standard je istoveten z: CEN/TS 15427-1-3:2021
ICS:
45.040 Materiali in deli za železniško Materials and components
tehniko for railway engineering
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

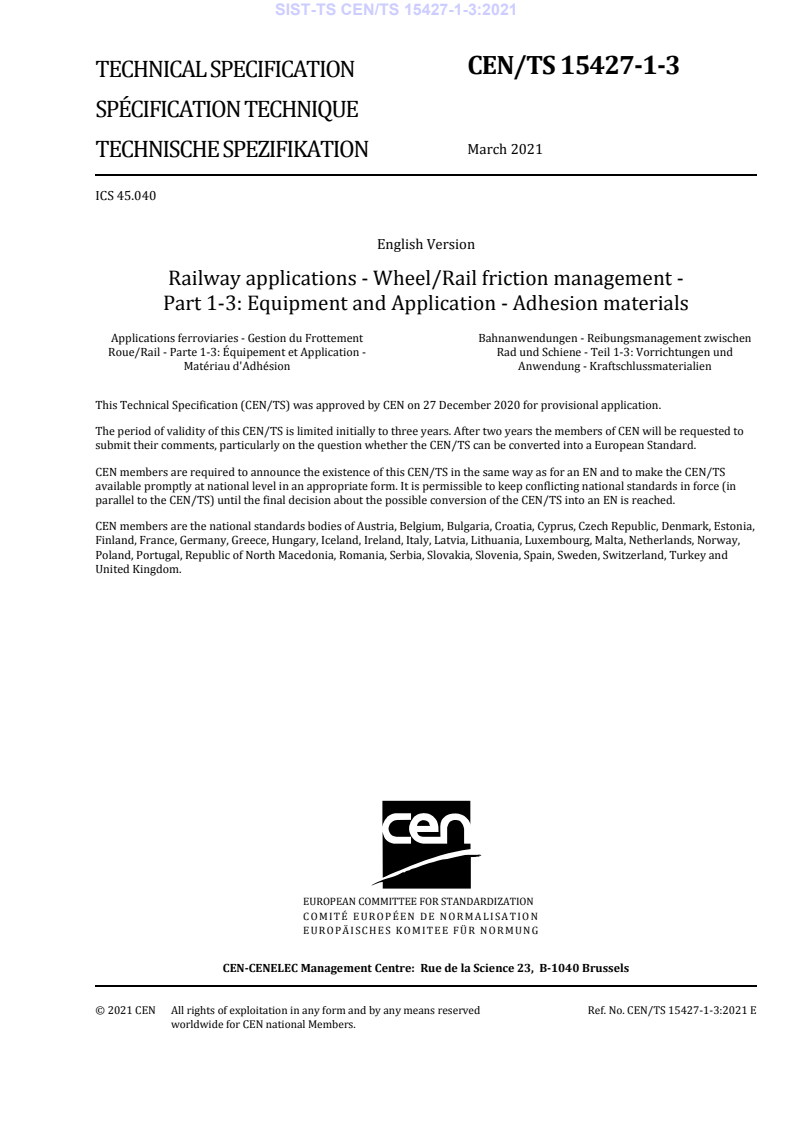

CEN/TS 15427-1-3
TECHNICAL SPECIFICATION
SPÉCIFICATION TECHNIQUE
March 2021
TECHNISCHE SPEZIFIKATION
ICS 45.040
English Version
Railway applications - Wheel/Rail friction management -
Part 1-3: Equipment and Application - Adhesion materials
Applications ferroviaries - Gestion du Frottement Bahnanwendungen - Reibungsmanagement zwischen
Roue/Rail - Parte 1-3: Équipement et Application - Rad und Schiene - Teil 1-3: Vorrichtungen und
Matériau d'Adhésion Anwendung - Kraftschlussmaterialien
This Technical Specification (CEN/TS) was approved by CEN on 27 December 2020 for provisional application.

The period of validity of this CEN/TS is limited initially to three years. After two years the members of CEN will be requested to
submit their comments, particularly on the question whether the CEN/TS can be converted into a European Standard.

CEN members are required to announce the existence of this CEN/TS in the same way as for an EN and to make the CEN/TS
available promptly at national level in an appropriate form. It is permissible to keep conflicting national standards in force (in
parallel to the CEN/TS) until the final decision about the possible conversion of the CEN/TS into an EN is reached.

CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia,
Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway,
Poland, Portugal, Republic of North Macedonia, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland, Turkey and
United Kingdom.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION

EUROPÄISCHES KOMITEE FÜR NORMUNG

CEN-CENELEC Management Centre: Rue de la Science 23, B-1040 Brussels
© 2021 CEN All rights of exploitation in any form and by any means reserved Ref. No. CEN/TS 15427-1-3:2021 E
worldwide for CEN national Members.

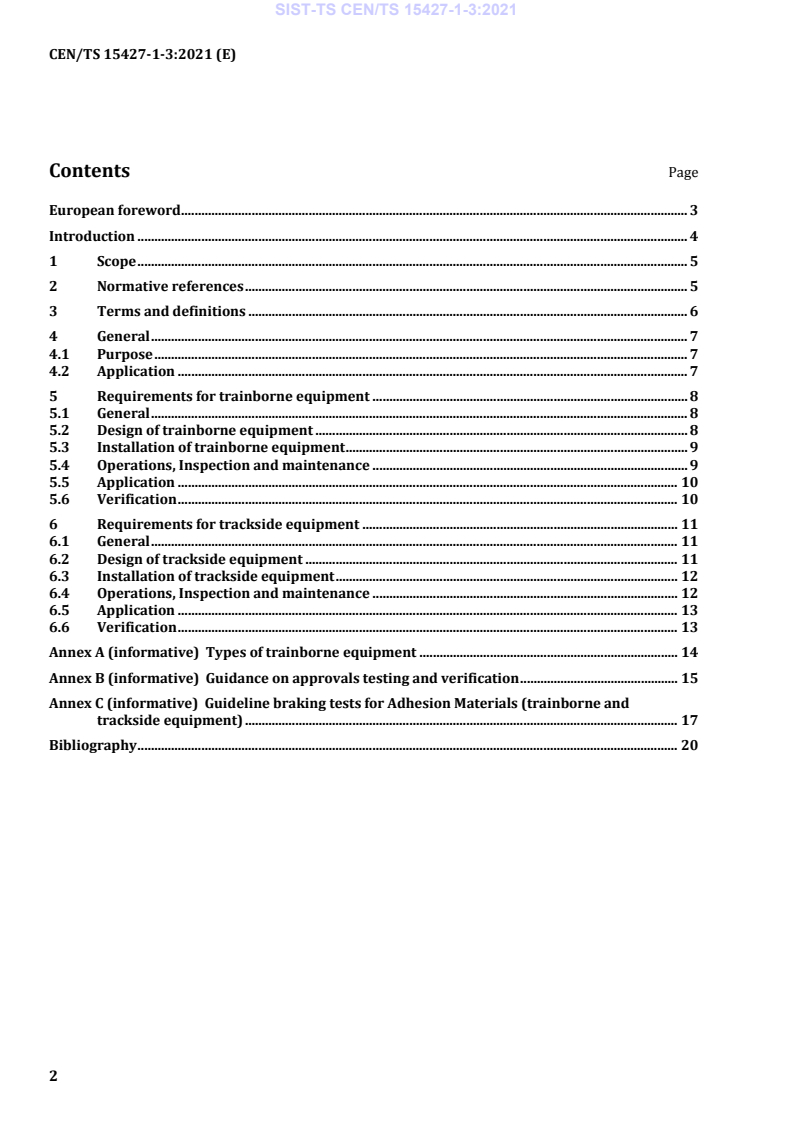

Contents Page
European foreword . 3
Introduction . 4
1 Scope . 5
2 Normative references . 5
3 Terms and definitions . 6
4 General . 7
4.1 Purpose . 7
4.2 Application . 7
5 Requirements for trainborne equipment . 8
5.1 General . 8
5.2 Design of trainborne equipment . 8
5.3 Installation of trainborne equipment . 9
5.4 Operations, Inspection and maintenance . 9
5.5 Application . 10
5.6 Verification . 10
6 Requirements for trackside equipment . 11
6.1 General . 11
6.2 Design of trackside equipment . 11
6.3 Installation of trackside equipment . 12
6.4 Operations, Inspection and maintenance . 12
6.5 Application . 13
6.6 Verification . 13
Annex A (informative) Types of trainborne equipment . 14
Annex B (informative) Guidance on approvals testing and verification . 15
Annex C (informative) Guideline braking tests for Adhesion Materials (trainborne and
trackside equipment) . 17
Bibliography . 20

European foreword
This document (CEN/TS 15427-1-3:2021) has been prepared by Technical Committee CEN/TC 256
“Railway Applications”, the secretariat of which is held by DIN.
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. CEN shall not be held responsible for identifying any or all such patent rights.
This document is part of the series EN 15427, Railway applications - Wheel/Rail friction management,
which consists of the following parts:
— Part 1-1: Equipment and Application - Flange Lubrication
— Part 1-2: Equipment and Application - Top of Rail materials
— Part 1-3: Equipment and Application - Adhesion materials
— Part 2-1: Properties and Characteristics - Flange lubricants
— Part 2-2: Properties and Characteristics - Top of Rail materials
— Part 2-3: Properties and Characteristics - Adhesion materials
— Part 3: Rationale for requirements and further background information
According to the CEN-CENELEC Internal Regulations, the national standards organizations of the
following countries are bound to announce this Technical Specification: Austria, Belgium, Bulgaria,
Croatia, Cyprus, Czech Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland,
Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Republic of
North Macedonia, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland, Turkey and the United
Kingdom.
Introduction
Friction management using solid or fluid (oil, grease, etc.) substances at the wheel-rail interface is a
complex subject and includes:
— lubrication of the wheel flange/ rail gauge corner interface, commonly referred to as “flange or rail
lubrication”;
— lubrication of the back of flange/ check rail interface; commonly referred to as “check rail
lubrication”;
— altering the level of friction at the interface between the top of rail and the wheel tread, commonly
referred to as “top of rail friction management”;
— applying materials to the wheel rail contact to increase (improve/ enhance/ recover) adhesion.
This document sets out requirements for the application for the adhesion materials. It describes systems
fitted on board trains and on the track, as both systems may need to be employed to achieve effective
adhesion.
Managing the wheel-rail interface effectively will reduce wear of both wheel and rail and ensure reliable
braking performance. When friction is managed effectively, noise levels, wear levels and the risk of flange
climbing are reduced. Conversely, where not managed effectively, assets may require replacement
prematurely before reaching their full economic potential.
There needs to be control in the application of adhesion materials such that there is:
— no loss of traction or braking performance;
— no adverse effect on signalling systems or track circuits;
— no harmful environmental effect;
— no incompatibility between the different lubricants/materials in use, particularly, between solid and
fluid systems;
— no effect on the performance of the infrastructure.
1 Scope
This document is limited to specifying the requirements when applying adhesion material to the interface
between the wheel tread and the crown of the rail, and includes both trainborne and trackside solutions.
This document only covers the equipment and application of adhesion material to the active interface.
This document defines:
— the characteristics that systems for the application of adhesion materials of the wheel-rail interface
shall achieve, together with applicable inspection and test methods to be carried out for verification;
— all relevant terminology which is specific to the adhesion materials of the wheel-rail interface.
This document only applies to the mainline railway.
NOTE 1 This document can also be used for other railways, e.g urban rail.
NOTE 2 Where technologies are used to influence the wheel/rail interface, other than the application of a
material, this document is out of scope but can be used as guidance.
2 Normative references
The following documents are referred to in the text in such a way that some or all of their content
constitutes requirements of this document. For dated references, only the edition cited applies. For
undated references, the latest edition of the referenced document (including any amendments) applies.
EN 13749, Railway applications - Wheelsets and bogies - Method of specifying the structural requirements
of bogie frames
CEN/TS 15427-2-3:2021, Railway application – Wheel/ Rail friction management – Part 2-3: Properties
and Characteristics – Adhesion materials
EN 16834:2019, Railway applications - Braking - Brake performance
EN 50121-1, Railway applications - Electromagnetic compatibility - Part 1: General
EN 50125-1, Railway applications - Environmental conditions for equipment - Part 1: Rolling stock and on-
board equipment
EN 50238-1, Railway applications - Compatibility between rolling stock and train detection systems - Part
1: General
EN 61373, Railway applications - Rolling stock equipment - Shock and vibration tests
EN 62621, Railway applications - Fixed installations - Electric traction - Specific requirements for composite
insulators used for overhead contact line systems
3 Terms and definitions
For the purposes of this document, the following terms and definitions apply.
ISO and IEC maintain terminological databases for use in standardization at the following addresses:
— ISO Online browsing platform: available at https://www.iso.org/obp
— IEC Electropedia: available at http://www.electropedia.org/
3.1
active interface
contact area between wheel tread and the crown of the rail
3.2
applicator
part of trackside/trainborne equipment that delivers the adhesion material to the active interface
EXAMPLE Nozzles or pipes.
3.3
trainborne equipment
system carried on the train that consists of one or more applicators, a storage unit and a means of control
3.4
trackside equipment
system installed on or adjacent to the track that consists of one or more applicators, storage containers
and a means of control
3.5
supplier
organisation responsible for supplying the equipment/adhesion material
3.6
adhesion material
substance used to alter friction at the wheel/rail active interface
EXAMPLE Sand.
3.7
technical specification
document outlining agreement between the client and the supplier
3.8
low adhesion
conditions where the wheel/rail adhesion is in the range 0,08 to 0,05
3.9
very low adhesion
conditions where the wheel/rail adhesion is in the range 0,05 to 0,02
3.10
extremely low adhesion
conditions where the wheel/rail adhesion is below 0,02
Note 1 to entry: low, very low and extremely low will be referred to as low adhesion throughout the document.
3.11
Wheel Slide Protection
WSP
system designed to make the best use of available wheel-rail adhesion (where this is less than the wheel-
rail adhesion demanded), and in some cases imp
...
