Overview
EN 14034-1:2004+A1:2011 (CEN) specifies a laboratory test method for determining the maximum explosion pressure (pmax) of dust clouds in a closed vessel under defined initial pressure and temperature. The standard establishes how to measure the highest overpressure produced by ignition of a combustible dust/air mixture and provides the data needed for explosion protection, hazard assessment and safe equipment design. It is not applicable to recognized explosives, pyrophoric materials, substances not requiring oxygen for combustion, or mixtures that may behave similarly.
Key Topics and Requirements
- Scope and limitations: Method for dust clouds only; expert advice required if explosive behavior is uncertain.
- Test vessels: Standard apparatus is a 1 m³ explosion-resistant vessel (spherical or cylindrical). A 20 L sphere is provided as an alternative (Annex C).
- Dust dispersion system: Includes a dust container (≈5.4 dm³), a fast-acting valve (blasting-cap activated), connecting tube (≤350 mm) and a perforated dust disperser (specified hole pattern). Valve opening time <10 ms.
- Ignition source: Two electrically fired pyrotechnic igniters (nominal 5 kJ each) positioned centrally, fired in opposite directions to ensure consistent ignition.
- Instrumentation: At least two pressure sensors with heads flush to the vessel wall; required accuracy ±0.1 bar and time resolution ≤1 ms. Control unit sequences dispersion, ignition and data recording.
- Sample characterization: Particle size distribution and moisture content must be reported (pmax increases with finer particles and lower moisture). Volatile content and particle shape (spherical, flat, fibrous) may also be relevant.
- Procedure elements: Defined initial pressure/temperature, multiple concentration tests across explosive range, calibration and verification, safety precautions and detailed test reporting.
Applications and Users
- Who uses it: Process safety engineers, hazardous-area specialists, industrial hygienists, OEMs of dust-handling equipment, independent test laboratories and regulatory bodies.
- Practical uses:
- Establishing pmax for hazard assessments and risk analysis.
- Designing explosion-resistant equipment and protective systems (venting, suppression).
- Supporting compliance with workplace safety and ATEX/IED directives.
- Input data for mitigation sizing (e.g., vent area, suppression capacity).
Related Standards
- EN 14034 series:
- Part 2 - (dp/dt)max (maximum rate of pressure rise / KSt)
- Part 3 - LEL (lower explosion limit)
- Part 4 - LOC (limiting oxygen concentration)
- EN 14460 - Explosion resistant equipment (normative reference)
EN 14034-1 provides essential, standardized pmax data for reliable dust explosion protection planning and safe equipment design. Keywords: dust explosion, maximum explosion pressure, pmax, EN 14034, dust cloud testing, explosion protection.
Get Certified
Connect with accredited certification bodies for this standard
NSF International
Global independent organization facilitating standards development and certification.
Kiwa BDA Testing
Building and construction product certification.
Sponsored listings
Frequently Asked Questions
EN 14034-1:2004+A1:2011 is a standard published by the European Committee for Standardization (CEN). Its full title is "Determination of explosion characteristics of dust clouds - Part 1: Determination of the maximum explosion pressure pmax of dust clouds". This standard covers: This document describes a test method for the determination of the maximum explosion pressure of dust clouds in a closed vessel under defined initial conditions of pressure and temperature. This method is not suitable for use with recognised explosives, like gunpowder and dynamite, substances which do not require oxygen for combustion, pyrophoric substances, or substances or mixtures of substances which may under some circumstances behave in a similar manner. Where any doubt exists about the existence of hazard due to explosive properties, expert advice should be sought.
This document describes a test method for the determination of the maximum explosion pressure of dust clouds in a closed vessel under defined initial conditions of pressure and temperature. This method is not suitable for use with recognised explosives, like gunpowder and dynamite, substances which do not require oxygen for combustion, pyrophoric substances, or substances or mixtures of substances which may under some circumstances behave in a similar manner. Where any doubt exists about the existence of hazard due to explosive properties, expert advice should be sought.
EN 14034-1:2004+A1:2011 is classified under the following ICS (International Classification for Standards) categories: 13.230 - Explosion protection. The ICS classification helps identify the subject area and facilitates finding related standards.
EN 14034-1:2004+A1:2011 has the following relationships with other standards: It is inter standard links to EN 14034-1:2004, EN 14460:2018, EN ISO 15138:2018, EN ISO 15138:2007. Understanding these relationships helps ensure you are using the most current and applicable version of the standard.
EN 14034-1:2004+A1:2011 is associated with the following European legislation: EU Directives/Regulations: 2014/34/EU, 94/9/EC. When a standard is cited in the Official Journal of the European Union, products manufactured in conformity with it benefit from a presumption of conformity with the essential requirements of the corresponding EU directive or regulation.
EN 14034-1:2004+A1:2011 is available in PDF format for immediate download after purchase. The document can be added to your cart and obtained through the secure checkout process. Digital delivery ensures instant access to the complete standard document.
Standards Content (Sample)
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.RWDYOMDQMHBestimmung der Explosionskenngrößen von Staub/Luft-Gemischen - Teil 1: Bestimmung des maximalen Explosionsdruckes pmax von Staub/Luft-GemischenDétermination des caractéristiques d'explosion des nuages de poussière - Partie 1: Détermination de la pression maximale d'explosion pmax des nuages de poussièreDetermination of explosion characteristics of dust clouds - Part 1: Determination of the maximum explosion pressure pmax of dust clouds13.230Varstvo pred eksplozijoExplosion protectionICS:Ta slovenski standard je istoveten z:EN 14034-1:2004+A1:2011SIST EN 14034-1:2005+A1:2011en,fr,de01-maj-2011SIST EN 14034-1:2005+A1:2011SLOVENSKI
STANDARD
EUROPEAN STANDARD NORME EUROPÉENNE EUROPÄISCHE NORM
EN 14034-1:2004+A1
January 2011 ICS 13.230 Supersedes EN 14034-1:2004English Version
Determination of explosion characteristics of dust clouds - Part 1: Determination of the maximum explosion pressure pmax of dust clouds
Détermination des caractéristiques d'explosion des nuages de poussière - Partie 1: Détermination de la pression maximale d'explosion pmax des nuages de poussière
Bestimmung der Explosionskenngrößen von Staub/Luft-Gemischen - Teil 1: Bestimmung des maximalen Explosionsdruckes pmax von Staub/Luft-Gemischen This European Standard was approved by CEN on 9 July 2004 and includes Amendment 1 approved by CEN on 13 November 2010.
CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this European Standard the status of a national standard without any alteration. Up-to-date lists and bibliographical references concerning such national standards may be obtained on application to the CEN-CENELEC Management Centre or to any CEN member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by translation under the responsibility of a CEN member into its own language and notified to the CEN-CENELEC Management Centre has the same status as the official versions.
CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland and United Kingdom.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION EUROPÄISCHES KOMITEE FÜR NORMUNG
Management Centre:
Avenue Marnix 17,
B-1000 Brussels © 2011 CEN All rights of exploitation in any form and by any means reserved worldwide for CEN national Members. Ref. No. EN 14034-1:2004+A1:2011: ESIST EN 14034-1:2005+A1:2011

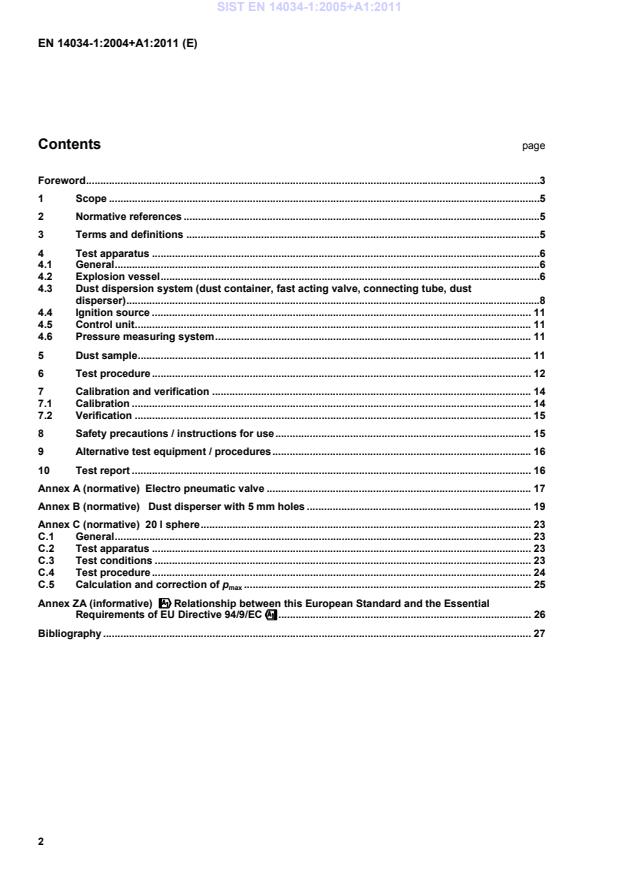

Electro pneumatic valve . 17Annex B (normative)
