CEN

EN 10147:2000

(Main)

Continuously hot-dip zinc coated structural steels strip and sheet - Technical delivery conditions

Continuously hot-dip zinc coated structural steels strip and sheet - Technical delivery conditions

1.1 This European Standard specifies requirements for continuously hot-dip zinc coated flat products in thicknesses /- 600 mm width) and cut lengths (< 600 mm width). The types of coating, coating masses and coating finishes available, and surface qualities are given in Tables 2 to 4 (see also 7.2 to 7.4).

Kontinuierlich feuerverzinktes Band und Blech aus Baustählen - Technische Lieferbedingungen

1.1 Diese Europäische Norm enthält die Anforderungen an kontinuierlich feuerverzinkte Flacherzeugnisse mit einer Dicke /- 600 mm Breite) und Stäbe (< 600 mm Breite). Die lieferbaren Arten, Auflagegewichte und Ausführungen des Überzuges sowie die Oberflächenarten sind in den Tabellen 2 bis 4 angegeben (siehe auch 7.2 bis 7.4).

Bandes et tôles en acier de construction galvanisées à chaud en continue - Conditions techniques de livraison

1.1 La présente norme européenne a pour objet de définir les prescriptions relatives aux produits plats en acier galvanisés à chaud en continu indiqués au tableau 1, et dont l'épaisseur est inférieure ou égale à 3,0 mm. L'épaisseur considérée est l'épaisseur finale du produit livré après galvanisation. La présente norme européenne est applicable aux bandes (bobines) de toutes largeurs ainsi qu'aux tôles qui en sont issues (largeur >/- 600 mm) et aux "bandes refendues coupées à longueur" (largeur < 600 mm) qui y sont découpées.

Kontinuirno vroče cinkanje trakov in plošč iz konstrukcijskih jekel - Tehnični dobavni pogoji

General Information

Status
Withdrawn
Publication Date
18-Apr-2000
Withdrawal Date
06-Jul-2004
ICS
77.140.50 - Flat steel products and semi-products
Technical Committee
ECISS/TC 109 - Coated and uncoated flat products to be used for cold forming
Drafting Committee
ECISS/TC 27 - Surface coated flat products - Qualities, dimensions, tolerances and specific tests
Current Stage
9960 - Withdrawal effective - Withdrawal
Start Date
07-Jul-2004
Completion Date
07-Jul-2004
Directive
305/2011 - Regulation (eu) No 305/2011 of the European Parliament and of the Council of 9 march 2011 laying down harmonised conditions for the marketing of construction products and repealing council directive 89/106/eec
89/106/EEC - Construction products
Mandate
M/116 - Mandate to CEN/CENELEC concerning the execution of standardization work for harmonized standards on masonry and related products
Ref Project
SIST EN 10147:2001 - Continuously hot-dip zinc coated structural steels strip and sheet - Technical delivery conditions

Relations

Replaces
EN 10147:1991 - Continuously hot-dip zinc coated structural steel sheet and strip - Technical delivery conditions
Effective Date
22-Dec-2008
Replaces
EN 10147:1991/A1:1995 - Continuously hot-dip zinc coated structural steel strip and steel - Technical delivery conditions
Effective Date
22-Dec-2008
Replaced By
EN 10326:2004 - Continuously hot-dip coated strip and sheet of structural steels - Technical delivery conditions
Effective Date
22-Dec-2008

Buy Standard

EN 10147:2001EN 10147:2001
PreviousNext
Standard
EN 10147:2001
English language
21 pages
sale 10% off
Preview
sale 10% off
Preview
e-Library read for
1 day

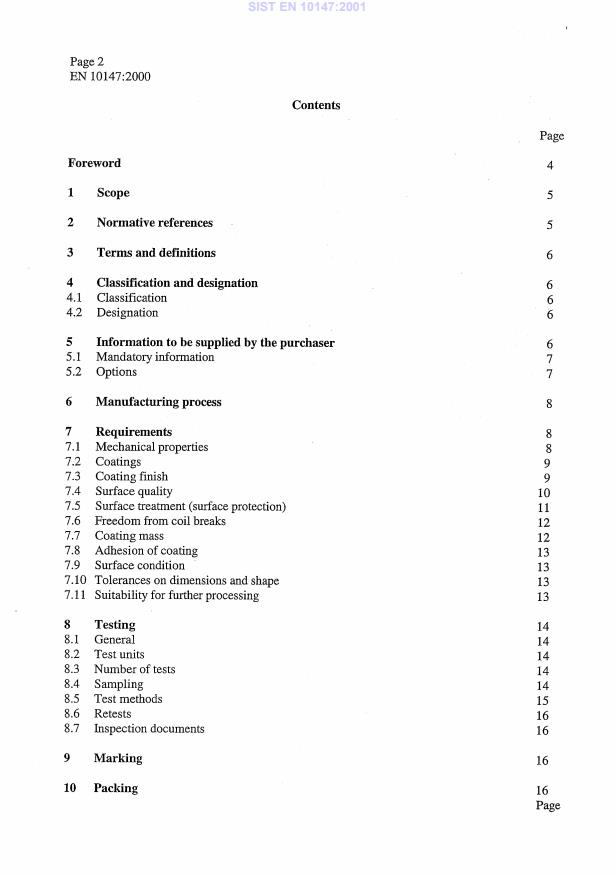

Standards Content (Sample)

2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.Kontinuierlich feuerverzinktes Band und Blech aus Baustählen - Technische LieferbedingungenBandes et tôles en acier de construction galvanisées a chaud en continue - Conditions techniques de livraisonContinuously hot-dip zinc coated structural steels strip and sheet - Technical delivery conditions77.140.50SROL]GHONLFlat steel products and semi-productsICS:Ta slovenski standard je istoveten z:EN 10147:2000SIST EN 10147:2001en01-november-2001SIST EN 10
...
