EN 1434-6:2015+A1:2019
(Main)Thermal energy meters - Part 6: Installation, commissioning, operational monitoring and maintenance
Thermal energy meters - Part 6: Installation, commissioning, operational monitoring and maintenance
This European Standard specifies commissioning, operational monitoring and maintenance and applies to thermal energy meters. Thermal energy meters are instruments intended for measuring the energy which in a heat-exchange circuit is absorbed (cooling) or given up (heating) by a liquid called the heat-conveying liquid. The thermal energy meter indicates the quantity of heat in legal units.
Electrical safety requirements are not covered by this European Standard.
Pressure safety requirements are not covered by this European Standard.
Surface mounted temperature sensors are not covered by this European Standard.
This standard covers meters for closed systems only, where the differential pressure over the thermal load is limited.
Thermische Energiemessgeräte - Teil 6: Einbau, Inbetriebnahme, Überwachung und Wartung
Diese Europäische Norm gilt für !thermische Energiemessgeräte" und legt die Inbetriebnahme, die Überwachung und die Wartung von diesen fest. !Thermische Energiemessgeräte" sind Geräte, die dazu dienen, die Energiemenge zu messen, die in einem Wärmeübertragerkreislauf durch eine als Wärmeträgerflüssigkeit bezeichnete Flüssigkeit aufgenommen (Kühlen) oder abgegeben (Heizen) wird. Das !thermische Energiemessgerät" zeigt die Wärmemenge in gesetzlichen Einheiten an.
Elektrische Sicherheitsanforderungen werden in dieser Europäischen Norm nicht behandelt.
Den Druck betreffende Sicherheitsanforderungen werden in dieser Europäischen Norm nicht behandelt.
Oberflächenmontierte Temperaturfühler werden in dieser Europäischen Norm nicht behandelt.
Die vorliegende Norm behandelt ausschließlich Zähler für geschlossene Systeme, in denen der Differenz-druck über die Wärmemenge begrenzt ist.
Compteurs d'énergie thermique - Partie 6 : Installation, mise en service, surveillance et maintenance
La présente Norme européenne spécifie l'installation, la mise en service, à la surveillance de fonctionnement et la maintenance et s'applique aux compteurs d'énergie thermique. Les compteurs d'énergie thermique sont des instruments destinés à mesurer l'énergie thermique qui, dans un circuit d'échange thermique, est absorbée (refroidissement) ou cédée (chauffage) par un liquide appelé
« liquide caloporteur ». Le compteur d'énergie thermique fournit la quantité d'énergie thermique en unités de mesure légales.
La présente Norme européenne ne traite pas des prescriptions de sécurité électrique.
La présente Norme européenne ne traite pas des prescriptions de sécurité relative à la pression.
La présente Norme européenne ne traite pas des sondes de température montées en surface.
La présente norme couvre les compteurs pour les systèmes fermés uniquement, où la pression différentielle dans la charge thermique est limitée.
Merilniki toplote - 6. del: Vgradnja, zagon, nadzor in vzdrževanje (vključno z dopolnilom A1)
Ta evropski standard določa zagon, nadzor delovanja in vzdrževanje ter se uporablja za merilnike toplotne energije. Merilniki toplote so instrumenti, namenjeni merjenju energije, ki jo v krogotoku toplotne izmenjave absorbira (hlajenje) ali oddaja (ogrevanje) tekočina, imenovana tekočina za prenos toplote. Merilnik toplote podaja toploto v predpisanih enotah.
Ta evropski standard ne zajema električnih varnostnih zahtev.
Ta evropski standard ne zajema tlačnih varnostnih zahtev.
Ta evropski standard ne zajema površinsko nameščenih senzorjev temperature.
Ta standard zajema samo števce za zaprte sisteme, kjer je diferencialni tlak nad toplotno obremenitvijo omejen.
General Information
- Status
- Withdrawn
- Publication Date
- 12-Feb-2019
- Withdrawal Date
- 13-Apr-2025
- Technical Committee
- CEN/TC 176 - Heat meters
- Current Stage
- 9960 - Withdrawal effective - Withdrawal
- Start Date
- 07-Sep-2022
- Completion Date
- 14-Apr-2025
Relations
- Effective Date
- 19-Jan-2023
- Effective Date
- 20-Jun-2018
- Effective Date
- 14-Sep-2022
Frequently Asked Questions
EN 1434-6:2015+A1:2019 is a standard published by the European Committee for Standardization (CEN). Its full title is "Thermal energy meters - Part 6: Installation, commissioning, operational monitoring and maintenance". This standard covers: This European Standard specifies commissioning, operational monitoring and maintenance and applies to thermal energy meters. Thermal energy meters are instruments intended for measuring the energy which in a heat-exchange circuit is absorbed (cooling) or given up (heating) by a liquid called the heat-conveying liquid. The thermal energy meter indicates the quantity of heat in legal units. Electrical safety requirements are not covered by this European Standard. Pressure safety requirements are not covered by this European Standard. Surface mounted temperature sensors are not covered by this European Standard. This standard covers meters for closed systems only, where the differential pressure over the thermal load is limited.
This European Standard specifies commissioning, operational monitoring and maintenance and applies to thermal energy meters. Thermal energy meters are instruments intended for measuring the energy which in a heat-exchange circuit is absorbed (cooling) or given up (heating) by a liquid called the heat-conveying liquid. The thermal energy meter indicates the quantity of heat in legal units. Electrical safety requirements are not covered by this European Standard. Pressure safety requirements are not covered by this European Standard. Surface mounted temperature sensors are not covered by this European Standard. This standard covers meters for closed systems only, where the differential pressure over the thermal load is limited.
EN 1434-6:2015+A1:2019 is classified under the following ICS (International Classification for Standards) categories: 17.200.10 - Heat. Calorimetry. The ICS classification helps identify the subject area and facilitates finding related standards.
EN 1434-6:2015+A1:2019 has the following relationships with other standards: It is inter standard links to EN 1434-6:2015, EN 1434-6:2015/prA1, EN 1434-6:2022. Understanding these relationships helps ensure you are using the most current and applicable version of the standard.
EN 1434-6:2015+A1:2019 is associated with the following European legislation: EU Directives/Regulations: 2014/32/EU; Standardization Mandates: M/441, M/541. When a standard is cited in the Official Journal of the European Union, products manufactured in conformity with it benefit from a presumption of conformity with the essential requirements of the corresponding EU directive or regulation.
You can purchase EN 1434-6:2015+A1:2019 directly from iTeh Standards. The document is available in PDF format and is delivered instantly after payment. Add the standard to your cart and complete the secure checkout process. iTeh Standards is an authorized distributor of CEN standards.
Standards Content (Sample)
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.Thermische Energiemessgeräte - Teil 6: Einbau, Inbetriebnahme, Überwachung und WartungCompteurs d'énergie thermique - Partie 6 : Installation, mise en service, surveillance et maintenanceThermal energy meters - Part 6: Installation, commissioning, operational monitoring and maintenance17.200.10Toplota. KalorimetrijaHeat. CalorimetryICS:Ta slovenski standard je istoveten z:EN 1434-6:2015+A1:2019SIST EN 1434-6:2016+A1:2019en,fr,de01-april-2019SIST EN 1434-6:2016+A1:2019SLOVENSKI
STANDARDSIST EN 1434-6:20161DGRPHãþD
EUROPEAN STANDARD NORME EUROPÉENNE EUROPÄISCHE NORM
EN 1434-6:2015+A1
February
t r s { ICS
s yä t r rä s r Supersedes EN
s v u væ xã t r s wEnglish Version
Thermal energy meters æ Part
xã Installationá commissioningá operational monitoring and maintenanceCompteurs d 5énergie thermique æ Partie
x ã Installationá mise en serviceá surveillance et maintenance
Thermische Energiemessgeräte æ Teil
xã Einbauá Inbetriebnahmeá Überwachung und Wartung This European Standard was approved by CEN on
w September
t r s w and includes Amendment
s approved by CEN on
w February
t r s zä
egulations which stipulate the conditions for giving this European Standard the status of a national standard without any alterationä Upætoædate lists and bibliographical references concerning such national standards may be obtained on application to the CENæCENELEC Management Centre or to any CEN memberä
translation under the responsibility of a CEN member into its own language and notified to the CENæCENELEC Management Centre has the same status as the official versionsä
CEN members are the national standards bodies of Austriaá Belgiumá Bulgariaá Croatiaá Cyprusá Czech Republicá Denmarká Estoniaá Finlandá Former Yugoslav Republic of Macedoniaá Franceá Germanyá Greeceá Hungaryá Icelandá Irelandá Italyá Latviaá Lithuaniaá Luxembourgá Maltaá Netherlandsá Norwayá Polandá Portugalá Romaniaá Serbiaá Slovakiaá Sloveniaá Spainá Swedená Switzerlandá Turkey and United Kingdomä
EUROPEAN COMMITTEE FOR STANDARDIZATION COMITÉ EUROPÉEN DE NORMALISATION EUROPÄISCHES KOMITEE FÜR NORMUNG
CEN-CENELEC Management Centre:
Rue de la Science 23,
B-1040 Brussels
t r s { CEN All rights of exploitation in any form and by any means reserved worldwide for CEN national Membersä Refä Noä EN
s v u væ xã t r s w ªA sã t r s { ESIST EN 1434-6:2016+A1:2019

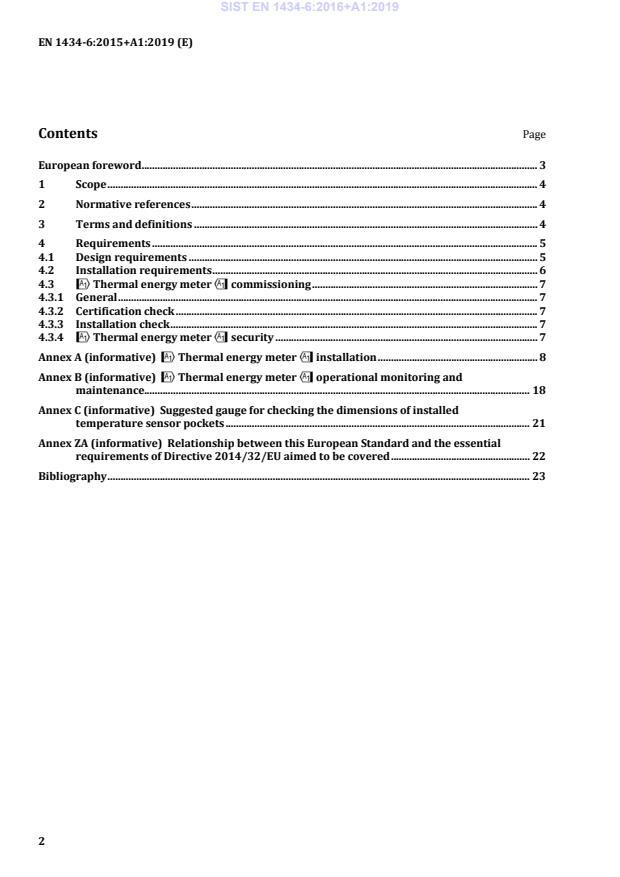

!Thermal energy meter" installation . 8 Annex B (informative)
