CEN/TS 15531-2:2007

SLOVENSKI STANDARD
01-februar-2009
-DYQLSUHYR]9PHVQLN]DLQIRUPLUDQMHYUHDOQHPþDVX]DSRWUHEHGHORYDQMD
MDYQHJDSUHYR]DGHO.RPXQLNDFLMVNDLQIUDVWUXNWXUD
Public transport - Service interface for real-time information relating to public transport
operations - Part 2: Communications infrastructure
Öffentlicher Verkehr - Dienstleitungsschnittstelle für zeitnahe Informationen zum Betrieb
des öffentlichen Verkehrs - Teil 2: Kommunikationsinfrastruktur
Ta slovenski standard je istoveten z: CEN/TS 15531-2:2007
ICS:
35.240.60 Uporabniške rešitve IT v IT applications in transport
transportu in trgovini and trade
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

TECHNICAL SPECIFICATION
CEN/TS 15531-2
SPÉCIFICATION TECHNIQUE
TECHNISCHE SPEZIFIKATION
July 2007
ICS 35.240.60
English Version
Public transport - Service interface for real-time information
relating to public transport operations - Part 2: Communications
infrastructure
Öffentlicher Verkehr - Dienstleitungsschnittstelle für
zeitnahe Informationen zum Betrieb des öffentlichen
Verkehrs - Teil 2: Kommunikationsinfrastruktur
This Technical Specification (CEN/TS) was approved by CEN on 23 October 2006 for provisional application.
The period of validity of this CEN/TS is limited initially to three years. After two years the members of CEN will be requested to submit their
comments, particularly on the question whether the CEN/TS can be converted into a European Standard.
CEN members are required to announce the existence of this CEN/TS in the same way as for an EN and to make the CEN/TS available
promptly at national level in an appropriate form. It is permissible to keep conflicting national standards in force (in parallel to the CEN/TS)
until the final decision about the possible conversion of the CEN/TS into an EN is reached.
CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Cyprus, Czech Republic, Denmark, Estonia, Finland,
France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal,
Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland and United Kingdom.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION
EUROPÄISCHES KOMITEE FÜR NORMUNG
Management Centre: rue de Stassart, 36  B-1050 Brussels
© 2007 CEN All rights of exploitation in any form and by any means reserved Ref. No. CEN/TS 15531-2:2007: E
worldwide for CEN national Members.

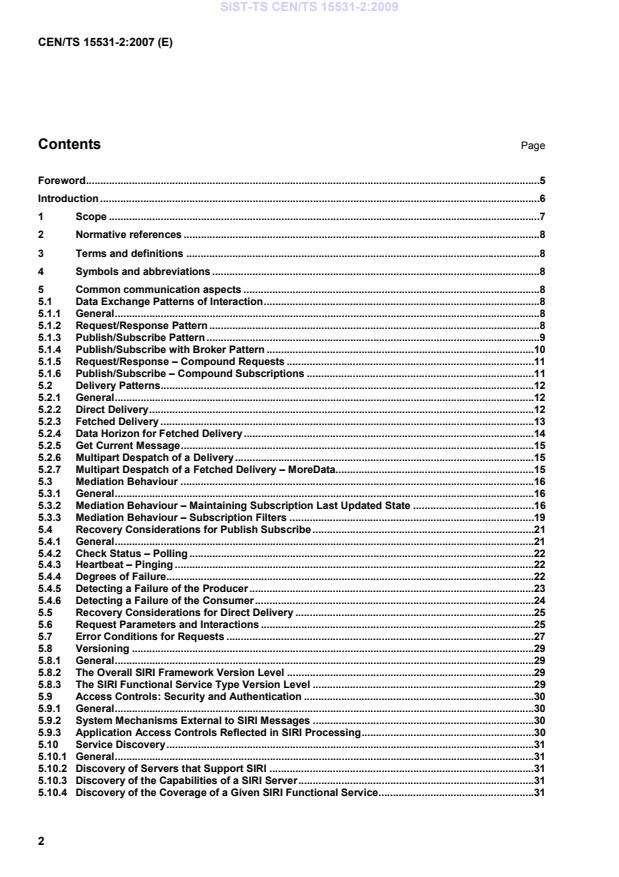

Contents Page
Foreword.5
Introduction .6
1 Scope .7
2 Normative references .8
3 Terms and definitions .8
4 Symbols and abbreviations .8
5 Common communication aspects .8
5.1 Data Exchange Patterns of Interaction.8
5.1.1 General.8
5.1.2 Request/Response Pattern.8
5.1.3 Publish/Subscribe Pattern .9
5.1.4 Publish/Subscribe with Broker Pattern .10
5.1.5 Request/Response – Compound Requests .11
5.1.6 Publish/Subscribe – Compound Subscriptions .11
5.2 Delivery Patterns.12
5.2.1 General.12
5.2.2 Direct Delivery.12
5.2.3 Fetched Delivery .13
5.2.4 Data Horizon for Fetched Delivery.14
5.2.5 Get Current Message.15
5.2.6 Multipart Despatch of a Delivery.15
5.2.7 Multipart Despatch of a Fetched Delivery – MoreData.15
5.3 Mediation Behaviour .16
5.3.1 General.16
5.3.2 Mediation Behaviour – Maintaining Subscription Last Updated State .16
5.3.3 Mediation Behaviour – Subscription Filters .19
5.4 Recovery Considerations for Publish Subscribe.21
5.4.1 General.21
5.4.2 Check Status – Polling .22
5.4.3 Heartbeat – Pinging .22
5.4.4 Degrees of Failure.22
5.4.5 Detecting a Failure of the Producer.23
5.4.6 Detecting a Failure of the Consumer.24
5.5 Recovery Considerations for Direct Delivery .25
5.6 Request Parameters and Interactions .25
5.7 Error Conditions for Requests .27
5.8 Versioning .29
5.8.1 General.29
5.8.2 The Overall SIRI Framework Version Level .29
5.8.3 The SIRI Functional Service Type Version Level .29
5.9 Access Controls: Security and Authentication .30
5.9.1 General.30
5.9.2 System Mechanisms External to SIRI Messages .30
5.9.3 Application Access Controls Reflected in SIRI Processing.30
5.10 Service Discovery.31
5.10.1 General.31
5.10.2 Discovery of Servers that Support SIRI .31
5.10.3 Discovery of the Capabilities of a SIRI Server.31
5.10.4 Discovery of the Coverage of a Given SIRI Functional Service.31
5.11 Capability Matrix.32
5.11.1 General .32
5.11.2 SIRI General Capabilities.32
6 Request/response .33
6.1 Making a Direct Request.33
6.1.1 General .33
6.1.2 ServiceRequest Message .34
6.1.3 The ServiceRequestContext.35
6.1.4 Common Properties of ServiceRequest Messages .37
6.1.5 ServiceRequest Example.37
6.1.6 Access Controls on a Request .38
6.2 Receiving a Data Delivery.39
6.2.1 General .39
6.2.2 ServiceDelivery Message.40
7 Subscriptions.44
7.1 Setting up Subscriptions.44
7.1.1 General .44
7.1.2 SubscriptionRequest .45
7.1.3 SubscriptionResponse .48
7.2 Subscription Validity.50
7.3 Terminating Subscriptions.50
7.3.1 General .50
7.3.2 The TerminateSubscriptionRequest.50
7.3.3 TerminateSubscriptionResponse .51
8 Delivering data.53
8.1 Direct Delivery .53
8.1.1 Procedure.53
8.1.2 DataReceivedAcknowledgement Message.53
8.1.3 DataReceivedAcknowledgement Example .53
8.2 Fetched Delivery.54
8.2.1 General .54
8.2.2 Signalling Data Availability (DataReadyNotification / DataReadyResponse) .54
8.2.3 Polling Data (DataSupplyRequest/ServiceDelivery) .56
9 Recovery from system failure .57
9.1 General .57
9.2 Recovery after Client Failure.57
9.3 Recovery after Server Failure .57
9.4 Reset after Interruption of Communication.58
9.5 Alive Handling.58
9.5.1 General .58
9.5.2 CheckStatusRequest.58
9.5.3 CheckStatusResponse.59
9.5.4 HeartbeatNotification .61
10 Transport of SIRI messages.62
10.1 Separation of Addressing from Transport Protocol .62
10.2 Logical Endpoint Addresses.62
10.2.1 Endpoint Addresses.62
10.2.2 Endpoint Address Examples.63
10.3 Parallelism and Endpoint Addresses.64
10.4 Encoding of XML messages.65
10.4.1 Principles.65
10.4.2 Encoding of Errors in XML .65
10.4.3 Character Set .65
10.4.4 Schema Packages .65
10.5 Use of SIRI with SOAP .66
10.5.1 General .66
10.5.2 Web Services .66
10.5.3 Use of SOAP.67
10.5.4 SIRI WSDL .68
10.5.5 WSDL Producer Server Operations .69
10.5.6 WSDL Client Operations .70
10.5.7 SIRI WSDL Status .71
11 Capability discovery requests.71
11.1 General.71
11.2 Capability Request.71
11.3 Service Capability Discovery Request .72
11.4 Service Capability Discovery Response .72
11.5 Service Capability Discovery Response .73
11.5.1 General.73
11.5.2 Service Capability Response Example.74
11.6 Functional Service Capability Permission Matrix .76
11.6.1 General.76
11.6.2 OperatorPermissions .77
11.6.3 LinePermissions .77
11.6.4 ConnectionLinkPermissions .78
11.6.5 StopMonitorPermissions .78
11.6.6 VehicleMonitorPermissions.79
11.6.7 InfoChannelPermissions.79
12 Shared groups of elements .79
12.1 General.79
12.2 FramedVehicleJourneyRef .79
12.3 ServiceInfoGroup.80
12.4 VehicleJourneyInfoGroup.80
12.5 JourneyPatternInfoGroup .81
12.6 DisruptionGroup .82
12.7 JourneyProgressGroup .83
12.8 Location .83
12.9 OperationalBlockGroup .84
12.10 OperationalInfoGroup .84
12.11 Error .84
Bibliography .85

Foreword
This document (CEN/TS 15531-2:2007) has been prepared by Technical Committee CEN/TC 278 “Road
transport and traffic telematics”, the secretariat of which is held by NEN.
This presents Part 2 of the European Technical Specification known as “SIRI”. SIRI provides a framework for
specifying communications and data exchange protocols for organisations wishing to exchange Real-time
Information (RTI) relating to public transport operations.
SIRI is presented in three parts:
• Context and framework, including background, scope and role, normative references, terms and
definitions, symbols and abbreviations, business context and use cases (Part 1).
• The mechanisms to be adopted for data exchange communications links (Part 2).
• Data structures for a series of individual application interface modules (Part 3).
The XML schema can be downloaded from http://www.siri.org.uk/, along with available guidance on its use,
example XML files, and case studies of national and local deployments.
It is recognised that SIRI is not complete as it stands, and there will be a substantial amount of work required
to continue to develop SIRI over the coming years. It is therefore intended that a SIRI Management Group
should continue to exist, at European level, based on the composition of SG7.
According to the CEN/CENELEC Internal Regulations, the national standards organizations of the following
countries are bound to announce this CEN Technical Specification: Austria, Belgium, Bulgaria, Cyprus, Czech
Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia,
Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Romania, Slovakia, Slovenia, Spain,
Sweden, Switzerland and United Kingdom.
Introduction
Public transport services rely increasingly on information systems to ensure reliable, efficient operation and
widely accessible, accurate passenger information. These systems are used for a range of specific purposes:
setting schedules and timetables; managing vehicle fleets; issuing tickets and receipts; providing real-time
information on service running, and so on.
This Technical Specification specifies a Service Interface for Real-time Information (SIRI) about Public
Transport. It is intended to be used to exchange information between servers containing real-time public
transport vehicle or journey time data. These include the control centres of transport operators and information
systems that utilise real-time vehicle information, for example, to deliver services such as travel information.
Well-defined, open interfaces have a crucial role in improving the economic and technical viability of Public
Transport Information Systems of all kinds. Using standardised interfaces, systems can be implemented as
discrete pluggable modules that can be chosen from a wide variety of suppliers in a competitive market, rather
than as monolithic proprietary systems from a single supplier. Interfaces also allow the systematic automated
testing of each functional module, vital for managing the complexity of increasing large and dynamic systems.
Furthermore, individual functional modules can be replaced or evolved, without unexpected breakages of
obscurely dependent function.
This Technical Specification will improve a number of features of public transport information and service
management:
• Interoperability – the Technical Specification will facilitate interoperability between information processing
systems of the transport operators by: (i) introducing common architectures for message exchange; (ii)
introducing a modular set of compatible information services for real-time vehicle information; (ii) using
common data models and schemas for the messages exchanged for each service; and (iv) introducing a
consistent approach to data management.
• Improved operations management – the Technical Specification will assist in better vehicle management
by (i) allowing the precise tracking of both local and roaming vehicles; (ii) providing data that can be used
to improve performance, such as the measurement of schedule adherence; and (iii) allowing the
distribution of schedule updates and other messages in real-time.
• Delivery of real-time information to end-users – the Technical Specification will assist the economic
provision of improved data by; (i) enabling the gathering and exchange of real-time data between VAMS
systems; (ii) providing standardised, well defined interfaces that can be used to deliver data to a wide
variety of distribution channels.
Technical advantages include the following:
• Reusing a common communication layer for all the various technical services enables cost-effective
implementations, and makes the Technical Specification readily extensible in future.
1 Scope
SIRI uses a consistent set of general communication protocols to exchange information between client and
server. The same pattern of message exchange may be used to implement different specific functional
interfaces as sets of concrete message content types.
Two well-known specific patterns of client server interaction are used for data exchange in SIRI:
Request/Response and Publish/Subscribe.
• Request/Response allows for the ad hoc exchange of data on demand from the client.
• Publish/Subscribe allows for the repeated asynchronous push of notifications and data to distribute events
and Situations detected by a Real-time Service.
The use of the Publish/Subscribe pattern of interaction follows that described in the Publish-Subscribe
Notification for Web Services (WS-PubSub) specification, and as far as possible, SIRI uses the same
separation of concerns and common terminology for publish/subscribe concepts and interfaces as used in
WS-PubSub. WS-PubSub breaks down the server part of the Publish/Subscribe pattern into a number of
separate named roles and interfaces (for example, Subscriber, Publisher, Notification Producer, and
Notification Consumer): in an actual SIRI implementation, certain of these distinct interfaces may be combined
and provided by a single entity. Although SIRI is not currently implemented as a full WS-PubSub web service,
the use of a WS-PubSub architecture makes this straightforward to do in future.
For the delivery of data in responses (to both requests and subscriptions), SIRI supports two common
patterns of message exchange, as realised in existent national systems:
• A one step ‘Direct Delivery’, as per the classic client-server paradigm, and normal WS-PubSub publish
subscribe usage; and;
• A two step ‘Fetched Delivery’ which elaborates the delivery of messages into a sequence of successive
messages pairs to first notify the client, and then to send the data when the client is ready. Fetched
Delivery is a stateful pattern in its own right.
Each delivery pattern allows different trade-offs for implementation efficiency to be made as appropriate for
different target environments.
A SIRI implementation may support either or both delivery methods; in order to make the most efficient use of
the available computational and communication resources. The delivery method may either be preconfigured
and static for a given implementation, or each request or subscription may indicate the delivery method
required by the client dynamically as part of the request policy, and the server may refuse a request if it does
not support that method, giving an appropriate error code.
The Interaction patterns and the Delivery patterns are independent aspects of the SIRI protocol and may be
used in any combination in different implementations.
For a given SIRI Functional Service type (Connection Monitoring, Stop Monitoring etc), the message payload
content is the same regardless of whether information is exchanged with a Request/Response or
Publish/Subscribe pattern, or whether it is returned by Direct or Fetched Delivery.
The SIRI Publish/Subscribe Protocol prescribes particular mediation behaviour for reducing the number of
notifications and the amount of network traffic arising from subscriptions.
The mediation groups the various subscriptions from a subscriber into one or more Subscriber Channels, and
is able to manage notifications and updates for the aggregate.
Only partial updates to the data set since the last delivery for the subscription need be sent.
The SIRI Communication protocols are designed to fail gracefully. Considerations for resilience and recovery
are covered below.
2 Normative references
The following referenced documents are indispensable for the application of this document. For dated
references, only the edition cited applies. For undated references, the latest edition of the referenced
document (including any amendments) applies.
CEN/TS 15531-1:2007, Public transport - Service interface for real-time information relating to public transport
operations - Part 1: Context and framework
ISO/IEC 8859-15, Information technology - 8-bit single-byte coded graphic character sets - Part 15: Latin
alphabet No. 9
3 Terms and definitions
For the purposes of this document, the terms and definitions given in CEN/TS 15531-1:2007 apply.
4 Symbols and abbreviations
For the purposes of this document, the symbols and abbreviations given in CEN/TS 15531-1:2007 apply.
5 Common communication aspects
5.1 Data Exchange Patterns of Interaction
5.1.1 General
There are two main patterns of interaction for Data Exchange in SIRI – Request/Response and
Publish/Subscribe. The patterns are complementary, that is an implementation may support both, and
implementors may choose the most efficient pattern according to the nature of their application. Note that
Publish/Subscribe can emulate a Request/Response interaction by use of a short subscription. A partial SIRI
implementation that supports only Request/Response is useful for connecting many types of Public Transport
Information System applications to AVMS and other Producer System data.
5.1.2 Request/Response Pattern
The Request/Response interaction allows for the immediate fulfilment of one-off data supply requests made
by a Requestor to a Service. Pairs of Request/Response patterns are also used for the interactions that make
up other patterns, such as Publish/Subscribe.
In the Request/Response interaction used to get data, the Client sends a request message to a Server that
offers the required SIRI Functional Service, and immediately receives a Delivery message in response
(Figure 1). A Data Delivery may be made as a one step Direct Delivery, or as a two step Fetched Delivery
(see later).
The Requestor must give a unique reference to each request, which will be returned in the matching response.
The Requestor expresses its specific interests through Topic and Delivery Policy parameters on the specific
SIRI Functional Service Requests. If the request cannot be satisfied an error condition is returned diagnosing
the reason.
Figure 1 — Request/Response Interaction
Request/response allows for an efficient transmission of data on-demand from the Consumer, and is
extremely easy to implement using commodity internet software components.
5.1.3 Publish/Subscribe Pattern
The Publish/Subscribe interaction (see Figure 2) allows for the asynchronous detection of real-time events by
a producer service, whose role is to generate and send notifications to one or more interested consumers.
In the Publish/Subscribe interaction, the Subscriber client sends a request message to the Notification
Producer of a SIRI Functional Service to create a Subscription, which may or may not be granted. The
Subscriber expresses its specific interests through Topic and Subscription Policy parameters, and receives an
acknowledgement that this has been created, or an error condition.
Once a Subscription exists, the service, acting as the Notification Producer, uses it to determine when to send
a notification to a consumer after a Situation, i.e. event is detected. The incoming event notification to be
published is matched against the interests expressed by the Topic and other filter parameters of the
Subscription and if satisfied, a notification message is sent to the Consumer. The actual Notification Message
Delivery may be made either as a one step Direct Delivery to a Notification Consumer, or as a two step SIRI
Fetched Delivery, with separate message pairs first to notify and then to delivery the payload.
In SIRI, the Subscriber and Consumer roles are normally implemented by the same client service, although
they are logically separate. Every Consumer must know its Subscriber so that they can interact to handle
recovery from service failures.
Subscriptions for different types of SIRI Functional Service are managed separately.
A Subscriber may add different Subscriptions at different times.
A Subscription Request includes an Initial Termination Time indicating the desired duration i.e. lease of the
individual Subscription. The subscription will only be granted if this can be met, otherwise an error will be
returned.
Subscriptions have a life span as specified by the Subscriber, and will be terminated by the Notification
Producer service when they reach their expiry time.
Subscribers may terminate their own existing Subscriptions before their predefined expiry time through a
Subscription Manager. The Subscription Manager is subordinate to the Notification Producer, and in SIRI
implementations, is normally provided by the same entity, although logically distinct. Each Subscription
Manager knows its associated Notification Producer, and vice versa. Although the Notification Producer is the
factory for creating new subscriptions, it does not manage them once created; rather this is done by the
Subscription Manager. This design (i.e. the Notification Producer finds the Subscription Manager for the
Subscriber, rather than the Subscription Manager finds the Notification Producer for the Subscriber) is
required to conform with the WS-PubSub architecture. The WS-PubSub architecture allows for additional
Subscription management functions to be added through the Subscription Manager for example renewal,
pause/resume, or the dynamic tuning of subscription policies, but SIRI does not specify any of these at
present. SIRI does however support a Terminate Subscription and a Terminate All Subscriptions function.

Figure 2 — Simple Publish/Subscribe Interaction
Subscriptions are a stateful resource: they need a unique identifier that can be used by Subscriber, Producer
and Consumer to refer to the same subscription on different occasions. They will each hold their own
representation of the subscription. In SIRI this identifier is issued by the Subscriber.
Publish/Subscribe allows for an efficient regular event driven exchange of updates to data. It requires a more
elaborate implementation, with the holding of state by both participants and the dedication of computing
resources to run the notification production.
5.1.4 Publish/Subscribe with Broker Pattern
The WS-PubSub architecture also allows for the logical separation of the concerns of Publishing and
Notification Production, and in its fully articulated form, has a separate Publisher role that is a subordinate
constituent of the Notification Producer service (see Figure 3). The Publisher produces notifications of any
significant situations, i.e. events. For a real-time service, the Publisher monitors the real-time data and if a
change has occurred, it produces a notification. The Notification Producer then matches the Notification with
the interests and policies expressed by Subscribers and despatches the notification delivery to the Notification
Consumer indicated by the Subscription.
It is possible to have more than one Notification Producer sitting between the Publisher and the Consumer,
either to carry out successive types of filtering and processing of the notifications, or for scalability. WS-
PubSub distinguishes between direct notification – where the notification message from the Publisher is
delivered unchanged, and brokered notification – where the Notification Producer filters and also possibly
transforms the message. Both brokered (e.g. for SIRI Stop Monitoring) and unbrokered (e.g. for SIRI General
Message) mediation occurs in different SIRI Functional Services.
The separation of concerns between Publisher and Notification producer is transparent to the Subscriber and
Consumer, and so in SIRI is merely an implementation choice – which does not currently explicitly mandate
any requirements for the interface between the Notification Producer and Publisher. Every Publisher knows its
associated Notification Producer(s), and vice versa.

Figure 3 — Brokered Publish/Subscribe Interaction
Further Subscription and Subscriber filtering tasks, in particular the enforcement of SIRI Access controls, are
implemented by the Notification Producer, not the Publisher.
5.1.5 Request/Response – Compound Requests
Multiple requests for a single SIRI Functional Service may be included in a single Data Request/Response
interaction: each request may cover different topics and policies (Figure 4).

Figure 4 — Request/Response: Compound Requests
5.1.6 Publish/Subscribe – Compound Subscriptions
Multiple subscriptions to a single SIRI Functional Service may be included by a Subscriber in a single
Subscription request: each subscription may cover different topics and policies (Figure 5). The handling of
notifications and deliveries for compound subscriptions is discussed in the section on Mediation later below.
Figure 5 — Publish/Subscribe: Compound Subscriptions
5.2 Delivery Patterns
5.2.1 General
Services return notifications and Situation content to the Consumer using Delivery messages. In real-time
applications, it is important to be able to optimise systems to ensure rapid delivery, and SIRI supports two
different message pattern variations for making a delivery, that in principle can be used interchangeably: these
are; (i) Direct Delivery, and; (ii) Fetched Delivery.
The choice of delivery patterns may be pre-configured, or if the implementation supports both methods, be
specified as a parameter on the request. For systems that support dynamic choice, if the SIRI implementation
does not support the requested delivery method for a specific service type, an error message will be returned.
5.2.2 Direct Delivery
In Direct Delivery, the payload is sent as the content of a single message to the Consumer Client (Figure 6).
For a Request/Response this will be the requestor. For a subscription this will be the Notification Consumer as
indicated on the Subscription (i.e. the notification and the delivery are the same message.).

Figure 6 — One Step Direct Delivery
In Direct Delivery, the burden of holding and queuing messages is distributed to the client, with some
advantages for scaling, as the central server needs neither retain data, nor allocate computation resource to
service the additional data supply steps. The interaction is simpler, with fewer messages being exchanged,
and a simpler mediation. However the method does not allow the Consumer to optimise its own activities by
separating its processing to detect the existence of an update from its processing to use the payload data.
The full payload is always sent, even if it is not currently of interest to the client. Direct Delivery is appropriate
for deployment with fast, reliable communications, and with adequate processing capability on the Consumer.
It is especially efficient when most updates are relevant to the client and are used immediately.
5.2.3 Fetched Delivery
In Fetched Delivery, the delivery is done in a two successive steps, separating the notification of an update
from the delivery of the data payload (Figure 7). The steps are as follows:
...
