EN 13967:2004

2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.Flexible sheets for waterproofing - Plastic and rubber damp proof sheets including plastic and rubber basement tanking sheet - Definitions and characteristicsHidroizolacijski trakovi - Polimerni in elastomerni tesnilni trakovi za temelje - Definicije in lastnostiFeuilles souples d'étanchéité - Feuilles plastiques et élastomeres empechant les remontées capillaires du sol - Définitions et caractéristiquesAbdichtungsbahnen - Kunststoff- und Elastomerbahnen für die Bauwerksabdichtung gegen Bodenfeuchte und Wasser - Definitionen und Eigenschaften91.100.50Veziva. Tesnilni materialiBinders. Sealing materials01.040.91Gradbeni materiali in gradnja (Slovarji)Construction materials and building (Vocabularies)ICS:SIST EN 13967:2005enTa slovenski standard je istoveten z:EN 13967:200401-maj-2005SIST EN 13967:2005SLOVENSKI
STANDARD
EUROPEAN STANDARDNORME EUROPÉENNEEUROPÄISCHE NORMEN 13967December 2004ICS 01.040.91; 91.100.50English versionFlexible sheets for waterproofing - Plastic and rubber dampproof sheets including plastic and rubber basement tankingsheet - Definitions and characteristicsFeuilles souples d'étanchéité - Feuilles plastiques etélastomères empechêchant les remontées capillaires dusol - Définitions et caractéristiquesAbdichtungsbahnen - Kunststoff- und Elastomerbahnen furdie Bauwerksabdichtung gegen Bodenfeuchte und Wasser- Definitionen und EigenschaftenThis European Standard was approved by CEN on 20 October 2004.CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this EuropeanStandard the status of a national standard without any alteration. Up-to-date lists and bibliographical references concerning such nationalstandards may be obtained on application to the Central Secretariat or to any CEN member.This European Standard exists in three official versions (English, French, German). A version in any other language made by translationunder the responsibility of a CEN member into its own language and notified to the Central Secretariat has the same status as the officialversions.CEN members are the national standards bodies of Austria, Belgium, Cyprus, Czech Republic, Denmark, Estonia, Finland, France,Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Slovakia,Slovenia, Spain, Sweden, Switzerland and United Kingdom.EUROPEAN COMMITTEE FOR STANDARDIZATIONCOMITÉ EUROPÉEN DE NORMALISATIONEUROPÄISCHES KOMITEE FÜR NORMUNGManagement Centre: rue de Stassart, 36
B-1050 Brussels© 2004 CENAll rights of exploitation in any form and by any means reservedworldwide for CEN national Members.Ref. No. EN 13967:2004: E

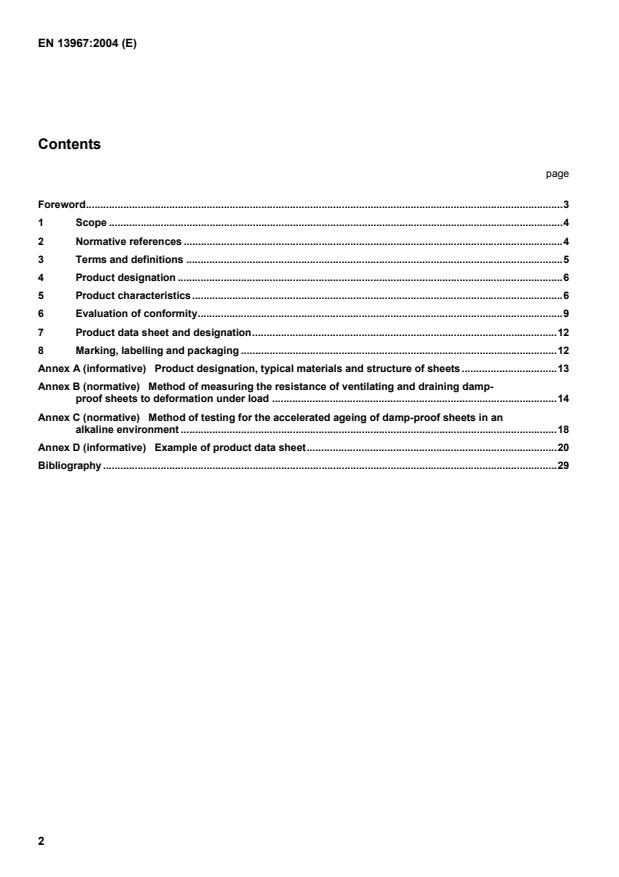

Product designation, typical materials and structure of sheets.13 Annex B (normative)
Method of measuring the resistance of ventilating and draining damp-proof sheets to deformation under load.14 Annex C (normative)
Method of testing for the accelerated ageing of damp-proof sheets in an alkaline environment.18 Annex D (informative)
Example of product data sheet.20 Bibliography.29

prEN 13859-1:2000 and shall be greater than or equal to the manufacturer's limiting value for the longitudinal and transverse directions of the sheet. 5.15 Resistance to deformation under load The resistance of ventilating or draining damp proof sheets to deformation under load shall be determined in accordance with Annex B and the results shall be less than or equal to the manufacturer's limiting value of deformation at the defined load and the defined time. 5.16 Reaction to fire Where required, the product shall be tested and classified in accordance with EN 13501-1:2002, Table 1. When tested according to EN ISO 11925-2, the products shall be tested under conditions of surface flame attack. NOTE It is currently considered that the Euroclasses Classification system at Classes D and above requires investigation to determine its appropriateness to the products covered by this document (the SBI test may be inappropriate for products covered by the standard). Pending results of such an investigation and discussions in the Fire Regulators Group, products covered by this document are tested to EN ISO 11925-2. If and when a new fire test scenario and test method are developed for the products, this document will be amended to refer to them. 5.17 Dangerous substances For products placed on the market within the European Economic Area see ZA.1. Outside the EEA products shall conform to any applicable provisions related to dangerous substances valid in the place of use. The manufacturer shall disclose on the product wrapper and in the health and safety data sheets the use of any additive or constituent considered hazardous.

The results of inspections, tests or assessments requiring action shall be recorded, as shall any action taken. The action to be taken when control values or criteria are not met shall be recorded.

*
*
* Watertight At 2 kPa At 60 kPa EN 1928
5.6 Pass Resistance to static loading * * * MLV EN 12730 5.13 Greater than or equal to MLV Tensile properties - unreinforced sheets - reinforced sheets
* *
* *
* *
MLV MLV
EN 12311-2 prEN 13859-1
5.14 5.14
Greater than or equal to MLV Durability of watertightness against ageing
*
*
* Watertight At 2 kPa At 60 kPa EN 1296 Test afterwards to EN 1928 5.8.1 Pass Durability of watertightness against chemicals
*
*
* Watertight At 2 kPa At 60 kPa EN 1847 Test afterwards to EN 1928 5.8.2 Pass Resistance to impact * * * MLV EN 12691 (but with h = 300 mm) 5.7 Greater than or equal to MLV Resistance to tear (Nail Shank) - unreinforced sheets - reinforced sheets
* *
* *
* *
MLV MLV
EN 12310-1 prEN 13859-1
5.10 5.10
Greater than or equal to MLV Reaction to fire * * * Euroclass EN 13501-1 (see Note in 5.16) 5.16 Classification Bitumen compatibility
*
*
* Watertight At 2 kPa At 60 kPa prEN 1548 and EN 1928 5.9 Pass Joint strength * * * MLV EN 12317-2 5.11 Greater than or equal to MLV Water vapour transmission * * * MDV EN 1931 5.12 Within declared tolerance of MDV Resistance to deformation under load
*
MLV Annex B 5.15 Less than or equal to MLV Resistance to alkali * * * Watertight At 2 kPa At 60 kPa EN 1847 Test afterwards to EN 1928 5.8.2 Pass Length * * * MDV EN 1848-2 5.4 Within declared tolerance of MDV Width * * * MDV EN 1848-2 5.4 Within declared tolerance of MDV Thickness * * * MDV EN 1849-2 5.5 Within declared tolerance of MDV

Property (where required) A V T Parameter Test method Clause in this document Compliance criteria (where required) Mass * * * MDV EN 1849-2 5.5 Within declared tolerance of MDV Straightness * * * Less than or equal to 75 mm/10 m EN 1848-2 5.4 Pass Dangerous substances * * * As relevant As relevant 5.17 As relevant Visible defects * * * Visible defects EN 1850-2 5.3 No visible defects
7 Product data sheet and designation The characteristics of the product, determined in accordance with the test methods specified in this standard, shall be listed in a technical data sheet, an example of which is shown in Annex D. The technical data sheet shall give at least the following information: a) product trade name and manufacturer's name; b) origin/source of manufacture or traceable code; c) method of application; d) results from the tests in Table 1, as appropriate for the intended end use; e) certification mark, if any; f) consumer information, e.g. restrictions concerning use and storage and safety precautions during installation and disposal; g) description of the product (e.g. type and number of carriers, type of coating, mass or thickness, type of surfacing). 8 Marking, labelling and packaging The following information shall be indicated on each roll or at least on each consignment: a) production date or identification number; b) product trade name; c) length and width; d) thickness or mass; e) labelling according to national regulations related to dangerous substances and/or health and safety; f) type of product (Type A, Type V or Type T). Where ZA.3 covers the same information as required by this Clause, the requirements of this Clause are met.

(informative)
Product designation, typical materials and structure of sheets A.1 Typical materials A.1.1 General Three groups of synthetic materials are used in the application of flexible sheets for waterproofing: plastics, rubbers and thermoplastic rubbers. Within these three groups there are various materials, which can be different in their nature and way of manufacturing. In the following there are listed some typical materials for the individual groups. Other m
...
