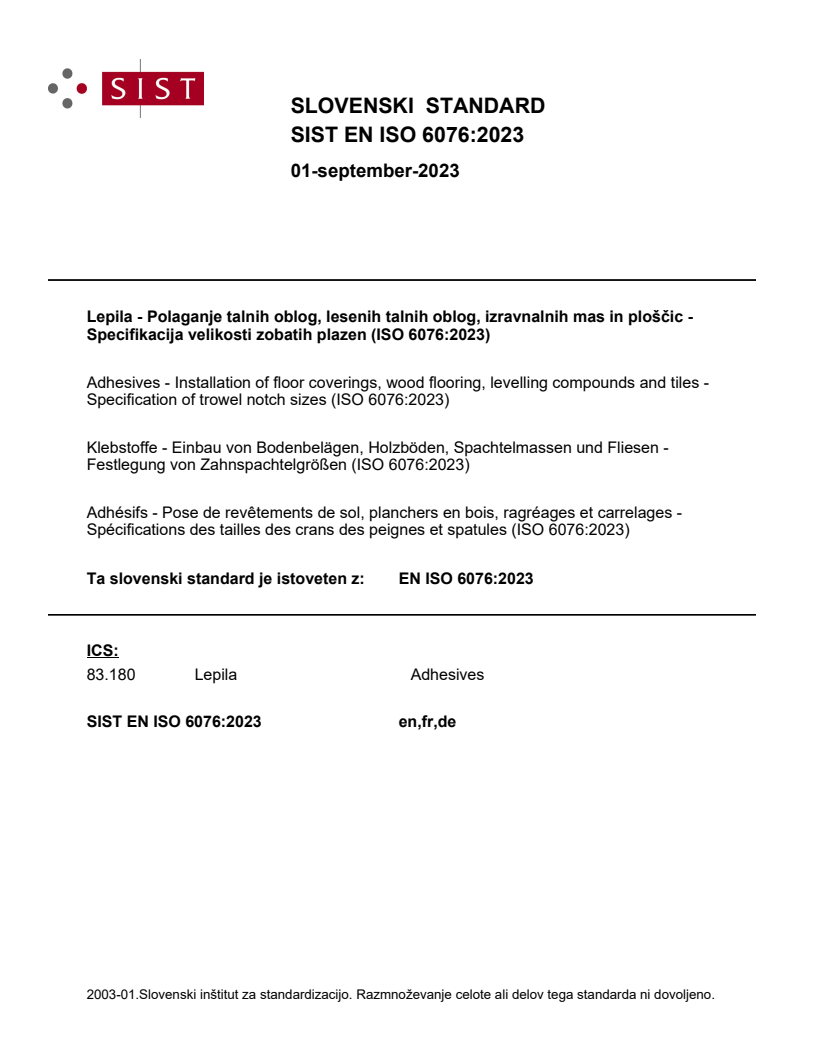

EN ISO 6076:2023

SLOVENSKI STANDARD
01-september-2023
Lepila - Polaganje talnih oblog, lesenih talnih oblog, izravnalnih mas in ploščic -
Specifikacija velikosti zobatih plazen (ISO 6076:2023)
Adhesives - Installation of floor coverings, wood flooring, levelling compounds and tiles -
Specification of trowel notch sizes (ISO 6076:2023)
Klebstoffe - Einbau von Bodenbelägen, Holzböden, Spachtelmassen und Fliesen -
Festlegung von Zahnspachtelgrößen (ISO 6076:2023)
Adhésifs - Pose de revêtements de sol, planchers en bois, ragréages et carrelages -
Spécifications des tailles des crans des peignes et spatules (ISO 6076:2023)
Ta slovenski standard je istoveten z: EN ISO 6076:2023
ICS:
83.180 Lepila Adhesives
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

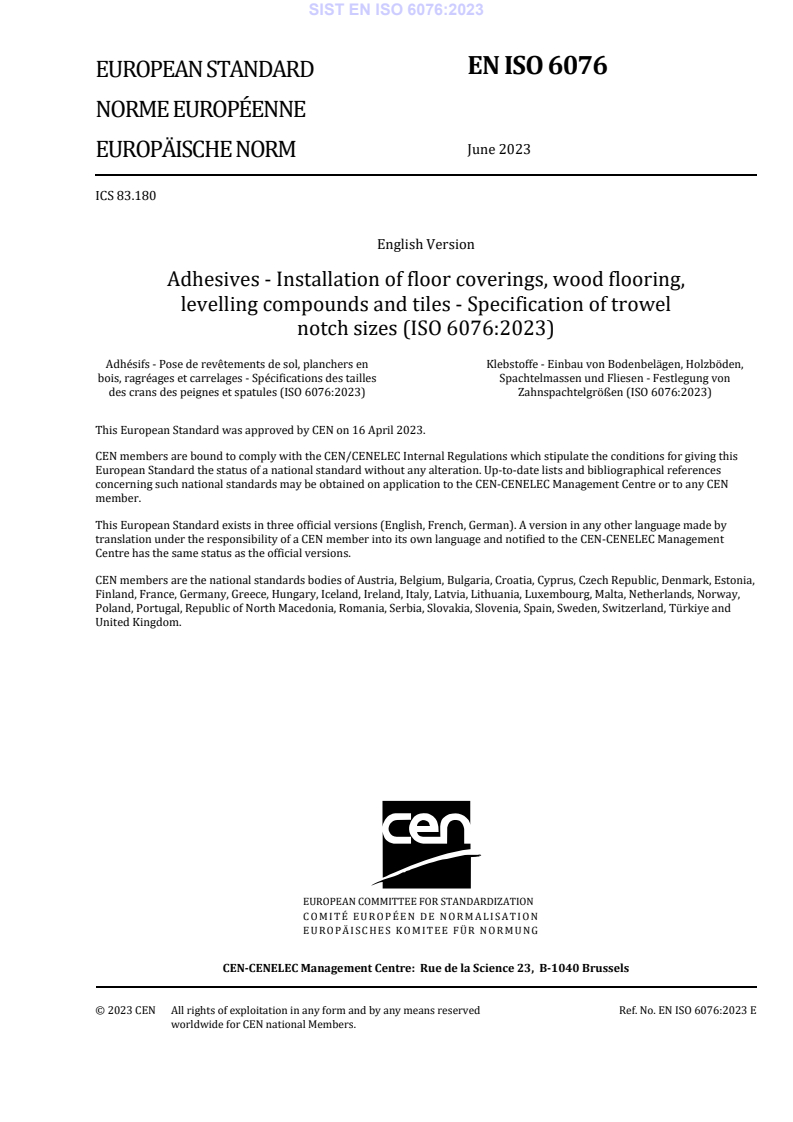

EN ISO 6076
EUROPEAN STANDARD
NORME EUROPÉENNE
June 2023
EUROPÄISCHE NORM
ICS 83.180
English Version
Adhesives - Installation of floor coverings, wood flooring,
levelling compounds and tiles - Specification of trowel
notch sizes (ISO 6076:2023)
Adhésifs - Pose de revêtements de sol, planchers en Klebstoffe - Einbau von Bodenbelägen, Holzböden,
bois, ragréages et carrelages - Spécifications des tailles Spachtelmassen und Fliesen - Festlegung von
des crans des peignes et spatules (ISO 6076:2023) Zahnspachtelgrößen (ISO 6076:2023)
This European Standard was approved by CEN on 16 April 2023.

CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this
European Standard the status of a national standard without any alteration. Up-to-date lists and bibliographical references
concerning such national standards may be obtained on application to the CEN-CENELEC Management Centre or to any CEN
member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by
translation under the responsibility of a CEN member into its own language and notified to the CEN-CENELEC Management
Centre has the same status as the official versions.

CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia,
Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway,
Poland, Portugal, Republic of North Macedonia, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland, Türkiye and
United Kingdom.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION

EUROPÄISCHES KOMITEE FÜR NORMUNG

CEN-CENELEC Management Centre: Rue de la Science 23, B-1040 Brussels
© 2023 CEN All rights of exploitation in any form and by any means reserved Ref. No. EN ISO 6076:2023 E
worldwide for CEN national Members.

Contents Page
European foreword . 3

European foreword
This document (EN ISO 6076:2023) has been prepared by Technical Committee ISO/TC 61 "Plastics" in
collaboration with Technical Committee CEN/TC 193 “Adhesives” the secretariat of which is held by
UNE.
This European Standard shall be given the status of a national standard, either by publication of an
identical text or by endorsement, at the latest by December 2023, and conflicting national standards
shall be withdrawn at the latest by December 2023.
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. CEN shall not be held responsible for identifying any or all such patent rights.
Any feedback and questions on this document should be directed to the users’ national standards
body/national committee. A complete listing of these bodies can be found on the CEN website.
According to the CEN-CENELEC Internal Regulations, the national standards organizations of the
following countries are bound to implement this European Standard: Austria, Belgium, Bulgaria,
Croatia, Cyprus, Czech Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland,
Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Republic of
North Macedonia, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland, Türkiye and the
United Kingdom.
Endorsement notice
The text of ISO 6076:2023 has been approved by CEN as EN ISO 6076:2023 without any modification.

INTERNATIONAL ISO
STANDARD 6076
First edition
2023-05
Adhesives — Installation of floor
coverings, wood flooring, levelling
compounds and tiles — Specification
of trowel notch sizes
Adhésifs — Pose de revêtements de sol, planchers en bois, ragréages
et carrelages — Spécifications des tailles des crans des peignes et
spatules
Reference number
ISO 6076:2023(E)
ISO 6076:2023(E)
© ISO 2023
All rights reserved. Unless otherwise specified, or required in the context of its implementation, no part of this publication may
be reproduced or utilized otherwise in any form or by any means, electronic or mechanical, including photocopying, or posting on
the internet or an intranet, without prior written permission. Permission can be requested from either ISO at the address below
or ISO’s member body in the country of the requester.
ISO copyright office
CP 401 • Ch. de Blandonnet 8
CH-1214 Vernier, Geneva
Phone: +41 22 749 01 11
Email: copyright@iso.org
Website: www.iso.org
Published in Switzerland
ii
ISO 6076:2023(E)
Contents Page
Foreword .iv
Introduction .v
1 Scope . 1
2  Normative references . 1
3  Terms and definitions . 1
4 Shapes . 1
5  Tolerances . 2
6  Material. 2
7  Labelling . 2
8  Trowel notch sizes — Designations, dimensional specifications and illustrations.3
Annex A (informative)  European, Japanese and US notch designation . 9
iii
ISO 6076:2023(E)
Foreword
ISO (the International Organization for Standardization) is a worldwide federation of national standards
bodies (ISO member bodies). The work of preparing International Standards is normally carried out
through ISO technical committees. Each member body interested in a subject for which a technical
committee has been established has the right to be represented on that committee. International
organizations, governmental and non-governmental, in liaison with ISO, also take part in the work.
ISO collaborates closely with the International Electrotechnical Commission (IEC) on all matters of
electrotechnical standardization.
The procedures used to develop this document and those intended for its further maintenance are
described in the ISO/IEC Directives, Part 1. In particular, the different approval criteria needed for the
different types of ISO documents should be noted. This document was drafted in accordance with the
editorial rules of the ISO/IEC Directives, Part 2 (see www.iso.org/directives).
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. ISO shall not be held responsible for identifying any or all such patent rights. Details of
any patent rights identified during the development of the document will be in the Introduction and/or
on the ISO list of patent declarations received (see www.iso.org/patents).
Any trade name used in this document is information given for the convenience of users and does not
constitute an endorsement.
For an explanation of the voluntary nature of standards, the meaning of ISO specific terms and
expressions related to conformity assessment, as well as information about ISO's adherence to
the World Trade Organization (WTO) principles in the Technical Barriers to Trade (TBT), see
www.iso.org/iso/foreword.html.
This document was prepared by Technical Committee ISO/TC 61, Plastics, Subcommittee SC 11 Products,
in collaboration with the European Committee for Standardization (CEN) Technical Committee CEN/
TC 193, Adhesives, in accordance with the Agreement on technical cooperation between ISO and CEN
(Vienna Agreement).
Any feedback or questions on this document should be directed to the user’s national standards body. A
complete listing of these bodies can be found at www.iso.org/members.html.
iv
ISO 6076:2023(E)
Introduction
For installation of floor coverings, wood flooring and ceramic tiles, adhesives, thin bed mortars and
similar products are spread (combed) onto the substrate commonly using grooved (notched) spatulas
or trowels. The notches of the respective tools permit flow of the substance to be applied which will
then settle on the substrate in the form of strips (ridges). Consequently, the quantity of applied material
per unit area essentially depends on the geometry of the notches.
v
INTERNATIONAL STANDARD ISO 6076:2023(E)
Adhesives — Installation of floor coverings, wood flooring,
levelling compounds and tiles — Specification of trowel
notch sizes
1 Scope
This document specifies the individual measurements of notches. It assigns specific codes used to label
notched tools according to the measurements and tolerances specified in this document.
2  Normative references
There are no normative references in this document.
3  Terms and definitions
For the purposes of this document, the following terms and definitions apply.
ISO and IEC maintain terminology databases for use in standardization at the following addresses:
— ISO Online browsing platform: available at https:// www .iso .org/ obp
— IEC Electropedia: available at https:// www .electropedia .org/
3.1
notched trowel
notched spatula
rectangular or trapezoidal sheet steel, with evenly spaced grooves on at least one long side, commonly
designated as "notches"
Note 1 to entry: Normally, spatulas have a hand grip opposite the grooved (notched) side.
Note 2 to entry: The hand grip of a trowel is typically attached parallel to the sheet surface.
3.2
notched strips
rectangular, narrow sheet steel strips with evenly spaced grooves (notches) on one or both long sides
4 Shapes
Depending on the application and the desired ridge profile, notches can have a triangular, rectangular,
U-shaped or semi-circular shape.
b) Triangular notch, special
a) Triangular notch
S-shape, pointed notch
ISO 6076:2023(E)
c) Rectangular notch, special
d) Round notch, special U-shape
R-shape
Key
a bridge width or groove clearance
b notch width or groove width
c notch depth or groove depth
γ notch angle
Figure 1 — Different notch geometries
For manufacturing reasons, the inner points of the triangular notches and the inner right angles of the
rectangular notches are rounded off. The radius of curvature is 0,2 mm to 0,3 mm, on average 0,25 mm.
A special type of the triangular notch is the "pointed notch" with a bridge width "a" of 0 mm to 0,2 mm.
Other special types of notches with rounded off tops include U-notches, where the end of the notch is a
semicircle with a diameter of "b".
5  Tolerances
The tolerances of the dimensional specifications specified in Figure 1 are given in Table 1.
Table 1 — Tolerances
Dimensional
Tolerances
specifications
a ±0,1 mm
b ±0,1 mm
(a + b) ±0,1 mm
c ±0,1 mm
γ ±0,5°
6  Material
Depending on material hardness and thickness of the sheet steel, notched strips wear out more or
less quickly. Accordingly, notch area and consequently flow rate gradually decrease. To ensure long
durability of the notched strips, we recommend using spring steel with a minimum hardness of 46 HRD
or higher. Thickness of the sheet steel shall not fall below 0,5 mm.
7  Labelling
Notched trowels fully complying with specifications of this doc
...
