Coil coated metals - Test methods - Part 16: Resistance to abrasion

This part of EN 13523 describes the procedure for determining the resistance to abrasion and wear of an organic coating on a metallic substrate.

Bandbeschichtete Metalle - Prüfverfahren - Teil 16: Widerstandsfähigkeit gegen Abrieb

Tôles prélaquées - Méthodes d'essai - Partie 16: Résistance à l'abrasion

La présente partie de l'EN 13523 décrit le mode opératoire de détermination de la résistance à l'abrasion et à l'usure d'un revêtement organique appliqué sur un subjectile métallique.

Kovine, prevlečene v svitkih - Preskusne metode - 16. del: Odpornost proti abraziji

General Information

Status
Published
Publication Date
16-Nov-2004
Withdrawal Date
30-May-2005
ICS
25.220.60 - Organic coatings
Technical Committee
CEN/TC 139 - Paints and varnishes
Drafting Committee
CEN/TC 139/WG 9 - Testing of coil coated metals
Current Stage
9020 - Submission to 2 Year Review Enquiry - Review Enquiry
Start Date
15-Oct-2025
Completion Date
15-Oct-2025
Ref Project
SIST EN 13523-16:2005 - Coil coated metals - Test methods - Part 16: Resistance to abrasion

Overview

EN 13523-16:2004 is a European standard developed by CEN (European Committee for Standardization) that specifies the test method for determining the resistance to abrasion of organic coatings on metallic substrates. This standard focuses on coil coated metals, assessing their durability and wear properties through a controlled abrasion testing procedure. It is essential for evaluating the performance and lifespan of protective and decorative coatings applied to metals, especially in architectural and industrial applications.

This standard forms part 16 of the EN 13523 series on coil coated metals and helps manufacturers and quality control laboratories ensure that their coated metal products meet rigorous abrasion resistance requirements.

Key Topics

  • Scope
    The standard defines a method to measure how well an organic coating on a metal base can withstand abrasion and wear.

  • Test Principle
    A coated metal panel is mounted on a rotating disc. Two abrasive wheels, rotating in opposite directions and positioned symmetrically, abrade the surface under a defined load. Abrasion debris is removed by suction for accurate results.

  • Test Equipment

    • Taber abraser or equivalent apparatus (as per ISO 7784-2)
    • Analytical balance with 0.1 mg accuracy
    • Suction device to clear abrasion residues

  • Test Procedure

    • Cut test panels of approximately 100 mm x 100 mm.
    • Condition panels at ambient or controlled conditions (23 ± 2 °C and 50 ± 5% RH as per EN 23270).
    • Measure initial mass, then subject to abrasion under specific loads (typically 500 g or 1000 g) and fixed rotational speed (usually 60 rpm).
    • Abrade panels for a set number of revolutions or until substrate exposure, then reweigh to calculate mass loss.
    • Repeat for multiple samples for reliability.

  • Evaluation and Reporting

    • Results expressed as mean mass loss after specific revolutions or the number of revolutions until coating failure (substrate exposure).
    • Comprehensive test reports include details of product, test conditions, apparatus loads, wheel types, and results.

  • Normative References
    References important related standards including EN 13523-0 (general test methods), EN 23270 (conditioning), and ISO 7784-2 (abrasion test method).

Applications

  • Quality Control for Coil Coated Metals
    Manufacturers use EN 13523-16 to verify the durability and abrasion resistance of organic coatings applied to metal coils, ensuring consistency and compliance with product specifications.

  • Material Selection in Construction and Architecture
    Helps architects and engineers select long-lasting coil coated metal panels for building facades, roofing, and interior applications by validating abrasion resistance under real-world conditions.

  • Performance Benchmarking
    Enables product comparison across suppliers by applying a standardized wear measurement protocol, improving transparency and purchasing decisions.

  • Failure Analysis and R&D
    Assists research and development teams to improve coating formulations and processing based on abrasion resistance test results.

Related Standards

  • EN 13523-0:2001 – General introduction and list of test methods for coil coated metals.
  • EN 23270 – Specifies temperatures and humidities for conditioning and testing paints and varnishes.
  • ISO 7784-2 – Paints and varnishes test method for resistance to abrasion using a rotating abrasive rubber wheel.
  • ASTM D4060-01 – Standard test method for abrasion resistance of organic coatings by Taber abraser, referenced for wheel types and testing principles.
  • EN 1396 – Specifications for aluminum and aluminum alloys coil coated sheet and strip used in general applications.
  • EN 10169 Series – Standards covering organic coated steel flat products for various applications, linked to coil coated metal quality frameworks.

Keywords: EN 13523-16, coil coated metals, abrasion resistance test, Taber abraser, organic coating durability, metallic substrates, abrasion wear, CEN standards, paint and varnish testing, coil coating quality control.

Frequently Asked Questions

EN 13523-16:2004 is a standard published by the European Committee for Standardization (CEN). Its full title is "Coil coated metals - Test methods - Part 16: Resistance to abrasion". This standard covers: This part of EN 13523 describes the procedure for determining the resistance to abrasion and wear of an organic coating on a metallic substrate.

This part of EN 13523 describes the procedure for determining the resistance to abrasion and wear of an organic coating on a metallic substrate.

EN 13523-16:2004 is classified under the following ICS (International Classification for Standards) categories: 25.220.60 - Organic coatings. The ICS classification helps identify the subject area and facilitates finding related standards.

You can purchase EN 13523-16:2004 directly from iTeh Standards. The document is available in PDF format and is delivered instantly after payment. Add the standard to your cart and complete the secure checkout process. iTeh Standards is an authorized distributor of CEN standards.

Standards Content (Sample)


SLOVENSKI STANDARD
01-april-2005
.RYLQHSUHYOHþHQHYVYLWNLK3UHVNXVQHPHWRGHGHO2GSRUQRVWSURWLDEUD]LML
Coil coated metals - Test methods - Part 16: Resistance to abrasion
Bandbeschichtete Metalle - Prüfverfahren - Teil 16: Widerstandsfähigkeit gegen Abrieb
Tôles prélaquées - Méthodes d'essai - Partie 16: Résistance a l'abrasion
Ta slovenski standard je istoveten z: EN 13523-16:2004
ICS:
25.220.60 Organske prevleke Organic coatings
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

EUROPEAN STANDARD
EN 13523-16
NORME EUROPÉENNE
EUROPÄISCHE NORM
November 2004
ICS 25.220.60
English version
Coil coated metals - Test methods - Part 16: Resistance to
abrasion
Tôles prélaquées - Méthodes d'essai - Partie 16: Bandbeschichtete Metalle - Prüfverfahren - Teil 16:
Résistance à l'abrasion Widerstandsfähigkeit gegen Abrieb
This European Standard was approved by CEN on 23 September 2004.
CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this European
Standard the status of a national standard without any alteration. Up-to-date lists and bibliographical references concerning such national
standards may be obtained on application to the Central Secretariat or to any CEN member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by translation
under the responsibility of a CEN member into its own language and notified to the Central Secretariat has the same status as the official
versions.
CEN members are the national standards bodies of Austria, Belgium, Cyprus, Czech Republic, Denmark, Estonia, Finland, France,
Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Slovakia,
Slovenia, Spain, Sweden, Switzerland and United Kingdom.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION
EUROPÄISCHES KOMITEE FÜR NORMUNG
Management Centre: rue de Stassart, 36  B-1050 Brussels
© 2004 CEN All rights of exploitation in any form and by any means reserved Ref. No. EN 13523-16:2004: E
worldwide for CEN national Members.

Foreword
This document (EN 13523-16:2004) has been prepared by Technical Committee CEN/TC 139 “Paints and
varnishes”, the secretariat of which is held by DIN.
This European Standard shall be given the status of a national standard, either by publication of an identical text or
by endorsement, at the latest by May 2005, and conflicting national standards shall be withdrawn at the latest by
May 2005.
According to the CEN/CENELEC Internal Regulations, the national standards organizations of the following
countries are bound to implement this European Standard: Austria, Belgium, Cyprus, Czech Republic, Denmark,
Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta,
Netherlands, Norway, Poland, Portugal, Slovakia, Slovenia, Spain, Sweden, Switzerland and United Kingdom.

1 Scope
This part of EN 13523 describes the procedure for determining the resistance to abrasion and wear of an organic
coating on a metallic substrate.
2 Normative references
The following referenced documents are indispensable for the application of this document. For dated references,
only the edition cited applies. For undated references, the latest edition of the referenced document (including any
amendments) applies.
EN 13523-0:2001, Coil coated metals — Test methods — Part 0: General introduction and list of test methods.
EN 23270, Paints and varnishes and their raw materials — Temperatures and humidities for conditioning and
testing (ISO 3270:1984).
ISO 7784-2, Paints and varnishes — Determination of resistance to abrasion — Part 2: Rotating abrasive rubber
wheel method.
3 Terms and definitions
For the purposes of this document, the terms and definitions given in EN 13523-0:2001 apply.
4 Principle
A coated test panel is placed on a rotatin
...


SLOVENSKI STANDARD
01-april-2005
Kovine, prevlečene v svitkih - Preskusne metode - 16. del: Odpornost proti abraziji
Coil coated metals - Test methods - Part 16: Resistance to abrasion
Bandbeschichtete Metalle - Prüfverfahren - Teil 16: Widerstandsfähigkeit gegen Abrieb
Tôles prélaquées - Méthodes d'essai - Partie 16: Résistance a l'abrasion
Ta slovenski standard je istoveten z: EN 13523-16:2004
ICS:
25.220.60 Organske prevleke Organic coatings
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

EUROPEAN STANDARD
EN 13523-16
NORME EUROPÉENNE
EUROPÄISCHE NORM
November 2004
ICS 25.220.60
English version
Coil coated metals - Test methods - Part 16: Resistance to
abrasion
Tôles prélaquées - Méthodes d'essai - Partie 16: Bandbeschichtete Metalle - Prüfverfahren - Teil 16:
Résistance à l'abrasion Widerstandsfähigkeit gegen Abrieb
This European Standard was approved by CEN on 23 September 2004.
CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this European
Standard the status of a national standard without any alteration. Up-to-date lists and bibliographical references concerning such national
standards may be obtained on application to the Central Secretariat or to any CEN member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by translation
under the responsibility of a CEN member into its own language and notified to the Central Secretariat has the same status as the official
versions.
CEN members are the national standards bodies of Austria, Belgium, Cyprus, Czech Republic, Denmark, Estonia, Finland, France,
Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Slovakia,
Slovenia, Spain, Sweden, Switzerland and United Kingdom.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION
EUROPÄISCHES KOMITEE FÜR NORMUNG
Management Centre: rue de Stassart, 36  B-1050 Brussels
© 2004 CEN All rights of exploitation in any form and by any means reserved Ref. No. EN 13523-16:2004: E
worldwide for CEN national Members.

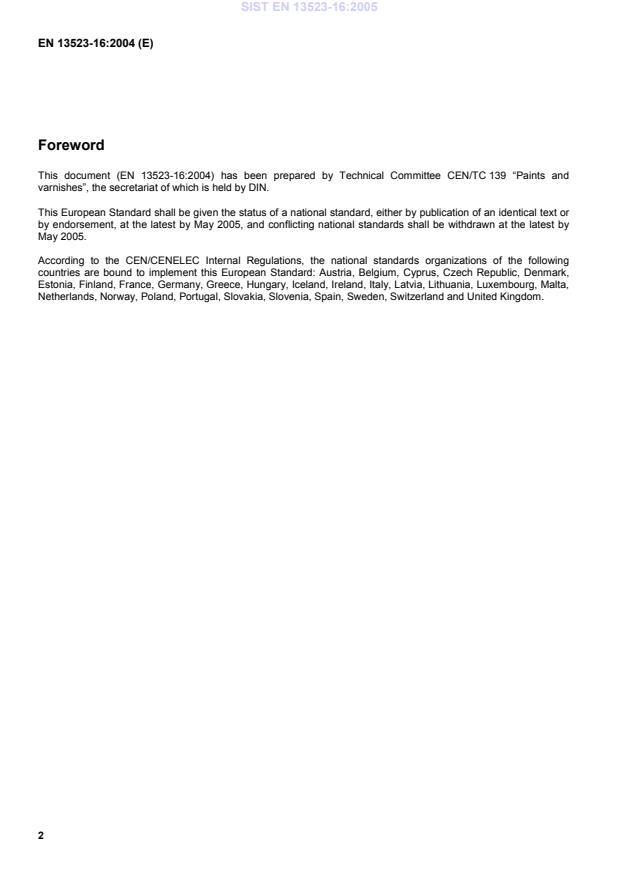

Foreword
