Connections for heating and cooling appliances - Detachable connection with outside threaded pipe G ¾ A and inside cone

This European Standard applies to detachable connections with outside threaded pipe G ¾ A in accordance with EN ISO 228-1. These are used in the field of heating and cooling emission systems at the following hydraulic connection points: connection between radiators or circuit distributors and the respective pipe. Another connection point, for radiators with integrated valve sets, is the screw connection to the connection fitting or to the screw connection itself.
This European Standard specifies the dimensions for the single and the double connection.

Anschlüsse für Heiz- und Kühlsysteme - Lösbare Verbindung mit Rohraußengewinde G ¾ A und Innenkonus

Diese Europäische Norm gilt für lösbare Verbindungen mit Rohraußengewinde G ¾ A nach EN ISO 228-1. Diese werden im Bereich der Heiz- und Kühltechnik an folgenden hydraulischen Verbindungsstellen eingesetzt: Verbindung zwischen Heizkörpern oder Heizkreisverteilern zum jeweiligen Rohr. Eine andere Verbindungsstelle ist beim Heizkörper mit integrierten Ventilgarnituren die Verschraubung zum Hahnblock oder direkt zur Verschraubung.
Diese Europäische Norm legt die Maße für den Einzelanschluss und Doppelanschluss fest.

Raccords pour appareils de chauffage et de refroidissement - Raccords démontables à filetage extérieur cylindrique G 3/4 A et cône intérieur

La présente Norme européenne s'applique aux raccords démontables à filetage extérieur cylindrique G ¾ A conformément à l'EN ISO 228-1. Ceux-ci sont utilisés dans les systèmes de chauffage ou de refroidissement aux points de raccordement hydraulique suivants : raccords entre un corps de chauffe ou un distributeur de circuit et la tuyauterie correspondante. Dans le cas des corps de chauffe avec robinetterie intégrée, le point de raccordement est aussi le raccord à vis vers la pièce de raccordement ou le raccord à vis lui-même.
La présente Norme européenne spécifie les dimensions du raccord simple et du raccord double.

Priključki naprav za gretje in hlajenje - Snemljiv priključek z zunanjim navojem cevi G 3/4 A in notranjim stožcem

Ta evropski standard velja za snemljive priključke z zunanjim navojem cevi G ? A v skladu s standardom EN ISO 228-1. Ti se uporabljajo na področju sistemov za gretje in hlajenje na naslednjih hidravličnih povezovalnih točkah: povezava med radiatorji ali razdelilniki tokokroga in ustrezno cevjo. Druga povezovalna točka za radiatorje z integriranimi kompleti ventilov je vijačna povezava na povezovalni fiting ali samo vijačno povezavo. Ta evropski standard določa dimenzije za enojno in dvojno povezavo.

General Information

Status
Published
Publication Date
28-May-2013
Withdrawal Date
29-Nov-2013
ICS
91.140.10 - Central heating systems
Technical Committee
CEN/TC 130 - Space heating appliances without integral heat sources
Drafting Committee
CEN/TC 130 - Space heating appliances without integral heat sources
Current Stage
9060 - Closure of 2 Year Review Enquiry - Review Enquiry
Start Date
02-Sep-2025
Completion Date
02-Sep-2025
Ref Project
SIST EN 16313:2013 - Connections for heating and cooling appliances - Detachable connection with outside threaded pipe G 3/4 A and inside cone

Overview

EN 16313:2013 is a European Standard developed by CEN that specifies the requirements and dimensions for detachable connections used in heating and cooling appliances. These connections feature an outside threaded pipe G ¾ A combined with an inside cone, conforming to EN ISO 228-1. The standard aims to unify the geometries of these detachable connections to enhance compatibility and ensure reliable, leak-tight performance in hydraulic systems. Commonly referred to under designations such as “eurocone,” these connections are vital in the field of heating and cooling emission systems.

Key Topics

  • Scope: Applies to detachable connections with outside threaded pipe G ¾ A for use between radiators, circuit distributors, and pipes, including connections to integrated valve sets on radiators.
  • Standardized Dimensions: Defines precise dimensions and surface roughness criteria for both single and double connections to harmonize components.
  • Connection Types: Covers variations including spherical or tapered cones, insertion of sealing materials like O-rings, and metallic sealing options without additional sealing materials.
  • Functional Requirements: Ensures permanent leak-tight connections in heating and cooling emission systems under varied operating conditions.
  • Compatibility Issues: Addresses current limited interchangeability between existing connection geometries on the market by providing a unified standard.
  • Material Considerations: Primarily metallic components, with flexibility for alternative material variants as applicable.

Applications

EN 16313:2013 is essential for manufacturers, installers, and system designers involved in:

  • Radiators with Integrated Valve Sets: Ensures standardized detachable connections for radiators equipped with thermostatic or lockshield valves.
  • Heating Circuit Distributors: Provides reliable connection solutions with underfloor heating systems and radiator connections.
  • Circuit and Pipe Connections: Standardizes hydraulic connection points between pipes and radiators or distributors, promoting easier installation and maintenance.
  • Maintenance and Replacement: Facilitates the interchangeability and replacement of components in heating and cooling appliance assembly without compromising system integrity.

By adhering to EN 16313:2013, stakeholders ensure system reliability, reduce leaks, and enhance product compatibility across different manufacturers within the heating and cooling sector.

Related Standards

EN 16313:2013 references and aligns with several important international and European standards related to heating installation components and product quality:

  • EN ISO 228-1: Specifies dimensions and tolerances for pipe threads where pressure-tight joints are not formed on threads.
  • EN 215: Details requirements and test methods for thermostatic radiator valves.
  • EN ISO 1101: Defines geometrical tolerancing including tolerances of form and orientation.
  • EN ISO 1302: Covers surface texture indication in technical product documentation.
  • EN 22768-1 & EN 22768-2: General tolerances for linear, angular, and geometrical dimensions without individual tolerance indications.
  • DIN 3842: Relates to valves for heating installations, including dimensions and materials.

Compliance with EN 16313:2013 alongside these related standards ensures comprehensive quality assurance and interoperability within heating and cooling emission systems.

Keywords: EN 16313:2013, detachable connection, outside threaded pipe G ¾ A, inside cone, heating appliances, cooling appliances, radiator connections, hydraulic systems, pipe connections, valve sets, eurocone, CEN standard, leak-tight connections, heating emission systems, cooling emission systems, central heating standards, heating system compatibility

Frequently Asked Questions

EN 16313:2013 is a standard published by the European Committee for Standardization (CEN). Its full title is "Connections for heating and cooling appliances - Detachable connection with outside threaded pipe G ¾ A and inside cone". This standard covers: This European Standard applies to detachable connections with outside threaded pipe G ¾ A in accordance with EN ISO 228-1. These are used in the field of heating and cooling emission systems at the following hydraulic connection points: connection between radiators or circuit distributors and the respective pipe. Another connection point, for radiators with integrated valve sets, is the screw connection to the connection fitting or to the screw connection itself. This European Standard specifies the dimensions for the single and the double connection.

This European Standard applies to detachable connections with outside threaded pipe G ¾ A in accordance with EN ISO 228-1. These are used in the field of heating and cooling emission systems at the following hydraulic connection points: connection between radiators or circuit distributors and the respective pipe. Another connection point, for radiators with integrated valve sets, is the screw connection to the connection fitting or to the screw connection itself. This European Standard specifies the dimensions for the single and the double connection.

EN 16313:2013 is classified under the following ICS (International Classification for Standards) categories: 91.140.10 - Central heating systems. The ICS classification helps identify the subject area and facilitates finding related standards.

You can purchase EN 16313:2013 directly from iTeh Standards. The document is available in PDF format and is delivered instantly after payment. Add the standard to your cart and complete the secure checkout process. iTeh Standards is an authorized distributor of CEN standards.

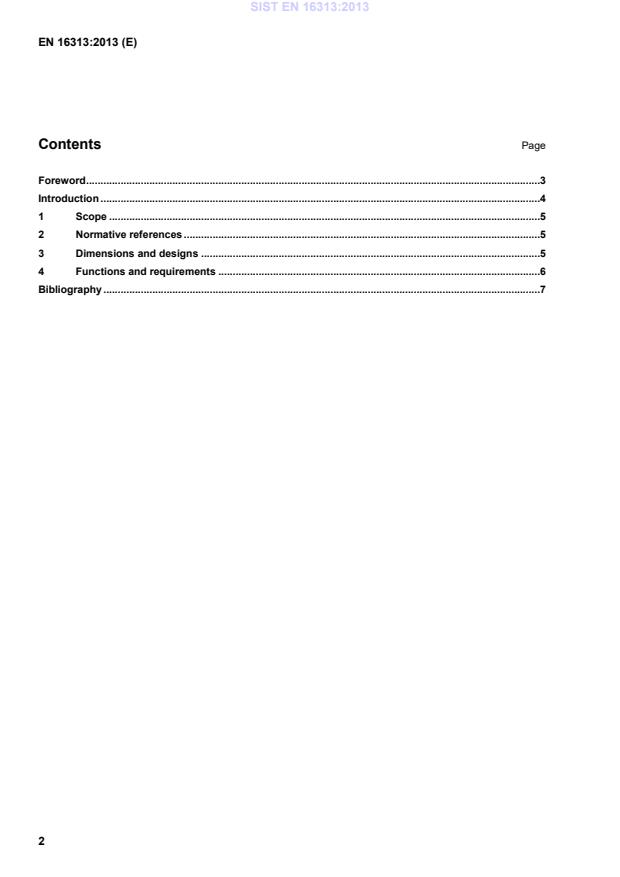

Standards Content (Sample)


2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.Anschlüsse für Heiz- und Kühlsysteme - Lösbare Verbindung mit Rohraußengewinde G 3/4 A und InnenkonusRaccords pour appareils de chauffage et de refroidissement - Détachable connexion avec tuyaux aux filet extérieur G 3/4 A et cône intérieurConnections for heating and cooling appliances - Detachable connection with outside threaded pipe G 3/4 A and inside cone91.140.10Sistemi centralnega ogrevanjaCentral heating systemsICS:Ta slovenski standard je istoveten z:EN 16313:2013SIST EN 16313:2013en,fr,de01-oktober-2013SIST EN 16313:2013SLOVENSKI
STANDARD
EUROPEAN STANDARD NORME EUROPÉENNE EUROPÄISCHE NORM
EN 16313
May 2013 ICS 91.140.10 English Version
Connections for heating and cooling appliances - Detachable connection with outside threaded pipe G 3/4 A and inside cone Raccords pour appareils de chauffage et de refroidissement - Raccords démontables à filetage extérieur cylindrique G 3/4 A et cône intérieur
Anschlüsse für Heiz- und Kühlsysteme - Lösbare Verbindung mit Rohraußengewinde G 3/4 A und Innenkonus This European Standard was approved by CEN on 11 April 2013.
CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this European Standard the status of a national standard without any alteration. Up-to-date lists and bibliographical references concerning such national standards may be obtained on application to the CEN-CENELEC Management Centre or to any CEN member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by translation under the responsibility of a CEN member into its own language and notified to the CEN-CENELEC Management Centre has the same status as the official versions.
CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia, Finland, Former Yugoslav Republic of Macedonia, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland, Turkey and United Kingdom.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION EUROPÄISCHES KOMITEE FÜR NORMUNG
Management Centre:
Avenue Marnix 17,
B-1000 Brussels © 2013 CEN All rights of exploitation in any form and by any means reserved worldwide for CEN national Members. Ref. No. EN 16313:2013: ESIST EN 16313:2013
...
