s t s x xã t r s x ESIST EN 12166:2016

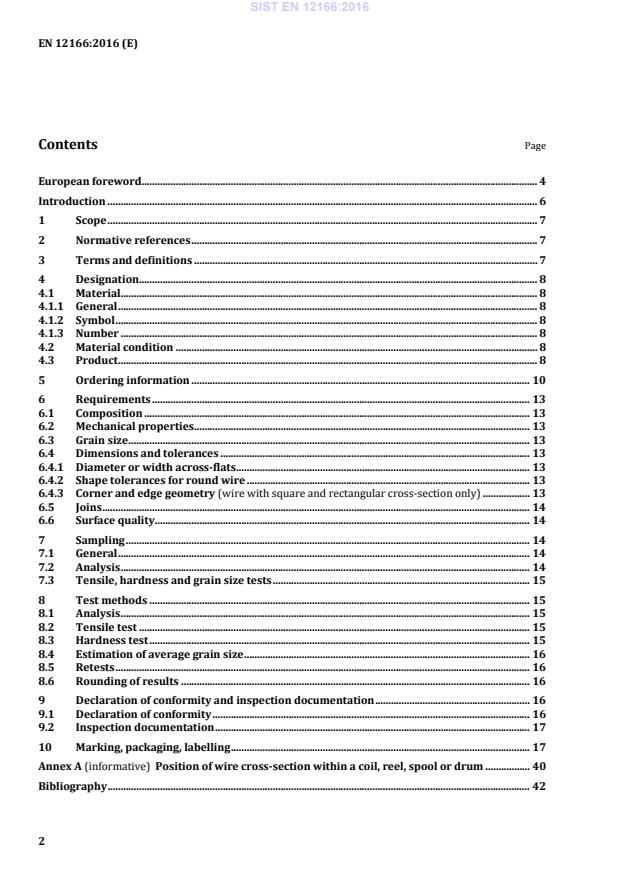

Position of wire cross-section within a coil, reel, spool or drum . 40 Bibliography . 42 SIST EN 12166:2016

Figures Figure 1 — Calculation of corner radii . 14 Figure A.1 — Illustration of position of wire cross-section within the coil (bunched wound or stagger/traverse wound) . 40 Figure A.2 — Illustration of position of wire cross-section within the reel/spool/drum (stagger/traverse wound) . 40 Figure A.3 — Illustration of position of wire cross-section within the coil (bunched wound or stagger/traverse wound) . 41 Figure A.4 — Illustration of position of wire cross-section within the reel/spool/drum (stagger/traverse wound) . 41
Tables Table 1 — Composition of low alloyed copper alloys . 18 Table 2 — Composition of copper-nickel-zinc alloys . 21 Table 3 — Composition of copper-tin alloys . 21 Table 4 — Composition of copper-zinc alloys . 22 Table 5 — Composition of copper-zinc-lead alloys . 23 Table 6 — Composition of complex copper-zinc alloys. 24 Table 7 — Mechanical properties of wire of low alloyed copper alloys. 24 Table 8 — Mechanical properties of wire of copper-nickel-zinc alloys . 27 Table 9 — Mechanical properties of wire of copper-tin alloys . 29 Table 10 — Mechanical properties of wire of copper-zinc alloys . 31 Table 11 — Mechanical properties of wire of copper-zinc-lead alloys . 35 Table 12 — Mechanical properties of wire of complex copper-zinc alloys . 36 Table 13 — Grain size designations . 37 Table 14 — Tolerances on diameter of round wire . 37 Table 15 — Tolerances on width across-flats of square or regular polygonal wire . 38 Table 16 — Tolerances on width and thickness of rectangular wire . 38 Table 17 — Corner radii for square or rectangular wire . 39 Table 18 — Sampling rate . 39
EXAMPLE 3 Wire conforming to this standard, in material designated either CuZn39Pb3 or CW614N, for standard applications in material condition R430, round, nominal diameter 6,0 mm, tolerance class B, will be designated as follows:
Wire EN 12166 — CuZn39Pb3 — R430 — RND6,0B
or
Wire EN 12166 — CW614N — R430 — RND6,0B
5 Ordering information In order to facilitate the enquiry, order and confirmation of order procedures between the purchaser and the supplier, the purchaser shall state on his enquiry and order the following information: a) mass of product required; b) denomination (Wire); c) number of this European Standard (EN 12166); d) material designation (see Tables 1 to 6); e) material condition designation (see 4.2 and Tables 7 to 13) if other than M; f) DW for compliance in the chemical composition according to the 4 MS Common Composition List. This information is mandatory in the case in which the product is used for drinking water applications according to the 4 MS Common Composition List and not to be given in other cases; SIST EN 12166:2016

1 000 kg Wire EN 12166 — CuZn39Pb3 — H115 — RCT 6,0 × 5,0 — SH
— 25 kg coils
or
1 000 kg Wire EN 12166 — CW614N — H115 — RCT 6,0 × 5,0 — SH
— 25 kg coils EXAMPLE 2 Ordering details for 5 000 kg wire for general purposes conforming to EN 12166, in material designated either CuZn40Pb2 or CW617N, for drinking water application according to the 4 MS Common Composition List, in material condition R430, round, nominal diameter 6,0 mm, tolerance class B, on 1 000 kg spools:
5 000 kg Wire EN 12166 — CuZn40Pb2 — DW — R430 — RND6,0B
— 1 000 kg spools SIST EN 12166:2016

or
5 000 kg Wire EN 12166 — CW617N — DW — R430 — RND6,0B
— 1 000 kg spools SIST EN 12166:2016

For sizes below 3 mm, the corner radius c is calculated from the formula: 122ccc+=
