EN 4810:2017
(Main)Aerospace series - Flange couplings - Gasket seal with nickel alloy C seal on heat resisting steel plate with 3 fastening holes - Inch series
Aerospace series - Flange couplings - Gasket seal with nickel alloy C seal on heat resisting steel plate with 3 fastening holes - Inch series
This standard specifies the characteristics of gasket seal with nickel alloy C seal on heat resisting steel, 3 holes, for pipe couplings for inch series aerospace applications.
Nominal pressure: up to 21 000 kPa; depends on the associated tube material and tube wall thickness in the assembly (see EN 4814).
Temperature range: - 55 °C to 600 °C.
NOTE Assembly in accordance with TR 4815.
This part should not be reused after disassembling.
Luft- und Raumfahrt - Rohrverschraubung mit Flanschen - Flachdichtung aus Nickellegierung, mit Stahlummantelung aus hochwarmfestem Stahl mit 3 Befestigungslöchern - Inch-Reihe
Série aérospatiale - Raccordement à bride - Joint plaque avec joint C en alliage de nickel sur plaque en acier résistant à chaud avec 3 trous de fixation - Série en inches
Aeronavtika - Prirobnične spojke - Tesnilo z zalivko iz nikljeve zlitine C na toplotno odporni jekleni plošči s tremi pritrdilnimi luknjami - Colska izvedba
General Information
- Status
- Published
- Publication Date
- 25-Apr-2017
- Withdrawal Date
- 30-Oct-2017
- Technical Committee
- ASD-STAN - Aerospace
- Drafting Committee
- ASD-STAN/D 3 - Mechanical
- Current Stage
- 6060 - Definitive text made available (DAV) - Publishing
- Start Date
- 26-Apr-2017
- Completion Date
- 26-Apr-2017
Overview
EN 4810:2017 is a European Standard developed by CEN and ASD-STAN, specifying the characteristics and technical requirements of gasket seals with a nickel alloy C seal on heat-resisting steel plates. This standard focuses on flange couplings with 3 fastening holes, designed specifically for inch series pipe couplings used in aerospace applications. The gasket seals are engineered to ensure reliable performance under high pressure and extreme temperature conditions, complying with stringent aerospace industry demands.
Key specifications include:
- Nominal pressure ratings up to 21,000 kPa (pressure dependent on tube material and thickness per EN 4814)
- Operating temperature range from -55 °C to 600 °C
- Material and surface treatment requirements to optimize corrosion resistance and mechanical integrity
- Single-use assembly guideline, prohibiting reuse after disassembly
EN 4810:2017 supports safety, durability, and quality management principles critical to aerospace fluid systems.
Key Topics
Materials:
- Plate material conforms to EN 3480 (steel FE-PA3601, air melted, softened) or EN 3488 (sheet and strip of the same steel)
- Nickel alloy C seals comply with EN 2407, providing excellent heat resistance
- Surface treatment includes passivation per EN 2516 and nickel plus chromium coatings following ISO 1456 to enhance corrosion resistance
Design and Dimensions:
- Flange plate with three equally spaced fastening holes sized for inch series
- Dimensional tolerances provided for hole diameters, radii, thickness, and overall sizes to ensure interchangeability
- Mass estimation for batch processing and inventory management
Assembly:
- C seal is inseparable from the heat resisting steel plate post-assembly, requiring careful handling to prevent damage
- Assembly guidelines reference TR 4815 for flange coupling installation best practices
- Intended for single use; disassembled gasket seals must be discarded to maintain sealing integrity
Marking and Identification:
- Marking follows EN 2424 standards for aerospace product traceability
- Markings are non-embossed to avoid compromising the component surface
Quality Assurance:
- Manufacturers must be approved under aerospace quality management standards such as EN 9100
- Compliance ensures that products meet reliability and performance demands for aerospace fluid systems
Applications
EN 4810 gasket seals are vital components in aerospace flange coupling systems used in hydraulic, fluid, and fuel lines where secure, leak-proof joints are essential. Their heat resistance and durability make them suitable for:
- Commercial and military aircraft hydraulic piping
- High-pressure aerospace fluid systems
- Fuel system connections requiring resistance to temperature extremes and pressurized environments
- Aerospace maintenance and repair operations that rely on standardized, certified sealing components
By adhering to EN 4810, aerospace manufacturers and maintenance organizations ensure compatibility, safety, and traceability of critical sealing elements within complex fluid systems.
Related Standards
Several key standards complement EN 4810 for a comprehensive aerospace flange coupling and sealing system:
- EN 4814: Technical specifications for flange couplings up to 21,000 kPa (inch series)
- EN 4816: Technical specification for gasket seals with nickel alloy C seals (inch series)
- TR 4815: Design standard providing assembly instructions for flange couplings
- EN 2407: Defines the nickel alloy used for heat-resistant seals
- EN 3480 & EN 3488: Specifications for steel materials used in flange plates
- EN 2516: Passivation requirements for corrosion-resistant steels
- EN 2424: Aerospace product marking and traceability
- EN 9100: Quality management system requirements for aviation, space, and defense organizations
- ISO 1456: Electrodeposited coatings of nickel and chromium for surface treatments
Together, these standards ensure well-integrated aerospace fluid system components that meet high performance and safety benchmarks.
Keywords: aerospace gasket seal, nickel alloy C seal, flange coupling, heat resisting steel plate, inch series flange, aerospace fluid system sealing, EN 4810, aerospace sealing standards, high pressure gasket, temperature resistant gasket, aerospace coupling standard
Frequently Asked Questions
EN 4810:2017 is a standard published by the European Committee for Standardization (CEN). Its full title is "Aerospace series - Flange couplings - Gasket seal with nickel alloy C seal on heat resisting steel plate with 3 fastening holes - Inch series". This standard covers: This standard specifies the characteristics of gasket seal with nickel alloy C seal on heat resisting steel, 3 holes, for pipe couplings for inch series aerospace applications. Nominal pressure: up to 21 000 kPa; depends on the associated tube material and tube wall thickness in the assembly (see EN 4814). Temperature range: - 55 °C to 600 °C. NOTE Assembly in accordance with TR 4815. This part should not be reused after disassembling.
This standard specifies the characteristics of gasket seal with nickel alloy C seal on heat resisting steel, 3 holes, for pipe couplings for inch series aerospace applications. Nominal pressure: up to 21 000 kPa; depends on the associated tube material and tube wall thickness in the assembly (see EN 4814). Temperature range: - 55 °C to 600 °C. NOTE Assembly in accordance with TR 4815. This part should not be reused after disassembling.
EN 4810:2017 is classified under the following ICS (International Classification for Standards) categories: 49.080 - Aerospace fluid systems and components. The ICS classification helps identify the subject area and facilitates finding related standards.
EN 4810:2017 is available in PDF format for immediate download after purchase. The document can be added to your cart and obtained through the secure checkout process. Digital delivery ensures instant access to the complete standard document.
Standards Content (Sample)
SLOVENSKI STANDARD
SIST EN 4810:2018
01-marec-2018
$HURQDYWLND3ULUREQLþQHVSRMNH5REQDWHVQLOD]]DOLYNRL]QLNOMHYH]OLWLQHQD
WRSORWQRRGSRUQLMHNOHQLSORãþLVSULWUGLOQLPLOXNQMDPL3DOþQHPHUH
Aerospace series - Flange couplings - Gasket seal with nickel alloy C seal on heat
resisting steel plate with 3 fastening holes - Inch series
Luft- und Raumfahrt - Rohrverschraubung mit Flanschen - Flachdichtung aus
Nickellegierung, mit Stahlummantelung aus hochwarmfestem Stahl mit 3
Befestigungslöchern - Inch-Reihe
Série aérospatiale - Raccordement à bride - Joint plaque avec joint C en alliage de nickel
sur plaque en acier résistant à chaud avec 3 trous de fixation - Série en inches
Ta slovenski standard je istoveten z: EN 4810:2017
ICS:
23.040.60 Prirobnice, oglavki in spojni Flanges, couplings and joints
elementi
49.080 /HWDOVNLLQYHVROMVNL Aerospace fluid systems and
KLGUDYOLþQLVLVWHPLLQGHOL components
SIST EN 4810:2018 en,fr,de
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.
SIST EN 4810:2018
SIST EN 4810:2018
EN 4810
EUROPEAN STANDARD
NORME EUROPÉENNE
April 2017
EUROPÄISCHE NORM
ICS 49.080
English Version
Aerospace series - Flange couplings - Gasket seal with
nickel alloy C seal on heat resisting steel plate with 3
fastening holes - Inch series
Série aérospatiale - Raccordement à bride - Joint Luft- und Raumfahrt - Rohrverschraubung mit
plaque avec joint C en alliage de nickel sur plaque en Flanschen - Flachdichtung aus Nickellegierung, mit
acier résistant à chaud avec 3 trous de fixation - Série Stahlummantelung aus hochwarmfestem Stahl mit 3
en inches Befestigungslöchern - Inch-Reihe
This European Standard was approved by CEN on 14 November 2016.
CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this
European Standard the status of a national standard without any alteration. Up-to-date lists and bibliographical references
concerning such national standards may be obtained on application to the CEN-CENELEC Management Centre or to any CEN
member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by
translation under the responsibility of a CEN member into its own language and notified to the CEN-CENELEC Management
Centre has the same status as the official versions.
CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia,
Finland, Former Yugoslav Republic of Macedonia, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania,
Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland,
Turkey and United Kingdom.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION
EUROPÄISCHES KOMITEE FÜR NORMUNG
CEN-CENELEC Management Centre: Avenue Marnix 17, B-1000 Brussels
© 2017 CEN All rights of exploitation in any form and by any means reserved Ref. No. EN 4810:2017 E
worldwide for CEN national Members.
SIST EN 4810:2018

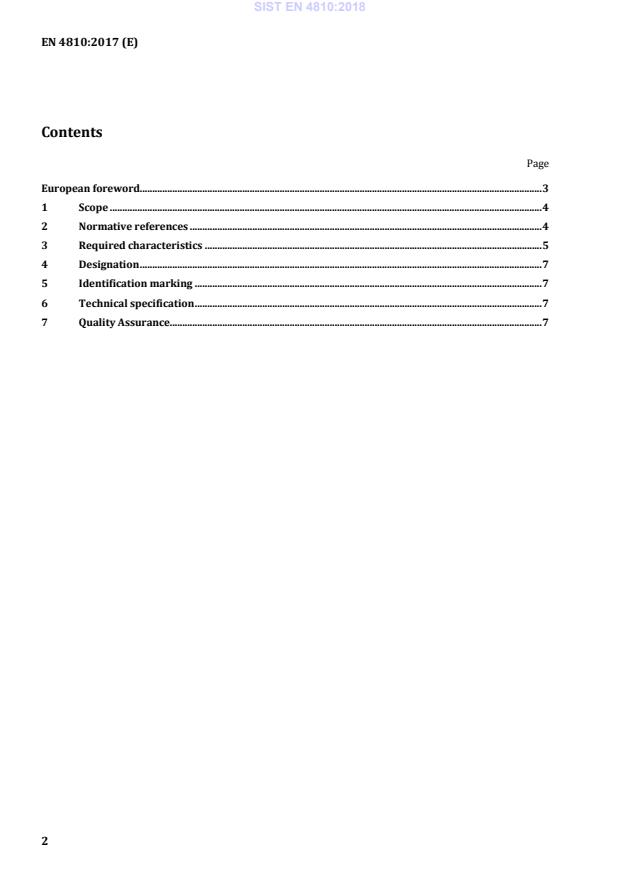

Contents
Page
European foreword . 3
1 Scope . 4
2 Normative references . 4
3 Required characteristics . 5
4 Designation . 7
5 Identification marking . 7
6 Technical specification . 7
7 Quality Assurance. 7
SIST EN 4810:2018
European foreword
This document (EN 4810:2017) has been prepared by the Aerospace and Defence Industries Association of
Europe - Standardization (ASD-STAN).
After enquiries and votes carried out in accordance with the rules of this Association, this Standard has
received the approval of the National Associations and the Official Services of the member countries of ASD,
prior to its presentation to CEN.
This European Standard shall be given the status of a national standard, either by publication of an identical
text or by endorsement, at the latest by October 2017, and conflicting national standards shall be withdrawn
at the latest by October 2017.
Attention is drawn to the possibility that some of the elements of this document may be th
...
