prEN 14023

SLOVENSKI STANDARD
01-maj-2020
Bitumen in bitumenska veziva - Okvirna specifikacija za bitumne, modificirane s
polimeri
Bitumen and bituminous binders - Specification framework for polymer modified
bitumens
Bitumen und bitumenhaltige Bindemittel - Rahmenwerk für die Spezifikation von
polymermodifizierten Bitumen
Bitumes et liants bitumineux Cadre de spécifications des bitumes modifiés par des
polymères
Ta slovenski standard je istoveten z: prEN 14023
ICS:
75.140 Voski, bitumni in drugi naftni Waxes, bituminous materials
proizvodi and other petroleum products
91.100.50 Veziva. Tesnilni materiali Binders. Sealing materials
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

DRAFT

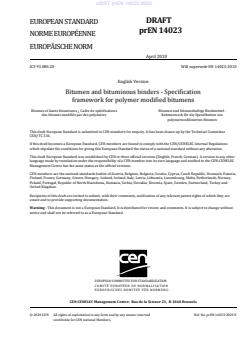

EUROPEAN STANDARD
NORME EUROPÉENNE
EUROPÄISCHE NORM
April 2020
ICS 93.080.20 Will supersede EN 14023:2010
English Version
Bitumen and bituminous binders - Specification
framework for polymer modified bitumens
Bitumes et liants bitumineux ¿ Cadre de spécifications Bitumen und bitumenhaltige Bindemittel -
des bitumes modifiés par des polymères Rahmenwerk für die Spezifikation von
polymermodifizierten Bitumen
This draft European Standard is submitted to CEN members for enquiry. It has been drawn up by the Technical Committee
CEN/TC 336.
If this draft becomes a European Standard, CEN members are bound to comply with the CEN/CENELEC Internal Regulations
which stipulate the conditions for giving this European Standard the status of a national standard without any alteration.

This draft European Standard was established by CEN in three official versions (English, French, German). A version in any other
language made by translation under the responsibility of a CEN member into its own language and notified to the CEN-CENELEC
Management Centre has the same status as the official versions.

CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia,
Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway,
Poland, Portugal, Republic of North Macedonia, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland, Turkey and
United Kingdom.
Recipients of this draft are invited to submit, with their comments, notification of any relevant patent rights of which they are
aware and to provide supporting documentation.

Warning : This document is not a European Standard. It is distributed for review and comments. It is subject to change without
notice and shall not be referred to as a European Standard.

EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION

EUROPÄISCHES KOMITEE FÜR NORMUNG

CEN-CENELEC Management Centre: Rue de la Science 23, B-1040 Brussels
© 2020 CEN All rights of exploitation in any form and by any means reserved Ref. No. prEN 14023:2020 E
worldwide for CEN national Members.

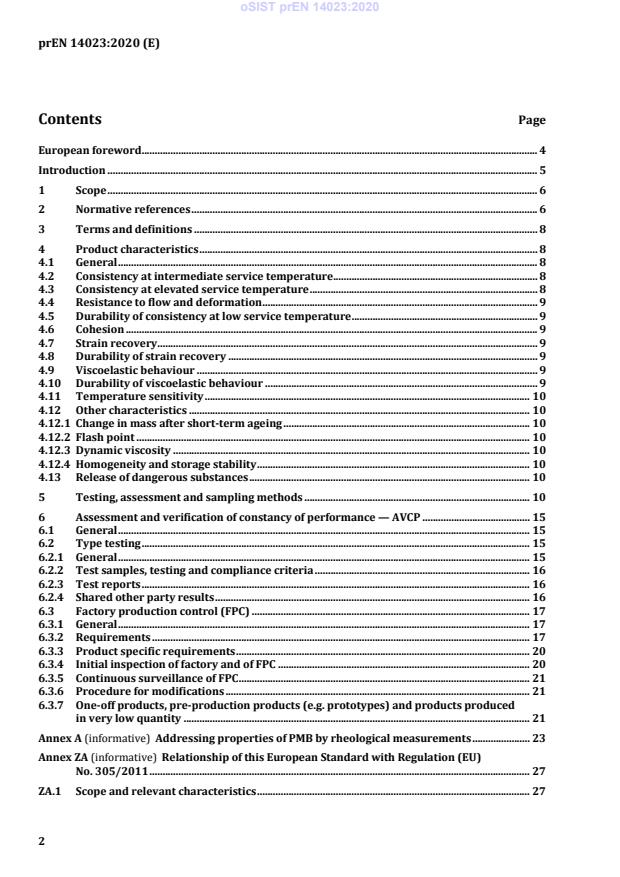

Contents Page
European foreword . 4
Introduction . 5
1 Scope . 6
2 Normative references . 6
3 Terms and definitions . 8
4 Product characteristics . 8
4.1 General . 8
4.2 Consistency at intermediate service temperature. 8
4.3 Consistency at elevated service temperature . 8
4.4 Resistance to flow and deformation . 9
4.5 Durability of consistency at low service temperature . 9
4.6 Cohesion . 9
4.7 Strain recovery . 9
4.8 Durability of strain recovery . 9
4.9 Viscoelastic behaviour . 9
4.10 Durability of viscoelastic behaviour . 9
4.11 Temperature sensitivity . 10
4.12 Other characteristics . 10
4.12.1 Change in mass after short-term ageing . 10
4.12.2 Flash point . 10
4.12.3 Dynamic viscosity . 10
4.12.4 Homogeneity and storage stability . 10
4.13 Release of dangerous substances . 10
5 Testing, assessment and sampling methods . 10
6 Assessment and verification of constancy of performance — AVCP . 15
6.1 General . 15
6.2 Type testing . 15
6.2.1 General . 15
6.2.2 Test samples, testing and compliance criteria . 16
6.2.3 Test reports . 16
6.2.4 Shared other party results . 16
6.3 Factory production control (FPC) . 17
6.3.1 General . 17
6.3.2 Requirements . 17
6.3.3 Product specific requirements . 20
6.3.4 Initial inspection of factory and of FPC . 20
6.3.5 Continuous surveillance of FPC . 21
6.3.6 Procedure for modifications . 21
6.3.7 One-off products, pre-production products (e.g. prototypes) and products produced
in very low quantity . 21
Annex A (informative) Addressing properties of PMB by rheological measurements . 23
Annex ZA (informative) Relationship of this European Standard with Regulation (EU)
No. 305/2011 . 27
ZA.1 Scope and relevant characteristics . 27
ZA.2 System of Assessment and Verification of Constancy of Performance (AVCP) . 28
ZA.3 Assignment of AVCP tasks . 28
Bibliography . 30

European foreword
This document (prEN 14023:2020) has been prepared by Technical Committee CEN/TC 336
“Bituminous binders”, the secretariat of which is held by AFNOR.
This document is currently submitted to the CEN Enquiry.
This document will supersede EN 14023:2010.
This document has been prepared under a standardization request given to CEN and CENELEC by the
European Commission and the European Free Trade Association.
For relationship with Regulation (EU) 305/2011, see informative Annex ZA, which is an integral part of
this document.
This document is part of a family of European standards for bitumens as follows:

Figure 1 — European standards for Bitumens

Introduction
This document is part of a family of product standards for bitumen and bituminous binders for paving
applications.
The general principle adopted in the development of EN 12591 [1], Bitumen and bituminous binders —
Specifications for paving grade bitumens, was to provide a range of grades suitable for the manufacture
of the materials for road construction and maintenance used, and the climatic and traffic conditions
encountered, in all the Member States. This document provides a framework for specifying a range of
characteristics and applicable test methods suitable for polymer modified bitumens.
It is compulsory for the full specification to be published in all EU and EFTA countries. However, it is
permitted for each country to define the most suitable grades and classes.
Changes to the previous version of this document (EN 14023:2010) are:
— updated terminology for essential characteristics referring to draft standardization request;
— display in two tables only;
— addition of three classes for characteristics for soft PMB by needle penetration [EN 1426] at 15 °C;
— addition of the essential characteristics of viscoelastic behaviour, resistance to flow and
deformation, temperature sensitivity, and durability of viscoelastic behaviour;
— addition of two classes for characteristic of softening point ring and ball for soft PMB [EN 1427];
— addressing low service temperature characteristics by BBR instead of Fraass Breaking Point, on
long term aged instead of fresh binders, and insertion of respective levels;
— change in display of essential characteristics for cohesion by Force Ductility method, addition of
three levels for minimum Cohesion Energy, and addition of elongation as declared value;
— addition of three levels for minimum Cohesion Energy by tensile test, and addition of three test
temperatures;
— addition of three minimum levels of pendulum test results;
— deletion of characteristics on retained needle penetration and change in softening point ring and
ball after short term ageing;
— deletion of plasticity range;
— change of levels for difference in penetration for storage stability;
— deletion of Annex A and Annex B;
— update of Clause 6 and Annex ZA according to current guidance document TF N 548 Rev.1 (for
Clause 6) and TF N 687 rev1 (for Annex ZA).

1 Scope
This document provides a framework for specifying a range of characteristics as well as applicable test
methods for polymer modified bitumens, which are suitable for use in the construction and
maintenance of roads, airfields and other paved areas, together with information on assessment and
verification of constancy of performance. Polymer modified bitumen is defined in EN 12597.
This document describes the performance for characteristics of polymer modified bitumens, as shown
in Table 1 and Table 2. It gives information for Declaration of Performance, selection of the grades,
characteristics and test methods.
This framework covers the following essential characteristics:
— consistency at intermediate service temperature;
— consistency at elevated service temperature;
— viscoelastic behaviour;
— cohesion;
— resistance to flow and deformation;
— temperature sensitivity;
— strain recovery;
— durability of strain recovery;
— durability of consistency at low service temperature;
— durability of viscoelastic behaviour.
The characteristics of “adhesion” and “setting ability” are addressed by tests used on either the finished
asphalt mixtures or on aggregate-bitumen combinations, i.e. EN 12697-1, EN 12697-11, EN 12697-12,
EN 12697-26 [2 to 5], rather than tests on the bitumen itself.
“Adhesion” is addressed by tests carried out on the finished asphalt mixtures.
“Setting ability” is the return of the polymer modified binder to its normal semi-solid state as it returns
to ambient temperature; this is a natural result of the cooling of the hot polymer modified bitumen after
application and thus not addressed here.
The nomenclature of polymer modified bitumen comprises the nominal penetration range and the
minimum softening point, e.g. PMB 45/80-60.
2 Normative references
The following documents are referred to in the text in such a way that some or all of their content
constitutes requirements of this document. For dated references, only the edition cited applies. For
undated references, the latest edition of the referenced document (including any amendments) applies.
EN 58:2012, Bitumen and bituminous binders — Sampling bituminous binders
EN 1426:2015, Bitumen and bituminous binders — Determination of needle penetration
EN 1427:2015, Bitumen and bituminous binders — Determination of the softening point — Ring and Ball
method
EN 12594:2014, Bitumen and bituminous binders — Preparation of test samples
EN 12597:2014, Bitumen and bituminous binders — Terminology
EN 12607-1:2014, Bitumen and bituminous binders — Determination of the resistance to hardening
under influence of heat and air — Part 1: RTFOT method
EN 13302:2018, Bitumen and bituminous binders — Determination of dynamic viscosity of bituminous
binder using a rotating spindle apparatus
EN 13398:2017, Bitumen and bituminous binders — Determination of the elastic recovery of modified
bitumen
EN 13399:2017, Bitumen and bituminous binders — Determination of storage stability of modified
bitumen
EN 13587:2016, Bitumen and bituminous binders — Determination of the tensile properties of bituminous
binders by the tensile test method
EN 13588:2017, Bitumen and bituminous binders — Determination of cohesion of bituminous binders
with pendulum test
EN 13589:2018, Bitumen and bituminous binders — Determination of the tensile properties of modified
bitumen by the force ductility method
EN 13702:2018, Bitumen and bituminous binders — Determination of dynamic viscosity of bitumen and
bituminous binders by the cone and plate method
EN 14769:2012, Bitumen and bituminous binders — Accelerated long-term ageing conditioning by a
Pressure Ageing Vessel (PAV)
EN 14770:2012, Bitumen and bituminous binders — Determination of complex shear modulus and phase
angle — Dynamic Shear Rheometer (DSR)
EN 14771:2012, Bitumen and bituminous binders — Determination of the flexural creep stiffness —
Bending Beam Rheometer (BBR)
EN 16659:2015, Bitumen and bituminous binders — Multiple stress creep and recovery test (MSCRT)
EN ISO 2592:2017, Petroleum and related products — Determination of flash and fire points — Cleveland
open cup method (ISO 2592:2017)
EN ISO 2719:2016, Determination of flash point — Pensky-Martens closed cup method (ISO 2719:2016)
3 Terms and definitions
For the purposes of this document, the terms and definitions given in EN 12597 and the following apply.
ISO and IEC maintain terminological databases for use in standardization at the following addresses:
— ISO Online browsing platform: available at http://www.iso.org/obp
— IEC Electropedia: available at http://www.electropedia.org/
3.1
short term ageing
means the RTFOT (Rolling Thin Film Oven Test) ageing procedure according to EN 12607-1
Note 1 to entry: The main procedure is the RTFOT at 163 °C. For some highly viscous polymer modified
bitumens, where the viscosity is too high to provide a moving film, it is not possible to carry out the RTFOT at the
reference temperature of 163 °C. In such cases the procedure shall be carried out at 180 °C in accordance with
EN 12607-1. The selected conditioning temperature shall be declared.
3.2
long term ageing
means the RTFOT ageing procedure according to EN 12607-1, followed by the PAV (Pressure Ageing
Vessel) ageing procedure, according to EN 14769
Note 1 to entry: EN 14769 allows a wide range of conditions to apply; for the polymer modified binders covered
by this standard PAV conditioning should be carried out at T = 100 °C and for t = (20 h ± 10 min).
3.3
DV
declared value (DV) made available by the supplier of the bituminous binder; DVs are to be considered
as typical, single values, and are not intended to be used as requirements or interpreted as limiting
values
4 Product characteristics
4.1 General
European product standards cover a large variety of road materials for different applications, to
accommodate local traffic loads and climatic conditions.
This document is a framework of specifications and the appropriate class for each characteristic of
polymer modified bitumens is chosen from Table 1 and Table 2.
4.2 Consistency at intermediate service temperature
Consistency at intermediate service temperature for polymer modified bitumens is addressed by the
needle penetration in 0,1 mm at 25 °C or 15 °C. The test method is described in EN 1426 and
temperatures are selected according to the applicability of the test method, described in the test
standard.
4.3 Consistency at elevated service temperature
Consistency at elevated service temperature for polymer modified bitumens is addressed by the
softening point ring and ball in °C as described in EN 1427.
4.4 Resistance to flow and deformation
Resistance to flow and deformation for polymer modified bitumens is characterized by non-recoverable
-1
creep compliance [kPa ] and % recovery [%] from MSCRT (Multiple Stress Creep and Recovery Test)
according to EN 16659, after short-term ageing.
4.5 Durability of consistency at low service temperature
Durability of consistency at low service temperature for polymer modified bitumens is characterized by
T (S = 300 MPa) in °C and m-value [−] at T (S = 300 MPa) measured using the BBR (Bending Beam
Rheometer) test procedure (EN 14771) after long term ageing.
For details, see also informative Annex A to this document.
4.6 Cohesion
Three different test methods are used to address cohesion of polymer modified bitumens: force
ductility, tensile test and pendulum test. It is intended that the most appropriate cohesion test method
shall be used, depending on the intended use and application, at the discretion of the manufacturer. The
manufacturer shall state the test method used.
Force ductility (EN 13589) and tensile test (EN 13587) may be used for all binders. Force Ductility is
expressed in J/cm at a given test temperature and elongation of the test specimen. Tensile test results
are expressed in J/cm at a given test temperature.
The pendulum test according to EN 13588 may only be used for binders used for surface dressing, bond
coats, slurry-surfacing and micro-surfacing. Test results are expressed in J/cm .
4.7 Strain recovery
Strain recovery may be important for some applications, e.g. on bridge decks, as a characteristic to
address other cohesion elements not addressed in 4.6. Strain recovery of polymer modified bitumens is
characterized by elastic recovery (EN 13398) in % at 25 °C or 10 °C. Test temperatures are selected
according to the climate conditions at application.
4.8 Durability of strain recovery
Durability of strain recovery of polymer modified bitumens is characterized by elastic recovery
(EN 13398) in % at 25 °C or 10 °C after short-term ageing. Test temperatures are selected according to
the climate conditions at application.
4.9 Viscoelastic behaviour
Viscoelastic behaviour is addressed by T (G* = 15 kPa) [°C] and respective phase angle [°] for fresh
binders, and by T (G* = 15 kPa) [°C] and respective phase angle [°] together with T (G* = 5 MPa) [°C]
and respective phase angle [°] for short-term aged binders determined according to EN 14770.
For details, see also informative Annex A to this document.
It is recommended to store all raw data from temperature sweep measurements in order to allow other
calculations and to prepare future revisions of this document.
4.10 Durability of viscoelastic behaviour
Durability of viscoelastic behaviour is addressed by comparison of T (G* = 15 kPa) [°C] and respective
phase angle [°] for fresh, short-term aged and long term aged binders and by comparison of
T (G* = 5 MPa) [°C] and respective phase angle [°] for short-term and long term aged binders
determined according to EN 14770.
For details, see also informative Annex A to this document.
It is recommended to store all raw data from temperature sweep measurements in order to allow other
calculations and to prepare future revisions of this document.
4.11 Temperature sensitivity
Temperature sensitivity is addressed by comparison of T (G* = 15 kPa) [°C] and respective phase angle
[°] to T (G* = 5 MPa) [°C] and respective phase angle [°] for short-term aged binders, and by comparison
of T (G* = 15 kPa) [°C] and respective phase angle [°] to T (G* = 5 MPa) [°C] and respective phase angle
[°] for long term aged binders, determined according to EN 14770.
For details, see also informative Annex A to this document.
It is recommended to store all raw data from temperature sweep measurements in order to allow other
calculations and to prepare future revisions of this document.
4.12 Other characteristics
4.12.1 Change in mass after short-term ageing
Change in mass after short-term ageing (RTFOT) according to EN 12607-1 is expressed in %.
4.12.2 Flash point
Flash point [°C] shall be determined by the Cleveland open cup method in EN ISO 2592 for normal
specification purposes.
The Pensky-Martens closed cup method (see EN ISO 2719) may be used to investigate possible
contamination but is likely to give lower values than the Cleveland open cup method.
4.12.3 Dynamic viscosity
Information on dynamic viscosity [Pa⋅s] according to EN 13302 may be of assistance for handling of
polymer modified binders. The value of dynamic viscosity reported is a typical, single value, and is not
intended to be used as a requirement or interpreted as a limiting value.
4.12.4 Homogeneity and storage stability
Homogeneity is necessary for polymer modified bitumens. The tendency of polymer modified bitumens
to separate during storage may be assessed by the storage stability test (see EN 13399). If the product
does not fulfil the properties in Table 2, that is difference in needle penetration in 0,1 mm according to
EN 1426, or difference in softening point in °C according to EN 1427, information shall be given by the
supplier regarding storage conditions for the polymer modified bitumens to avoid separation of the
components and to ensure the homogeneity of the product.
4.13 Release of dangerous substances
Materials used in products shall not release any dangerous substances in excess of the maximum
permitted levels specified in a relevant European standard for the material or permitted in the national
regulations of the member state of destination.
5 Testing, assessment and sampling methods
Samples of bulk products shall be taken as described in EN 58.
Test samples shall be taken from the laboratory samples, and prepared for testing, as described in
EN 12594.
Table 1 — Specification framework for polymer modified bitumen — Characteristics
Charesteristics Test method Unit 1 2 3 4 5 6 7 8 9 10 11 12
Nominal Penetration range (for grading)  10/40 25/55 45/80 40/100 65/105 75/130 90/150 120/200 200/300 330/430 500/650 650/900
EN 1426 0,1 mm 10-40 25-55 45-80 40-100 65-105 75-130 90-150 120-200 200-300
Penetration at 25 °C or
Penetration at 15 °C
EN 1426 0,1 mm          90-170 140-260 180-360
Softening Point EN 1427 °C ≥ 85 ≥ 80 ≥ 75 ≥ 70 ≥ 65 ≥ 60 ≥ 55 ≥ 50 ≥ 45 ≥ 40 ≥ 35 ≥ 28
Low temperature behaviour °C DV ≤ −27 ≤ −24 ≤ −21 ≤ −18 ≤ −15 ≤ −12 ≤ −9 ≤ −6 ≤ −3
a
EN 12607-1 +
after long term ageing:
EN 14769 +
T (S = 300 MPa) and m-value
- DV
EN 14771
at T (S = 300 MPa)
Cohesion
energy
≥ 12 ≥ 8 ≥ 5 ≥ 3 ≥ 2 ≥ 1 ≥ 0,5
Force Ductility
J/cm
(50 mm/min
EN 13589
Test Temp.
traction)
0 5 10 15 20 25
°C
Or
Elongation
DV ≥ 400
mm
b
Cohesion
Cohesion
Tensile test
energy
≥ 8 ≥ 5 ≥ 3 ≥ 2 ≥ 1 ≥ 0,5
(100 mm/min
J/cm
EN 13587
traction)
Test Temp.
Or
0 5 10 15 20 25
°C
Pendulum test EN 13588 DV ≥ 1,4 ≥ 1,2 ≥ 1,0 ≥ 0,7
J/cm
Change in mass after short
a
% ≤ 0,3 ≤ 0,5 ≤ 0,8 ≤ 1,0
EN 12607-1
c
term ageing
Flash point EN ISO 2592 °C DV ≥ 250 ≥ 235 ≥ 220
The characteristics in Table 1 apply to all polymer modified bitumens. The appropriate class shall be chosen for each characteristic (see 5.1).
Charesteristics Test method Unit 1 2 3 4 5 6 7 8 9 10 11 12
a
For some highly viscous polymer modified bitumens it is not possible to carry out the RTFOT at the reference temperature of 163 °C because no continuous binder film is formed. In this
case the procedure shall be carried out at 180 °C.
b
One cohesion method shall be chosen based on end application. Force Ductility (EN 13589) and Tensile test (EN 13587) may be used for all binders, but the pendulum test (EN 13588)
may only be used for binders used for surface dressing, bond coats, slurry-surfacing and micro-surfacing. For Force Ductility, classes for cohesion energy, temperature and elongation shall be
selected. Elongation class 1 should be selected only in cases where 400 mm elongation is not deemed to be necessary. For Tensile Test, cohesion energy and temperature shall be selected.
c
Change in mass after ageing (RTFOT) can be positive or negative.
Table 2 — Specification framework for polymer modified bitumen — Characteristics
Characteristic Test method Unit 0 1 2 3 4 5
25 mm plate °C DV
d
Temperature T0
EN 14770
for G* = 15 kPa degrees DV
Value of δ at T0
Addressing evolution of
8 mm plate °C DV
viscoelastic behaviour and
d
Temperature T1
temperature sensitivity:
for G* = 5 MPa degrees DV
G* and δ at 1,59 Hz
−1
a
Value of δ at T1
(10 rad∙s )
EN 12607-1
e
25 mm plate °C DV
EN 14770
d
Temperature T2
for G* = 15 kPa degrees DV
Value of δ at T2
8 mm plate °C DV
d
Temperature T3
Addressing the development
for G* = 5 MPa degrees DV
a
of viscoelastic properties: EN 12607-1 +
Value of δ at T3
G* and δ at 1,59 Hz EN 14769 +
25 mm plate °C DV
−1
(10 rad∙s )
e
EN 14770
d
after long term ageing
Temperature T4
for G* = 15 kPa degrees DV
Value of δ at T4
Characteristic Test method Unit 0 1 2 3 4 5
−1 b
Dynamic viscosity at 100 s
EN 13302 Pa·s DV
@ 135 °C
c
EN 13399 +
Storage stability
°C DV ≤ 5
EN 1427
Difference in softening point
c
EN 13399 +
Storage stability
0,1 mm DV ≤ 10 ≤ 15 ≤ 20 ≤ 25
EN 1426
Difference in penetration
−1
MSCRT after short term ageing:
DV
kPa
a
EN 12607-1 +
f
J and % Recovery at 3,2 kPa and @ 60 °C EN 16659
nr % DV
Elastic recovery at 25 °C EN 13398 % DV ≥ 80 ≥ 70 ≥ 60 ≥ 50
or
EN 13398 % DV ≥ 75 ≥ 50
Elastic recovery at 10 °C
a
EN 12607-1 +
% DV ≥ 70 ≥ 60 ≥ 50
Elastic recovery at 25 °C after short term ageing
EN 13398
or
a
EN 12607-1 +
Elastic recovery at 10 °C after short term ageing
% DV ≥ 50
EN 13398
a
For some highly viscous polymer modified bitumens it is not possible to carry out the RTFOT at the reference temperature of 163 °C because no continuous binder film is formed. In
this case the procedure shall be carried out at 180 °C. The selected conditioning temperature shall be declared.
b -1
For some viscometers (e.g. when testing highly viscous binders) at 135 °C, the required shear rate (100 s ) may not be achievable. If different testing parameters (i.e. shear rate or
temperature) are used, those condition(s) shall be clearly stated. For Dynamic viscosity testing EN 13302 (rotating spindle) and EN 13702 (cone and plate) may be used. However, in case of
dispute, EN 13302 shall be the reference method.
c
Storage conditions of the polymer modified binder shall be given by the supplier. Homogeneity is necessary for polymer modified bitumen. The tendency of polymer modified bitumens
to separate during storage may be assessed by the storage stability test (see EN 13399). If the product does not fulfill the properties in Table 2 classes 2 to 5, information shall be given by
the supplier regarding storage conditions (such as recommended maximal storage time, recommended stirring, recommended quality checks to ensure binder homogeneity) for the polymer
modified bitumen to avoid separation of the components and to ensure the homogeneity of the product.
d
The temperatures T0, T1, T2, T3 and T4 are determined by logarithmic interpolation from two temperatures, one leading to a modulus below and one above the target modulus. The
corresponding values of delta shall be determined by linear interpolation.
e
According to EN 14770, testing should be carried out within the linear viscoelastic range.
f
For some binders, it is not possible to carry out the MSCRT at 60 °C. In this case the test may be carried out at a different temperature. The selected temperature shall be declared.

The following data may be given by the supplier of the polymer modified bitumens in the product data
sheet:
— polymer dispersion (see EN 13632 [6]);
— solubility (see EN 12592 [7] using the appropriate solvent declared by the supplier);
— handling temperatures;
— minimum storage and pumping temperatures;
— storage conditions;
— maximum and minimum mixing temperatures; for comparison purposes, EN 13302 or EN 13702
should be used;
— density (see EN 15326).
6 Assessment and verification of constancy of performance — AVCP
6.1 General
The compliance of polymer modified bitumens with the requirements of this document and with the
performances declared by the manufacturer in the Declaration of Performance (DoP) shall be
demonstrated by:
— determination of the product type;
— factory production control by the manufacturer, including product assessment.
The manufacturer shall always retain the overall control and shall have the necessary means to take
responsibility for the conformity of the product with its declared performance(s).
NOTE The information from AVCP can be available for audit as detailed in the Quality Plan.
6.2 Type testing
6.2.1 General
All performances related to characteristics included in this standard shall be determined when the
manufacturer intends to declare the respective performances unless the standard gives provisions for
declaring them without performing tests. (e.g. use of previously existing data, classified without further
testing (CWFT) and conventionally accepted performance).
Assessment previously performed in accordance with the provisions of this standard, may be taken into
account provided that they were made to the same or a more rigorous test method, under the same
AVCP system on the same product or products of similar design, construction and functionality, such
that the results are applicable to the product in question.
For the purposes of assessment, the manufacturer's products may be grouped into families, where it is
considered that the results for one or more characteristics from any one product within the family are
representative for that same characteristics for all products within that same family.
NOTE 1 Products can be grouped in different families for different characteristics.
NOTE 2 Reference to the assessment method standards can be made to allow the selection of a suitable
representative sample.
In addition, the determination of the product type shall be performed for all characteristics included in
the standard for which the manufacturer declares the performance:
— at the beginning of the production of a new or changed polymer modified bitumen (unless a
member of the same product range), or
— at the beginning of a new or modified method of production (where this may affect the stated
properties);
— or they shall be repeated for the appropriate characteristic(s), whenever a change occurs in the
polymer modified bitumen design, in the raw material or in the supplier of the components, or in
the method of production (subject to the definition of a family), which would affect significantly one
or more of the characteristics.
NOTE 3 The producer defines in his FPC documentation the conditions which define a significant change.
Where components are used whose characteristics have already been determined, by the component
manufacturer, on the basis of assessment methods of other product standards, these characteristics
need not be re-assessed. The specifications of these components shall be documented.
Products bearing regulatory marking in accordance with appropriate harmonized European
specifications may be presumed to have the performances declared in the DoP, although this does not
replace the responsibility on the polymer modified bitumen manufacturer to ensure that the polymer
modified bitumen as a whole is correctly manufactured and its component products have the declared
performance values.
6.2.2 Test samples, testing and compliance criteria
Sampling shall be carried out in accordance with EN 58 and EN 12594.
6.2.3 Test reports
The results of the determination of the product type shall be documented in test reports. All test reports
shall be retained by the manufacturer for at least 10 years after the last date of production of the
polymer modified bitumen to which they relate.
6.2.4 Shared other party results
A manufacturer may use the results of the product type determination obtained by someone else (e.g.
by another manufacturer, as a common service to manufacturers, or by a product developer), to justify
his own declaration of performance regarding a product that is manufactured according to the same
design (e.g. dimensions) and with raw materials, constituents and manufacturing methods of the same
kind, provided that:
— the results are known to be valid for products with the same essential characteristics relevant for
the product performance;
— in addition to any information essential for confirming that the product has such same
performances related to specific essential characteristics, the other party who has carried out the
determination of the product type concerned or has had it carried out, has expressly accepted to
transmit to the manufacturer the results and the test report to be used for the latter’s product type
determination, as well as information regarding production facilities and the production control
process that can be taken into account for FPC;
— the manufacturer using other party results accepts to remain responsible for the product having
the declared performances and he also:
— ensures that the product has the same characteristics relevant for performance as the one that
has been subjected to the determination of the product type, and that there are no significant
differences with regard to production facilities and the production control process compared
to that used for the product that was subjected to the determination of the product type, and
— keeps available a copy of the determination of the product type report that also contains the
information needed for verifying that the product is manufactured according to the same
design and with raw materials, constituents and manufacturing methods of the same kind.
6.3 Factory production control (FPC)
6.3.1 General
The manufacturer shall establish, document and maintain an FPC system to ensure that the products
placed on the market comply with the declared performance of the essential characteristics.
The FPC system shall consist of procedures, regular inspections and tests and/or assessments and the
use of the results to control raw and other incoming materials or components, equipment, the
production process and the product.
All the elements, requirements and provisions adopted by the manufacturer shall be documented in a
systematic manner in the form of written policies and procedures.
This factory production control system documentation shall ensure a common understanding of the
evaluation of the constancy of performance and enable the achievement of the required product
performances and the effective operation of the production control system to be checked. Factory
production control therefore brings together operational techniques and all measures allowing
maintenance and control of the compliance of the product with the declared performances of the
essential characteristics.
In case the manufacturer has used shared product type results, the FPC shall also include the
appropriate documentation as described in 6.2.4.
6.3.2 Requirements
6.3.2.1 General
The manufacturer is responsible for organizing the effective implementation of the FPC system in line
with the content of this product standard. Tasks and responsibilities in the production control
organization shall be documented and this documentation shall be kept up-to-date.
The responsibility, authority and the relationship between personnel that manages, performs or verifies
work affecting product constancy, shall be defined. This applies in particular to personnel that need to
initiate actions preventing product non-constancies from occurring, actions in case of non-constancies
and to identify and register product constancy problems.
Personnel performing work affecting the constancy of performance of the product shall be competent
on the basis of appropriate education, training, skills and experience for which records shall be
maintained.
In each factory the manufacturer may delegate the action to a person having the necessary authority to:
— identify procedures to demonstrate constancy of performance of the product at appropriate stages;
— identify and record any instance of non-constancy;
— identify procedures to correct instances of non-constancy.
The manufacturer shall draw up and keep up-to-date documents defining the factory production
control. The manufacturer's documentation and procedures should be appropriate to the product and
manufacturing process. The FPC system should achieve an appropriate level of confidence in the
constancy of performance of the product. This involves:
a) the preparation of documented procedures and instructions relating to factory production control
operations, in accordance with the requirements of the technical specification to which reference is
made;
b) the effective implementation of these procedures and instructions;
c) the recording of these operations and their results;
d) the use of these results to correct any deviations, repair the effects of such deviations, treat any
resulting instances of non-conformity and, if necessary, revise the FPC to rectify the cause of non-
constancy of performance.
Where subcontracting takes place, the manufacturer shall retain the overall control of the product and
ensure that he receives all the information that is necessary to fulfil his responsibilities according to this
document.
If the manufacturer has Part of the product designed, manufactured, assembled, packed, processed
and/or labelled by subcontracting, the FPC of the subcontractor may be taken into account, where
appropriate for the product in question.
The manufacturer who subcontracts all of his activities may in no circumstances pass the above
responsibilities on to a subcontractor.
NOTE Manufacturers having an FPC system, which complies with EN ISO 9001 standard and which addresses
the provisions of the present document are considered as satisfying the FPC requirements of the Regulation (EU)
No 305/2011.
6.3.2.2 Equipment
6.3.2.2.1 Testing
All weighing, measuring and testing equipment shall be calibrated and regularly inspected according to
documented procedures, frequencies and criteria.
6.3.2.2.2 Manufacturing
All equipment used in the manufacturing process shall be regularly inspected and maintained to ensure
use, wear or failure does not cause inconsistency in the manufacturing process. Inspections and
maintenance shall be carried out and recorded in accordance with the manufacturer’s written
procedures and the records retained for the
...
