CEN/TS 17262:2018

SLOVENSKI STANDARD
01-februar-2019
2VHEQDLGHQWLILNDFLMD2GSRUQRVWSURWLQDSDGRPQDELRPHWULþQRSUHGVWDYLWHY
8SRUDEDSULHYURSVNHPDYWRPDWL]LUDQHPPHMQHPQDG]RUX
Personal identification - Robustness against biometric presentation attacks - Application
to European Automated Border Control
Persönliche Identification - Empfehlungen zur Sicherung der biometrischen Belastbarkeit
Europäischer ABC-Systeme gegenüber Manipulationen
Identification personnelle - Recommandations pour garantir la robustesse de la biométrie
dans les systèmes de contrôle frontalier automatisés européens contre les attaques de
présentation
Ta slovenski standard je istoveten z: CEN/TS 17262:2018
ICS:
35.240.15 ,GHQWLILNDFLMVNHNDUWLFHýLSQH Identification cards. Chip
NDUWLFH%LRPHWULMD cards. Biometrics
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

CEN/TS 17262
TECHNICAL SPECIFICATION
SPÉCIFICATION TECHNIQUE
December 2018
TECHNISCHE SPEZIFIKATION
ICS 35.240.20
English Version
Personal identification - Robustness against biometric
presentation attacks - Application to European Automated
Border Control
Identification personnelle - Recommandations pour Persönliche Identifikation - Empfehlungen zur
garantir la robustesse de la biométrie dans les Sicherung der biometrischen Belastbarkeit
systèmes de contrôle frontalier automatisés européens Europäischer ABC-Systeme gegenüber Manipulation
contre les attaques de présentation
This Technical Specification (CEN/TS) was approved by CEN on 10 September 2018 for provisional application.

The period of validity of this CEN/TS is limited initially to three years. After two years the members of CEN will be requested to
submit their comments, particularly on the question whether the CEN/TS can be converted into a European Standard.

CEN members are required to announce the existence of this CEN/TS in the same way as for an EN and to make the CEN/TS
available promptly at national level in an appropriate form. It is permissible to keep conflicting national standards in force (in
parallel to the CEN/TS) until the final decision about the possible conversion of the CEN/TS into an EN is reached.

CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia,
Finland, Former Yugoslav Republic of Macedonia, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania,
Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland,
Turkey and United Kingdom.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION

EUROPÄISCHES KOMITEE FÜR NORMUNG

CEN-CENELEC Management Centre: Rue de la Science 23, B-1040 Brussels
© 2018 CEN All rights of exploitation in any form and by any means reserved Ref. No. CEN/TS 17262:2018 E
worldwide for CEN national Members.

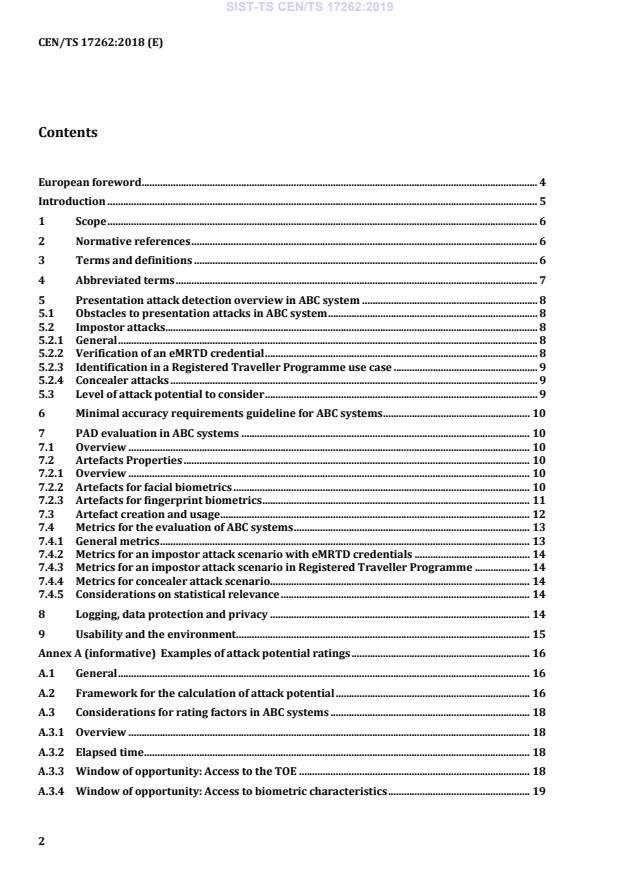

Contents
European foreword . 4
Introduction . 5
1 Scope . 6
2 Normative references . 6
3 Terms and definitions . 6
4 Abbreviated terms . 7
5 Presentation attack detection overview in ABC system . 8
5.1 Obstacles to presentation attacks in ABC system . 8
5.2 Impostor attacks . 8
5.2.1 General . 8
5.2.2 Verification of an eMRTD credential . 8
5.2.3 Identification in a Registered Traveller Programme use case . 9
5.2.4 Concealer attacks . 9
5.3 Level of attack potential to consider . 9
6 Minimal accuracy requirements guideline for ABC systems . 10
7 PAD evaluation in ABC systems . 10
7.1 Overview . 10
7.2 Artefacts Properties . 10
7.2.1 Overview . 10
7.2.2 Artefacts for facial biometrics . 10
7.2.3 Artefacts for fingerprint biometrics . 11
7.3 Artefact creation and usage . 12
7.4 Metrics for the evaluation of ABC systems . 13
7.4.1 General metrics . 13
7.4.2 Metrics for an impostor attack scenario with eMRTD credentials . 14
7.4.3 Metrics for an impostor attack scenario in Registered Traveller Programme . 14
7.4.4 Metrics for concealer attack scenario . 14
7.4.5 Considerations on statistical relevance . 14
8 Logging, data protection and privacy . 14
9 Usability and the environment . 15
Annex A (informative) Examples of attack potential ratings . 16
A.1 General . 16
A.2 Framework for the calculation of attack potential . 16
A.3 Considerations for rating factors in ABC systems . 18
A.3.1 Overview . 18
A.3.2 Elapsed time . 18
A.3.3 Window of opportunity: Access to the TOE . 18
A.3.4 Window of opportunity: Access to biometric characteristics . 19
A.4 Examples of application to ABC systems . 19
A.4.1 Overview . 19
A.4.2 Impostor Attack against a face-based ABC system in an eMRTD credential
verification scenario . 19
A.4.3 Impostor Attack against a fingerprint-based ABC system for Identification in a
Registered Traveller Programme scenario . 20
A.4.4 Concealer Attack against a watchlist in an ABC system . 21
Bibliography . 23

European foreword
This document (CEN/TS 17262:2018) has been prepared by Technical Committee CEN/TC 224
“Personal identification, electronic signature and cards and their related systems and operations”, the
secretariat of which is held by AFNOR.
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. CEN shall not be held responsible for identifying any or all such patent rights.
According to the CEN-CENELEC Internal Regulations, the national standards organisations of the
following countries are bound to implement this European Standard: Austria, Belgium, Bulgaria,
Croatia, Cyprus, Czech Republic, Denmark, Estonia, Finland, Former Yugoslav Republic of Macedonia,
France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta,
Netherlands, Norway, Poland, Portugal, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland,
Turkey and the United Kingdom.
Introduction
EU Member States issue electronic passports (ePassports) containing a smart-card chip that stores
biometric data. The biometric data stored is a face image and two finger images of the holder, except for
Ireland and the UK, which issue ePassports containing only a face image. A number of EU Member
States have deployed automated border control (ABC) systems that automate border checks for EU
citizens in possession of an ePassport. An ABC system authenticates the ePassport, verifies that the
traveller is the rightful holder of the ePassport by comparing presented biometric characteristics with
biometric data stored in the ePassport, queries border control records (possibly involving biometric
identification of the traveller in watchlists), and finally determines eligibility of border crossing
according to pre-defined rules, without intervention of a border guard. Border guards can supervise
several ABC lanes and intervene whenever something does not work as expected or the traveller hits a
watchlist.
Even though supervised, ABC systems are potentially vulnerable to biometric presentation attacks. A
biometric presentation attack (or spoofing) is the presentation of artefacts or human characteristics to
the biometric capture subsystem in a fashion that may interfere with the system policy. Techniques for
the automated detection of presentation attacks are called presentation attack detection (PAD)
mechanisms.
This document deals with best practice recommendations regarding the PAD capabilities of European
ABC systems.
1 Scope
This document is an application profile for the International Standard ISO/IEC 30107. It provides
requirements and recommendations for the implementation of Automated Border Control (ABC)
systems in Europe with Presentation Attack Detection (PAD) capability.
This document covers the evaluation of countermeasures from the Biometrics perspective as well as
privacy, data protection and usability aspects. Technical descriptions of countermeasures are out of
scope. Enrolment, issuance and verification applications of electronic Machine Readable Travel
Documents (eMRTD) other than border control are not in scope. In particular, presentation attacks at
enrolment are out of scope.
The biometric reference data can be stored in an eMRTD and/or in a database of registered travellers.
This document covers:
• biometric impostor attacks and
• biometric concealer attacks in a watchlist scenario.
This document addresses PAD for facial and fingerprint biometrics only.
2 Normative references
The following documents are referred to in the text in such a way that some or all of their content
constitutes requirements of this document. For dated references, only the edition cited applies. For
undated references, the latest edition of the referenced document (including any amendments) applies.
ISO/IEC 2382-37, Information technology — Vocabulary — Part 37: Biometrics
ISO/IEC 30107 (series), Information Technology — Biometric presentation attack detection
CEN/TS 16634, Personal identification - Recommendations for using biometrics in European Automated
Border Control
3 Terms and definitions
For the purposes of this document, the terms and definitions given in ISO/IEC 2382-37, CEN/TS 16634,
ISO/IEC 30107 (series) and the following apply.
ISO and IEC maintain terminological databases for use in s
...
