EN 15651-1:2012

2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.Tesnilne mase za nekonstrukcijske stike v stavbah in na sprehajalnih površinah - 1. del: Tesnilne mase za fasadeFugendichtstoffe für nicht tragende Anwendungen in Gebäuden und Fußgängerwegen - Teil 1: Fugendichtstoffe für FassadenelementeMastics pour joints pour des usages non structuraux dans les constructions immobilières et pour chemins piétonniers - Partie 1 : Mastics pour éléments de façadeSealants for non-structural use in joints in buildings and pedestrian walkways - Part 1: Sealants for facade elements91.100.50Veziva. Tesnilni materialiBinders. Sealing materials91.060.10Stene. Predelne stene. FasadeWalls. Partitions. FacadesICS:Ta slovenski standard je istoveten z:EN 15651-1:2012SIST EN 15651-1:2013en,fr,de01-april-2013SIST EN 15651-1:2013SLOVENSKI
STANDARDSIST EN 15651-1:20101DGRPHãþD

EUROPEAN STANDARD NORME EUROPÉENNE EUROPÄISCHE NORM
EN 15651-1
September 2012 ICS 91.100.50 English Version
Sealants for non-structural use in joints in buildings and pedestrian walkways - Part 1: Sealants for facade elements
Mastics pour joints pour des usages non structuraux dans les constructions immobilières et pour chemins piétonniers - Partie 1 : Mastics pour éléments de façade
Fugendichtstoffe für nicht tragende Anwendungen in Gebäuden und Fußgängerwegen - Teil 1: Fugendichtstoffe für Fassadenelemente This European Standard was approved by CEN on 10 August 2012.
CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this European Standard the status of a national standard without any alteration. Up-to-date lists and bibliographical references concerning such national standards may be obtained on application to the CEN-CENELEC Management Centre or to any CEN member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by translation under the responsibility of a CEN member into its own language and notified to the CEN-CENELEC Management Centre has the same status as the official versions.
CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia, Finland, Former Yugoslav Republic of Macedonia, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland, Turkey and United Kingdom.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION EUROPÄISCHES KOMITEE FÜR NORMUNG
Management Centre:
Avenue Marnix 17,
B-1000 Brussels © 2012 CEN All rights of exploitation in any form and by any means reserved worldwide for CEN national Members. Ref. No. EN 15651-1:2012: ESIST EN 15651-1:2013

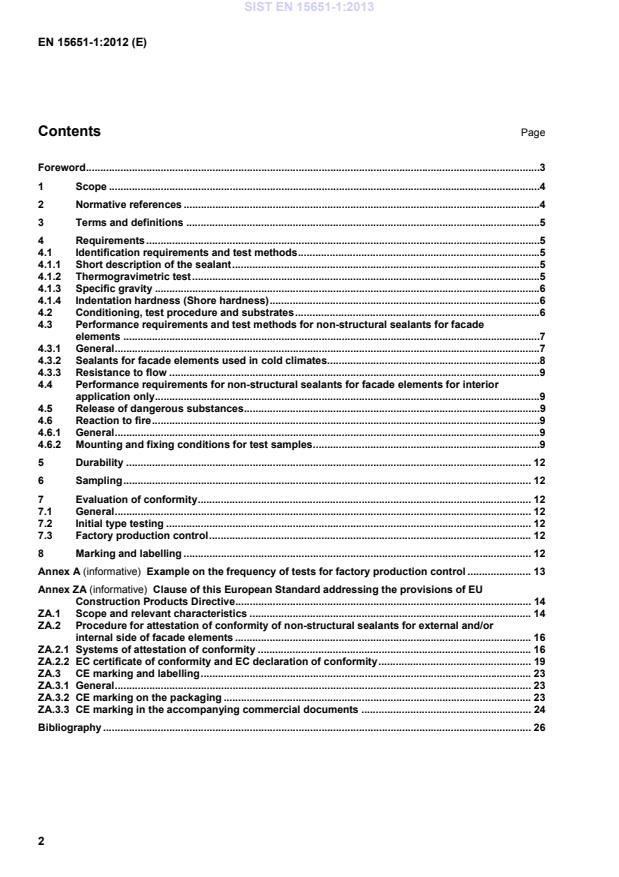

Example on the frequency of tests for factory production control . 13Annex ZA (informative)
Clause of this European Standard addressing the provisions of EU Construction Products Directive . 14ZA.1Scope and relevant characteristics . 14ZA.2Procedure for attestation of conformity of non-structural sealants for external and/or internal side of facade elements . 16ZA.2.1Systems of attestation of conformity . 16ZA.2.2EC certificate of conformity and EC declaration of conformity . 19ZA.3CE marking and labelling . 23ZA.3.1 General . 23ZA.3.2 CE marking on the packaging . 23ZA.3.3 CE marking in the accompanying commercial documents . 24Bibliography . 26 SIST EN 15651-1:2013

2 Normative references The following documents, in whole or in part, are normatively referenced in this document and are indispensable for its application. For dated references, only the edition cited applies. For undated references, the latest edition of the referenced document (including any amendments) applies. EN 13238, Reaction to fire tests for building products  Conditioning procedures and general rules for selection of substrates EN 13501-1:2007+A1, Fire classification of construction products and building elements  Part 1: Classification using data from reaction to fire tests EN 15651-5:2012, Sealants for non-structural use in joints in buildings and pedestrian walkways  Part 5: Evaluation of conformity and marking EN ISO 868, Plastics and ebonite  Determination of indentation hardness by means of a durometer (Shore hardness) (ISO 868) EN ISO 1183-1:2004, Plastics  Methods for determining the density of non-cellular plastics  Part 1: Immersion method, liquid pyknometer method and titration method (ISO 1183-1:2004) EN ISO 6927:2012, Buildings and civil engineering works — Sealants — Vocabulary (ISO 6927:2012) EN ISO 7389, Building construction  Jointing products  Determination of elastic recovery of sealants (ISO 7389) EN ISO 7390, Building construction  Jointing products  Determination of resistance to flow of sealants (ISO 7390) EN ISO 8339, Building construction  Sealants  Determination of tensile properties (Extension to break) (ISO 8339) EN ISO 8340, Building construction  Sealants  Determination of tensile properties at maintained extension (ISO 8340) EN ISO 9046, Building construction  Jointing products  Determination of adhesion/cohesion properties of sealants at constant temperature (ISO 9046) EN ISO 9047, Building construction  Jointing products  Determination of adhesion/cohesion properties of sealants at variable temperatures (ISO 9047) EN ISO 10563, Building construction  Sealants  Determination of change in mass and volume (ISO 10563) SIST EN 15651-1:2013

3.4 uncured/wet state of a sealant prior to the above transformation 4 Requirements 4.1 Identification requirements and test methods 4.1.1 Short description of the sealant The short description of the non-structural sealant for facade elements shall include brand name, type (general chemical family), opaque or translucent, waterborne or solvent based or solvent free, reactive or non-reactive, and one or multi-component (e.g. waterborne acrylic opaque and one component, etc.). The primer shall be stated for the substrate concerned, if relevant (name, chemical type, etc.). 4.1.2 Thermogravimetric test The test shall be carried out in accordance with EN ISO 11358 on the uncured or wet sealant, between 35 °C and 900 °C, temperature slope 10 °C/min, non-oxidative condition (e.g. nitrogen). A single sample shall be SIST EN 15651-1:2013

At least three samples shall be tested and five measurements taken per sample. The mean value and tolerances of all measurements, recorded to the nearest unit, shall be declared. 4.2 Conditioning, test procedure and substrates When determining the classification of a facade sealant according to the requirements of this standard, the same conditioning procedure shall be used in all relevant test methods (Method A or Method B conditioning shall be used for all relevant tests). For each test method, three test specimens for each substrate shall be tested. The same batch of sealant (and primer, if used) shall be used in all tests. The same substrates (material and surface finish) shall be used in all tests.
The specific test conditions shall be in accordance with Table 1. Table 1 — Specific test conditions
Test method Classes of non-structural sealants for facade elements 25LM 25HM 20LM 20HM 12,5E 12,5P 7,5P Elongation a
EN ISO 7389 EN ISO 8339 EN ISO 8340 EN ISO 10590
100 % 100 % 60 % 60 % 60 % 60 % 25 % Amplitude
EN ISO 9046
EN ISO 9047 ± 25 % ± 25 % ± 20 % ± 20 % ± 12,5 % ± 12,5 % ± 7,5 % a The value of elongation is given as a percentage of the original width:
elongation % = [(final width – original width) / (original width)] x 100 %
Substrates to be used in all mechanical tests concerned shall be mortar M1 or M2 and/or anodised aluminium and/or glass, according to ISO 13640. SIST EN 15651-1:2013

4.3.1 General
Classes of non-structural sealants to be used for joints in facade elements in buildings are referred to as type F according to EN ISO 11600.
A summary of the characteristics and classes, together with corresponding test methods for these characteristics shall be as given in Table 2.
NOTE The requirements for non-structural sealants for interior application only are covered by Table 4. Table 2 — Summary of classes for non-structural sealants for facade elements
Class of sealant for facade elements
Characteristic 25LM 25HM 20LM 20HM 12,5E 12,5P 7,5P Method of test Elastic recovery (%) ≥ 70 ≥ 70 ≥ 60 ≥ 60 ≥ 40 < 40 < 40 EN ISO 7389 Resistance to flow (mm) ≤ 3 ≤ 3 ≤ 3 ≤ 3 ≤ 3 ≤ 3 ≤ 3 See 4.3.3. Tensile properties
1) Secant modulus (MPa) ≤ 0,4 (23 °C) > 0,4 (23 °C) ≤ 0,4 (23 °C) > 0,4 (23 °C)    EN ISO 8339
and or and or
≤ 0,6 (- 20 °C) > 0,6 (- 20 °C)≤ 0,6 (- 20 °C)> 0,6 (- 20 °C)  
2) Elongation at break (%)     ≥ 100 (23 °C) ≥ 25 (23 °C)
Tensile properties at maintained extension NF NF NF NF NF   EN ISO 8340 Adhesion/cohesion at variable temperatures NF NF NF NF NF   EN ISO 9047 Adhesion/cohesion at maintained extension after water immersion NF NF NF NF NF   EN ISO 10590 Loss of volume (%) ≤ 10 ≤ 25 a ≤ 10 ≤ 25 a ≤ 10 ≤ 25 a ≤ 10 ≤ 25 a ≤ 25
≤ 30 a ≤ 25 ≤ 25 EN ISO 10563 Adhesion/cohesion at constant temperature      NF NF EN ISO 9046 Adhesion/cohesion after water immersion: - Elongation (%) at 23 °C





≥ 100
≥ 25
EN ISO 10591 a Water-based dispersion sealants. NF = No Failure according to EN ISO 11600.
The designation CC (cold climate) shall be declared for any sealant meeting the requirements of Table 2. For example, Type F Class 25LM CC. Anodised aluminium or/and glass and/or mortar M1 or M2 substrates, according to ISO 13640, shall be used. 4.3.2.2 Tensile properties - Secant modulus to EN ISO 8339 - Test procedure at (- 30 ± 2) °C The test specimens shall be stored at (- 30 ±
2) ° for at least 4 h before the start of the test. The spacers for the preparation of the test specimens shall be removed and the test specimen placed in the tensile test machine and extended at (- 30 ±
2) °C at a rate of (5,5 ±
0,7) mm/min until rupture occurs. The force/extension diagram shall be recorded. 4.3.2.3 Tensile properties at maintained extension to EN ISO 8340 - Test procedure at (- 30 ± 2) °C The test specimens shall be stored at (− 30 ±
2) °C for at least 4 h before the start of the test. The spacers for the preparation of the test specimens shall be removed and the test specimens placed in the tensile test machine at (- 30 ±
2) °C and extended at a rate of (5,5 ±
0,7) mm/min by 60 % or 100 % of the original width (to 19,2 mm and 24 mm respectively), The separators shall be used to maintain the elongation at (- 30 ±
2) °C for 24 h. The test specimens shall be brought to (23 ±
2) °C. The depth of any loss of adhesion or cohesion shall be measured using a suitable measuring device capable of reading to 0,5 mm. Table 3 — Requirements to be suitable for use in cold climate areas
Classes of non-structural sealants for sealants for facade elements in cold climates
Characteristics 25LM 25HM 20LM 20HM 12,5E Test method Tensile properties:
- Secant modulus
MPa
≤ 0,9
NR a ≤ 0,9 NR a NR a 4.3.2.2 Tensile properties at maintained extension - NF b NF b NF b NF b NF b 4.3.2.3 a NR = Not required. b NF = No failure according to EN ISO 11600.
A vertical, anodised aluminium U-profile shall be used with dimensions 20 mm × 10 mm. Testing shall be carried out under two test temperature conditions: a) temperature of (50 ± 2) °C and relative humidity of (50 ± 10) %; b) temperature of (5 ± 2) °C. If the flow exceeds the required value, then the test may be repeated once. 4.4 Performance requirements for non-structural sealants for facade elements for interior application only For non-structural sealants for facade elements that are only used for interior application, the minimum performance requirements given in Table 4 shall be met. Facade sealants only complying with these requirements shall be clearly marked “suitable for internal use only” and cannot be classified according to Table 2. Table 4 — Requirements for sealants for facade elements for interior application only Characteristic Requirement for sealants for Interior facade elements Method of test Resistance to flow mm ≤ 5
See 4.3.3. Tensile properties:
Elongation at break at 23 °C
%
≥ 25
EN ISO 8339 Loss of volume % ≤ 45 EN ISO 10563
4.5 Release of dangerous substances Materials used in products shall not release any dangerous substances in excess of the maximum permitted levels specified in a relevant European Standard for the material or permitted in the national regulations of the member state of destination. NOTE In the absence of specific requirements relating to substances dangerous to health, hygiene and the environment in this document, see Annex ZA. 4.6 Reaction to fire 4.6.1 General Products shall be classified in accordance with EN 13501-1:2007+A1. The appropriate reaction to fire class shall be declared. 4.6.2 Mounting and fixing conditions for test samples Mounting and fixing conditions for the test samples of the reaction to fire performance shall be as follows for the following reaction to fire classes: a) Class A2, B, C or D SIST EN 15651-1:2013

Design of specimen: 1) substrate: beech wood, mean bulk density about 720 kg/m³, or calcium silicate panel according to EN 13238 2) joint dimension: 20 mm x 10 mm x 250 mm (width x depth x length) , see Figure 1 3) conditioning: 28 days at (23 ± 2) °C and (50 ± 5) % relative humidity (according to EN 13238)
4) number of specimens: 6 (according to EN ISO 11925-2) 5) fire test: impingement of flame in centre to the bottom edge (according to EN 11925-2) The substrates are not standard-substrates according to EN 13238. They serve only to prepare a standardised sample according to EN ISO 11925-2. Furthermore, the defined joint dimension is not a classification parameter with respect to the dimension of the tested product. If the product meets the test requirements, it should be classified independently from its dimensions. SIST EN 15651-1:2013

Key: 1 substrate 2 sealant Figure 1 – Test specimen SIST EN 15651-1:2013

These characteristics shall be evaluated:  without any ageing, according to EN ISO 8339 or EN ISO 8340,  after ageing, according to EN ISO 9046, EN ISO 9047, EN ISO 10590 or EN ISO 10591 depending on the class of sealants given in Table 2. The sealant performance is determined by classification to Table 2 and this classification will indicate suitable durability of the sealant after ageing. Long-term durability of joints based on such sealants is obtained when they are selected and applied according to the sealant data sheets, taking into account the expected service conditions on site. Sealants are easy to use, ready to use and easy to remove when any unavoidable or unexpected degradation arises. 6 Sampling General requirements for sampling of the sealant shall be as set out in EN 15651-5. 7 Evaluation of conformity 7.1 General The factory production control (FPC) needs to be defined by each sealant manufacturer in order to show compliance to the level of performance indicated in the initial type testing (ITT). 7.2 Initial type testing General requirements for the initial type testing of the sealant shall be as set out in EN 15651-5.
7.3 Factory production control Requirements for the initial type testing of the sealant shall be in accordance with EN 15651-5. An example of suitable frequency of identification and performance tests for FPC is given in Annex A. Frequencies may be increased during initial production or following an incident of non-conformity. Any deviation from this guidance should be justified by documented evidence that demonstrates equivalence. 8 Marking and labelling Requirements for marking and labelling shall be as set out in EN 15651-5. NOTE For CE marking and labelling, ZA.3 applies. SIST EN 15651-1:2013

Example on the frequency of tests for factory production control An example of a suitable frequency of identification and performance tests for factory production control of sealants for façade elements is given in Table A.1. Table A.1 — Ex
...
