EN 1744-8:2012
(Main)Tests for chemical properties of aggregates - Part 8: Sorting test to determine metal content of Municipal Incinerator Bottom Ash (MIBA) Aggregates
Tests for chemical properties of aggregates - Part 8: Sorting test to determine metal content of Municipal Incinerator Bottom Ash (MIBA) Aggregates
This European Standard specifies a simple method for the examination of Municipal Incinerator Bottom Ash (MIBA) Aggregates for the purpose of estimating the relative proportions of metallic constituents.
This European Standard describes the reference methods used for type testing and, in case of dispute, for estimating the relative proportions of aluminium or other metallic constituents of MIBA Aggregates. For other purposes, in particular factory production control, other methods may be used provided that an appropriate working relationship with the reference method has been established.
NOTE MIBA Aggregates can also contain agglomerates which only contain a portion of metal. A supplementary method for preparation of a test portion containing agglomerated particles, using crushing and sieving, is given in Annex A (normative).
Prüfverfahren für chemische Eigenschaften von Gesteinskörnungen - Teil 8: Sortierverfahren zur Bestimmung des Metallgehalts in Hausmüllverbrennungsasche (HMV-Asche)
Diese Europäische Norm legt ein einfaches Verfahren für die Untersuchung von Hausmüllverbrennungsasche (HMV Asche) zu dem Zweck fest, die relativen Anteile metallischer Bestandteile zu bestimmen.
Diese Europäische Norm beschreibt die für die Typprüfung und in Streitfällen anzuwendenden Referenz-verfahren für die Bestimmung der relativen Anteile von Aluminium oder anderen metallischen Bestandteilen in einer Gesteinskörnung aus HMV Asche. Für andere Zwecke, speziell im Rahmen der werkseigenen Produktions¬kontrolle, dürfen andere Verfahren angewendet werden, sofern ein ausreichender Zusammenhang mit dem Referenzverfahren nachgewiesen wurde.
ANMERKUNG Die HMV Asche kann auch Agglomerate enthalten, die nur einen Metallanteil aufweisen. Im (informativen) Anhang A wird ein ergänzendes Verfahren beschrieben, nach dem durch Zerkleinern und Sieben von Proben, die agglomerierte Körner enthalten, eine Bestimmung durchzuführen ist.
Essais pour déterminer les propriétés chimiques des granulats - Partie 8: Essai de comptage des particules métalliques contenues dans les granulats provenant de Mâchefers d'Incinération de Déchets Non Dangereux (MIDND)
La présente norme européenne spécifie une méthode simple d’examen des granulats de mâchefer d’incinération de déchets non dangereux (MIDND) en vue d’estimer les proportions relatives de constituants métalliques.
La présente norme décrit les méthodes de référence utilisées pour les essais de type initiaux et en cas de litige afin d’estimer les proportions relatives d’aluminium et d’autres constituants métalliques dans les granulats de MIDND. Pour les essais de type initiaux et en cas de litige, il convient de n’appliquer que la méthode de référence. À d’autres fins, en particulier pour le contrôle de la production en usine des granulats, d’autres méthodes peuvent être utilisées, à condition qu’il existe une relation entre ces dernières et la méthode de référence.
NOTE Les granulats de MIDND peuvent contenir des particules agglomérées qui contiennent une partie métallique. L’Annexe A (normative) indique une méthode supplémentaire de préparation d’une prise d’essai contenant des particules agglomérées, par broyage et tamisage.
Preskusi kemičnih lastnosti agregatov - 8. del: Metoda razvrščanja za določevanje kovin v pepelu po sežigu gospodinjskih odpadkov
Ta evropski standard določa enostavno metodo pregledovanja agregatov MIBA za ocenjevanje relativnih mer kovinskih sestavnih delov. Ta evropski standard opisuje referenčne metode, ki se uporabljajo za preskušanje tipa in v primeru spora za ugotavljanje relativnih mer aluminijastih ali drugih kovinskih sestavnih delov agregatov MIBA. Za druge namene, zlasti za kontrolo proizvodnje, se lahko uporabijo druge metode, če obstaja primerna delovna povezava z referenčno metodo.
General Information
- Status
- Published
- Publication Date
- 21-Aug-2012
- Withdrawal Date
- 27-Feb-2013
- Technical Committee
- CEN/TC 154 - Aggregates
- Drafting Committee
- CEN/TC 154/SC 6 - Test methods
- Current Stage
- 9060 - Closure of 2 Year Review Enquiry - Review Enquiry
- Start Date
- 02-Dec-2023
- Completion Date
- 02-Dec-2023
Overview
EN 1744-8:2012 is a European standard developed by CEN that specifies a standardized method for determining the metal content in Municipal Incinerator Bottom Ash (MIBA) Aggregates. The standard outlines a sorting test designed to estimate the relative proportions of metallic constituents, such as ferrous and non-ferrous metals, within MIBA aggregates. This method provides a reference approach for type testing and resolving disputes related to metal content measurement. It also supports factory production control when calibrated against the reference procedure.
This standard is essential for professionals involved in recycling, waste management, aggregate testing, and quality control within the construction and environmental industries. The method ensures consistent, accurate estimation of metal fractions, which is critical for optimizing recycling processes and assessing the suitability of MIBA aggregates for various applications.
Key Topics
Scope and Purpose
EN 1744-8:2012 defines a simple, hand-sorting procedure that separates metallic particles in MIBA aggregates into ferrous (magnetic) and non-ferrous (non-magnetic) categories by mass percentage. It also describes a supplementary crushing and sieving method for agglomerated particles to provide more accurate metal content estimation.Sampling and Sample Preparation
- Bulk MIBA samples are reduced to laboratory samples following EN 932 series standards.
- Samples are dried to a constant mass at 110 ± 5 °C and sieved to remove overly large or fine particles.
- Subsamples are further reduced to contain a representative minimum number of particles (usually at least 1,000).
Sorting and Analysis Procedure
- The dried subsample is divided into size fractions (4–16 mm, 16–32 mm, 32–63 mm).
- Metallic particles are manually identified and separated.
- A magnet is used to distinguish ferrous from non-ferrous particles.
- Weighing allows calculation of the percentage of each metallic fraction relative to the total subsample mass.
Calculation and Reporting
- Percentages are calculated by dividing the mass of metallic particles by the mass of the prepared subsample.
- Test reports include sample identification, masses of fractions, and calculated metal proportions.
- Optional details can include particle size distribution and specifics of the sample reduction process.
Supplementary Method (Annex A)
A supplementary procedure involves crushing and sieving agglomerated particles to improve metal separation efficiency when complete separation is difficult.Apparatus Requirements
Specific test sieves, handsorting tools, a laboratory crusher, and a high-strength handheld magnet (pull strength ≥ 60 kg) are among the required equipment.
Applications
Environmental Recycling
Accurate assessment of metals like aluminum and iron in MIBA aggregates is vital for recycling initiatives, helping to recover valuable metals and improve resource recovery rates.Quality Control of Construction Materials
MIBA aggregates are increasingly reused in construction applications (e.g., as filler material or road base). Knowing the metal content ensures compliance with regulations and suitability for intended uses.Compliance Testing and Dispute Resolution
The standardized sorting test serves as a reference method for type testing and resolving disputes concerning metal content in MIBA aggregates, providing legally and technically sound results.Factory Production Control
Facilities producing MIBA aggregates can implement this or equivalent validated sorting methods to monitor and control the quality of their output.
Related Standards
EN 1744-8:2012 is part of a series focusing on tests for chemical properties of aggregates, including:
- EN 1744-1 – Chemical analysis of aggregates
- EN 1744-3 – Preparation of eluates by leaching of aggregates
- EN 1744-4 – Determination of water susceptibility of fillers for bituminous mixtures
- EN 1744-5 – Determination of acid soluble chloride salts
- EN 1744-6 – Influence of recycled aggregate extract on cement setting time
- EN 1744-7 – Determination of loss on ignition of MIBA aggregates
Other related aggregate testing standards include:
- EN 932 series – General properties and sampling of aggregates
- EN 933 series – Geometrical properties and particle size distribution of aggregates
- EN 1097 series – Mechanical and physical properties of aggregates
- EN 1367 series – Thermal and weathering tests for aggregates
Conclusion
EN 1744-8:2012 provides a practical, reliable methodology for determining the metallic content in MIBA aggregates, supporting sustainable recycling and reuse of waste materials. Its clear procedures, backed by recognized European standards, enable consistent laboratory testing and informed decision-making in the aggregate and waste management sectors. Implementing this standard helps organizations measure metal content accurately, ensuring environmental compliance and enhancing the value of recycled industrial by-products.
Frequently Asked Questions
EN 1744-8:2012 is a standard published by the European Committee for Standardization (CEN). Its full title is "Tests for chemical properties of aggregates - Part 8: Sorting test to determine metal content of Municipal Incinerator Bottom Ash (MIBA) Aggregates". This standard covers: This European Standard specifies a simple method for the examination of Municipal Incinerator Bottom Ash (MIBA) Aggregates for the purpose of estimating the relative proportions of metallic constituents. This European Standard describes the reference methods used for type testing and, in case of dispute, for estimating the relative proportions of aluminium or other metallic constituents of MIBA Aggregates. For other purposes, in particular factory production control, other methods may be used provided that an appropriate working relationship with the reference method has been established. NOTE MIBA Aggregates can also contain agglomerates which only contain a portion of metal. A supplementary method for preparation of a test portion containing agglomerated particles, using crushing and sieving, is given in Annex A (normative).
This European Standard specifies a simple method for the examination of Municipal Incinerator Bottom Ash (MIBA) Aggregates for the purpose of estimating the relative proportions of metallic constituents. This European Standard describes the reference methods used for type testing and, in case of dispute, for estimating the relative proportions of aluminium or other metallic constituents of MIBA Aggregates. For other purposes, in particular factory production control, other methods may be used provided that an appropriate working relationship with the reference method has been established. NOTE MIBA Aggregates can also contain agglomerates which only contain a portion of metal. A supplementary method for preparation of a test portion containing agglomerated particles, using crushing and sieving, is given in Annex A (normative).
EN 1744-8:2012 is classified under the following ICS (International Classification for Standards) categories: 13.030.50 - Recycling. The ICS classification helps identify the subject area and facilitates finding related standards.
EN 1744-8:2012 is associated with the following European legislation: Standardization Mandates: M/125. When a standard is cited in the Official Journal of the European Union, products manufactured in conformity with it benefit from a presumption of conformity with the essential requirements of the corresponding EU directive or regulation.
You can purchase EN 1744-8:2012 directly from iTeh Standards. The document is available in PDF format and is delivered instantly after payment. Add the standard to your cart and complete the secure checkout process. iTeh Standards is an authorized distributor of CEN standards.

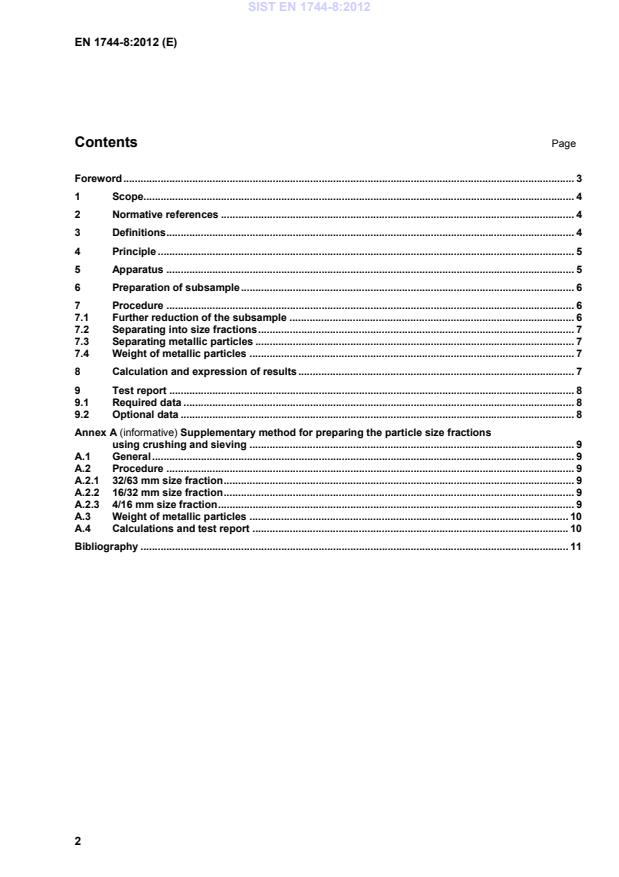

Standards Content (Sample)
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.Prüfverfahren für chemische Eigenschaften von Gesteinskörnungen - Teil 8: Sortierverfahren zur Bestimmung des Metallgehalts in Hausmüllverbrennungsasche (HMV-Asche)Tests sur les propriétés chimiques des granulats - Partie 8: Essai de comptage des particules métalliques contenues dans les granulats provenant de mâchefers issus d'incinérateurs municipauxTests for chemical properties of aggregates - Part 8: Sorting test to determine metal content of Municipal Incinerator Bottom Ash (MIBA) Aggregates91.100.15Mineralni materiali in izdelkiMineral materials and products13.030.50RecikliranjeRecyclingICS:Ta slovenski standard je istoveten z:EN 1744-8:2012SIST EN 1744-8:2012en,fr,de01-december-2012SIST EN 1744-8:2012SLOVENSKI
STANDARD
EUROPEAN STANDARD NORME EUROPÉENNE EUROPÄISCHE NORM
EN 1744-8
August 2012 ICS 13.030.50 English Version
Tests for chemical properties of aggregates - Part 8: Sorting test to determine metal content of Municipal Incinerator Bottom Ash (MIBA) Aggregates
Tests sur les propriétés chimiques des granulats - Partie 8: Essai de comptage des particules métalliques contenues dans les granulats provenant de mâchefers issus d'incinérateurs municipaux
Prüfverfahren für chemische Eigenschaften von Gesteinskörnungen - Teil 8: Sortierverfahren zur Bestimmung des Metallgehalts in Hausmüllverbrennungsasche (HMV-Asche) This European Standard was approved by CEN on 13 July 2012.
CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this European Standard the status of a national standard without any alteration. Up-to-date lists and bibliographical references concerning such national standards may be obtained on application to the CEN-CENELEC Management Centre or to any CEN member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by translation under the responsibility of a CEN member into its own language and notified to the CEN-CENELEC Management Centre has the same status as the official versions.
CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia, Finland, Former Yugoslav Republic of Macedonia, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland, Turkey and United Kingdom.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION EUROPÄISCHES KOMITEE FÜR NORMUNG
Management Centre:
Avenue Marnix 17,
B-1000 Brussels © 2012 CEN All rights of exploitation in any form and by any means reserved worldwide for CEN national Members. Ref. No. EN 1744-8:2012: ESIST EN 1744-8:2012
1 Scope This European Standard specifies a simple method for the examination of Municipal Incinerator Bottom Ash (MIBA) Aggregates for the purpose of estimating the relative proportions of metallic constituents.
This European Standard describes the reference methods used for type testing and, in case of dispute, for estimating the relative proportions of aluminium or other metallic constituents of MIBA Aggregates. For other purposes, in particular factory production control, other methods may be used provided that an appropriate working relationship with the reference method has been established.
NOTE MIBA Aggregates can also contain agglomerates which only contain a portion of metal. A supplementary method for preparation of a test portion containing agglomerated particles, using crushing and sieving, is given in Annex A (normative).
2 Normative references The following documents, in whole or in part, are normatively referenced in this document and are indispensable for its application. For dated references, only the edition cited applies. For undated references, the latest edition of the referenced document (including any amendments) applies. EN 932-1, Test for general properties of aggregates — Part 1: Methods for sampling EN 932-2, Test for general properties of aggregates — Part 2: Methods for reducing laboratory samples EN 932-5, Test for general properties of aggregates — Part 5: Common equipment and calibration EN 933-1, Test for geometrical properties of aggregates — Part 1: Determination of particle size distribution — Sieving method EN 933-2, Test for geometrical properties of aggregates — Pa
...
