EN 14528:2015

2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.Bideji - Funkcionalne zahteve in preskusne metodeSitzwaschbecken - Funktionsanforderungen und PrüfverfahrenBidets - Exigences fonctionnelles et méthodes d'essaiBidets - Functional requirements and test methods91.140.70Sanitarne napraveSanitary installationsICS:Ta slovenski standard je istoveten z:EN 14528:2015SIST EN 14528:2015en,fr,de01-oktober-2015SIST EN 14528:2015SLOVENSKI
STANDARDSIST EN 14528:20071DGRPHãþD

EUROPEAN STANDARD NORME EUROPÉENNE EUROPÄISCHE NORM
EN 14528
July 2015 ICS 91.140.70 Supersedes EN 14528:2007English Version
Bidets - Functional requirements and test methods
Bidets - Exigences fonctionnelles et méthodes d'essai
Sitzwaschbecken - Funktionsanforderungen und Prüfverfahren This European Standard was approved by CEN on 19 June 2015.
CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this European Standard the status of a national standard without any alteration. Up-to-date lists and bibliographical references concerning such national standards may be obtained on application to the CEN-CENELEC Management Centre or to any CEN member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by translation under the responsibility of a CEN member into its own language and notified to the CEN-CENELEC Management Centre has the same status as the official versions.
CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia, Finland, Former Yugoslav Republic of Macedonia, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland, Turkey and United Kingdom.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION EUROPÄISCHES KOMITEE FÜR NORMUNG
CEN-CENELEC Management Centre:
Avenue Marnix 17,
B-1000 Brussels © 2015 CEN All rights of exploitation in any form and by any means reserved worldwide for CEN national Members. Ref. No. EN 14528:2015 ESIST EN 14528:2015

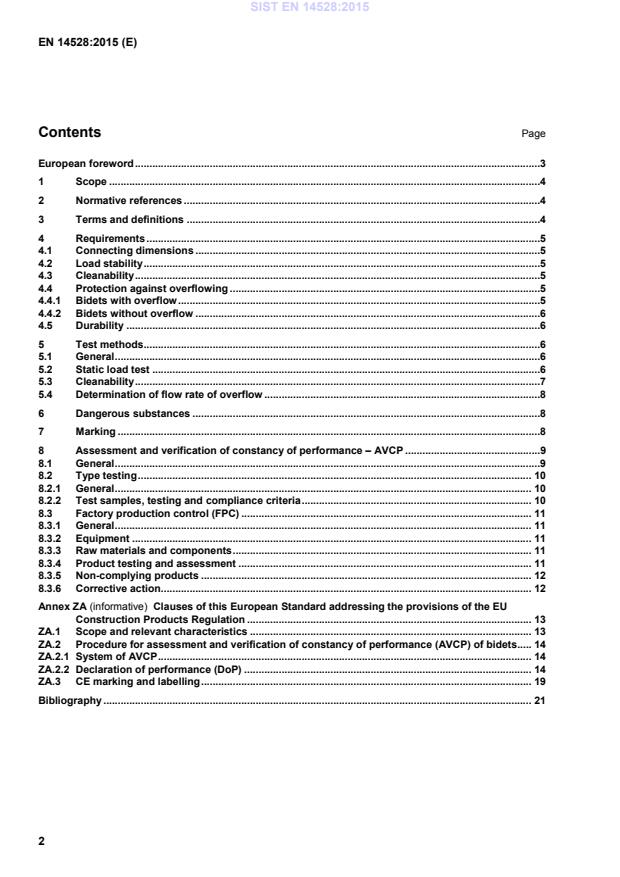

Clauses of this European Standard addressing the provisions of the EU Construction Products Regulation . 13 ZA.1 Scope and relevant characteristics . 13 ZA.2 Procedure for assessment and verification of constancy of performance (AVCP) of bidets. 14 ZA.2.1 System of AVCP . 14 ZA.2.2 Declaration of performance (DoP) . 14 ZA.3 CE marking and labelling . 19 Bibliography . 21
Figure 1 — Wall-hung bidet
Figure 2 — Pedestal bidet SIST EN 14528:2015

4.4.2 Bidets without overflow A bidet with a non-closable outlet or a floor gully may also be used as a protection against overflowing. In this case the bidet is related to Class CL 00. 4.5 Durability Products conforming to the requirements of 4.2 to 4.4 are deemed to be durable. 5 Test methods 5.1 General All tests shall be carried out on the same sample bidet. Install the bidet to be tested on a firm flat horizontal or vertical surface as appropriate with a layer of mortar or other material to accommodate any unevenness. 5.2 Static load test — The bidet shall be fixed in accordance with the manufacturer's instruction onto a smooth surface with a layer of mortar or other facing material used for pointing between the back of the bidet and the smooth surface. — Gradually apply a force of (4,00 ± 0,1) kN on top of a wooden beam with a cross section of 100 mm × 100 mm positioned across the geometric centre of the bowl of the bidet parallel to the wall (see Figure 3). Allow the force to remain in position for a period of 1 h. — Record any failure to comply with 4.2. Any distortion at the points of direct loading shall not constitute a failure. SIST EN 14528:2015

a) Testing the wall-hung bidets – Lateral view b) Testing the wall-hung bidets – Upper view
c) Testing the pedestal bidets – Lateral view d) Testing the pedestal bidets – Upper view Key 1 load (4,0 ± 0,1) kN 2 wooden beam with cross-section 100 mm x 100 mm of adequate length 3 compensation layer 4 wall or floor 5 threaded rod, nut and flexible washer (maximum torque 5 Nm) 6 geometric centre of bowl Figure 3 — Load test 5.3 Cleanability — Visually examine the functional surfaces of the bidets using a suitable light source. — Record any failure to comply with 4.3. SIST EN 14528:2015

25 for ≥ 0,25 l/s flow rate
20 for ≥ 0,20 l/s flow rate
15 for ≥ 0,15 l/s flow rate
00 for without integral overflow OF Overflow CA Cleanability LR Load resistance (for wall-hung wash basins only) DA Durability All bidets shall be designated in accordance with the following system: Overflow class Number of standard
EN 14528
—
CL 25 (20, 15 or 00)
OF – CA – LR - DA Overflow
Cleanability Load resistance Durability
The second line of the designation code can be omitted when those characteristics are fulfilled. EXAMPLE 4 Class 25 bidet, i.e. bidet with an overflow providing a flow rate of 0,25 l/s. All essential characteristics specified for these products in accordance with Annex ZA are satisfied. EN 14528 — CL 25 8 Assessment and verification of constancy of performance – AVCP 8.1 General The compliance of bidets with the requirements of this standard and with the performances declared by the manufacturer in the DoP shall be demonstrated by: — determination of the product type (see 8.2); — factory production control by the manufacturer (FPC), including product assessment (see 8.3). The manufacturer shall always retain the overall control and shall have the necessary means to take responsibility for the conformity of the product with its declared performance(s). SIST EN 14528:2015
...
