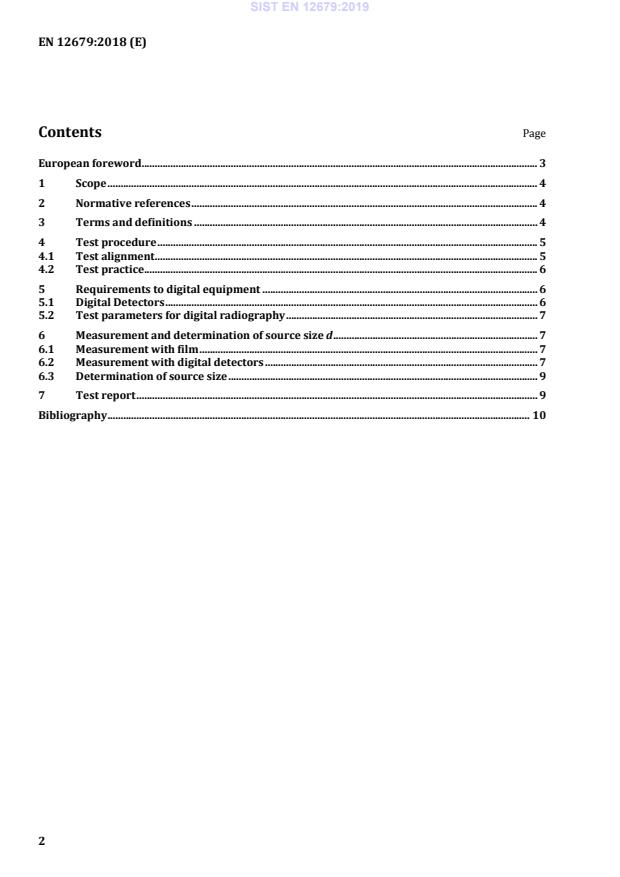

Contents Page
European foreword . 3
1 Scope . 4
2 Normative references . 4
3 Terms and definitions . 4
4 Test procedure . 5
4.1 Test alignment . 5
4.2 Test practice . 6
5 Requirements to digital equipment . 6
5.1 Digital Detectors . 6
5.2 Test parameters for digital radiography . 7
6 Measurement and determination of source size d . 7
6.1 Measurement with film . 7
6.2 Measurement with digital detectors . 7
6.3 Determination of source size . 9
7 Test report . 9
Bibliography . 10
European foreword
This document (EN 12679:2018) has been prepared by Technical Committee CEN/TC 138 “Non-
destructive testing”, the secretariat of which is held by AFNOR.
This European Standard shall be given the status of a national standard, either by publication of an
identical text or by endorsement, at the latest by April 2019, and conflicting national standards shall be
withdrawn at the latest by April 2019.
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. CEN shall not be held responsible for identifying any or all such patent rights.
This document supersedes EN 12679:1999.
In the framework of its scope, Technical Committee CEN/TC 138 entrusted CEN/TC 138/WG 1
“Radiographic testing” with preparing the following standard:
EN 12679, Non-destructive testing — Radiographic testing — Determination of the size of industrial
radiographic gamma sources.
According to the CEN-CENELEC Internal Regulations, the national standards organisations of the
following countries are bound to implement this European Standard: Austria, Belgium, Bulgaria,
Croatia, Cyprus, Czech Republic, Denmark, Estonia, Finland, Former Yugoslav Republic of Macedonia,
France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta,
Netherlands, Norway, Poland, Portugal, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland,
Turkey and the United Kingdom.
1 Scope
This document specifies the determination of the size of gamma radiographic sources of 0,5 mm or
greater, made from the radionuclides Iridium 192, Ytterbium 169, Selenium 75 or Cobalt 60, by a
method of radiography with X-rays. The source size of a gamma radiography source is an important
factor which affects the image quality of gamma ray images.
The source size is determined with an accuracy of ± 10 % but typically not better than ± 0,1 mm.
The source size is provided by the manufacturer as the mechanical dimension of the source insert. A
measurement may be required if the manufacturing process is validated or monitored after
implementation of the source into the holder.
This document can be used for other radionuclides after validation.
The standard test method ASTM E1114 provides further information on the measurement of the Ir-192
source size, the characterization of the source shape, and its correct assembly and packaging.
2 Normative references
The following documents are referred to in the text in such a way that some or all of their content
constitutes requirements of this document. For dated references, only the edition cited applies. For
undated references, the latest edition of the referenced document (including any amendments) applies.
EN ISO 19232-5, Non-destructive testing — Image quality of radiographs — Part 5: Determination of the
image unsharpness value using duplex wire-type image quality indicators (ISO 19232-5)
ISO 16371-1, Non-destructive testing — Industrial computed radiography with storage phosphor imaging
plates — Part 1: Classification of systems
ASTM E2002 - 15, Standard Practice for Determining Total Image Unsharpness and Basic Spatial
Resolution in Radiography and Radioscopy
ASTM E2597M - 14, Standard Practice for Manufacturing Characterization of Digital Detector Arrays
3 Terms and definitions
For the purposes of this document, the following terms and definitions apply.
ISO and IEC maintain terminological databases for use in standardization at the following addresses:
• IEC Electropedia: available at http://www.electropedia.org/
• ISO Online browsing platform: available at http://www.iso.org/obp
3.1
source size
d
maximum
...
