EN 1459:1998+A2:2010

2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.Sicherheit von Flurförderzeugen - Kraftbetriebene Stapler mit veränderlicher ReichweiteSécurité des chariots de manutention - Chariots automoteurs à portée variableSafety of industrial trucks - Self-propelled variable reach trucks53.060Industrijski tovornjakiIndustrial trucksICS:Ta slovenski standard je istoveten z:EN 1459:1998+A2:2010SIST EN 1459:1999+A2:2010en,fr,de01-junij-2010SIST EN 1459:1999+A2:2010SLOVENSKI
STANDARDSIST EN 1459:1999/AC:2007SIST EN 1459:1999/A1:2007SIST EN 1459:19991DGRPHãþD

EUROPEAN STANDARD NORME EUROPÉENNE EUROPÄISCHE NORM
EN 1459:1998+A2
January 2010 ICS 53.060 Supersedes EN 1459:1998 English Version
Safety of industrial trucks - Self-propelled variable reach trucks Sécurité des chariots de manutention - Chariots automoteurs à portée variable
Sicherheit von Flurförderzeugen - Kraftbetriebene Stapler mit veränderlicher Reichweite This European Standard was approved by CEN on 27 November 1998 and includes Corrigendum 1 issued by CEN on 27 September 2006, Amendment 1 approved by CEN on 27 July 2006 and Amendment 2 approved by CEN on 19 October 2009.
CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this European Standard the status of a national standard without any alteration. Up-to-date lists and bibliographical references concerning such national standards may be obtained on application to the CEN Management Centre or to any CEN member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by translation under the responsibility of a CEN member into its own language and notified to the CEN Management Centre has the same status as the official versions.
CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland and United Kingdom.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION EUROPÄISCHES KOMITEE FÜR NORMUNG
Management Centre:
Avenue Marnix 17,
B-1000 Brussels © 2010 CEN All rights of exploitation in any form and by any means reserved worldwide for CEN national Members. Ref. No. EN 1459:1998+A2:2010: ESIST EN 1459:1999+A2:2010

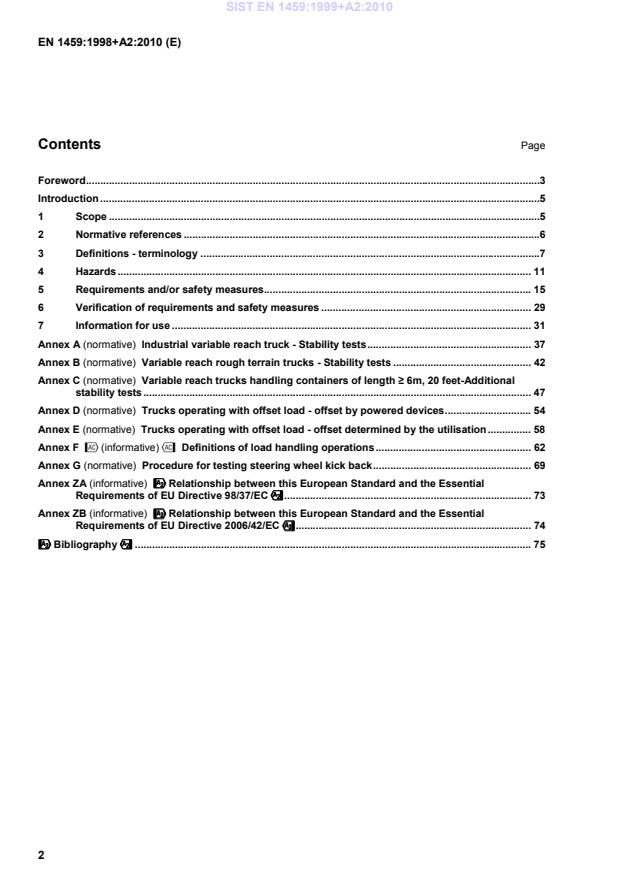

Industrial variable reach truck - Stability tests . 37Annex B (normative)
Variable reach rough terrain trucks - Stability tests . 42Annex C (normative)
Variable reach trucks handling containers of length ≥ 6m, 20 feet-Additional stability tests . 47Annex D (normative)
Trucks operating with offset load - offset by powered devices . 54Annex E (normative)
Trucks operating with offset load - offset determined by the utilisation . 58Annex F ˜(informative)™
Definitions of load handling operations . 62Annex G (normative)
Procedure for testing steering wheel kick back . 69Annex ZA (informative)
####Relationship between this European Standard and the Essential Requirements of EU Directive 98/37/EC$$$$ . 73Annex ZB (informative)
####Relationship between this European Standard and the Essential Requirements of EU Directive 2006/42/EC$$$$ . 74####Bibliography$$$$ . 75 SIST EN 1459:1999+A2:2010

!" and # $. The modifications of the related CEN Corrigendum have been implemented at the appropriate places in the text and are indicated by the tags ˜ ™. This European Standard has been prepared under a mandate given to CEN by the European Commission and the European Free Trade Association, and supports essential requirements of EU Directive(s). #For relationship with EU Directive(s), see informative Annexes ZA and ZB, which are integral parts of this document.$ This European Standard is one of a series of European Standards for the safety of Industrial trucks. The complete series is as follows: EN 1726
Safety of Industrial trucks Self propelled trucks up to and including 10,000 kg capacity and tractors with a drawbar pull up to and including 20,000 N. EN 1726-1
Part 1: General requirements EN 1726-2 Part 2: Additional requirements for trucks with elevating operator positions and trucks specifically designed to travel with elevated loads. EN 1551
Safety of Industrial trucks Self propelled trucks over 10,000 kg capacity EN 1459
Safety of Industrial trucks Self propelled variable reach trucks EN 1757
Safety of Industrial trucks Pedestrian propelled trucks EN 1757-1
Part 1: Stacker trucks EN 1757-2
Part 2: Pallet trucks EN 1757-3
Part 3: Platform trucks SIST EN 1459:1999+A2:2010

Part 4: Scissor lift pallet trucks EN 1525
Safety of Industrial trucks Driverless trucks and their systems EN 1175
Safety of Industrial trucks Electrical requirements
EN 1175-1
Part 1: General requirements for battery powered trucks EN 1175-2
Part 2: General requirements for internal combustion engine powered trucks EN 1175-3 Part 3: Specific requirements for the electrical power transmission systems of internal combustion engine powered trucks EN 1526
Safety of Industrial trucks Additional requirements for automated functions on trucks EN 1755
Safety of Industrial trucks Operation in potentially explosive atmospheres: use in flammable gas, vapour mist and dust EN 12053
Safety of Industrial trucks Test methods for measuring noise emissions EN 13564
Safety of Industrial trucks Test methods for measuring visibility from self propelled trucks EN 13059
Safety of Industrial trucks Test methods for measuring vibration EN 12895
Safety of Industrial trucks Electromagnetic compatibility According to the CEN/CENELEC Internal Regulations, the national standards organizations of the following countries are bound to implement this European Standard: Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland and United Kingdom.
1. Vertical Pivoting axis Figure 1
Figure 2 — Parameters for the designation of the rated capacity of the truck 3.2 standard lift height height “H” from the ground to the upper face of the fork blades or to the underside of the load. The standard heights are as follows: H = 3,3 m for trucks with capacities of 10 000 kg or less H = 5,0 m for trucks with capacities of 10 000 kg 3.3 standard load centre distance distance “D” in mm from the centre of gravity “G” of the load measured horizontally to the front face of the fork shanks and vertically to the upper face of the fork blades as specified in table 1. SIST EN 1459:1999+A2:2010

Rated Standard load centre distance D (in mm) load Q (in Kg) 400 500 600 900 1200 1500
<
1 000 X + +
≥
1 000 <
5 000
X +
≥
5 000 ≤ 10 000
X
> 10 000 < 20 000
X X X
≥ 20 000 < 25 000
X X
≥ 25 000
X X NOTE The standard load centre distances D are designated by X.
The load centre distances designated by + are optional.
Trucks may be rated for special applications with load centres related to those applications. 3.4 nominal reach (d) between two vertical parallel planes, one plane is tangent to the front of the outside diameter of the front tyres. The other plane is tangent to the curve described by ‘g’ moving from position ‘H’ to its lowest position. Point ‘g’ is the vertical projection of the centre of gravity ‘G’ onto the plane of the top surface of the fork arm blades 3.5 actual capacity of truck maximum load in kg (depending on lift height “H”, attachment, load centre distance and maximum reach), permitted by the manufacturer, taking into account the stability test results, which the truck is capable of transporting or lifting under specific conditions 3.6 rated capacity of removable attachments maximum load in kg that the attachment is permitted by its manufacturer to handle in normal operation under specified conditions 3.7 axle locking mechanism designed to stop oscillation of the rear axle for improving truck stability during stacking and destacking operations 3.8 stabiliser extendible mechanical supports used to improve stability of a stationary truck 3.9 lateral levelling changing the angular relationship between the chassis and the load axle normally in order to adjust the chassis to horizontal when the truck is standing on a side slope and to ensure the boom operates in a vertical plane 3.10 forks a device including two or more solid fork arms (hook-mounted or shaft mounted) which is fitted on the carriage and usually spread manually 3.11 fork extensions devices fitted over the forks to increase their length SIST EN 1459:1999+A2:2010

4.1 Mechanical hazards
4.1.1 Crushing, shearing or entanglement
4.1.1.1 With truck lifting mechanism 5.6.5 Protection at operator position 4.1.1.2 Within attachment mechanism 5.6.5 Protection on attachment 4.1.1.3 Between truck and obstacles 5.6.1 Operator position : dimensions 4.1.1.4 Between truck and road wheels 5.6.3 Protection from road wheels 4.1.1.5 Within engine compartment 5.4.4 Lockable engine access 4.1.2 Impact by collision
4.1.2.1 When truck is being driven 5.2 Service brakes
5.3.1 Travel controls
5.3.2 Steering controls
5.4.5 Pressure vessel design
5.8.3 Audible warnings
5.5.7.6 Visibility through attachment
5.9 Visibility through operator position
5.10.1.5 Visibility through cab windows
4.1.2.2 When truck is unattended 5.1.2.1 Parking brake 4.1.2.3 Due to mechanical failure 5.2 Brake control system 4.1.3 Impact from falling objects
4.1.3.1 Due to mechanical failure 5.5.1 Lift chains and wire ropes
6 Structural type test
4.1.3.2 Due to unintended load carrier
5.3.3 Load handling control
movement 5.5.2 Lift system leakage
5.5.3.3 Non-return device
4.1.3.3 Due to failure or unintended movement
5.5.4 Fork arms
of fork arms or extensions 5.5.5 Fork extensions
4.1.3.4 Due to unintended movement of load
5.5.5 Fork extensions : retention
handling means 5.5.6 Fork carrier stops
5.5.7.1 Attachment : retention
5.5.7.3 Attachment : fastening device
Hazards Corresponding requirements
4.1.3.5 Due to unstable or insecure loads 5.5.7.2 Load clamping device
5.5.7.7 Spreader twistlock interlock
5.5.8 Load stability
5.8.1 Overhead guard
5.8.2 Protective structure
5.10.1.1/2/3 Cab structure
4.1.3.6 When lifting or transporting the truck 5.10.2 Protection during transport 4.1.4 High pressure hazard
4.1.4.1 Due to hydraulic hose failure 5.5.3.1 Hose burst pressure 4.1.4.2 Due to excessive hydraulic pressure 5.5.3.2 Pressure relief valve
4.1.5 Material ejection from road wheels 5.6.3 Protection from road wheels 4.1.6 Slip, trip, fall
4.1.6.1 During access to operator position 5.6.2 Operator access 4.2 Electrical hazards from contact 5.4.6 Electrical requirements 4.3 Thermal hazards for the operator 5.6.4 Protection from burning
5.10.1.1 Protection from cab heater 4.4 Noise hazards
4.4.1 Hearing loss for the operator 5.10.3.1 Operator noise limitation 4.4.2 Interference with communication 5.10.3.1 Environmental noise limitation 4.5 Vibration hazards 5.6.1 Seat
5.10.3.2 Vibration 4.6 Hazards generated by radiation
Not applicable 4.7 Hazards due to substances
4.7.1 Inhalation of engine exhaust emission 5.4.1 Exhaust port arrangement
4.7.2 Fire or explosion
4.7.2.1 From engine fuel systems 5.4.3 Fuel tanks
5.4.5 LPG requirements 4.7.2.2 From battery electrolyte 5.4.6 Electro technical requirements 4.7.2.3 In hazardous atmospheres 7.1 Instructions for use 4.8 Hazards due to neglect of ergonomic principles
4.8.1 Unhealthy postures 3.21 Definition of normal driving position:
5.6.1 Seat adjustment
5.8.1 Overhead guard : Headroom
5.8.2 Protective structure : Headroom
5.10.1.2 Cab headroom 4.8.2 Inadequate local lighting 5.9.2 Truck lighting 4.8.3 Stress due to operator discomfort 5.4.2 Engine cooling : Air flow
5.10.1.4 Cab : ventilation 4.8.4 Human error
4.8.4.1 During truck operation 5.3 Controls
Annex F Symbols 4.8.4.2 Prior to initial use 6.2 Functional test
7.1 Instruction handbook 4.9 Hazard combinations
Hazards Corresponding requirements
4.10 Hazards due to functional disorders
4.10.1 Hydraulic failure causing load to drop 5.5.3.3 Truck hydraulic system
4.10.2 Control disorder causing uncontrollable movement 5.5.7.4/5 Attachment hydraulic system 4.10.3 Unexpected start-up
4.10.3.1 When truck is unattended 5.1.2.1 Parking brake 4.10.3.2 Due to unauthorised use 5.1.1 Key switch 4.10.3.3 Due to unintended traction 5.1.2.2 Neutral start switch
5.1.2.3/4 Direction and accelerator control
5.1.2.5 Seat or pedal switches 4.10.4 Overturn of truck 5.4.6 Electro technical requirements 4.10.4.1 During truck operation 5.6.6 Safety belt
5.7 Stability tests
5.8.2 Protective structure
5.8.4 Longitudinal stability indicator
5.10.1.6 Cabs : emergency exit 4.10.4.2 When load handling 5.3.4 Other controls
5.5.2 Load lowering speed
7.2.2 Capacity plate 4.10.4.3 When truck is unattended 5.5.2 Hydraulic tilt leakage
4.10.5 Failure of control response 5.5.3.1 Hydraulic burst pressure 4.11 Hazards due to missing or incorrectly positioned safety means
Hazards due to mobility The whole of article 5 4.12 Inadequate lighting of moving/work area 5.9.2 Auxiliary lights 4.13 Hazards due to sudden movement, 5.1 Start up and travel
instability etc. during handling 5.2 Brakes
5.7 Stability - annexes A to E
5.8.1 Overhead guard - ROPS - FOPS
5.10 Environment condition
5.2 ˜6.2 Functionality Structural test™
7.1 Instruction handbook 4.14 Inadequate/in ergonomic design of 5.3 Controls
driving position 5.10 Environmental conditions
4.14.1 Hazards due to dangerous 5.4.5.3 Equipment
environments (contact with moving 5.6.3 Protection from road wheels
parts, exhaust gases etc.) 5.6.4 Protection from burning
5,6.5 Protection of the operator against crushing, 4.14.2 Inadequate visibility from drivers/
shearing and trapping
operators position 5.9 Visibility ˜deleted text™
4.14.3 Inadequate seat/seating (seat index 5.61 Seat
point)
Hazards Corresponding requirements
4.14.4 Inadequate ergonomic/design/ 5.1 Start up and travel
positioning of controls 5.3 Controls
4.14.5 -starting/moving of self propelled 5.1.2 Protection against unintended movement
machinery 5.1.2.5 Transmission isolation
4.14.6 - road traffic of self propelled
Not covered in this standard
machinery
4.14.7 - movement of pedestrian controlled
Not applicable
machinery
4.15 Mechanical hazards
4.15.1 Hazards to exposed persons due to 5.1 Start up and travel
uncontrolled movement
4.15.2 Hazards due to break-up and/or
5.5.3.1 Hydraulic circuit
ejection of parts 5.5.3.3 Failure of energy supply or hydraulic circuit
4.15.3 Hazards due to rolling over (deflection limiting volume; DLV) 5.8.2 Protection against falling objects and overturning
4.15.4 Hazards due to falling objects (DLV) 5.5.7 Load handling attachment
5.8.1 Overhead guard
5.10.1 Operators cab
5.10.2 Protection during transporting, loading and
unloading
7.1 Instruction handbook
4.15.5 Inadequate means of access 5.6.2 Operator access
4.15.6 Hazards caused due to towing,
7.1 Instruction handbook
coupling, connecting, transmission etc.
4.15.7 Hazards due to batteries, fire,
5.1.2.4 Battery powered trucks
emissions etc. 5.4.1/5.4.2Exhaust and cooling systems
5.4.3 Fuel tanks
5.4.5.1 Containers
5.4.5.2 LPG piping
7.1 Instruction handbook Hazards due to lifting Whole clause 5 4.16.1 Lack of stability 5.7 Stability
7.1 Instruction handbook
Annexes A to E 4.16.2 Derailment of machinery
4.16.3 Loss of mechanical strength of
5.5.1.1 Chains
machinery and lifting accessories 5.5.1.2 Ropes
5.5.2 Hydraulic lifting system
6.1.1 Static loading
Hazards Corresponding requirements
4.16.4 Hazards caused by uncontrolled 5.1 Start up and travel
movement 5.2 Brakes
5.3 Controls
5.5.2.1 Load handling
5.5.2.2 Max load lowering speed
5.5.2.3 Limitation of stroke
5.5.3.2 Pressure relief valve
5.5.7 Load handling attachment 4.17 Inadequate view of trajectories of the 5.9 Visibility
moving parts
Annex G 4.18 Hazards caused by lighting
Not applicable 4.19 Hazards due to loading/unloading 5.5.1.1 Chains
5.5.1.2 Ropes
5.5.2 Hydraulic lifting systems
5.5.3.2 Pressure relief valves
5.5.3.3 Failure of energy supply
5.5.7 Load handling attachment
5.8.4 Longitudinal stability indicator
5.8.5 Loading control
6.1.1 Proof testing
7.1 Instruction handbook
5 Requirements and/or safety measures 5.1 Start-up and travel 5.1.1 Protection against unintended use.
