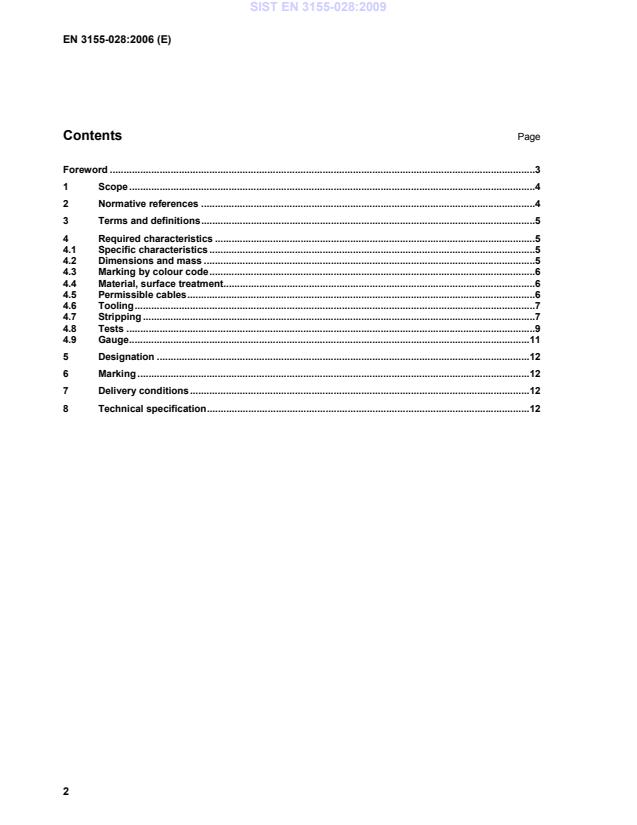

Contents Page
Foreword .3
1 Scope.4
2 Normative references.4
3 Terms and definitions.5
4 Required characteristics.5
4.1 Specific characteristics.5
4.2 Dimensions and mass .5
4.3 Marking by colour code.6
4.4 Material, surface treatment.6
4.5 Permissible cables.6
4.6 Tooling.7
4.7 Stripping.7
4.8 Tests.9
4.9 Gauge.11
5 Designation.12
6 Marking.12
7 Delivery conditions.12
8 Technical specification.12

Foreword
This European Standard (EN 3155-028:2006) has been prepared by the European Association of Aerospace
Manufacturers - Standardization (AECMA-STAN).
After enquiries and votes carried out in accordance with the rules of this Association, this Standard has
received the approval of the National Associations and the Official Services of the member countries of
AECMA, prior to its presentation to CEN.
This European Standard shall be given the status of a national standard, either by publication of an identical
text or by endorsement, at the latest by November 2006, and conflicting national standards shall be withdrawn
at the latest by November 2006.
Attention is drawn to the possibility that some of the elements of this document may be the subject of patent
rights. CEN [and/or CENELEC] shall not be held responsible for identifying any or all such patent rights.
According to the CEN/CENELEC Internal Regulations, the national standards organizations of the following
countries are bound to implement this European Standard: Austria, Belgium, Cyprus, Czech Republic,
Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania,
Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Romania, Slovakia, Slovenia, Spain, Sweden,
Switzerland and the United Kingdom.
1 Scope
This standard specifies the required characteristics, tests and tooling applicable to male electrical coaxial
contacts, shielded, size 16, type D, crimp, class R, used in elements of connection according to EN 3155-002.
It shall be used together with EN 3155-001.
The associated female contacts are defined in EN 3155-029 and EN 3155-039.
2 Normative references
The following referenced documents are indispensable for the application of this document. For dated
references, only the edition cited applies. For undated references, the latest edition of the referenced
document (including any amendments) applies.
EN 2083, Aerospace series — Copper or copper alloy conductors for electrical cables — Product standard.
*
EN 2591 , Aerospace series — Elements of electrical and optical connection — Test methods.
EN 3155-001, Aerospace series — Electrical contacts used in elements of connection — Part 001: Technical
1)
specification.
EN 3155-002, Aerospace series — Electrical contacts used in elements of connection — Part 002: List and
utilization of contacts.
EN 3155-029, Aerospace series — Electrical contacts used in elements of connection — Part 029: Contacts,
electrical, coaxial, shielded, size 16, female, type D, crimp, class R — Product standard.
EN 3155-039, Aerospace series — Electrical contacts used in elements of connection — Part 039: Contacts,
electrical, coaxial, size 16, female, type D, solder, class R — Product standard.
EN 3682-001, Aerospace series — Connectors, plug and receptacle, electrical, rectangular, interchangeable
insert type, rack to panel, operating temperature 150 °C continuous — Part 001: Technical specification.
EN 4008-015, Aerospace series — Elements of electrical and optical connection — Crimping tools and
1)
associated accessories — Part 015: Positioner for crimping tool M22520/
...
