CEN ISO/TR 20880:2007

SLOVENSKI STANDARD
01-maj-2007
Obutev - Zahtevane lastnosti za sestavne dele obutve - Zunanji podplati (ISO/TR
20880:2007)
Footwear - Performance requirements for components for footwear - Outsoles (ISO/TR
20880:2007)
Schuhe - Anforderungen an das Gebrauchsverhalten von Schuhbestandteilen -
Laufsohlen (ISO/TR 20880:2007)
Chaussures - Exigences de performance pour les composants des chaussures -
Semelles d'usure (ISO/TR 20880:2007)
Ta slovenski standard je istoveten z: CEN ISO/TR 20880:2007
ICS:
61.060 Obuvala Footwear
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

TECHNICAL REPORT
CEN ISO/TR 20880
RAPPORT TECHNIQUE
TECHNISCHER BERICHT
February 2007
ICS 61.060
English Version
Footwear - Performance requirements for components for
footwear - Outsoles (ISO/TR 20880:2007)
Chaussures - Exigences de performance pour les Schuhe - Anforderungen an das Gebrauchsverhalten von
composants des chaussures - Semelles d'usure (ISO/TR Schuhbestandteilen - Laufsohlen (ISO/TR 20880:2007)
20880:2007)
This Technical Report was approved by CEN on 21 August 2006. It has been drawn up by the Technical Committee CEN/TC 309.
CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Cyprus, Czech Republic, Denmark, Estonia, Finland,
France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal,
Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland and United Kingdom.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION
EUROPÄISCHES KOMITEE FÜR NORMUNG
Management Centre: rue de Stassart, 36  B-1050 Brussels
© 2007 CEN All rights of exploitation in any form and by any means reserved Ref. No. CEN ISO/TR 20880:2007: E
worldwide for CEN national Members.

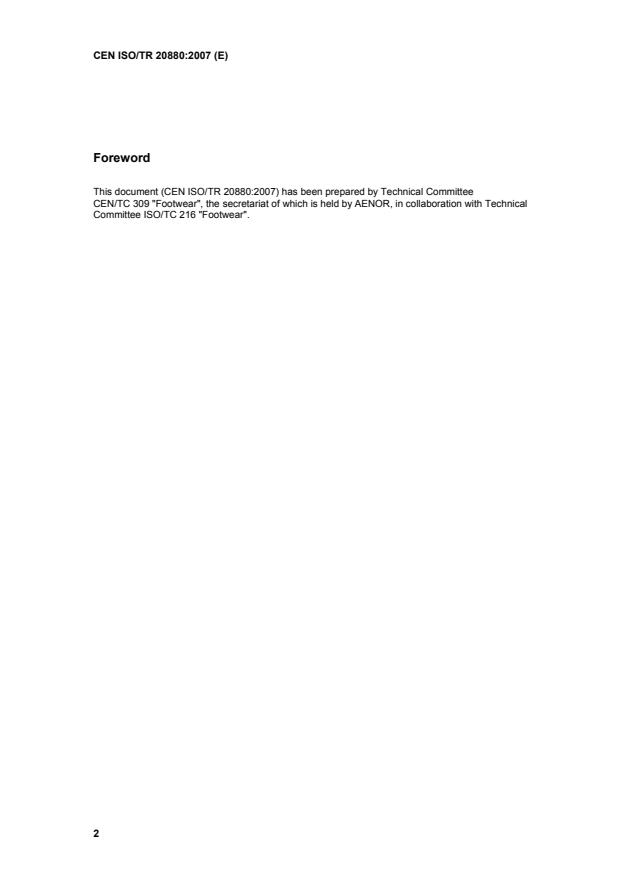

Foreword
This document (CEN ISO/TR 20880:2007) has been prepared by Technical Committee
CEN/TC 309 "Footwear", the secretariat of which is held by AENOR, in collaboration with Technical
Committee ISO/TC 216 "Footwear".

TECHNICAL ISO/TR
REPORT 20880
First edition
2007-02-15
Footwear — Performance requirements
for components for footwear — Outsoles
Chaussures — Exigences de performance pour les composants des
chaussures — Semelles d'usure
Reference number
ISO/TR 20880:2007(E)
©
ISO 2007
ISO/TR 20880:2007(E)
PDF disclaimer
This PDF file may contain embedded typefaces. In accordance with Adobe's licensing policy, this file may be printed or viewed but
shall not be edited unless the typefaces which are embedded are licensed to and installed on the computer performing the editing. In
downloading this file, parties accept therein the responsibility of not infringing Adobe's licensing policy. The ISO Central Secretariat
accepts no liability in this area.
Adobe is a trademark of Adobe Systems Incorporated.
Details of the software products used to create this PDF file can be found in the General Info relative to the file; the PDF-creation
parameters were optimized for printing. Every care has been taken to ensure that the file is suitable for use by ISO member bodies. In
the unlikely event that a problem relating to it is found, please inform the Central Secretariat at the address given below.

©  ISO 2007
All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form or by any means,
electronic or mechanical, including photocopying and microfilm, without permission in writing from either ISO at the address below or
ISO's member body in the country of the requester.
ISO copyright office
Case postale 56 • CH-1211 Geneva 20
Tel. + 41 22 749 01 11
Fax + 41 22 749 09 47
E-mail copyright@iso.org
Web www.iso.org
Published in Switzerland
ii © ISO 2007 – All rights reserved

ISO/TR 20880:2007(E)
Contents Page
Foreword. iv
1 Scope . 1
2 Normative references . 1
3 Terms and definitions. 2
4 Requirements . 2
4.1 General. 2
4.2 Performance requirements for outsoles components for general purpose sports footwear. 2
4.3 Performance requirements for outsoles components for school footwear . 4
4.4 Performance requirements for outsoles components for casual footwear. 6
4.5 Performance requirements for outsoles components for men's town footwear . 8
4.6 Performance requirements for outsoles components for cold weather footwear. 9
4.7 Performance requirements for outsoles components for women's town footwear . 10
4.8 Performance requirements for outsoles components for fashion footwear. 11
4.9 Performance requirements for outsoles components for infants' footwear . 13
4.10 Performance requirements for outsoles components for indoor footwear. 14
5 Marking and labelling . 15

ISO/TR 20880:2007(E)
Foreword
ISO (the International Organization for Standardization) is a worldwide federation of national standards bodies
(ISO member bodies). The work of preparing International Standards is normally carried out through ISO
technical committees. Each member body interested in a subject for which a technical committee has been
established has the right to be represented on that committee. International organizations, governmental and
non-governmental, in liaison with ISO, also take part in the work. ISO collaborates closely with the
International Electrotechnical Commission (IEC) on all matters of electrotechnical standardization.
International Standards are drafted in accordance with the rules given in the ISO/IEC Directives, Part 2.
The main task of technical committees is to prepare International Standards. Draft International Standards
adopted by the technical committees are circulated to the member bodies for voting. Publication as an
International Standard requires approval by at least 75 % of the member bodies casting a vote.
In exceptional circumstances, when a technical committee has collected data of a different kind from that
which is normally published as an International Standard (“state of the art”, for example), it may decide by a
simple majority vote of its participating members to publish a Technical Report. A Technical Report is entirely
informative in nature and does not have to be reviewed until the data it provides are considered to be no
longer valid or useful.
Attention is drawn to the possibility that some of the elements of this document may be the subject of patent
rights. ISO shall not be held responsible for identifying any or all such patent rights.
ISO/TR 20880 was prepared by the European Committee for Standardization (CEN) Technical Committee
CEN/TC 309, Footwear, in collaboration with Technical Committee ISO/TC 216, Footwear, in accordance with
the Agreement on technical cooperation between ISO and CEN (Vienna Agreement).

iv © ISO 2007 – All rights reserved

TECHNICAL REPORT ISO/TR 20880:2007(E)

Footwear — Performance requirements for components for
footwear — Outsoles
1 Scope
This Technical Report establishes the performance requirements for outsoles components for footwear (not
for the finished footwear), irrespective of the material, in order to assess the suitability for the end use. It also
establishes the test methods to be used to evaluate the compliance with the requirements.
This Technical Report applies to outsoles for all kind of footwear as defined in Clause 3.
This Technical Report is intended to be used as a reference between the footwear manufacturer and the
supplier. It is not intended for third party certification of finished shoes destined for the consumer.
2 Normative references
The following referenced documents are indispensable for the application of this document. For dated
references, only the edition cited applies. For undated references, the latest edition of the referenced
document (including any amendments) applies.
ISO 31-0, Quantities and units — Part 0: General principles
EN ISO 5404, Leather — Physical and mechanical tests — Determination of the water resistance of heavy
leathers
EN ISO 17707, Footwear — Test methods for outsoles — Flex resistance
ISO 17709, Footwear — Sampling location, preparation and duration of conditioning of samples and test
pieces
EN ISO 19952, Footwear — Vocabulary
ISO 20865, Footwear — Test methods for outsoles — Compression energy
ISO 20869, Footwear — Test methods for outsoles, insoles, lining and insocks — Water soluble content
ISO 20871, Footwear — Test methods for outsoles — Abrasion resistance
ISO 20872, Footwear — Test methods for outsoles — Tear strength
ISO 20873, Footwear — Test methods for outsoles — Dimensional stability
ISO 20874, Footwear — Test methods for outsoles — Needle tear strength
ISO 20875, Footwear — Test methods for outsoles — Determination of split tear strength and delamination
resistance
EN 1391, Adhesives for leather and footwear materials — A method for evaluating the bondability of
materials — Minimum requirements and material classification
ISO/TR 20880:2007(E)
EN 1392, Adhesives for leather and footwear materials — Solvent-based and dispersion adhesives — Test
methods for measuring the bond strength under specified conditions
EN 13287, Personal protective equipment — Footwear — Test method for slip resístance
3 Terms and definitions
For the purposes of this document, the terms and definitions given in EN ISO 19952 apply.
4 Requirements
4.1 General
This Technical Report establishes two different types of performance requirement.
The essential requirements shall all be taken into account. The additional ones can be additionally agreed by
the component supplier and the footwear manufacturer as indicated in the subclauses 4.2 to 4.10.
The results of each single analytical determination, as well as the average values, shall be rounded off in
accordance with ISO 31-0.
When taken from finished footwear, the sample shall be prepared in accordance with ISO 17709.
4.2 Performance requirements for outsoles components for general purpose sports
footwear
4.2.1 Essential requirements
These essential requirements shall be fulfilled in all cases. See Table 1.
Table 1 — Test method and properties for general sports footwear — Essential requirements
Test method Property Requirement
EN ISO 17707 Flex resistance cut growth u 4,0 mm, and no spontaneous crack
3 3
ISO 20871 Abrasion resistance 0,9 g/cm u d u 200 mm
0,9 g/cm > d u 150 mg
ISO 20875 Delamination 0,9 g/cm u d W 3,0 N/mm
resistance or
0,9 g/cm > d W 1,7 N/mm
a
split tear
b
EN 13287 Slip resistance W 0,30 (flat slip)
W 0,28 (heel slip)
In both cases must be tested using ceramic tiles (floor) and water and
detergent (lubricant)
a
This requirement is considered essential only in multilayer outsoles.
b
This test method is only applicable for finished footwear.
2 © ISO 2007 – All rights reserved

ISO/TR 20880:2007(E)
4.2.2 Additional requirements
These additional requirements should be agreed by both component supplier and footwear manufacturer.
See Table 2.
Table 2 — Test method and properties for general sports footwear — Additional requirements
Subclause Test method Property Requirement
4.2.2.1 ISO 20873 Dimensional stability u 2,5 %
4.2.2.2 ISO 20865 Compression energy W 15 J
a, b, c 3
4.2.2.3 EN 1392 Bondability 0,9 g/cm u d W 4,0 N/mm
0,9 g/cm > d W 3,0 N/mm
4.2.2.4 ISO 20869 Water soluble water soluble matter u 18 %
substances content
sulfated ashed water soluble u 3 % (applicable only
for leather)
4.2.2.5 ISO 20872 Tear strength 0,9 g/cm u d W 8,0 N/mm
0,9 g/cm > d W 6,0 N/mm
4.2.2.6 EN/ISO 5404 Water resistance a) Water resistant
Penetration time W 30 min and after 30 min
water absorption u 25 %
b) Highly water resistant
Penetration time W 60 min and after 60 min
water absorption u 15 % (only applicable for leather
and porous materials)
d
4.2.2.7 ISO 20874 Needle tear strength W 40 N/mm
a
A value below the established will be considered as negative independent of the type of failure.
b
Reference adhesives and reference material shall comply with EN 1391.
c
The dimensions and number of test pieces for this test method shall be those included in ISO 17709.
d
This requirement is applicable only for sewn footwear.
ISO/TR 20880:2007(E)
4.3 Performance requirements for outsoles components for school footwear
4.3.1 Essential requirements
These essential requirements shall be fulfilled in all cases. See Table 3.
Table 3 — Test method and properties for school footwear — Essential requirements
Test method Property Requirement
EN ISO 17707 Flex resistance cut growth u 4,0 mm, and no spontaneous crack
3 3
ISO 20871 Abrasion resistance 0,9 g/cm u d u 200 mm
0,9 g/cm > d u 150 mg
ISO 20875 Delamination 0,9 g/cm u d W 3,0 N/mm
resistance or
0,9 g/cm > d W 1,7 N/mm
a
split tear
b
EN 13287 Slip resistance W 0,30 (flat slip)
W 0,28 (heel slip)
In both cases must be tested using ceramic tiles (floor) and water and
detergent (lubricant)
a
This requi
...
