EN 12966-1:2005+A1:2009

2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.Vertikale Verkehrszeichen - Wechselverkehrszeichen - Teil 1: ProduktnormSignaux de signalisation routière verticale - Panneaux à messages variables - Partie 1: Norme produitRoad vertical signs - Variable message traffic signs - Part 1: Product standard93.080.30Cestna oprema in pomožne napraveRoad equipment and installationsICS:Ta slovenski standard je istoveten z:EN 12966-1:2005+A1:2009SIST EN 12966-1:2005+A1:2010en,de01-januar-2010SIST EN 12966-1:2005+A1:2010SLOVENSKI
STANDARD
EUROPEAN STANDARD NORME EUROPÉENNE EUROPÄISCHE NORM
EN 12966-1:2005+A1
November 2009 ICS 93.080.30 Supersedes EN 12966-1:2005English Version
Road vertical signs - Variable message traffic signs - Part 1: Product standard
Signaux de signalisation routière verticale - Panneaux à messages variables - Partie 1: Norme produit
Vertikale Verkehrszeichen - Wechselverkehrszeichen - Teil 1: Produktnorm This European Standard was approved by CEN on 15 March 2005 and includes Amendment 1 approved by CEN on 3 October 2009.
CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this European Standard the status of a national standard without any alteration. Up-to-date lists and bibliographical references concerning such national standards may be obtained on application to the CEN Management Centre or to any CEN member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by translation under the responsibility of a CEN member into its own language and notified to the CEN Management Centre has the same status as the official versions.
CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Cyprus, Czech Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland and United Kingdom.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION EUROPÄISCHES KOMITEE FÜR NORMUNG
Management Centre:
Avenue Marnix 17,
B-1000 Brussels © 2009 CEN All rights of exploitation in any form and by any means reserved worldwide for CEN national Members. Ref. No. EN 12966-1:2005+A1:2009: ESIST EN 12966-1:2005+A1:2010

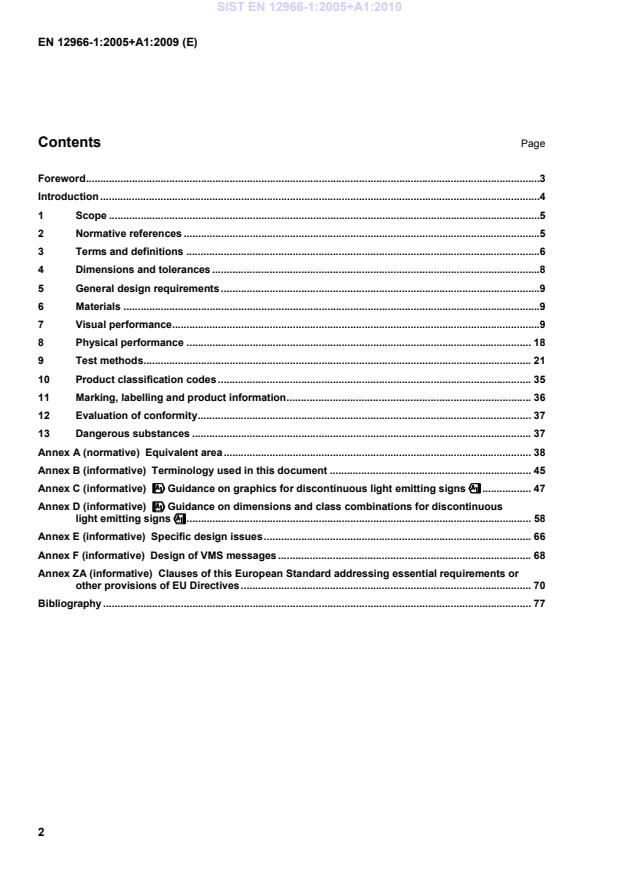

Equivalent area . 38Annex B (informative)
Terminology used in this document . 45Annex C (informative)
!!!!Guidance on graphics for discontinuous light emitting signs"""" . 47Annex D (informative)
!!!!Guidance on dimensions and class combinations for discontinuous light emitting signs"""" . 58Annex E (informative)
Specific design issues . 66Annex F (informative)
Design of VMS messages . 68Annex ZA (informative)
Clauses of this European Standard addressing essential requirements or other provisions of EU Directives . 70Bibliography . 77 SIST EN 12966-1:2005+A1:2010

HD 638 S1, Road traffic signal systems 3 Terms and definitions For the purposes of this document, the terms and definitions given in !CIE 15:2004" and CIE 17.4:1987 and the following apply. NOTE When reading this document for the first time, particular attention should be paid to Annex B.
3.1 backing-board surround to the VMS, used depending on local circumstances, providing improved visibility of the VMS by means of broadening its size and by providing suitable visible contrast with the VMS background 3.2 cantilever support support system with a single post and a cantilever arm supporting VMS(s) mounted over the traffic lane(s) SIST EN 12966-1:2005+A1:2010

3.13.1 matrix grid whose intersections hold the centre of the elements used in a VMS. A matrix may cover the whole display surface or part of it. Axes X and Y of the grid may or may not be orthogonal SIST EN 12966-1:2005+A1:2010

This is the only occasion where tests may be carried out on material and not the whole test module. 7 Visual performance 7.1 Classification The manufacturer shall declare the relevant class designations for his products. This shall be in accordance with those photometric parameter classes listed in Table 1. Table 1 — Class designation of the photometric parameters of the VMS Photometric parameter Class designation Remarks Colour C1, C2 C2 is the more restrictive Luminance (La) L1, L2, L3, L3(*) L3 has the highest luminance (*) for specific situations
L1(T), L2(T), L3(T) These classes are for tunnel use Luminance ratio (LR) R1, R2, R3 R3 has the highest luminance ratio Beam width B1, B2, B3, B4, B5, B6, B7 B7 has the widest beam NOTE 1 The purchaser should select the appropriate parameter classes relevant to the application. Care is needed because some class-combinations are not possible and/or not effective. NOTE 2 Specific design issues are covered in !D.3", where guidelines are given on !deleted text" class-combinations
7.2 Colour The colour coordinates shall be measured in accordance with 9.3.5. The chromaticity of the colours is defined in accordance with the CIE 1931 Standard Colorimetric Observer as referenced in CIE publication 15.2. The chromaticity for the colours of the colour class C1 shall conform to Table 2. The chromaticity for the colours of the colour class C2 shall conform to Table 3. In Figure 1 these chromaticity areas are plotted in a CIE 1931 chromaticity diagram. SIST EN 12966-1:2005+A1:2010

Green x y 0,310 0,684 0,310 0,562 0,209 0,400 0,028 0,400 - - - - Blue x y 0,109 0,087 0,204 0,196 0,233 0,167 0,149 0,025 - - - - Table 3 — Corner points (CIE 1931 chromaticity co-ordinates x, y) of the chromaticity areas for the colours of class C2 Colour Colour co-ordinates corner point = > 1 2 3 4 5 Red x y 0,660 0,320 0,680 0,320 0,710 0,290 0,690 0,290 - - Yellow x y 0,536 0,444 0,547 0,452 0,613 0,387 0,593 0,387 - - White x y 0,300 0,342 0,440 0,432 0,440 0,382 0,300 0,276 - - White/yellow x y 0,479 0,520 0,300 0,342 0,300 0,276 0,440 0,382 0,618 0,382 Green x y 0,009 0,720 0,284 0,520 0,209 0,400 0,028 0,400 - - Blue x y 0,109 0,087 0,173 0,160 0,208 0,125 0,149 0,025 - - SIST EN 12966-1:2005+A1:2010

Key - - - Class C1 and C2 1 green C1 6 yellow C1, C2 −
− Class C1 2 green C2 7 red C1 — Class C2 3 white/yellow C1, C2 8 red C2
4 white C1 9 blue C1
5 white C2 10 blue C2 Figure 1 — Allowed chromaticity areas for the colour classes C1 and C2 plotted in the CIE 1931 chromaticity diagram 7.3 Luminance !The luminance shall be measured in accordance with 9.3.2, under external illumination from a solar simulator and with the test module switched on. 'With settings prescribed by the manufacturer, the luminance values measured for the test module shall comply with those of the Tables 4a to 4f that are relevant for the colours produced by the test module." For use in tunnels, only sign luminances corresponding to sign illuminances of 400 lx or less are required. These are designated (T) in Table 1. SIST EN 12966-1:2005+A1:2010

Luminance (La) limits for white, on reference axis, for the luminance classes L1, L2, L3 and L3(*) Sign illuminance (lx) Luminance (cd/m2) Minimum Maximum L3 L2 L1 L1, L2, L3 40 000 12 400 6 200 3 100 62 000 10 000 12 400 (*) - - - 4 000 2 200 1 100 550 11 000 400 600 300 150 3 000 40 250 200 100 1 250 ≤ 4 75 60 30 375 Table 4b — Luminance (La) limits for white/yellow, on reference axis, for the luminance classes L1, L2, L3 and L3(*) Sign illuminance (lx) Luminance (cd/m2) Minimum Maximum L3 L2 L1 L1, L2, L3 40 000 10 540 5 270 2 635 52 700 10 000 10 540 (*) - - - 4 000 1 870 935 468 9 350 400 510 255 128 2 550 40 213 170 85 1 065 ≤ 4 64 51 26 320 SIST EN 12966-1:2005+A1:2010

Table 4f — Luminance (La) limits for blue, on reference axis,
for the luminance classes L1, L2, L3 and L3(*) Sign illuminance (lx) Luminance (cd/m2) Minimum Maximum L3 L2 L1 L1, L2, L3 40 000 1 240 620 310 6 200 10 000 1 240 (*) - - - 4 000 220 110 55 1 100 400 60 30 15 300 40 25 20 10 125 ≤ 4 7,5 6,0 3,0 37,5 !Additionally, for" classes L3, L3(*) and L2, the sign shall achieve the relevant luminance values without the external illumination (solar simulator OFF) when the sign is set for the 40 000 lx test. When the tunnel sign is set for the 400 lx test, the sign shall achieve the relevant luminance values without the external illumination (solar simulator OFF). 7.4 Luminance ratio The minimum luminance ratios for the various colours shall be in accordance with Table 5. The luminance ratio values shall be maintained for all illuminances between 400 Ix and 40 000 lx. The test angles are dependent on the beam width class, see 7.5 and !9.3.2.3". ⇒ between 400 Ix and 40 000 lx ⇒ ratio ≥ 400 lx, and
ratio ≤ 40 000 lx
Table 5 — Minimum luminance ratios (LR) for various colours and classes R1, R2 and R3, at test angles on the reference axis and off the reference axis Colour Minimum luminance ratio R3 R2 R1 on reference axis off reference axis on reference axis off reference axis on reference axis off reference axis White 16,7 8,35 10 5 5 3 white/yellow 14,2 7,1 8,5 4,25 4,25 2,55 Yellow 10 5 6 3 3 1.8 Green 5 2,5 3 1,5 1,5 0,9 Red 4,2 2,1 2,5 1,25 1,25 0,75 Blue 1,7 0,85 1 0,5 0,5 0,3 !NOTE 1" For illuminances below 400 lx (e.g. tunnels) there is no luminance ratio requirement. ⇒ below 400 lx ⇒ < 400 lx
Key
1 = minimum luminance at reference axis 2 = maximum luminance at reference axis !deleted text" 3 = maximum luminance at all angles 4 = lower limit (50 % of Lmes) 5 = upper limit (150 % of Lmes) 6 = passed distributions 7 = not passed distributions 8 = horizontal angle (degrees) 9= luminance (cd·m-²)
Figure 2— Examples of passed and not passed luminance distributions for class luminance L3, colour white/yellow, and beam width class B2 at a sign illuminance of 40 000 lx
!The luminance for this colour at the reference axis should be in the range 10 540 to 52 700 cd/m2. Suppose the actual measured luminance at the reference axis obeys this requirement and is 30 000 cd/m2. Then the maximum luminance at all other angles is 1,5 ××××
30 000 = 45 000 cd/m2. The minimum luminance at within the beam width angles shall not be lower than 0,5 ××××
30 000 = 15 000 cd/m2. Outside the beam width angles the luminance is allowed to be zero, but never larger than 52 700 cd/m2." SIST EN 12966-1:2005+A1:2010

Class B7 is only recommended for specific applications. 7.6 Uniformity Uniformity measurements shall be done in accordance with 9.3.4. For the luminous intensities of any individual element of the test module the ratio of the average output from the highest 12 % of the elements, to the lowest 12 %, shall be less then 3:1. The ratio of the average output from the highest 4 % of the elements, to the lowest 4 %, shall be less then 5:1. The number of elements in consideration shall be rounded to the next highest whole number. The luminous intensity uniformity shall apply to for each separate colour. 7.7 Visible flicker When the light sources of a test module are operating in a pulse mode, no light flicker shall be visible. In the case of doubt, the frequency of the light emitted shall be measured. This frequency shall not be less than
90 Hz. SIST EN 12966-1:2005+A1:2010

Table 9 — Ingress protection level classes Class Ingress Protection Level P1 !IP44" P2 !IP54" P3 !IP56" 8.3 Structural performance 8.3.1 General !VMS shall be designed to ensure reliable transfer of all static and dynamic forces to the fixing and mounting structures. The walls of the housing shall be designed to satisfy the static requirements." The structural performance of VMS including their supports and fixings - excluding cantilevers and gantries - shall be in accordance with EN 12899-1. 8.3.2 Resistance to horizontal Loads 8.3.2.1 Loads The loads shall be in accordance with EN 12899-1. 8.3.2.2 Deflections Deflections shall be in accordance with EN 12899-1. 8.3.3 Passive safety for VMS support If the manufacturer is declaring passive safety, the VMS supports shall comply with one of the classes of
EN 12767. If passive safety is not declared, the VMS supports shall be considered as Class 0 of EN 12767. 8.3.4 Impact resistance !The test modules shall be capable of withstanding impact, and shall be tested in accordance with 9.2.3 Table 13. After the test the test module front panel or parts of it shall show no damage other then small indentations in the front surface; it shall exhibit no cracking. The test module shall continue to meet all the requirements of the standard." 8.3.5 Vibration resistance The test modules shall be capable of withstanding vibration, and shall be tested in accordance with 9.2.3, Table 14. 8.4 Electrical requirements 8.4.1 Electrical supply and limits 8.4.1.1 Maximum power consumption The manufacturer shall state the maximum power consumption of the VMS. SIST EN 12966-1:2005+A1:2010

This shall be tested in accordance with 9.2.4. 8.4.1.7 Temporary overvoltage When protection for temporary (not transient) overvoltage is incorporated, the operating voltage range of the protective device shall be stated. This shall be tested in accordance with 9.2.2 Table 11. 8.4.2 Electrical safety The test module shall conform to electrical safety requirements of HD 60364-4-443 and !HD 638 S1" as applicable. 8.5 Electromagnetic compatibility 8.5.1 Electromagnetic emission For all types of environment the test module shall conform to EN 50293. 8.5.2 Electromagnetic immunity For all types of environment the test module shall conform to EN 50293. 9 Test methods 9.1 Test modules 9.1.1 General NOTE In order to allow for future developments in technology and sign design, the standard uses performance requirements which are not dependent on technology and which can be demonstrated on a test module. This document contains a number of defined requirements, some of which have to be demonstrated on the test module, others that are to be certified by the manufacturer. This combination covers not only confirmation of compliance with the standard, which is required to meet the regulatory requirements but also issues of lifetime, quality, maintenance and construction, all of which affect the ability of a sign in its particular application, to meet safety and fitness for purpose. The details in the informative Annexes are provided as useful guidance on the additional aspects relating to VMS for those setting up purchasing contracts for signs or signing systems. The test module ensures that the manufacturer can demonstrate to the purchaser that his requirements have been fulfilled. SIST EN 12966-1:2005+A1:2010

Key 1 Power input 2 Control input Figure 3— Examples of variable message sign test modules in front view (a and c) and side view (b) with indications for the dimensions, width (w), height (h) and thickness (t). The shaded squares are equivalent element areas and form the optical test area The spacing between the centres of the elements shall be measured for the test modules, which meet the test requirements and shall be reported as the “element spacing”. The element spacing of the actual VMS shall be within ± 10 % of the element spacing measured on the test module. 9.1.3 Function test 9.1.3.1 General The function test is based on alternate activation/deactivation of all the elements, which is the cyclic change of all elements from one state to another. The test shall be carried out at the level used for the maximum applicable performance level. Each cycle “ON/OFF” shall comprise at least 1s ON followed by at least 1s OFF. The test shall comprise a minimum of 10 cycles. 9.1.3.2 Test conditions The function test shall be executed in the environmental tests conditions specified in 9.2. SIST EN 12966-1:2005+A1:2010
...
