EN 1854:2006
(Main)Pressure sensing devices for gas burners and gas burning appliances
Pressure sensing devices for gas burners and gas burning appliances
This European Standard specifies requirements and test methods for pressure sensing devices (PSDs) for the control of pressures of combustible gases of the first, second and third families, air, combustion products and mixtures thereof for operating pressures up to 5 bar. It covers all types of PSD including electronic, differential and inferential types.
The requirements for 'S' class PSD are intended to meet the need for increased reliability for steam boilers. The methods of test given in this European Standard are intended for product type testing. Tests intended for production testing are not specifically included.
This European Standard covers type testing only.
Druckwächter für Gasbrenner und Gasgeräte
Diese Europäische Norm legt Anforderungen und Prüfverfahren für Druckwächter (PSD, en: pressure sensing devices) fest, welche bei Drücken bis 5 bar eingesetzt werden, um Drücke von brennbaren Gasen der ersten, zweiten und dritten Gasfamilie, Luft, Verbrennungsprodukten und Gemischen davon, zu überwachen. Sie gilt für alle Arten von Druckwächtern einschließlich elektronischer Ausführungen sowie für Differenzdruckwächter und indirekt messende Typen.
Die Anforderungen an Druckwächter der Klasse S sind dafür vorgesehen, die erhöhten Anforderungen an die Zuverlässigkeit beim Einsatz an Dampfkesseln zu erfüllen. Die in dieser Europäischen Norm angegebenen Prüfverfahren dienen der Typprüfung. Spezielle Fertigungsprüfungen sind nicht Bestandteil dieser Norm.
Diese Europäische Norm befasst sich ausschließlich mit der Typprüfung.
Dispositifs de surveillance de pression pour brûleurs à gaz et appareils à gaz
La présente Norme européenne spécifie des exigences et des méthodes d’essai applicables aux dispositifs de surveillance de la pression (pressostats) pour la commande des pressions des gaz combustibles des première, seconde et troisième familles, de l’air, des produits de combustion et de leurs mélanges, pour des pressions de consigne allant jusqu’à 5 bar. Elle s’applique à tous les types de pressostats, de type électronique, différentiel ou interférentiel.
Les exigences pour les pressostats de classe "S" tendent à répondre aux exigences de fiabilité accrue pour les chaudières à vapeur. Les méthodes d’essai indiquées dans la présente Norme européenne permettent d’effectuer les essais de type du produit. Les essais destinés au contrôle de la production ne sont pas spécifiquement inclus.
La présente Norme européenne traite exclusivement des essais de type.
Tlačna zaznavala za plinske gorilnike in plinske aparate
General Information
- Status
- Withdrawn
- Publication Date
- 25-Apr-2006
- Withdrawal Date
- 25-May-2010
- Technical Committee
- CEN/TC 58 - Safety and control devices for burners and appliances burning gaseous or liquid fuels
- Drafting Committee
- CEN/TC 58/WG 7 - Gas/air pressure switches
- Current Stage
- 9960 - Withdrawal effective - Withdrawal
- Start Date
- 26-May-2010
- Completion Date
- 26-May-2010
Relations
- Effective Date
- 22-Dec-2008
- Effective Date
- 22-Dec-2008
- Effective Date
- 22-May-2010
- Effective Date
- 28-Jan-2026
Frequently Asked Questions
EN 1854:2006 is a standard published by the European Committee for Standardization (CEN). Its full title is "Pressure sensing devices for gas burners and gas burning appliances". This standard covers: This European Standard specifies requirements and test methods for pressure sensing devices (PSDs) for the control of pressures of combustible gases of the first, second and third families, air, combustion products and mixtures thereof for operating pressures up to 5 bar. It covers all types of PSD including electronic, differential and inferential types. The requirements for 'S' class PSD are intended to meet the need for increased reliability for steam boilers. The methods of test given in this European Standard are intended for product type testing. Tests intended for production testing are not specifically included. This European Standard covers type testing only.
This European Standard specifies requirements and test methods for pressure sensing devices (PSDs) for the control of pressures of combustible gases of the first, second and third families, air, combustion products and mixtures thereof for operating pressures up to 5 bar. It covers all types of PSD including electronic, differential and inferential types. The requirements for 'S' class PSD are intended to meet the need for increased reliability for steam boilers. The methods of test given in this European Standard are intended for product type testing. Tests intended for production testing are not specifically included. This European Standard covers type testing only.
EN 1854:2006 is classified under the following ICS (International Classification for Standards) categories: 23.060.40 - Pressure regulators. The ICS classification helps identify the subject area and facilitates finding related standards.
EN 1854:2006 has the following relationships with other standards: It is inter standard links to EN 1854:1997, EN 1854:1997/A1:1998, EN 1854:2010, EN 746-2:2010. Understanding these relationships helps ensure you are using the most current and applicable version of the standard.
EN 1854:2006 is associated with the following European legislation: EU Directives/Regulations: 2009/142/EC, 90/396/EEC; Standardization Mandates: M/BC/CEN/89/6. When a standard is cited in the Official Journal of the European Union, products manufactured in conformity with it benefit from a presumption of conformity with the essential requirements of the corresponding EU directive or regulation.
EN 1854:2006 is available in PDF format for immediate download after purchase. The document can be added to your cart and obtained through the secure checkout process. Digital delivery ensures instant access to the complete standard document.

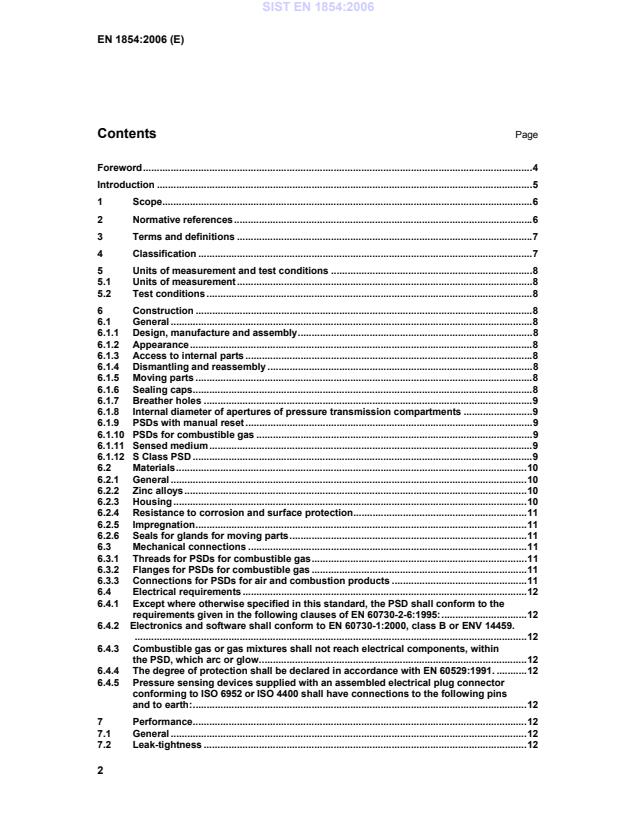

Standards Content (Sample)
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.Druckwächter für Gasbrenner und GasgeräteDispositifs de surveillance de pression pour bruleurs a gaz et appareils a gazPressure sensing devices for gas burners and gas burning appliances27.060.20Plinski gorilnikiGas fuel burners23.060.40Pressure regulatorsICS:Ta slovenski standard je istoveten z:EN 1854:2006SIST EN 1854:2006en01-september-2006SIST EN 1854:2006SLOVENSKI
STANDARDSIST EN 1854:1997/A1:1999SIST EN 1854:19971DGRPHãþD
EUROPEAN STANDARDNORME EUROPÉENNEEUROPÄISCHE NORMEN 1854April 2006ICS 23.060.40Supersedes EN 1854:1997
English VersionPressure sensing devices for gas burners and gas burningappliancesDispositifs de surveillance de pression pour brûleurs à gazet appareils à gazDruckwächter für Gasbrenner und GasgeräteThis European Standard was approved by CEN on 27 February 2006.CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this EuropeanStandard the status of a national standard without any alteration. Up-to-date lists and bibliographical references concerning such nationalstandards may be obtained on application to the Central Secretariat or to any CEN member.This European Standard exists in three official versions (English, French, German). A version in any other language made by translationunder the responsibility of a CEN member into its own language and notified to the Central Secretariat has the same status as the officialversions.CEN members are the national standards bodies of Austria, Belgium, Cyprus, Czech Republic, Denmark, Estonia, Finland, France,Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Romania,Slovakia, Slovenia, Spain, Sweden, Switzerland and United Kingdom.EUROPEAN COMMITTEE FOR STANDARDIZATIONCOMITÉ EUROPÉEN DE NORMALISATIONEUROPÄISCHES KOMITEE FÜR NORMUNGManagement Centre: rue de Stassart, 36
B-1050 Brussels© 2006 CENAll rights of exploitation in any form and by any means reservedworldwide for CEN national Members.Ref. No. EN 1854:2006: ESIST EN 1854:2006
Identification of clauses which meet the Essential Requirement of the Gas Appliance Directive 90/396/EEC.17
1 Scope This European Standard specifies requirements and test methods for pressure sensing devices (PSDs) for the control of pressures of combustible gases of the first, second and third families, air, combustion products and mixtures thereof for operating pressures up to 5 bar. It covers all types of PSD including electronic, differential and inferential types. The requirements for 'S' class PSD are intended to meet the need for increased reliability for steam boilers. The methods of test given in this European Standard are intended for product type testing. Tests intended for production testing are not specifically included. This European Standard covers type testing only. 2 Normative references The following referenced documents are indispensable for the application of this European Standard. For dated references, only the edition cited applies. For undated references, the latest edition of the referenced document (including any amendments) applies. EN 298:2003, Automatic gas burner control systems for gas burners and gas burning appliances with or without fans EN 549, Rubber materials for seals and diaphragms for gas appliances and gas equipment EN 13611:2000, Safety and control devices for gas burners and gas-burning appliances — General requirements ENV 14459, Method of risk analysis and recommendations for the use of electronics in systems for the control of gas burners and gas burning appliances EN 60529:1991, Degrees of protection provided by enclosures (IP code) (IEC 60529:1989) EN 60730-1:2000, Automatic electrical controls for household and similar use — Part 1: General requirements (IEC 60730-1:1999, modified) EN 60730-2-6:1995, Automatic electrical controls for household and similar use — Part 2-6: Particular requirements for automatic electrical pressure sensing controls including mechanical requirements (IEC 60730-2-6:1991, modified) EN 61058-1, Switches for appliances — Part 1: General requirements (IEC 61058-1:2000 + A1:2001, modified) EN ISO 75 (all parts), Plastics — Determination of temperature of deflection under load
ISO 4400, Fluid power systems and components — Three-pin electrical plug connectors with earth contact — Characteristics and requirements ISO 6952, Fluid power systems and components — Two-pin electrical plug connectors with earth contact — Characteristics and requirements SIST EN 1854:2006
...
