EN 10225-3:2019+A1:2023
(Main + Amendment)Weldable structural steels for fixed offshore structures - Technical delivery conditions - Part 3: Hot finished hollow sections
Weldable structural steels for fixed offshore structures - Technical delivery conditions - Part 3: Hot finished hollow sections
This document specifies requirements for weldable structural steels made of hot finished seamless and high frequency welded hollow sections to be used in the fabrication of fixed offshore structures.
The following thickness limitations are given in this standard:
- for seamless hollow sections up to and including 65 mm;
- for HFW hollow sections up to and including 25,4 mm.
Greater thicknesses can be agreed, provided the technical requirements of this European Standard are maintained.
This European Standard is applicable to steels for offshore structures, designed to operate in the offshore sector but not to steels supplied for the fabrication of subsea pipelines, risers, process equipment, process piping and other utilities. It is primarily applicable to the North Sea Sector, but may also be applicable in other areas provided that due consideration is given to local conditions e.g. design temperature.
NOTE This document has an informative Annex E on the prequalification of steels for fixed offshore structures in arctic areas.
Minimum yield strengths up to 770 MPa are specified together with impact properties at temperatures down to -40 °C.
Schweißgeeignete Baustähle für feststehende Offshore-Konstruktionen - Technische Lieferbedingung - Teil 3: Warmgefertigte Hohlprofile
Dieses Dokument legt die Anforderungen an warmgefertigte nahtlose und HFW Hohlprofilen (en: high frequency welded, HFW) aus schweißgeeigneten Baustählen fest, die zur Herstellung von feststehenden Offshore Konstruktionen verwendet werden.
Folgende Dickenbeschränkungen werden in dieser Norm angegeben:
- für nahtlose Hohlprofile bis einschließlich 65 mm,
- für HFW Hohlprofile bis einschließlich 25,4 mm.
Größere Dicken können vereinbart werden, vorausgesetzt die technischen Lieferbedingungen dieser Europäischen Norm werden eingehalten.
Diese Europäische Norm gilt für Stähle für Offshore-Konstruktionen, die für den Offshore-Einsatz vorgesehen sind, jedoch nicht für Stähle zur Herstellung von Unterwasserpipelines, Steigleitungen (en: risers), Verfahrens-Ausrüstungen, Rohrsystemen und anderen Einrichtungen und Ausrüstungen. Sie gilt in erster Linie für den Bereich der Nordsee, darf jedoch auch für andere Gebiete angewendet werden, vorausgesetzt, dass die örtlichen Bedingungen, z. B. die Auslegungstemperatur, genügend berücksichtigt werden.
ANMERKUNG Dieses Dokument hat einen informativen Anhang E bezüglich einer Vorqualifizierung von Stählen für den Einsatz in arktischen Gebieten bei Offshore Konstruktionen.
Mindestwerte der Streckgrenze bis zu 770 MPa werden zusammen mit Werten für die Kerbschlagarbeit bis herunter zu Temperaturen von −40 °C angegeben.
Aciers de construction soudables destinés à la fabrication de structures marines fixes - Conditions techniques de livraison - Partie 3 : Profils creux finis à chaud
Le présent document spécifie les exigences applicables aux aciers de construction soudables fabriqués à partir de profils creux sans soudure finis à chaud et de profils creux soudés par haute fréquence destinés à la fabrication de structures marines fixes.
Pour cette norme, les limites d’épaisseur suivantes sont données :
- pour des profils creux sans soudure jusqu’à 65 mm inclus ;
- pour des profils creux soudés par haute fréquence jusqu’à 25,4 mm inclus.
Des épaisseurs plus importantes peuvent être convenues par accord, à condition que les exigences techniques de la présente Norme européenne soient respectées.
Cette Norme européenne s'applique aux aciers pour constructions marines exploitées sur le domaine maritime européen, à l'exclusion des aciers fournis pour réaliser des oléoducs sous-marins, conduites montantes, équipement de procédés et autres tuyauteries de transport. Elle s'applique prioritairement au secteur de la mer du Nord mais elle peut également s'appliquer dans d'autres zones dans la mesure où les conditions locales sont dûment prises en compte, notamment la température de conception.
NOTE Le présent document contient une Annexe E informative pour la présélection des aciers destinés à la construction de structures marines fixes dans les zones arctiques.
La norme spécifie les limites d’élasticité jusqu’à 770 MPa et les énergies de rupture en flexion par choc à des températures jusqu’à - 40 °C.
Konstrukcijska jekla za varjene konstrukcije naftnih ploščadi - Tehnični dobavni pogoji - 3. del: Vroče izdelani votli profili (vključno z dopolnilom A1)
Ta dokument določa zahteve za variva konstrukcijska jekla iz vroče izdelanih brezšivnih in visokofrekvenčno varjenih votlih profilov, ki se uporabljajo za izdelavo konstrukcij naftnih ploščadi.
V tem standardu so podane naslednje omejitve debeline:
– za brezšivne votle profile do vključno 65 mm;
– za visokofrekvenčno varjene votle profile do vključno 25,4 mm.
Dogovori za večje debeline so mogoči, če se ohranijo tehnične zahteve tega evropskega standarda.
Ta evropski standard se uporablja za jekla za konstrukcije naftnih ploščadi, zasnovane za delovanje v priobalnem območju, vendar ne za jekla, dobavljena za izdelavo podmorskih cevovodov, dvižnih cevi, procesne opreme, procesnih cevovodov in drugih sredstev. Uporablja se predvsem na območju Severnega morja, lahko pa se uporablja tudi na drugih območjih, če se ustrezno upoštevajo lokalni pogoji, npr. konstrukcijsko določena temperatura.
OPOMBA: Ta dokument vsebuje informativni dodatek E o predhodni izbiri jekel za konstrukcije naftnih ploščadi v arktičnih območjih.
Minimalne napetosti tečenja do 770 MPa so določene skupaj z udarnimi lastnostmi pri temperaturah do –40 °C.
General Information
Relations
Standards Content (Sample)

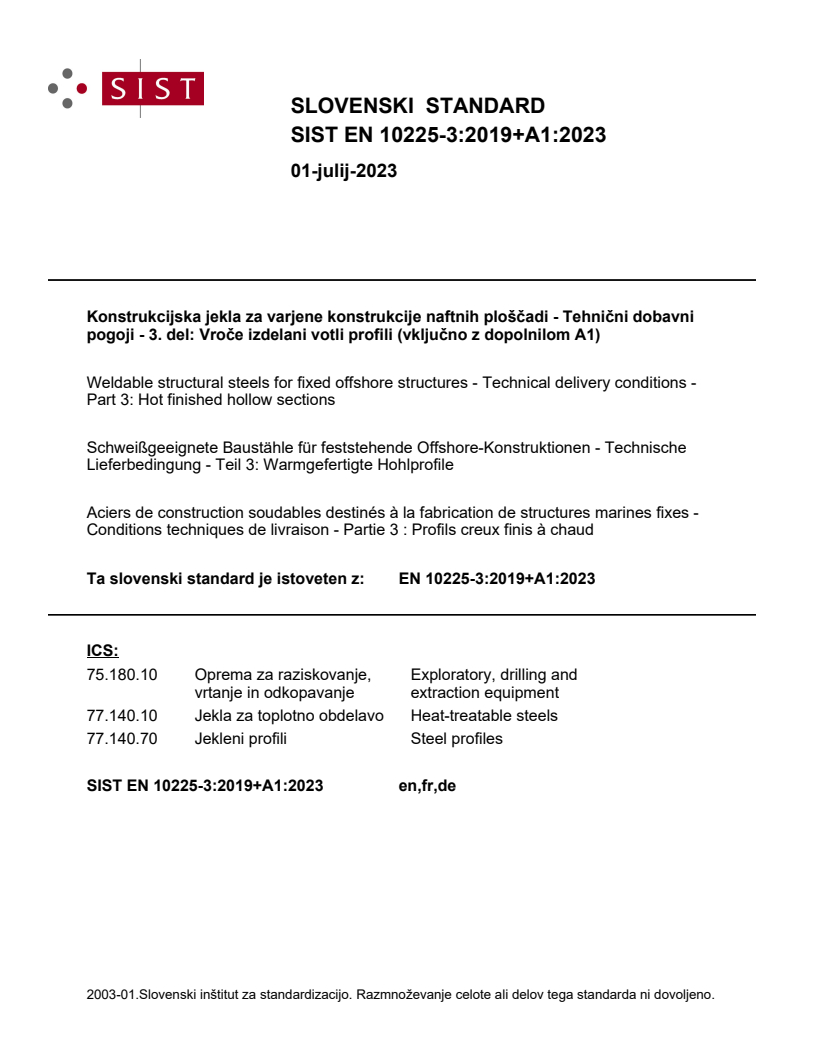

SLOVENSKI STANDARD
01-julij-2023
Konstrukcijska jekla za varjene konstrukcije naftnih ploščadi - Tehnični dobavni
pogoji - 3. del: Vroče izdelani votli profili (vključno z dopolnilom A1)
Weldable structural steels for fixed offshore structures - Technical delivery conditions -
Part 3: Hot finished hollow sections
Schweißgeeignete Baustähle für feststehende Offshore-Konstruktionen - Technische
Lieferbedingung - Teil 3: Warmgefertigte Hohlprofile
Aciers de construction soudables destinés à la fabrication de structures marines fixes -
Conditions techniques de livraison - Partie 3 : Profils creux finis à chaud
Ta slovenski standard je istoveten z: EN 10225-3:2019+A1:2023
ICS:
75.180.10 Oprema za raziskovanje, Exploratory, drilling and
vrtanje in odkopavanje extraction equipment
77.140.10 Jekla za toplotno obdelavo Heat-treatable steels
77.140.70 Jekleni profili Steel profiles
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.
EN 10225-3:2019+A1

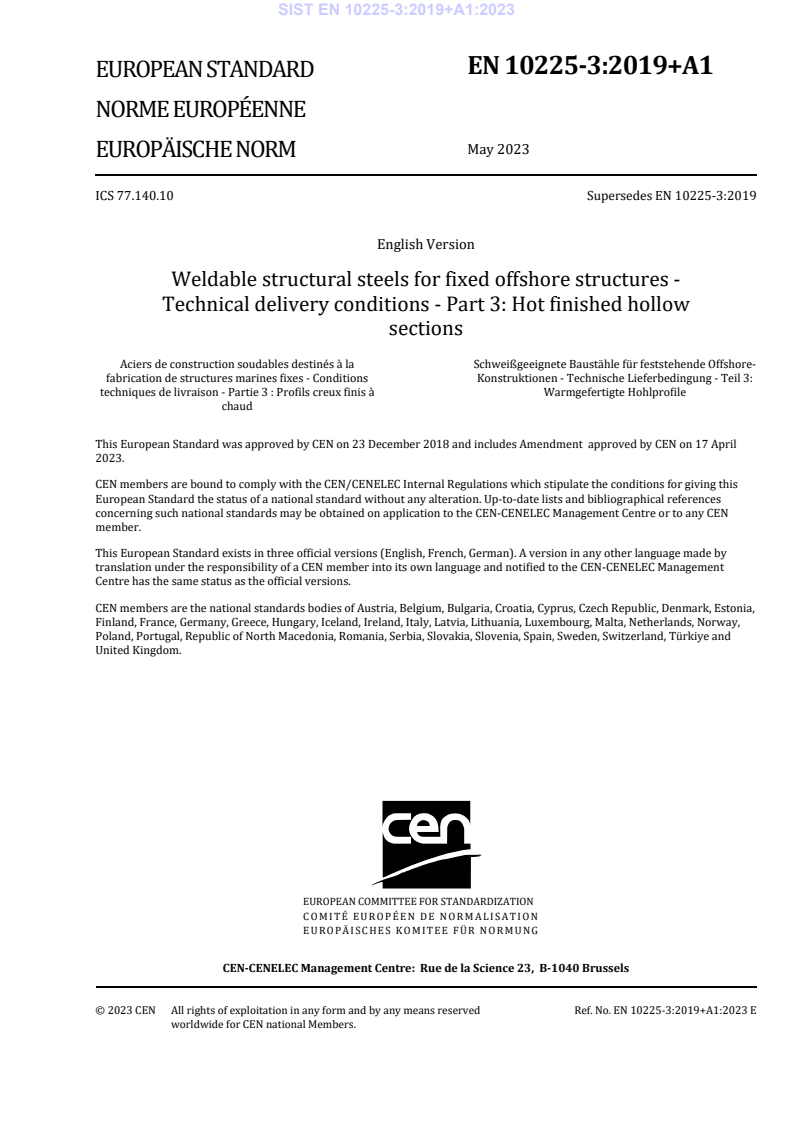

EUROPEAN STANDARD
NORME EUROPÉENNE
May 2023
EUROPÄISCHE NORM
ICS 77.140.10 Supersedes EN 10225-3:2019
English Version
Weldable structural steels for fixed offshore structures -
Technical delivery conditions - Part 3: Hot finished hollow
sections
Aciers de construction soudables destinés à la Schweißgeeignete Baustähle für feststehende Offshore-
fabrication de structures marines fixes - Conditions Konstruktionen - Technische Lieferbedingung - Teil 3:
techniques de livraison - Partie 3 : Profils creux finis à Warmgefertigte Hohlprofile
chaud
This European Standard was approved by CEN on 23 December 2018 and includes Amendment approved by CEN on 17 April
2023.
CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this
European Standard the status of a national standard without any alteration. Up-to-date lists and bibliographical references
concerning such national standards may be obtained on application to the CEN-CENELEC Management Centre or to any CEN
member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by
translation under the responsibility of a CEN member into its own language and notified to the CEN-CENELEC Management
Centre has the same status as the official versions.
CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia,
Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway,
Poland, Portugal, Republic of North Macedonia, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland, Türkiye and
United Kingdom.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION
EUROPÄISCHES KOMITEE FÜR NORMUNG
CEN-CENELEC Management Centre: Rue de la Science 23, B-1040 Brussels
© 2023 CEN All rights of exploitation in any form and by any means reserved Ref. No. EN 10225-3:2019+A1:2023 E
worldwide for CEN national Members.

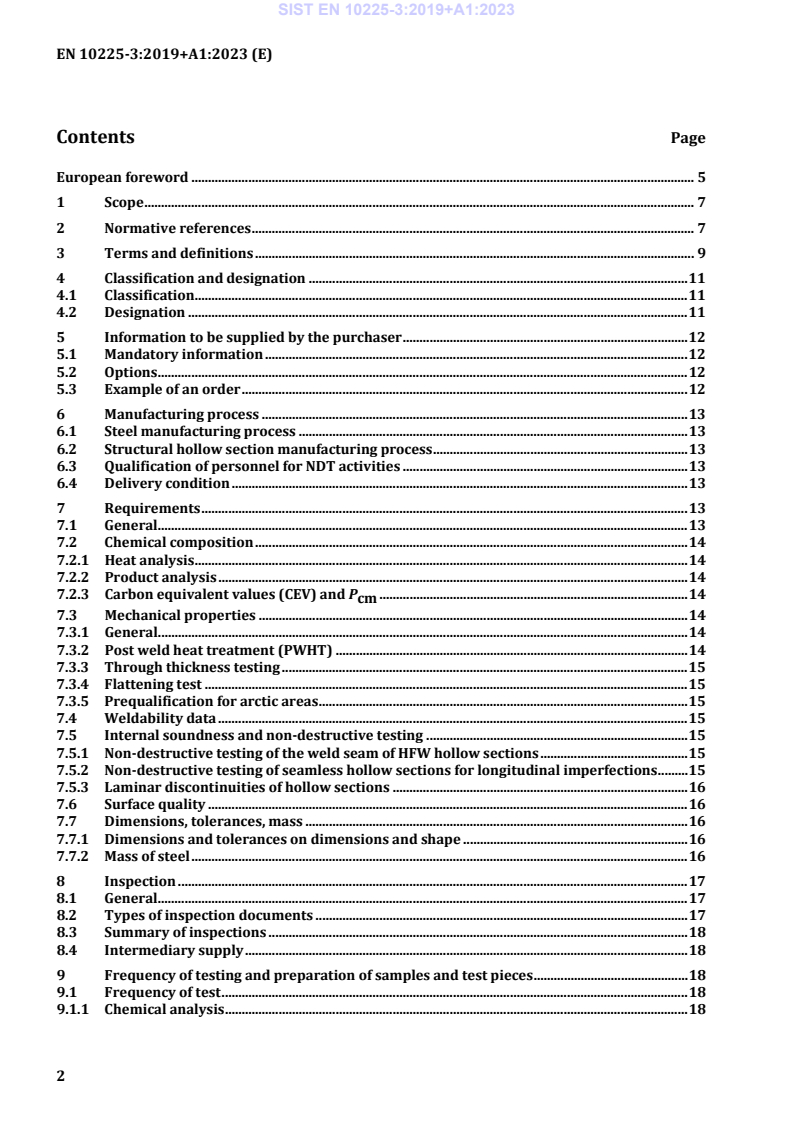

Contents Page
