EN 3373-011:2009
(Main)Aerospace series - Terminal lugs and in-line splices for crimping on electric conductors - Part 011: Terminal lugs, ring shaped, nickel plated, for crimping on copper conductors, temperature up to 260 °C for metric and inch stud series - Product standard
Aerospace series - Terminal lugs and in-line splices for crimping on electric conductors - Part 011: Terminal lugs, ring shaped, nickel plated, for crimping on copper conductors, temperature up to 260 °C for metric and inch stud series - Product standard
This standard defines the characteristics of nickel plated copper ring shaped terminals for crimping on nickel plated copper conductors. They are for use on both metric and inch dimension studs at temperatures up to 260 °C maximum.
This standard should be used in conjunction with EN 3373-001.
Luft- und Raumfahrt - Kabelschuhe und Stoßverbinder zum Crimpen auf elektrischen Leitungen - Teil 011: Kabelschuhe, ringförmig, vernickelt, zum Crimpen auf Leitungen aus Kupfer, für Temperaturen bis 260 °C, für metrische und Inch-Gewindebolzen - Produktnorm
Diese Norm legt die Eigenschaften von vernickelten, ringförmigen Kabelschuhen aus Kupfer für das Crimpen
auf vernickelten Kupferleitungen fest. Sie werden sowohl für metrische als auch für Inch-Gewindebolzen bei
Betriebstemperaturen bis maximal 260 °C eingesetzt.
Diese Norm sollte in Verbindung mit EN 3373-001 angewendet werden.
Série aérospatiale - Cosses et prolongateurs pour sertissage sur conducteurs électriques - Partie 011: Cosses, rondes, nickelées pour sertissage sur conducteurs en cuivre, température jusqu'à 260 °C pour bornages filetés en métriques et en pouces - Normes de produit
Aeronavtika - Kabelski čevlji in spojne tulke za spajanje s stiskanjem na električne vodnike - 011. del: Kabelski čevlji, obročasti, ponikljani, za stiskanje na bakrene vodnike, temperatura do največ 260 °C, za metrske in colske serije navojnih stebel - Standard za proizvod
General Information
- Status
- Published
- Publication Date
- 10-Feb-2009
- Withdrawal Date
- 30-Aug-2009
- Technical Committee
- ASD-STAN - Aerospace
- Drafting Committee
- ASD-STAN/D 2 - Electrical
- Current Stage
- 9093 - Decision to confirm - Review Enquiry
- Start Date
- 21-Jan-2025
- Completion Date
- 21-Jan-2026
Relations
- Effective Date
- 28-Jan-2026
- Effective Date
- 28-Jan-2026
- Effective Date
- 28-Jan-2026
- Effective Date
- 28-Jan-2026
- Effective Date
- 28-Jan-2026
- Effective Date
- 28-Jan-2026
Overview
EN 3373-011:2009 is a CEN product standard in the Aerospace series that defines the characteristics of nickel-plated copper ring-shaped terminal lugs intended for crimping on nickel-plated copper conductors. These components are specified for use with both metric and inch stud series and are rated for service temperatures up to 260 °C (operational range −65 °C to 260 °C). This Part 011 standard is intended to be used in conjunction with EN 3373-001 (technical specification) and forms part of the wider EN 3373 series covering crimp terminals and splices.
Key Topics
- Material & finish: Nickel-plated copper ring-shaped terminals for crimping on nickel-plated copper conductors.
- Temperature rating: Operational and test exposure up to 260 °C maximum; design range covers −65 °C to 260 °C.
- Construction: When split-barrel designs are used, the split must be permanently sealed so it does not open during or after crimping. All surfaces must be smooth and free from burrs.
- Dimensions & designation: Detailed dimensions and mass values are given (see Table 1 and Figure 1 of the standard). Item codes align with table entries and the EN 3373-011 designation format.
- Quality & testing: Quality assurance follows EN 3373-001. Applicable test methods from EN 2591 series include visual examination, dimensional checks, voltage drop, ageing by temperature/current cycling (1 500 cycles to 260 °C), endurance at temperature (120 h at 275 °C), rapid temperature change, salt mist, vibration, and tensile strength of crimped connections.
- Assembly tooling: Crimp tooling requirements reference MIL-DTL-22520. For conductors up to size 050, use tools equivalent to M22520/5-01; for sizes 090 and above, use tools conforming to MS 25441. Die dimensions for larger sizes reference MS 90485.
- Marking & packaging: Marking includes the item code and manufacturer monogram (embossed per EN 2424 Style F). Packaging must be labelled with EN designation, manufacturer name, part number, quantity, manufacture date and batch number.
Applications
- Aerospace electrical harnesses and power distribution where high-temperature resistance is required.
- Circuits using nickel-plated copper conductors and installations requiring compatibility with both metric and inch threaded stud terminals.
- Environments where defined mechanical, electrical and environmental test performance (vibration, salt mist, thermal cycling) is mandatory.
Related Standards
- EN 3373-001 - Technical specification and quality assurance requirements for terminal lugs and in-line splices.
- EN 2424 - Marking of aerospace products.
- EN 2591 series - Test methods for electrical and optical connection elements (referenced tests).
- MIL-DTL-22520, M22520/5-01, MS 25441, MS 90485 - Assembly tooling and die references for crimping equipment.
For procurement, design and certification activities, use EN 3373-011:2009 together with EN 3373-001 to ensure full compliance with aerospace product and testing requirements.
Get Certified
Connect with accredited certification bodies for this standard
National Aerospace and Defense Contractors Accreditation Program (NADCAP)
Global cooperative program for special process quality in aerospace.
NSF-ISR
NSF International Strategic Registrations.
Orion Registrar Inc.
US-based certification body for management systems.
Sponsored listings
Frequently Asked Questions
EN 3373-011:2009 is a standard published by the European Committee for Standardization (CEN). Its full title is "Aerospace series - Terminal lugs and in-line splices for crimping on electric conductors - Part 011: Terminal lugs, ring shaped, nickel plated, for crimping on copper conductors, temperature up to 260 °C for metric and inch stud series - Product standard". This standard covers: This standard defines the characteristics of nickel plated copper ring shaped terminals for crimping on nickel plated copper conductors. They are for use on both metric and inch dimension studs at temperatures up to 260 °C maximum. This standard should be used in conjunction with EN 3373-001.
This standard defines the characteristics of nickel plated copper ring shaped terminals for crimping on nickel plated copper conductors. They are for use on both metric and inch dimension studs at temperatures up to 260 °C maximum. This standard should be used in conjunction with EN 3373-001.
EN 3373-011:2009 is classified under the following ICS (International Classification for Standards) categories: 49.060 - Aerospace electric equipment and systems. The ICS classification helps identify the subject area and facilitates finding related standards.
EN 3373-011:2009 has the following relationships with other standards: It is inter standard links to EN 2591-218:2002, EN 2591-219:2002, EN 2591-217:2002, EN 2591-307:2012, EN 2591-403:2025, EN 3373-002:2009. Understanding these relationships helps ensure you are using the most current and applicable version of the standard.
EN 3373-011:2009 is available in PDF format for immediate download after purchase. The document can be added to your cart and obtained through the secure checkout process. Digital delivery ensures instant access to the complete standard document.
Standards Content (Sample)
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.Luft- und Raumfahrt - Kabelschuhe und Verlängerungen für das Crimpen auf elektrische Leiter - Teil 011: Kabelschuhe, ringförmig, (vernickelt) für das Crimpen auf Kupferleitungen, Betriebstemperatur bis 260 °C für metrische und zöllige Gewindebolzen - ProduktnormSérie aérospatiale - Cosses et prolongateurs pour sertissage sur conducteurs
électriques - Partie 011: Cosses, rondes, nickelées pour sertissage sur conducteurs en cuivre, température jusqu'à 260 °C pour bornages filetés en métriques et en pouces - Normes de produitAerospace series - Terminal lugs and in-line splices for crimping on electric conductors - Part 011: Terminal lugs, ring shaped, nickel plated, for crimping on copper conductors, temperature up to 260 °C for metric and inch stud series - Product standard49.060Aerospace electric equipment and systemsICS:Ta slovenski standard je istoveten z:EN 3373-011:2009SIST EN 3373-011:2009en01-maj-2009SIST EN 3373-011:2009SLOVENSKI
STANDARD
EUROPEAN STANDARD NORME EUROPÉENNE EUROPÄISCHE NORM
EN 3373-011
February 2009 ICS 49.060 English Version
Aerospace series - Terminal lugs and in-line splices for crimping on electric conductors - Part 011: Terminal lugs, ring shaped, nickel plated, for crimping on copper conductors, temperature up to 260 °C for metric and inch stud series - Product standard
Série aérospatiale - Cosses et prolongateurs pour sertissage sur conducteurs
électriques - Partie 011: Cosses, rondes, nickelées pour sertissage sur conducteurs en cuivre, température jusqu'à 260 °C pour bornages filetés en mériques et en pouces - Normes de produit
Luft- und Raumfahrt - Kabelschuhe und Verlängerungen für das Crimpen auf elektrische Leiter - Teil 011: Kabelschuhe, ringförmig, (vernickelt) für das Crimpen auf Kupferleitungen, Betriebstemperatur bis 260 °C für metrische und zöllige Gewindebolzen - Produktnorm This European Standard was approved by CEN on 11 July 2008.
CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this European Standard the status of a national standard without any alteration. Up-to-date lists and bibliographical references concerning such national standards may be obtained on application to the CEN Management Centre or to any CEN member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by translation under the responsibility of a CEN member into its own language and notified to the CEN Management Centre has the same status as the official versions.
CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Cyprus, Czech Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland and United Kingdom.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION EUROPÄISCHES KOMITEE FÜR NORMUNG
Management Centre:
Avenue Marnix 17,
B-1000 Brussels © 2009 CEN All rights of exploitation in any form and by any means reserved worldwide for CEN national Members. Ref. No. EN 3373-011:2009: ESIST EN 3373-011:2009

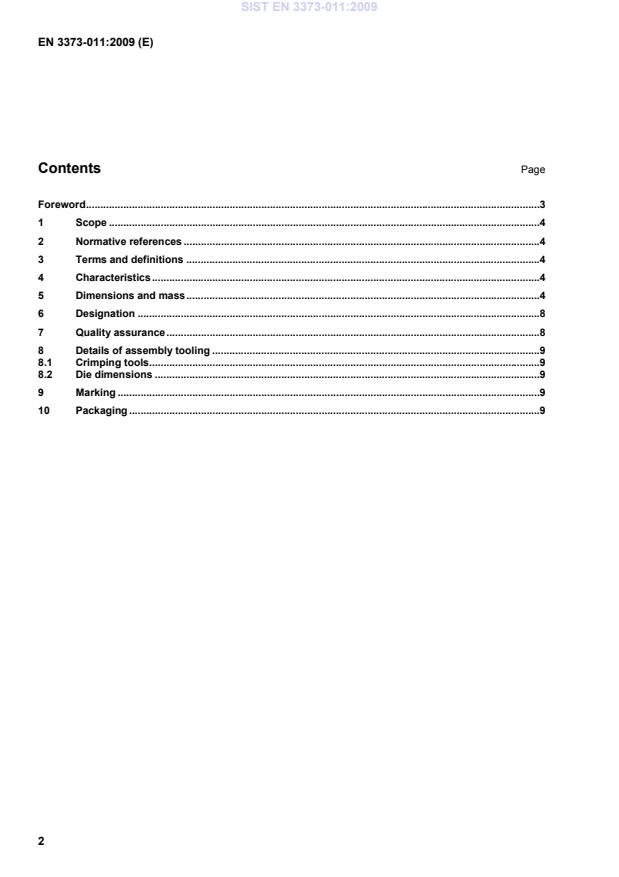

Contents Page Foreword .31Scope .42Normative references .43Terms and definitions .44Characteristics .45Dimensions and mass .46Designation .87Quality assurance .88Details of assembly tooling .98.1Crimping tools .98.2Die dimensions .99Marking .910Packaging .9 SIST EN 3373-011:2009
...
