EN 15312:2007

2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.Free access multi-sports equipment - Requirements, including safety, and test methodsÉquipements sportifs en acces libre - Exigences, y compris de sécurité, et méthodes d'essaiFrei zugängliche Multisportgeräte - Anforderungen einschließlich Sicherheit und PrüfverfahrenTa slovenski standard je istoveten z:EN 15312:2007SIST EN 15312:2007en;fr;de97.220.40Oprema za športe na prostem in vodne športeOutdoor and water sports equipmentICS:SLOVENSKI
STANDARDSIST EN 15312:200701-julij-2007

EUROPEAN STANDARDNORME EUROPÉENNEEUROPÄISCHE NORMEN 15312February 2007ICS 97.220.40 English VersionFree access multi-sports equipment - Requirements, includingsafety, and test methodsEquipements sportifs en accès libre - Exigences, y comprisde sécurité, et méthodes d'essaisFrei zugängliche Multisportgeräte - Anforderungeneinschließlich Sicherheit und PrüfverfahrenThis European Standard was approved by CEN on 23 December 2006.CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this EuropeanStandard the status of a national standard without any alteration. Up-to-date lists and bibliographical references concerning such nationalstandards may be obtained on application to the CEN Management Centre or to any CEN member.This European Standard exists in three official versions (English, French, German). A version in any other language made by translationunder the responsibility of a CEN member into its own language and notified to the CEN Management Centre has the same status as theofficial versions.CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Cyprus, Czech Republic, Denmark, Estonia, Finland,France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal,Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland and United Kingdom.EUROPEAN COMMITTEE FOR STANDARDIZATIONCOMITÉ EUROPÉEN DE NORMALISATIONEUROPÄISCHES KOMITEE FÜR NORMUNGManagement Centre: rue de Stassart, 36
B-1050 Brussels© 2007 CENAll rights of exploitation in any form and by any means reservedworldwide for CEN national Members.Ref. No. EN 15312:2007: E

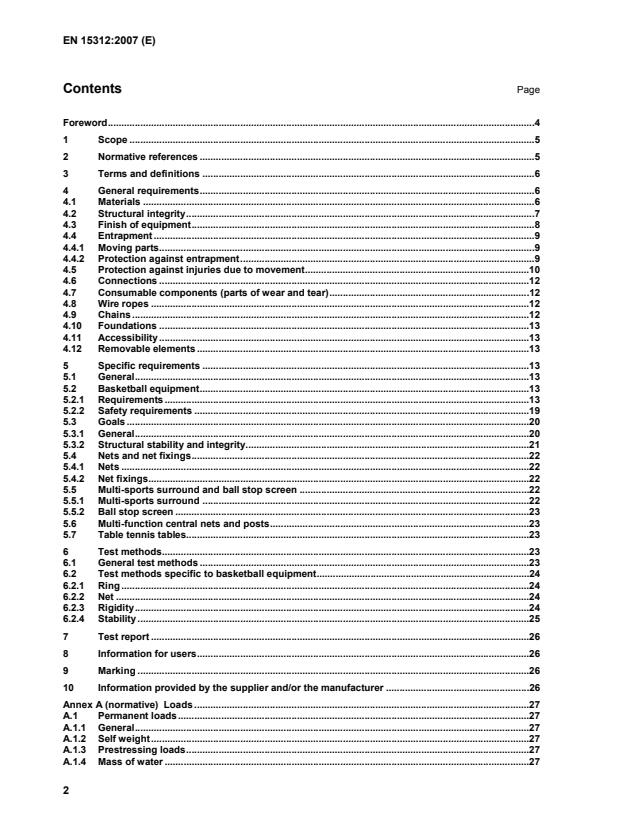

Loads.27 A.1 Permanent loads.27 A.1.1 General.27 A.1.2 Self weight.27 A.1.3 Prestressing loads.27 A.1.4 Mass of water.27

Method of calculation of structural integrity.33 B.1 General principles: Limit state.33 B.1.1 Limit state.33 B.1.2 Ultimate limit state.33 B.1.3 Serviceability limit state.34 B.2 Load combinations for static analysis.34 B.3 Worked example of the calculation of user loads (without safety factors) for a surround/barrier.34 Annex C (normative)
Physical testing of structural integrity.36 C.1 Pass/fail criteria.36 C.1.1 Load carrying ability.36 C.1.2 Failure.36 C.2 Test load for equipment.36 C.2.1 Load combinations for testing.36 C.2.2 Safety factor for tests on identical series.36 C.2.3 Safety factor for tests on a unique product.37 C.3 Load application.37 C.3.1 Point loads.37 C.3.2 Line loads.37 C.3.3 Area loads.37 Annex D (normative)
Test methods for entrapment.38 D.1 General.38 D.2 Finger entrapment.38 D.2.1 Apparatus.38 D.2.2 Procedure.39 D.3 Head and neck entrapment.39 D.3.1 Completely bound openings.39 D.3.2 Partially bound and V-shaped openings.41 Annex E (normative)
Information to be provided by the supplier and/or manufacturer.48 E.1 Information provided by the manufacturer of equipment.48 E.1.1 General product information.48 E.1.2 Pre information.48 E.1.3 Installation information.48 E.1.4 Inspection and maintenance information.49 Annex F (normative)
Test methods for resistance surround.51 F.1 Testing repeated impact resistance to footballs and kicks.51 F.2 Impact resistance (violent kick from player).52 Bibliography.53

Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland and United Kingdom.

from going in a specific direction NOTE It is important that the location of the area of play accounts for the risks of balls leaving it. If the area of play is located next to a road, a ball stop screen may minimize the risk of players having to recover the ball from the road. It is equally important that other activities (e.g. playground area, artificial climbing structure) are protected from ball impact. 4 General requirements 4.1 Materials Materials should be selected and protected such that the structural integrity of the equipment manufactured from them is not affected before the next relevant maintenance inspection. NOTE The provisions relating to certain materials in this European Standard do not imply that other equivalent mate-rials are unsuitable in the manufacture of multi-sports equipment. The selection of materials and their use should be in accordance with the appropriate European Standards where applicable. Particular care should be taken in the choice of materials where equipment is to be used in extreme climatic or atmospheric conditions. Where very low or very high temperatures can be anticipated care should be taken with material selection to avoid possible hazards through direct skin contact.

Key 1 part of the load to be removed because of favourable effects Figure 1 — Example of removal of that part of the user load which causes a favourable effect 4.3 Finish of equipment Wooden equipment shall be made of wood with a low susceptibility to splintering. The surface finish of equip-ment made of other materials (e.g. glass fibre) shall be non-splintering. Rough surfaces should not present any risk of injury. There shall be no protruding nails, projecting wire, rope terminations or pointed or hard and sharp-edged parts within any accessible part of the equipment. Corners, edges and projecting parts within any accessible part of the equipment that project more than 8 mm, and which are not shielded by adjacent areas that are not more than 25 mm from the end of the projecting part, shall be rounded off. The minimum radius of the curve shall be 3 mm. Protruding bolt threads within any accessible part of the equipment shall be permanently covered, e.g. dome-headed nuts. Nuts and bolt heads that project less than 8 mm shall be free from burrs. All welds shall be ground smooth. NOTE Figure 2 shows examples of protection for nuts and bolts. Dimensions in millimetres
Figure 2 — Examples of protection for nuts and bolts

Figure 3 — Examples of unexpected obstacles

a)
b)
c)
d) Key 1 anti-cycle bar 2 multi-sports surround Figure 4 — Examples of expected obstacles

Key 1 ferrule 2 turnbuckle Figure 5 — Examples of ferrules and turnbuckles 4.9 Chains Chains shall have a maximum opening of 8,6 mm in any one direction except where connections are made, where the maximum opening shall be greater than 18 mm or less than 8,6 mm.

Dimensions in millimetres Class Free space 
(see Figure 9) min. A 3 250 B 2 250 C 1 650 D 1 200 E 600 ≤  ≤ 1 200)
Figure 6 — Example of type 1 Figure 7 — Example of type 2 Figure 8 — Example of type 3

a) b)
 free space a end line of playing court 1 goal Figure 9 — Examples of free space, for simple or combined equipment

Figure 10 — Main functional dimensions for classes h1 minus h2 shall be less than 200 mm. NOTE 1 The FIBA recommended height h1 is 3 050 mm ± 6 mm for senior players.
Figure 11 — Dimensions of backboard and marking NOTE 2 The top of the ring coincides with the top of the line of the small square.

+ 30/– 0 1 050
+ 20/– 0 590
+ 20/– 0 450
+ 8/– 0 150
+ 0/– 2 50
any other any other — — — — — Dimensions in millimetres
Key 1 fixing plate Figure 12 — Ring 5.2.1.3 Materials The materials for the backboard shall be:  synthetics or composite (for example: HPL – High Pressure Laminate);  plywood in accordance EN 636-3 weather approved;  metal.

1 700 N and the maximum tensile strength of the mesh, when measured according to 6.2.2 b) at least 2 040 N. 5.2.1.4.4 Framework For basketball equipment that is designed to permit height adjustment of the backboard with basket and net, locking devices shall be fitted between 3 050 mm and 2 600 mm. 5.2.1.4.5 Rigidity When tested in accordance with 6.2.3 with a force F1, the horizontal permanent deflection of the framework after removal of the test force, ready for use, from the zero position shall be not more than 10 mm. When tested in accordance with 6.2.3 with a force F3, the horizontal permanent deflection of the framework after removal of the test force, ready for use, from the zero position shall be not more than 10 mm. 5.2.1.4.6 Stability When tested in accordance with 6.2.4 with a force F2, the vertical permanent deflection of the framework after removal of the test force, ready for use, from the zero position shall be not more than 10 mm.

Figure 13 — Example of combination 5.3.2 Structural stability and integrity Cross-bars shall conform to requirement of 4.2.

dimension of the framework of the surround (length or height) when tested in accordance with F.1

entire height if the height of the surround is lower than 2 m. It is recommended that up to 3 m in height (or
entire height if the surround is lower than 3 m) of the surround²
can withstand repeated impact from balls. 5.5.1.2.2 Repeated impact resistance to player's kicks The surround shall withstand repeated shock from players' feet, incurring heavier impact than that from balls. NOTE This is because users are likely to run into the surround. The surround shall not show any breakage when tested in accordance with F.2. This requirement applies to the entire width of the surround and up to 1 m in height of the surround or its entire height, if the height of the surround is lower than 1 m. 5.5.1.3 Access and egress For fully enclosed facilities, there shall be at least one opening with a minimum width of 900 mm. This may be within the goal area. NOTE If access requires a change in direction the layout should not prevent a wheelchair turning to gain access. 5.5.2 Ball stop screen In the case, when a rigid ball stop screen is combined with the multi-sport surround, requirements of 4.2 apply in full up to a height of 1,5 m. In the case, when a ball stop screen is designed to yield and is combined with the surround, requirements of 4.2 apply only to the surround and to the structural supports of the ball stop-screen up to 1,5 m. In the case of a ball stop-screen, where access has not been encouraged, it is only necessary to consider self-weight and wind loading when calculating the structural integrity requirement in 4.2. 5.6 Multi-function central nets and posts When a multi-function net and posts (e.g. for playing tennis, volley-ball…) are used, they shall fulfil the safety requirements of EN 1271, class C, as a minimum. 5.7 Table tennis tables If table tennis tables are installed, they shall fulfil the general requirements of Clause 4. The table tennis tables shall be firmly fixed to the ground or be secured against displacement either by their own weight or by anchoring. The table tennis tables installed in accordance with the manufacturer’s instructions shall withstand without any displacement or toppling over a horizontal force of 1,5 kN per m length of the table structure, applied in the middle of the highest part of the structure (excluding the net), in both the length and the width of the table. 6 Test methods 6.1 General test methods Unless otherwise specified in the following, the requirements shall be verified by measurement, visual exami-nation or practical tests. Before testing the equipment shall be assembled according to manufacturer's instructions into a condition similar to position of use.
...
