EN 4458:2005

2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.Aerospace series - Studs, MJ threads, in titanium alloy TI-P64001, MoS2 coated, with serrated locking ring in corrosion resisting steel - Strength class: 1 100 MPa (at ambient temperature) - Technical specificationLMDSérie aérospatiale - Goujons, filetage MJ, en alliage de titane TI-P64001, revetus MoS2, avec bague de verrouillage dentelée en acier résistant a la corrosion - Classe de résistance : 1 100 MPa (a température ambiante) - Spécification techniqueLuft- und Raumfahrt - Stiftschrauben, MJ-Gewinde aus Titanlegierung TI-P64001, MoS2 beschichtet, mit Ringsicherung aus korrosionsbeständigem Stahl - Festigkeitsklasse: 1 100 MPa (bei Raumtemperatur) - Technische LieferbedingungenTa slovenski standard je istoveten z:EN 4458:2005SIST EN 4458:2006en49.030.20ICS:SLOVENSKI
STANDARDSIST EN 4458:200601-september-2006

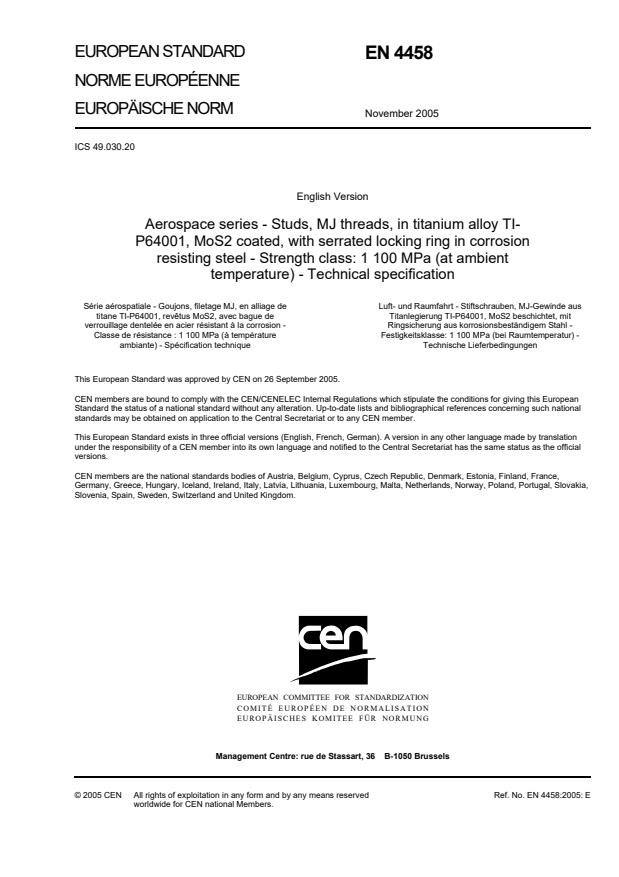

EUROPEAN STANDARDNORME EUROPÉENNEEUROPÄISCHE NORMEN 4458November 2005ICS 49.030.20 English VersionAerospace series - Studs, MJ threads, in titanium alloy TI-P64001, MoS2 coated, with serrated locking ring in corrosionresisting steel - Strength class: 1 100 MPa (at ambienttemperature) - Technical specificationSérie aérospatiale - Goujons, filetage MJ, en alliage detitane TI-P64001, revêtus MoS2, avec bague deverrouillage dentelée en acier résistant à la corrosion -Classe de résistance : 1 100 MPa (à températureambiante) - Spécification techniqueLuft- und Raumfahrt - Stiftschrauben, MJ-Gewinde ausTitanlegierung TI-P64001, MoS2 beschichtet, mitRingsicherung aus korrosionsbeständigem Stahl -Festigkeitsklasse: 1 100 MPa (bei Raumtemperatur) -Technische LieferbedingungenThis European Standard was approved by CEN on 26 September 2005.CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this EuropeanStandard the status of a national standard without any alteration. Up-to-date lists and bibliographical references concerning such nationalstandards may be obtained on application to the Central Secretariat or to any CEN member.This European Standard exists in three official versions (English, French, German). A version in any other language made by translationunder the responsibility of a CEN member into its own language and notified to the Central Secretariat has the same status as the officialversions.CEN members are the national standards bodies of Austria, Belgium, Cyprus, Czech Republic, Denmark, Estonia, Finland, France,Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Slovakia,Slovenia, Spain, Sweden, Switzerland and United Kingdom.EUROPEAN COMMITTEE FOR STANDARDIZATIONCOMITÉ EUROPÉEN DE NORMALISATIONEUROPÄISCHES KOMITEE FÜR NORMUNGManagement Centre: rue de Stassart, 36
B-1050 Brussels© 2005 CENAll rights of exploitation in any form and by any means reservedworldwide for CEN national Members.Ref. No. EN 4458:2005: E

Definition of test block.16 Annex B (normative)
Assembly for mechanical tests.17

1) Minimum tensile strength of the material at ambient temperature. 2) Published as AECMA Prestandard at the date of publication of this standard.

3.2.1 crack rupture in the material which may extend in any direction and which may be intercrystalline or transcrystalline in character 3.2.2 seam open surface defect 3.2.3 lap surface defect caused by folding over metal fins or sharp corners and then compressing them into the surface 3.3 test temperature ambient temperature, unless otherwise specified 3.4 simple random sampling the taking of n items from a population of N items in such a way that all possible combinations of n items have the same probability of being chosen
3.5 critical defect a defect that, according to judgement and experience, is likely to result in hazardous or unsafe conditions for individuals using, maintaining, or depending upon the considered product, or that is likely to prevent performance of the function of a major end item 3.6 major defect a defect other than critical, that is likely to result in a failure or to reduce materially the usability of the considered product for its intended purpose
3.7 minor defect a defect that is not likely to reduce materially the usability of the considered product for its intended purpose, or that is a departure from established specification having little bearing on the effective use or operation of this product 3.8 sampling plan a plan according to which one or more samples are taken in order to obtain information and possibly to reach a decision
3.9 limiting quality in a sampling plan, the quality limit which corresponds to the specified 10 % probability of acceptance 3.10 acceptable quality limit (AQL) a quality limit which in a sampling plan corresponds to a specified but relatively high probability of acceptance It is the maximum per cent defective (or the maximum number of defects per hundred units) that, for purposes of sampling inspection can be considered satisfactory as a process average.
...
