Size designation of clothes - Part 3: Measurements and intervals

This draft European Standard establishes a body sizing system to be used for compiling standard garment sizes for infants, men and boys, women and girls. Garment dimensions are not contained in this European Standard.
Examples of labelling clothing with the standard pictogram (see EN 13402-1) are given in Annex A (informative) in this standard.

Größenbezeichnung von Bekleidung - Teil 3: Maße und Sprungwerte

Diese Europäische Norm legt ein Körpergrößensystem fest, das zum Erstellen genormter Bekleidungsgrößen für Kleinkinder, Männer und Knaben, Frauen und Mädchen angewendet wird. Maße für Kleidungsstücke werden in dieser Europäischen Norm nicht angegeben.
Beispiele für die Etikettierung der Bekleidung mit dem Piktogramm (siehe EN 13402-1) werden im Anhang A (informativ) in dieser Norm angegeben.

Désignation des tailles de vêtements - Partie 3: Mesures et intervalles

La présente Norme européenne établit un système de dimensions corporelles, à utiliser pour constituer des tailles de vêtements normalisées pour petits enfants, hommes et garçons, ainsi que pour femmes et filles. Les dimensions des vêtements ne figurent pas dans la présente Norme européenne.
Des exemples d'étiquetage des vêtements au moyen du pictogramme normalisé (voir l'EN 13402-1) sont donnés dans l'Annexe A (informative) de la présente norme.

Označevanje velikosti oblačil - 3. del: Mere in koraki

General Information

Status
Withdrawn
Publication Date
23-Nov-2004
Withdrawal Date
22-Oct-2013
Current Stage
9960 - Withdrawal effective - Withdrawal
Start Date
23-Oct-2013
Completion Date
23-Oct-2013

Relations

Buy Standard

Standard
EN 13402-3:2005
English language
29 pages
sale 10% off
Preview
sale 10% off
Preview
e-Library read for
1 day

Standards Content (Sample)


2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.Größenbezeichnung von Bekleidung - Teil 3: Maße und SprungwerteDésignation des tailles de vetements - Partie 3: Mesures et intervallesSize designation of clothes - Part 3: Measurements and intervals61.0202EODþLODClothesICS:Ta slovenski standard je istoveten z:EN 13402-3:2004SIST EN 13402-3:2005en01-marec-2005SIST EN 13402-3:2005SLOVENSKI
STANDARD
EUROPEAN STANDARDNORME EUROPÉENNEEUROPÄISCHE NORMEN 13402-3November 2004ICS 61.020English versionSize designation of clothes - Part 3: Measurements and intervalsDésignation des tailles de vêtements - Partie 3: Mesures etintervallesGrößenbezeichnung von Bekleidung - Teil 3: Maße undSprungwerteThis European Standard was approved by CEN on 14 October 2004.CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this EuropeanStandard the status of a national standard without any alteration. Up-to-date lists and bibliographical references concerning such nationalstandards may be obtained on application to the Central Secretariat or to any CEN member.This European Standard exists in three official versions (English, French, German). A version in any other language made by translationunder the responsibility of a CEN member into its own language and notified to the Central Secretariat has the same status as the officialversions.CEN members are the national standards bodies of Austria, Belgium, Cyprus, Czech Republic, Denmark, Estonia, Finland, France,Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Slovakia,Slovenia, Spain, Sweden, Switzerland and United Kingdom.EUROPEAN COMMITTEE FOR STANDARDIZATIONCOMITÉ EUROPÉEN DE NORMALISATIONEUROPÄISCHES KOMITEE FÜR NORMUNGManagement Centre: rue de Stassart, 36
B-1050 Brussels© 2004 CENAll rights of exploitation in any form and by any means reservedworldwide for CEN national Members.Ref. No. EN 13402-3:2004: ESIST EN 13402-3:2005

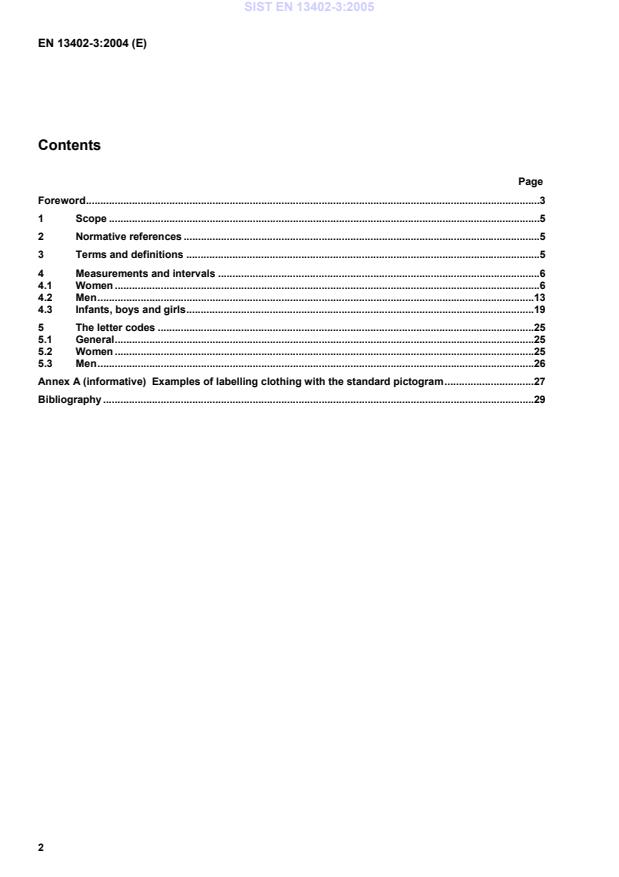

Examples of labelling clothing with the standard pictogram.27 Bibliography.29
the difference between chest girth and waist girth for men in centimetres, expressed with a negative value when the waist is smaller than the chest NOTE For a chest of 100 cm with a waist of 88 cm, the drop is
-12. 3.2 primary dimension body measurement, in centimetres, that shall be used in designating the size of a garment for the consumer
[EN 13402-1] 3.3 secondary dimension body measurement,
in centimetres, or in the case of pantyhose, body mass (kg) that may additionally be used in designating the size of a garment for the consumer
[EN 13402-1] 3.4 cup size difference between the underbust girth and the bust girth
[EN 13402-2] 3.5 standard pictogram pictorial symbol used to indicate the position on the body of the relevant dimensions
[EN 13402-1] 3.6 interval difference between the value of two adjoining body measurements SIST EN 13402-3:2005

NOTE For special kinds of clothing e.g. protective clothing, the appropriate size should be indicated by combining several body size ranges. Table 1a — Standard heights for women Dimensions in centimetres Heights for women in cm with intervals of 4 cm ← 156 160 164 168 172 176 180 184 188 →
Table 1b — Ranges for standard heights for women with 8 cm intervals Dimensions in centimetres Height ←←←← 156 160 164 168 172 176 180 184 188 →→→→ Range — 156-164 — 164-172 — 172-180 — 180-188 —
Table 1c — Ranges for standard heights for women with 4 cm intervals Dimensions in centimetres Height ←←←← 156 160 164 168 172 176 180 184 188 →→→→ Range 154-158 158-162 162-166 166-170 170-174 174-178 178-182 182-186 186-190
As women may not have the exact heights detailed in Table 1a, a height range of ± 1/2 interval is recommended for use on the pictogram in accordance with EN 13402-1. In order to maintain maximum flexibility, it is left up to a country and/or company to choose 4 cm or 8 cm intervals, of which 8 cm is recommended for general use and intervals of 4 cm for trousers. EXAMPLE If a country/company selects 168 cm with an 8 cm interval, the range on the pictogram would be 164 cm to 172 cm. If a country selects 168 cm with a 4 cm interval, the range on the pictogram would be 166 cm to 170 cm.
4.1.2 Flexible link between bust, waist and hip measurements for women The standard sizing system allows each country/company to freely combine these three measurements as needed, although most countries will wish to use two lower or two higher waists or hips for a given bust according to the three lines of Table 2. Different combinations are shown in the examples in Table 3a, 3b and 3c.
Intervals Bust: 4 cm Bust ≥ 104 cm: 6 cm Waist: 4 cm Waist ≥ 88 cm: 6 cm Hip: 4 cm Hip ≥ 112 cm: 5 cm
and secondary dimension Girth measurements for women (bust 76 to 152) Interval Bust girth 76 80 84 88 92 96 100 104 110 116 122 128 134 140 146 152 4 and 6 Range 74-78 78-
82 82-86 86-90 90-94 94-98 98-102 102-107 107-113 113-119 119-125 125-131 131-137 137-143 143-149 149-155 —
Waist girth 60 64 68 72 76 80 84 88 94 100 106 112 118 124 130 136 4 and 6 Range 58-62 62-66 66-70 70-74 74-78 78-82 82-86 86-91 91-97 97-103 103-109 109-115 115-121 121-127 127-133 133-139 —
Hip girth 84 88 92 96 100 104 108 112 117 122 127 132 137 142 147 152 4 and 5 Range 82-86 86-90 90-94 94-98 98-102 102-106 106-110 110-115 115-120 120-125 125-130 130-135 135-140 140-145 145-150 150-155 —
EXAMPLES A country/company might select the measurements with a range on the pictogram and as bust 104 cm has a changing interval, two different ranges might occur on the pictogram for bust, waist and hip (see Table 2): Dimensions in centimetres Combination in accordance with Table 2 Range Combination in accordance with Table 2 Range Bust: 88 Bust: 86 - 90 Bust: 104 Bust: 102 - 107 Waist: 72 Waist: 70 - 74 Waist: 88 Waist: 86 - 91 Hip: 96 Hip: 94 - 98
Hip: 112 Hip: 110 - 115
Table 3b — Examples for flexible use of measurements and ranges Four examples are shown as follows: Dimensions in centimetres Bust: 88 Range: 86 - 90 Bust: 88 Range: 86 - 90 Waist: 68 Range: 66 - 70 Waist: 76 Range: 74 - 78 Hip: 96 Range: 94 - 98 Hip: 100 Range: 98 - 102
Bust: 104 Range: 102 - 107 Bust: 104 Range: 102 - 107 Waist: 84 Range: 82 - 86 Waist: 94 Range: 91 - 97 Hip: 108 Range: 106 - 110
Hip: 117 Range: 115 - 120
Table 3c — Examples for flexible use of hip measurements for different hip types Dimensions in centimetres Bust: 88 Bust: 88 Bust: 88 Bust: 88 Waist: 72 Waist: 72 Waist: 72 Waist: 72 Hip: 88 Hip: 92
Hip: 100 Hip: 104
A: 12 cm - 14 cm
B: 14 cm - 16 cm
C: 16 cm - 18 cm
D: 18 cm - 20 cm
E: 20 cm - 22 cm
F: 22 cm - 24 cm
G: 24 cm - 26 cm
H: 26 cm - 28 cm SIST EN 13402-3:2005

Underbust girth 95 100 105 110 115 120 125 →→→→ Range 93-97 98-102 103-107 108-112 113-117 118-122 123-127 → Cup designation Bust girth Cup AA 105-107 110-112 115-117 120-122 125-127 130-132 135-137 → Cup A 107-109 112-114 117-119 122-124 127-129 132-134 137-139 → Cup B 109-111 114-116 119-121 124-126 129-131 134-136 139-141 → Cup C 111-113 116-118 121-123 126-128 131-133 136-138 141-143 → Cup D 113-115 118-120 123-125 128-130 133-135 138-140 143-145 → Cup E 115-117 120-122 125-127 130-132 135-137 140-142 145-147 → Cup F 117-119 122-124 127-129 132-134 137-139 142-144 147-149 → Cup G 119-121 124-126 129-131 134-136 139-141 144-146 149-151 → Cup H 121-123 126-128 131-133
...
