EN ISO 17694:2016

SLOVENSKI STANDARD
01-julij-2016
1DGRPHãþD
SIST EN 13512:2004
Obutev - Preskusne metode za zgornje dele in podloge - Odpornosti proti
upogibanju (ISO 17694:2016)
Footwear - Test methods for uppers and lining - Flex resistance (ISO 17694:2016)
Schuhe - Prüfverfahren für Obermaterialien und Futter - Dauerfaltverhalten (ISO
17694:2016)
Chaussures - Méthodes d'essai pour les tiges et les doublures - Résistance à la flexion
(ISO 17694:2016)
Ta slovenski standard je istoveten z: EN ISO 17694:2016
ICS:
61.060 Obuvala Footwear
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

EN ISO 17694
EUROPEAN STANDARD
NORME EUROPÉENNE
May 2016
EUROPÄISCHE NORM
ICS 61.060 Supersedes EN 13512:2001
English Version
Footwear - Test methods for uppers and lining - Flex
resistance (ISO 17694:2016)
Chaussures - Méthodes d'essai pour les tiges et les Schuhe - Prüfverfahren für Obermaterialien und Futter
doublures - Résistance à la flexion (ISO 17694:2016) - Dauerfaltverhalten (ISO 17694:2016)
This European Standard was approved by CEN on 15 April 2016.

CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this
European Standard the status of a national standard without any alteration. Up-to-date lists and bibliographical references
concerning such national standards may be obtained on application to the CEN-CENELEC Management Centre or to any CEN
member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by
translation under the responsibility of a CEN member into its own language and notified to the CEN-CENELEC Management
Centre has the same status as the official versions.

CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia,
Finland, Former Yugoslav Republic of Macedonia, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania,
Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland, Turkey and
United Kingdom.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION

EUROPÄISCHES KOMITEE FÜR NORMUNG

CEN-CENELEC Management Centre: Avenue Marnix 17, B-1000 Brussels
© 2016 CEN All rights of exploitation in any form and by any means reserved Ref. No. EN ISO 17694:2016 E
worldwide for CEN national Members.

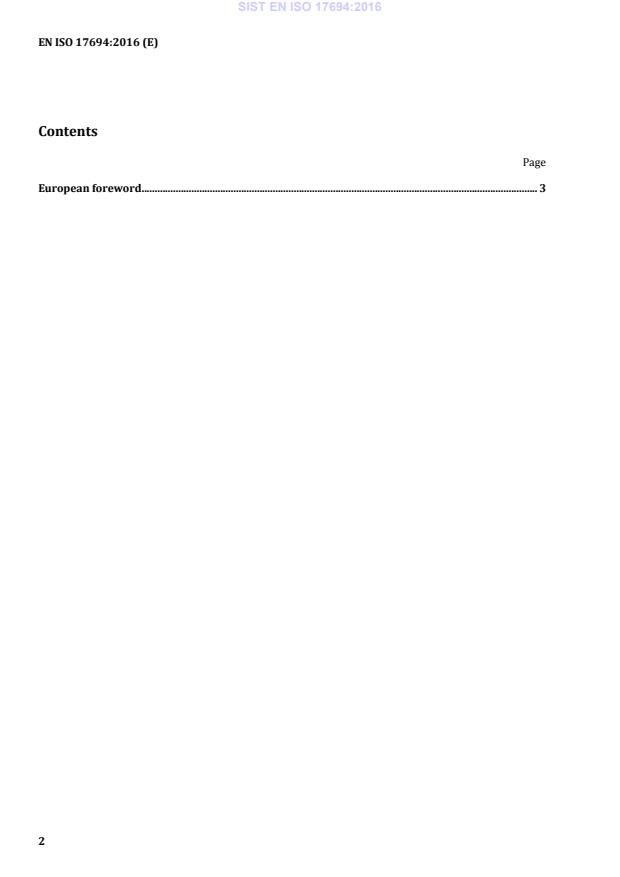

Contents
Page
European foreword . 3

European foreword
This document (EN ISO 17694:2016) has been prepared by Technical Committee CEN/TC 309
“Footwear", the secretariat of which is held by AENOR, in collaboration with Technical Committee
ISO/TC 216 "Footwear".
This European Standard shall be given the status of a national standard, either by publication of an
identical text or by endorsement, at the latest by November 2016, and conflicting national standards
shall be withdrawn at the latest by November 2016.
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. CEN [and/or CENELEC] shall not be held responsible for identifying any or all such patent
rights.
This document supersedes EN 13512:2001.
According to the CEN-CENELEC Internal Regulations, the national standards organizations of the
following countries are bound to implement this European Standard: Austria, Belgium, Bulgaria,
Croatia, Cyprus, Czech Republic, Denmark, Estonia, Finland, Former Yugoslav Republic of Macedonia,
France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta,
Netherlands, Norway, Poland, Portugal, Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland,
Turkey and the United Kingdom.
Endorsement notice
The text of ISO 17694:2016 has been approved by CEN as EN ISO 17694:2016 without any modification.
INTERNATIONAL ISO
STANDARD 17694
Second edition
2016-05-01
Footwear — Test methods for uppers
and lining — Flex resistance
Chaussures — Méthodes d’essai pour les tiges et les doublures —
Résistance à la flexion
Reference number
ISO 17694:2016(E)
©
ISO 2016
ISO 17694:2016(E)
© ISO 2016, Published in Switzerland
All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized otherwise in any form
or by any means, electronic or mechanical, including photocopying, or posting on the internet or an intranet, without prior
written permission. Permission can be requested from either ISO at the address below or ISO’s member body in the country of
the requester.
ISO copyright office
Ch. de Blandonnet 8 • CP 401
CH-1214 Vernier, Geneva, Switzerland
Tel. +41 22 749 01 11
Fax +41 22 749 09 47
copyright@iso.org
www.iso.org
ii © ISO 2016 – All rights reserved

ISO 17694:2016(E)
Contents Page
Foreword .iv
1 Scope . 1
2 Normative references . 1
3 Terms and definitions . 1
4 Short description . 1
5 Apparatus and material . 1
6 Sampling and conditioning . 3
6.1 General . 3
6.2 Dry tests . 3
6.3 Wet tests . 3
6.4 Cold tests . 4
7 Test method . 4
7.1 Principle . 4
7.2 Procedure . 4
8 Test report . 6
ISO 17694:2016(E)
Foreword
ISO (the International Organization for Standardization) is a worldwide federation of national standards
bodies (ISO member bodies). The work of preparing International Standards is normally carried out
through ISO technical committees. Each member body interested in a subject for which a technical
committee has been established has the right to be represented on that committee. International
organizations, governmental and non-governmental, in liaison with ISO, also take part in the work.
ISO collaborates closely with the International Electrotechnical Commission (IEC) on all matters of
electrotechnical standardization.
The procedures used to develop this document and those intended for its further maintenance are
described in the ISO/IEC Directives, Part 1. In particular the different approval criteria needed for the
different types of ISO documents should be noted. This document was drafted in accordance with the
editorial rules of the ISO/IEC Directives, Part 2 (see www.iso.org/directives).
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. ISO shall not be held responsible for identifying any or all such patent rights. Details of
any patent rights identified during the development of the document will be in the Introduction and/or
on the ISO list of patent declarations received (see www.iso.org/patents).
Any trade name used in this document is information given for the convenience of users and does not
constitute an endorsement.
For an explanation on the meaning of ISO specific terms and expressions related to conformity
assessment, as well as information about ISO’s adherence to the WTO principles in the Technical
Barriers to Trade (TBT) see the following URL: Foreword - Supplementary information
ISO 17694 was prepared by the European Committee Standardization (CEN) Technical Committee
CEN/TC 309, Footwear, in collaboration with ISO Technical Committee TC 216, Footwear, in accordance
with the agreement on technical cooperation between ISO and CEN (Vienna Agreement).
This second edition cancels and replaces the first edition (ISO 17694:2003), which has been technically
revised.
iv © ISO 2016 – All rights reserved

INTERNATIONAL STANDARD ISO 17694:2016(E)
Footwear — Test methods for uppers and lining — Flex
resistance
1 Scope
This International Standard specifies a test method for determining the flex resistance of uppers and
linings irrespective of the material in order to assess the suitability for the end use.
2 Normative references
The following documents, in whole or in part, are normatively referenced in this document and are
indispensable for its application. For dated references, only the edition cited applies. For undated
references, the latest edition of the referenced document (including any amendments) applies.
ISO 3696, Water for analytical laboratory use — Specification and test methods
ISO 5402-1:2011, Leather — Determination of flex resistance — Part 1: Flexometer method
1)
ISO 17709 , Footwear — Sampling location, preparation and duration of conditioning of samples and
test pieces
2)
ISO 18454 , Footwear — Standard atmospheres for conditioning and testing of footwear and components
for footwear
3 Terms and definitions
For the purposes of this document, the following terms and definitions apply.
3.1
flex resistance
resistance of a material to crack or otherwise fail at flexing creases
3.2
surface
visible site of the material during the use at the shoe
Note 1 to entry: The visible site of the material can be by upper the grain site of the leather or the coated site of a
coated textile, by lining the site of the material visible from the inside of the shoe.
4 Short description
Test specimens are cut from a shoe vamp or from material for shoes, folded and inserted in the test
machine. The test simulates the damage caused by the inward folding of the vamp of the upper, but
does not readily reproduce damage occurring on outward folds. It is carried out humid, dry or in a cold
climate.
5 Apparatus and material
The following apparatus and material shall be used.
1) EN 13400 is equivalent to ISO 17709.
2) EN 12222 is equivalent to ISO 18454.
ISO 17694:2016(E)
5.1 Test machine, in accordance with ISO 5402-1:2011, 4.1 including the following.
5.1.1 At least four pairs of clamps. The upper clamp consists of a pair of flat plates as shown in
Figure 1.
The lower clamp is fixed and lies in the same vertical plane as the upper clamp.
Dimensions in millimetres
15 ± 1
G
H
C
B
F
E
Key
1 flexing angle 22°30’ ± 0°30’
2 clamp tightening screw
3 2 mm radius
4 horizontal axle
Figure 1 — Upper clamp dimensions
5.1.2 Means of applying a simple harmonic reciprocating action, to repeatedly move the upper
clamp through an angle of 22°30’ ± 0°30’. The speed of oscillation shall be (100 ± 5) cycles/min.
The distance between the upper and lower clamp, when the upper clamp is in the horizontal position,
shall be (25 ± 1) mm.
5.1.3 Means of counting, the total number of cycles.
5.2 Press knife, (70 ± 1) mm × (45 ± 1) mm or similar for cutting test specimens.
5.3 Optical magnifier, with a magnification of approximately four to six times.
5.4 For wetting test specimens.
5.4.1 Glass dish, minimum of 100 mm diameter and 25 mm depth.
5.4.2 Distilled or deionised water, complying with Grade 3 of ISO 3696.
2 © ISO 2016 – All rights reserved
50 ± 1
25 ± 1
I
...
