EN 13599:2002

2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.Copper and copper alloys - Copper plate, sheet and strip for electrical purposesHOHNWURWHKQLNLCuivre et alliages de cuivre - Plaques, tôles et bandes en cuivre pour usages électriquesKupfer und Kupferlegierungen - Platten, Bleche und Bänder aus Kupfer für die Anwendung in der ElektrotechnikTa slovenski standard je istoveten z:EN 13599:2002SIST EN 13599:2004en77.150.30ICS:SLOVENSKI
STANDARDSIST EN 13599:200401-januar-2004

EUROPEAN STANDARDNORME EUROPÉENNEEUROPÄISCHE NORMEN 13599March 2002ICS 77.150.30English versionCopper and copper alloys - Copper plate, sheet and strip forelectrical purposesCuivre et alliages de cuivre - Plaques, tôles et bandes encuivre pour usages électriquesKupfer und Kupferlegierungen - Platten, Bleche und Bänderaus Kupfer für die Anwendung in der ElektrotechnikThis European Standard was approved by CEN on 22 February 2002.CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this EuropeanStandard the status of a national standard without any alteration. Up-to-date lists and bibliographical references concerning such nationalstandards may be obtained on application to the Management Centre or to any CEN member.This European Standard exists in three official versions (English, French, German). A version in any other language made by translationunder the responsibility of a CEN member into its own language and notified to the Management Centre has the same status as the officialversions.CEN members are the national standards bodies of Austria, Belgium, Czech Republic, Denmark, Finland, France, Germany, Greece,Iceland, Ireland, Italy, Luxembourg, Malta, Netherlands, Norway, Portugal, Spain, Sweden, Switzerland and United Kingdom.EUROPEAN COMMITTEE FOR STANDARDIZATIONCOMITÉ EUROPÉEN DE NORMALISATIONEUROPÄISCHES KOMITEE FÜR NORMUNGManagement Centre: rue de Stassart, 36
B-1050 Brussels© 2002 CENAll rights of exploitation in any form and by any means reservedworldwide for CEN national Members.Ref. No. EN 13599:2002 E

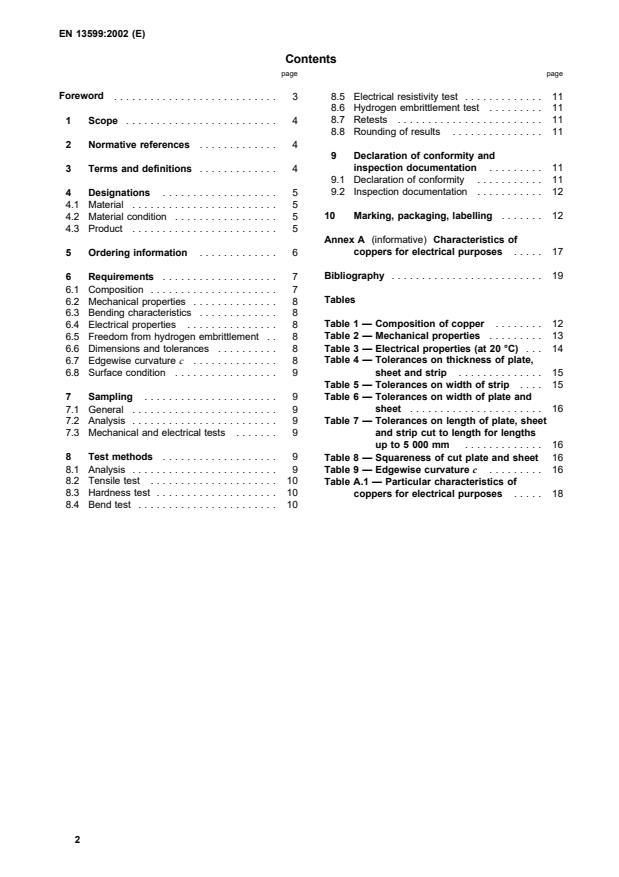

1Scope .4
2Normative references .4
3Terms and definitions .4
4Designations .5
4.1Material .5
4.2Material condition .5
4.3Product .5
5Ordering information .6
6Requirements .7
6.1Composition .7
6.2Mechanical properties .8
6.3Bending characteristics .8
6.4Electrical properties .8
6.5Freedom from hydrogen embrittlement .8
6.6Dimensions and tolerances .8
6.7Edgewise curvature c .8
6.8Surface condition .9
7Sampling .9
7.1General .9
7.2Analysis .9
7.3Mechanical and electrical tests .9
8Test methods .9
8.1Analysis .9
8.2Tensile test .10
8.3Hardness test .10
8.4Bend test .10page
8.5Electrical resistivity test .11
8.6Hydrogen embrittlement test .11
8.7Retests .11
8.8Rounding of results .11
9Declaration of conformity andinspection documentation .11
9.1Declaration of conformity .11
9.2Inspection documentation .1210Marking, packaging, labelling .12Annex A
(informative)
Characteristics of coppers for electrical purposes .17Bibliography .19TablesTable 1 — Composition of copper .12Table 2 — Mechanical properties .13Table 3 — Electrical properties (at 20 °C) .14Table 4 — Tolerances on thickness of plate,sheet and strip .15Table 5 — Tolerances on width of strip .15Table 6 — Tolerances on width of plate and sheet .16Table 7 — Tolerances on length of plate, sheetand strip cut to length for lengthsup to 5 000 mm
.............16Table 8 — Squareness of cut plate and sheet 16Table 9 — Edgewise curvature c .........16Table A.1 — Particular characteristics of coppers for electrical purposes .....182

Copper and copper alloys — Copper plate, sheet and strip for electrical purposes.The products specified in this European Standard are those which are especially suitable for electrical purposes, i.e.with specified electrical properties. Copper plate, sheet and strip for general purposes are specified in EN 1652.Annex A (informative) gives guidance on the characteristics of coppers for electrical purposes.This is one of a series of European Standards for copper products for electrical purposes. Other copper productsare specified as follows:EN 13600, Copper and copper alloys — Seamless copper tubes for electrical purposes.EN 13601,
Copper and copper alloys — Copper rod, bar and wire for general electrical purposes.EN 13602,
Copper and copper alloys — Drawn, round copper wire for the manufacture of electrical conductors.EN 13604,
Copper and copper alloys — Products of high conductivity copper for electronic tubes, semiconductordevices and vacuum applications.EN 13605,
Copper and copper alloys — Copper profiles and profiled wire for electrical purposes.According to the CEN/CENELEC Internal Regulations, the national standards organizations of the following countriesare bound to implement this European Standard: Austria, Belgium, Czech Republic, Denmark, Finland, France,Germany, Greece, Iceland, Ireland, Italy, Luxembourg, Malta, Netherlands, Norway, Portugal, Spain, Sweden,Switzerland and United Kingdom.3

ScopeThis European Standard specifies the composition, property requirements including electrical properties, andtolerances on dimensions and form for copper plate, sheet and strip for electrical purposes with thicknesses from0,05 mm up to and including 25 mm and widths from 10 mm up to and including 1 250 mm.The sampling procedures, the methods of test for verification of conformity to the requirements of this standard, andthe delivery conditions are also specified.2
Normative referencesThis European Standard incorporates, by dated or undated reference, provisions from other publications. Thesenormative references are cited at the appropriate places in the text, and the publications are listed hereafter. Fordated references, subsequent amendments to or revisions of any of these publications apply to this EuropeanStandard only when incorporated in it by amendment or revision. For undated references, the latest edition of thepublication referred to applies (including amendments).EN 1655,
Copper and copper alloys — Declarations of conformity.EN 1976,
Copper and copper alloys — Cast unwrought copper products.EN 10002-1,
Metallic materials — Tensile testing — Part 1: Method of test (at ambient temperature).EN 10204,
Metallic products — Types of inspection documents.EN ISO 2626,
Copper — Hydrogen embrittlement test (ISO 2626:1973).EN ISO 6507-1,
Metallic materials — Vickers hardness test — Part 1: Test method (ISO 6507-1:1997).EN ISO 7438,
Metallic materials — Bend test (ISO 7438:1985).ISO 1811-2,
Copper and copper alloys — Selection and preparation of samples for chemical analysis —Part 2: Sampling of wrought products and castings.NOTE
Informative references to documents used in the preparation of this standard, and cited at the appropriate places in thetext, are listed in the bibliography.3
Terms and definitionsFor the purposes of this European Standard, the following terms and definitions apply.3.1plateflat rolled product of rectangular cross-section with uniform thickness greater than 10 mm3.2sheetflat rolled product of rectangular cross-section with uniform thickness from 0,2 mm up to and including 10 mm,supplied in straight lengths, usually with sheared or sawn edges. The thickness does not exceed one tenth of thewidth3.3stripflat rolled product of rectangular cross-section with uniform thickness from 0,05 mm up to and including 5,0 mmmanufactured in coil and supplied in as sheared coils, traverse wound coils or cut to length, usually with slit edges.The thickness does not exceed one tenth of the width4

Designations4.1
Material4.1.1
GeneralThe material is designated either by symbol or number (see Table 1).4.1.2
SymbolThe material symbol designation is based on the designation system given in ISO 1190-1.NOTE
Although material symbol designations used in this standard might be the same as those in other standards using thedesignation system in ISO 1190-1, the detailed composition requirements are not necessarily the same.4.1.3
NumberThe material number designation is in accordance with the system given in EN 1412.4.2
Material conditionFor the purposes of this standard, the following designations, which are in accordance with the system given inEN 1173, apply for the material condition:MMaterial condition for the product as manufactured without specified mechanical properties;H.Material condition designated by the minimum value of hardness requirement for the product with mandatoryhardness requirements;R.Material condition designated by the minimum value of tensile strength requirement for the product withmandatory tensile strength and elongation requirements.NOTE
Some R. material conditions in this standard apply to products which also have mandatory 0,2% proof strengthrequirements.Exact conversion between material conditions designated H. and R. is not possible.Material condition is designated by only one of the above designations.4.3
ProductThe product designation provides a standardized pattern of designation from which a rapid and unequivocaldescription of a product is conveyed in communication. It provides mutual comprehension at the international levelwith regard to products which meet the requirements of the relevant European Standard.The product designation is no substitute for the full content of the standard.5

Sheet for electrical purposes conforming to this standard, in material designated either Cu-ETP or CW004A, inmaterial condition H040, nominal thickness 6,0 mm, nominal width 600 mm, as manufactured length 2 000 mm, shall bedesignated as follows:EXAMPLE 2
Strip for electrical purposes conforming to this standard, in material designated either CuAg0,10 or CW013A, inmaterial condition R290, nominal thickness 2,0 mm, nominal width 1 000 mm, shall be designated as follows:Strip EN 13599 — CuAg0,10 — R290 — 2,0 × 1 000orStrip EN 13599 — CW013A— R290 — 2,0 × 1 0005
Ordering informationIn order to facilitate the enquiry, order and confirmation of order procedures between the purchaser and the supplier,the purchaser shall state on his enquiry and order the following information:a)quantity of product required:– plate: number of pieces or mass;– sheet: number of pieces or mass;– strip (in coils or on spools): mass;– strip (cut to length): mass or number of pieces;b)denomination (Plate, Sheet or Strip);c)number of this European Standard (EN 13599);d)material designation (see Table 1);6

It is recommended that the product designation, as described in 4.3, is used for items b) to f).In addition, the purchaser shall also state on the enquiry and order any of the following, if required:i)maximum edgewise curvature values for strip over 3,2 mm up to and including 5,0 mm thickness and width over30 mm (see Table 9);j)whether special surface conditions are required (see 6.8);k)whether a declaration of conformity is required (see 9.1);l)whether an inspection document is required, and if so, which type (see 9.2);m)whether there are any special requirements for marking, packaging or labelling (see clause 10).EXAMPLE 1
Ordering details for 100 sheets for electrical purposes conforming to EN 13599, in material designated eitherCu-ETP or CW004A, in material condition H040, nominal thickness 6,0 mm, nominal width 600 mm, as manufactured length2 000 mm:100 pieces Sheet EN 13599 — Cu-ETP— H040 — 6,0 × 600 × 2 000Mor100 pieces Sheet EN 13599 — CW004A — H040 — 6,0 × 600 × 2 000MEXAMPLE 2
Ordering details for 5 000 kg strip for electrical purposes conforming to EN 13599, in material designated eitherCuAg0,10 or CW013A, in material condition R290, nominal thickness 0,4 mm, normal thickness tolerance, nominal width 60 mm,nominal inside diameter of coil 400 mm, maximum outside diameter of coil 960 mm and approximate specific coil weight (massper width) 4,5 kg/mm:5 000 kg Strip EN 13599 — CuAg0,10 — R290 — 0,4N × 60— nominal inside diameter of coil 400 mm— maximum outside diameter of coil 960 mm— approximate specific coil weight 4,5 kg/mmor5 000 kg Strip EN 13599 — CW013A— R290 — 0,4N × 60— nominal
...
