EN 4641-105:2010
(Main)Aerospace series - Cables, optical 125 μm diameter cladding - Part 105: Semi-loose, ruggedized quadraxial construction 62,5/125 µm GI fibre nominal, 5,72 mm outside diameter - Product standard
Aerospace series - Cables, optical 125 μm diameter cladding - Part 105: Semi-loose, ruggedized quadraxial construction 62,5/125 µm GI fibre nominal, 5,72 mm outside diameter - Product standard
This product standard specifies the general characteristics, conditions for qualification, acceptance and quality assurance for a fibre optic cable with four 62,5/125 µm Graded Index fibre cores, 5,72 mm nominal outside diameter and of semi loose construction. The basic construction is a pair of the cables defined in with added sheaths for ruggedized usages.
Luft- und Raumfahrt - Lichtwellenleiterkabel, Mantelaußendurchmesser 125 µm - Teil 105: Kompaktader, widerstandsfähige quadraxiale Konstruktion 62,5/125 µm GI-Faser, Kabelaußendurchmesser 5,72 mm - Produktnorm
Diese Produktnorm legt die allgemeinen Merkmale, Qualifizierungsbedingungen, Abnahme und Qualitätssicherung
für ein Lichtwellenleiterkabel mit vier Kernen aus 62,5/125-μm-Gradientenindexfaser, 5,72 mm
Nenn-Außendurchmesser und Kompaktader, fest. Der Grundaufbau besteht aus in der EN 4641-102 definierten
Kabeln mit zusätzlicher Umhüllung für den Einsatz unter rauen Umgebungsbedingungen.
Série aérospatiale - Câble, optique, diamètre extérieur de la gaine optique 125 µm - Partie 105 : Câble à structure semi libre, construction quarte renforcée, fibre à gradient d'indice 62,5/125 µm, diamètre extérieur 5,72 mm - Norme de produit
Aeronavtika - Kabli, optični, premer obloge 125 µm - 105. del: Poltrdi kabli, robustna kvadroaksialna konstrukcija GI 62,5/125 µm, zunanji premer vlakna 5,72 mm - Standard za proizvod
Ta standard za proizvod določa glavne značilnosti, kvalifikacijske pogoje ter zagotavljanje sprejemljivost in kakavosti za optični kabel s štirimi, 62,5/125 µm stopnjevalnim lomnim količnikom, vlaknenimi jedri, 5,72 mm nominalnim zunanjim premerom in poltrde konstrukcije. Osnovna konstrukcija je par določenih kablov z dodanimi tulci za robustne uporabe.
General Information
- Status
- Published
- Publication Date
- 23-Nov-2010
- Withdrawal Date
- 30-May-2011
- Technical Committee
- ASD-STAN - Aerospace
- Drafting Committee
- ASD-STAN/D 2 - Electrical
- Current Stage
- 6060 - Definitive text made available (DAV) - Publishing
- Start Date
- 24-Nov-2010
- Completion Date
- 24-Nov-2010
Relations
- Effective Date
- 28-Jan-2026
- Effective Date
- 28-Jan-2026
- Effective Date
- 28-Jan-2026
- Effective Date
- 28-Jan-2026
- Effective Date
- 28-Jan-2026
- Effective Date
- 28-Jan-2026
- Effective Date
- 28-Jan-2026
- Effective Date
- 28-Jan-2026
- Effective Date
- 28-Jan-2026
- Effective Date
- 28-Jan-2026
- Effective Date
- 28-Jan-2026
Overview
EN 4641-105:2010 is a CEN aerospace product standard for a semi-loose, ruggedized quadraxial fibre optic cable. It defines the design, qualification, acceptance and quality assurance requirements for a 4‑core cable built from two semi-loose 62.5/125 µm Graded Index (GI) single cables, with a nominal outside diameter of 5.72 mm. The standard was prepared under ASD‑STAN and approved by CEN (November 2010).
Key topics and technical requirements
- Cable construction: Quadraxial assembly of two 1.8 mm semi‑loose component cables, fillers, PTFE barrier tape and an extruded fluoropolymer outer jacket.
- Fibre type and geometry: Four 62.5/125 µm GI fibres (nominal); numerical aperture 0.275 ± 0.015.
- Mechanical and environmental limits:
- Operating temperature: −65 °C to +150 °C
- Finished outside diameter: (5.72 ± 0.25) mm
- Minimum jacket wall thickness: ≥ 0.20 mm
- Minimum bend radius (installation/long term): 10 × OD (≈ 60 mm)
- Optical performance:
- Attenuation ≤ 4 dB/km at 850 nm and ≤ 2 dB/km at 1 300 nm (at 20 °C)
- Maximum permitted short‑term attenuation variations specified for many tests (e.g., ≤ 0.25 dB for temperature cycling, cold bend, abrasion)
- Materials: PTFE fillers/barrier tape and extruded fluoropolymer outer jacket specified for ruggedized use.
- Qualification and tests: Ruggedized cable tests per EN 3745‑100 including visual inspection, attenuation, temperature cycling, thermal shock, cold bend, flammability, abrasion, tensile, impact, torsion, crush, smoke density and toxicity limits.
- Marking, colour and storage:
- Marking per EN 2424 (manufacturer code and year) using marker tape under jacket or UV laser (no hot stamping).
- Typical jacket colour: light purple or customer specified.
- Storage: humidity < 90 %, −65 °C to 85 °C; tensile load < 30 N; allow warming before handling after subzero storage.
Applications and users
This standard is intended for:
- Aerospace and defense cable manufacturers producing ruggedized quadraxial optical cables
- Aircraft OEMs and system integrators specifying optical interconnects for avionics and aircraft wiring harnesses
- Procurement, quality and test laboratories performing qualification, acceptance testing and supplier audits
- Designers needing product definitions for high‑reliability fibre optic links in harsh aircraft environments
Keywords naturally relevant to search: EN 4641-105:2010, aerospace optical cable, quadraxial cable, semi‑loose construction, 62.5/125 µm GI fibre, ruggedized fibre optic cable, product standard, cable qualification.
Related standards
- EN 3745‑100 (test methods)
- EN 4641‑102, EN 4641‑001 (component and technical specifications)
- EN 2424 (marking), EN 3838 (user markings), EN 9133 (quality systems), TR 4647 (termination procedures)
Get Certified
Connect with accredited certification bodies for this standard
National Aerospace and Defense Contractors Accreditation Program (NADCAP)
Global cooperative program for special process quality in aerospace.
NSF-ISR
NSF International Strategic Registrations.
Orion Registrar Inc.
US-based certification body for management systems.
Sponsored listings
Frequently Asked Questions
EN 4641-105:2010 is a standard published by the European Committee for Standardization (CEN). Its full title is "Aerospace series - Cables, optical 125 μm diameter cladding - Part 105: Semi-loose, ruggedized quadraxial construction 62,5/125 µm GI fibre nominal, 5,72 mm outside diameter - Product standard". This standard covers: This product standard specifies the general characteristics, conditions for qualification, acceptance and quality assurance for a fibre optic cable with four 62,5/125 µm Graded Index fibre cores, 5,72 mm nominal outside diameter and of semi loose construction. The basic construction is a pair of the cables defined in with added sheaths for ruggedized usages.
This product standard specifies the general characteristics, conditions for qualification, acceptance and quality assurance for a fibre optic cable with four 62,5/125 µm Graded Index fibre cores, 5,72 mm nominal outside diameter and of semi loose construction. The basic construction is a pair of the cables defined in with added sheaths for ruggedized usages.
EN 4641-105:2010 is classified under the following ICS (International Classification for Standards) categories: 49.090 - On-board equipment and instruments. The ICS classification helps identify the subject area and facilitates finding related standards.
EN 4641-105:2010 has the following relationships with other standards: It is inter standard links to EN 3838:2022, EN 2424:2008, EN 4641-001:2018, EN 9133:2018, EN 4641-102:2025, EN 3745-100:2008, EN 12184:2009, EN 4531-201:2016, EN 4531-101:2016, EN 4701-002:2016, EN 12183:2009. Understanding these relationships helps ensure you are using the most current and applicable version of the standard.
EN 4641-105:2010 is available in PDF format for immediate download after purchase. The document can be added to your cart and obtained through the secure checkout process. Digital delivery ensures instant access to the complete standard document.
Standards Content (Sample)
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.Luft- und Raumfahrt - Lichtwellenleiterkabel, Manteldurchmesser 125 µm - Teil 105: Kompaktader, widerstandsfähig quadraxiale Konstruktion 62, 5/125 µm GI-Faser, Kabelaußendurchmesser 5,72 mm - ProduktnormSérie aérospatiale - Câble, optique, diamètre extérieur de la gaine optique 125 µm - Partie 105 : Câble à structure semi libre, construction quarte renforcée, fibre à gradient d'indice 62,5/125 µm, diamètre extérieur 5,72 mm - Norme de produit49.060Aerospace electric equipment and systemsICS:Ta slovenski standard je istoveten z:EN 4641-105:2010SIST EN 4641-105:2011en01-maj-2011SIST EN 4641-105:2011SLOVENSKI
STANDARD

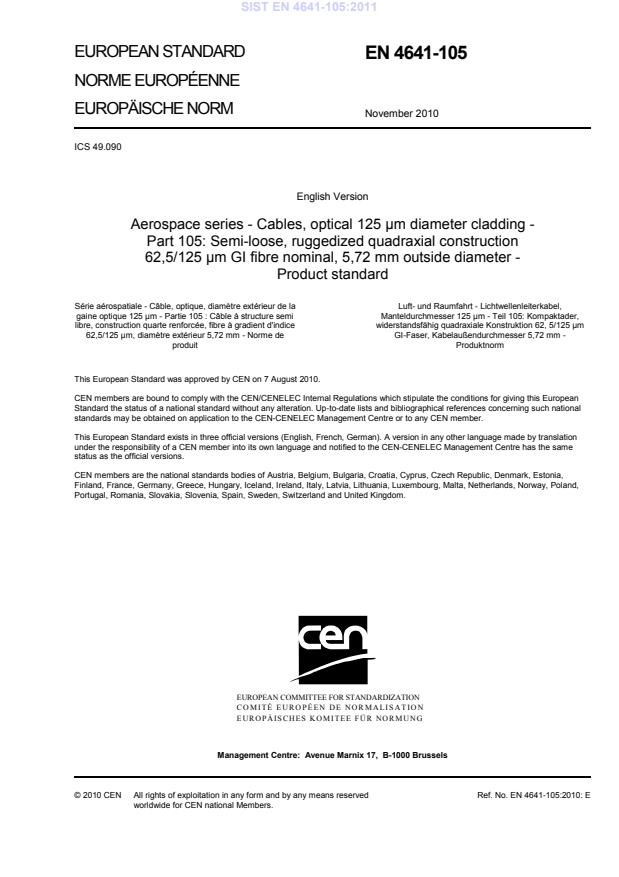

EUROPEAN STANDARD NORME EUROPÉENNE EUROPÄISCHE NORM
EN 4641-105
November 2010 ICS 49.090 English Version
Aerospace series - Cables, optical 125 µm diameter cladding - Part 105: Semi-loose, ruggedized quadraxial construction 62,5/125 µm GI fibre nominal, 5,72 mm outside diameter - Product standard
Série aérospatiale - Câble, optique, diamètre extérieur de la gaine optique 125 µm - Partie 105 : Câble à structure semi libre, construction quarte renforcée, fibre à gradient d'indice 62,5/125 µm, diamètre extérieur 5,72 mm - Norme de produit
Luft- und Raumfahrt - Lichtwellenleiterkabel, Manteldurchmesser 125 µm - Teil 105: Kompaktader, widerstandsfähig quadraxiale Konstruktion 62, 5/125 µm GI-Faser, Kabelaußendurchmesser 5,72 mm - Produktnorm This European Standard was approved by CEN on 7 August 2010.
CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this European Standard the status of a national standard without any alteration. Up-to-date lists and bibliographical references concerning such national standards may be obtained on application to the CEN-CENELEC Management Centre or to any CEN member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by translation under the responsibility of a CEN member into its own language and notified to the CEN-CENELEC Management Centre has the same status as the official versions.
CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland and United Kingdom.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION EUROPÄISCHES KOMITEE FÜR NORMUNG
Management Centre:
Avenue Marnix 17,
B-1000 Brussels © 2010 CEN All rights of exploitation in any form and by any means reserved worldwide for CEN national Members. Ref. No. EN 4641-105:2010: ESIST EN 4641-105:2011
1) Published as ASD-STAN Prestandard at the date of publication of this standard by Aerospace and Defence Industries Association of Europe-Standardization (ASD-STAN), (www.asd-stan.org). 2) Published as ASD-STAN Technical Re
...
