EN 14389-2:2015
(Main)Road traffic noise reducing devices - Procedures for assessing long term performance - Part 2: Non-acoustical characteristics
Road traffic noise reducing devices - Procedures for assessing long term performance - Part 2: Non-acoustical characteristics
This European Standard specifies requirements for assessing the working life and provides the relevant exposure conditions.
Standards of construction and any material tests conducted should provide evidence of resistance to specified conditions selected from the following:
I. Chemical Agents Location
dependent
II. De-icing salt Location/climate
Dependent
III. Dirty water/dust Location/
Climate
dependent
IV. Dew Climate
dependent
V. Freeze/thaw Climate
dependent
VI. Cold Climate
dependent
VII. Heat Climate
dependent
VIII. UV Radiation Climate
dependent
IX. Traffic Vibration Location
dependent
X. Biological Process Climate
dependent
XI. Ozone Location
dependent
XII. Water Climate
dependent
XIII. Water spray Location
Wet/dry dependent
NOTE Special care has to be taken for combinations of different materials, whether inside a single device or in combination with other devices (for example: a combination of different acoustic elements or another combination of acoustic and structural elements)
Lärmschutzvorrichtungen an Straßen - Verfahren zur Bewertung der Langzeitwirksamkeit - Teil 2: Nichtakustische Eigenschaften
Diese Europäische Norm legt Anforderungen für die Bewertung der Nutzungsdauer fest und stellt die relevanten Expositionsbedingungen zur Verfügung.
Baunormen und jegliche durchgeführten Werkstoffprüfungen sollten Nachweise über die Beständigkeit gegen festgelegte Bedingungen aus der folgenden Auswahl erbringen:
I. Chemische Substanzen Ortsabhängig
II. Streusalz Orts-/Klimaabhängig
III. Schmutzwasser/ Staub Orts-/Klimaabhängig
IV. Tau Klimaabhängig
V. Frost/ Tauwetter Klimaabhängig
VI. Kälte Klimaabhängig
VII. Hitze Klimaabhängig
VIII. UV-Strahlung Klimaabhängig
IX. Verkehrserschütterungen Ortsabhängig
X. Biologische Prozesse Klimaabhängig
XI. Ozoneinwirkung Ortsabhängig
XII. Wasser Klimaabhängig
XIII. Spritzwasser (nass/trocken) Ortsabhängig
ANMERKUNG Besondere Vorsicht ist bei Zusammensetzungen verschiedener Werkstoffe, entweder innerhalb einer einzelnen Vorrichtung oder in Kombination mit anderen Vorrichtungen, geboten (Beispiel: eine Kombination unterschiedlicher akustischer Elemente oder eine Kombination von akustischen Elementen und tragenden Bauteilen).
Dispositifs de réduction du bruit du trafic routier - Méthodes d'évaluation des performances à long terme - Partie 2: Caractéristiques non acoustiques
La présente norme européenne spécifie les exigences permettant d’évaluer la durée de vie et fournit les conditions d’exposition applicables.
Il convient que les normes de construction et tous les essais de matériaux réalisés apportent la preuve de la résistance aux conditions spécifiées et choisies parmi les suivantes :
I. Agents chimiques Fonction de l’emplacement
II. Sels de déverglaçage Fonction de l’emplacement ou du climat
III. Eau sale/poussière Fonction de l’emplacement ou du climat
IV. Rosée Fonction du climat
V. Gel/dégel Fonction du climat
VI. Froid Fonction du climat
VII. Chaleur Fonction du climat
VIII. Rayons U.V. Fonction du climat
IX Vibrations dues à la circulation Fonction de l’emplacement
X. Processus biologique Fonction du climat
XI. Ozone Fonction de l’emplacement
XII. Eau Fonction du climat
XIII. Projection d’eau humide/sec Fonction de l’emplacement
NOTE Une attention particulière est prêtée aux combinaisons de différents matériaux tant au sein d’un seul dispositif qu’en combinaison dans d’autres dispositifs (par exemple, une combinaison de différents éléments acoustiques ou une autre combinaison d’éléments acoustiques et structuraux).
Protihrupne ovire za cestni promet - Postopki za ocenjevanje dolgoročne učinkovitosti - 2. del: Neakustične lastnosti
Ta evropski standard določa zahteve za ocenjevanje življenjske dobe in ponuja pomembne pogoje za izpostavljenost.
Standardi gradnje in kakršni koli izvedeni preskusi materiala naj bi zagotovili dokaze odpornosti na določene pogoje, izbrane izmed naslednjih:
I. Kemična sredstva, odvisno od mesta
II. Sol za odmrzovanje, odvisno od mesta/podnebnih razmer
III. Umazana voda/prah, odvisno od mesta/podnebnih razmer
IV. Rosa, odvisno od podnebnih razmer
V. Zmrzal/odjuga, odvisno od podnebnih razmer
VI. Mraz, odvisno od podnebnih razmer
VII. Vročina, odvisno od podnebnih razmer
VIII. UV-sevanje, odvisno od podnebnih razmer
IX. Vibracije zaradi prometa, odvisno od mesta
X. Biološki postopki, odvisno od podnebnih razmer
XI. Ozon, odvisno od mesta
XII. Voda, odvisno od podnebnih razmer
XIII. Vodno pršenje (mokro/suho), odvisno od mesta
OPOMBA Posebna pozornost je posvečena različnim materialom, in sicer znotraj ene naprave ali v kombinaciji z drugo napravo (na primer kombinacija različnih akustičnih elementov ali druga kombinacija akustičnih in strukturnih elementov).
General Information
Relations
Standards Content (Sample)
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.RURþQHLärmschutzvorrichtungen an Straßen - Verfahren zur Bewertung der Langzeitwirksamkeit - Teil 2: Nichtakustische EigenschaftenDispositifs de réduction du bruit du trafic routier - Méthodes d'évaluation des performances à long terme - Partie 2: Caractéristiques non acoustiquesRoad traffic noise reducing devices - Procedures for assessing long term performance - Part 2: Non-acoustical characteristics93.080.30Cestna oprema in pomožne napraveRoad equipment and installations17.140.30Emisija hrupa transportnih sredstevNoise emitted by means of transportICS:Ta slovenski standard je istoveten z:EN 14389-2:2015SIST EN 14389-2:2015en,fr,de01-september-2015SIST EN 14389-2:2015SLOVENSKI
STANDARDSIST EN 14389-2:20051DGRPHãþD
EUROPEAN STANDARD NORME EUROPÉENNE EUROPÄISCHE NORM
EN 14389-2
May 2015 ICS 93.080.30 Supersedes EN 14389-2:2004English Version
Road traffic noise reducing devices - Procedures for assessing long term performance - Part 2: Non-acoustical characteristics
Dispositifs de réduction du bruit du trafic routier - Méthodes d'évaluation des performances à long terme - Partie 2: Caractéristiques non acoustiques
Lärmschutzvorrichtungen an Straßen - Verfahren zur Bewertung der Langzeitwirksamkeit - Teil 2: Nichtakustische Eigenschaften This European Standard was approved by CEN on 16 April 2015.
CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this European Standard the status of a national standard without any alteration. Up-to-date lists and bibliographical references concerning such national standards may be obtained on application to the CEN-CENELEC Management Centre or to any CEN member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by translation under the responsibility of a CEN member into its own language and notified to the CEN-CENELEC Management Centre has the same status as the official versions.
CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia, Finland, Former Yugoslav Republic of Macedonia, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland, Turkey and United Kingdom.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION EUROPÄISCHES KOMITEE FÜR NORMUNG
CEN-CENELEC Management Centre:
Avenue Marnix 17,
B-1000 Brussels © 2015 CEN All rights of exploitation in any form and by any means reserved worldwide for CEN national Members. Ref. No. EN 14389-2:2015 ESIST EN 14389-2:2015

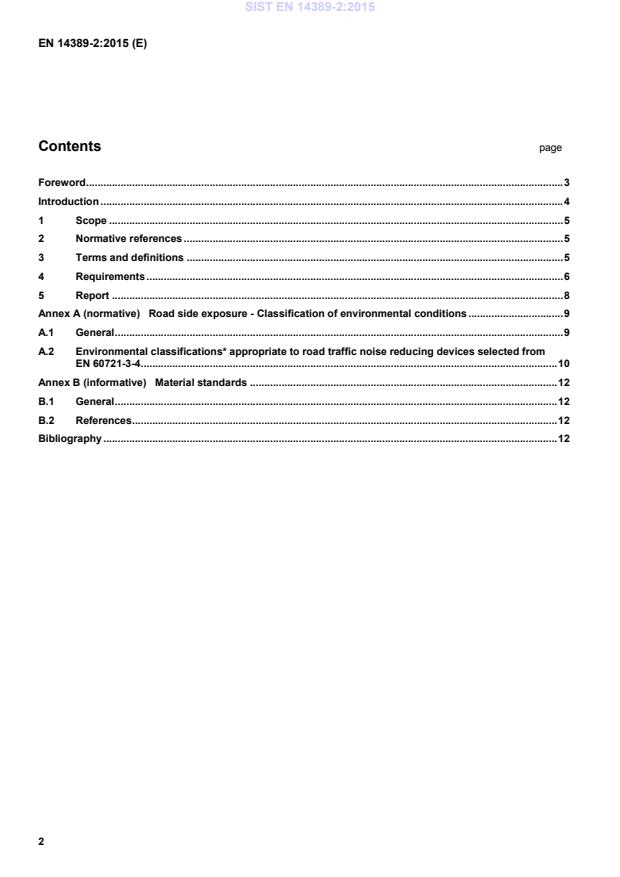

2 Contents page Foreword . 3 Introduction . 4 1 Scope . 5 2 Normative references . 5 3 Terms and definitions . 5 4 Requirements . 6 5 Report . 8 Annex A (normative)
Road side exposure - Classification of environmental conditions . 9 A.1 General . 9 A.2 Environmental classifications* appropriate to road traffic noise reducing devices selected from EN 60721-3-4 . 10 Annex B (informative)
Material standards . 12 B.1 General . 12 B.2 References . 12 Bibliography . 12
4 Introduction Noise reducing devices alongside roads should not only fulfil their acoustic function and structural design requirements in accordance with appropriate documents, but also maintain their performance during the required working life. The structural elements need to retain acceptable minimum safety factors at the end of their working life and the acoustic elements not only have to remain effective structurally but provide the specified acoustic performance. All elements in the construction of noise reducing devices should be resistant to electrolytic or/and chemical corrosion and embrittlement, be dimensionally stable and have generally a high ageing resistance in many differing conditions. SIST EN 14389-2:2015
Part 3: Classification of groups of environmental parameters and their severities
Section 4: Stationary use at non-weatherprotected locations (IEC 60721-3-4) 3 Terms and definitions For the purposes of this document, the following terms and definitions apply. 3.1 noise reducing device (NRD) device that is designed to reduce the propagation of traffic noise away from the road environment Note 1 to entry: This may be a noise barrier, cladding, a road cover or an added device. These devices may include both acoustic and structural elements. 3.2 noise barrier noise reducing device, which obstructs the direct transmission of airborne sound emanating from road traffic SIST EN 14389-2:2015
6 3.3 acoustic element element whose primary function is to provide the acoustic performance of the device 3.4 structural element element whose primary function is to support or hold in place acoustic elements 3.5 cladding noise reducing device, which is attached to a wall or other structure and reduces the amount of sound reflected 3.6 cover noise-reducing device, which either spans or overhangs the highway 3.7 added device added component that influences the acoustic performance of the original noise-reducing device (acting primarily on the diffracted energy) 3.8 working life period of time during which the performance of the device will be sustained which enables it to fulfil the performance characteristics as identified in EN 1794 parts 1, 2 and 3 3.9 roadside exposure conditions experienced by the noise reducing devices installed alongside a road 4 Requirements The structural design shall comply with the requirements of the appropriate European code. Standard environmental categories selected for road traffic noise reducing devices with possible variations are given in Annex A of this document. The manufacturer shall list the measures taken to limit the effects of ageing on his product following the list of ageing agents I to XIII and the adverse effects of combining different materials. Where material standards exist, durability shall be assessed using them (see Annex B).The manufacturer shall define the working life under the exposure classes, listed in the Table 1,adapted to the intended use of the noise reducing device. In any cases, the working life of the noise reducing device is the minimum of the working lives of its components. Adverse effects on long-term performance of contact with the ground shall be taken into account. If retention of water is likely to degrade the working life, the design shall ensure that water is not retained. The working life of structural and acoustic elements may be different, therefore they have to be assessed under the same exposure conditions when installed on the same site. If a change in humidity and/or temperature and/or UV affects the dimensional stability of materials used in the construction, then the design shall allow for such changes and ensure that the performance continues to fulfil the performance characteristics. SIST EN 14389-2:2015
4B2
4C2
4C3
4C4
4K2
4K3
4M3
4M4
4S2
4Z6
4Z7
NOTE This European Standard permits specifying authorities to indicate where there is no requirement for assessment under any particular exposure classes. The supplier shall provide for both structural and acoustic elements: a) the list of measures taken to limit the effects of ageing on his product; b) the working life corresponding to the specific environmental exposure classes; c) a statement of the design codes used, appropriate Eurocodes etc., and evidence of evaluation of working life. Installation instructions shall describe how the product (acoustic element, full noise barrier, etc.) shall be installed in order to be able to achieve the declared working life. A maintenance manual shall specify measures which are necessary, or to be avoided, in order to achieve the declared working life. SIST EN 14389-2:2015
8 5 Report The report shall include a full description of the geometry of the product evaluated, including details of procedures required by all appropriate material documents. It shall also include: a) reference to this document; b) name and address of the approved independent evaluating body with a dated signature of the person responsible; c) exact identification of evaluated product, name and address o
...
