EN 3716-003:2006
(Main)Aerospace series - Connectors, single-way with triaxial interface, for transmission of digital data - Part 003: Solder receptacle - Product standard
Aerospace series - Connectors, single-way with triaxial interface, for transmission of digital data - Part 003: Solder receptacle - Product standard
This standard specifies the requirements and assembly instructions for solder receptacles, with or without braid connection equipped with a male or female contact, used according to EN 3716-002 on cables conforming to EN 3375-003, EN 3375-004 or EN 3375-005.
Luft- und Raumfahrt - Steckverbinder, triaxial für digitale Datenübertragung in einer Richtung - Teil 003: Steckdose, lötbar - Produktnorm
Diese Norm legt die Anforderungen und Montagehinweise für feste Steckverbinder in Lötausführung, mit oder ohne Schirmanschluss, mit Stift- oder Buchsenkontakt, zur Verwendung nach EN 3716 002 mit Leitungen nach EN 3375 003, EN 3375 004 oder EN 3375 005 fest.
Série aérospatiale - Connecteur, monovoie, avec interface triaxiale, pour transmission de données numériques - Partie 003 : Embase à souder - Norme de produit
Aeronavtika - Konektorji, enosmerni, triaksialni, za digitalni prenos podatkov - 003. del: Vtičnica, za spajkanje - Standard za proizvod
General Information
- Status
- Published
- Publication Date
- 16-May-2006
- Withdrawal Date
- 29-Nov-2006
- Technical Committee
- ASD-STAN - Aerospace
- Drafting Committee
- ASD-STAN/D 2 - Electrical
- Current Stage
- 9093 - Decision to confirm - Review Enquiry
- Start Date
- 01-Jun-2017
- Completion Date
- 28-Jan-2026
Relations
- Effective Date
- 28-Jan-2026
- Effective Date
- 28-Jan-2026
- Effective Date
- 28-Jan-2026
- Effective Date
- 28-Jan-2026
- Effective Date
- 28-Jan-2026
- Effective Date
- 28-Jan-2026
- Effective Date
- 28-Jan-2026
- Effective Date
- 28-Jan-2026
Overview - EN 3716-003:2006 (Solder receptacle, triaxial)
EN 3716-003:2006 is a CEN / AECMA aerospace product standard that defines requirements and assembly instructions for solder receptacles with a triaxial interface used for digital data transmission. It covers solderable receptacles with or without braid (screen) connections, fitted with a male or female contact, intended to mate with plugs conforming to EN 3716-004 and to be used on cables specified in EN 3375-003, EN 3375-004 or EN 3375-005.
Key topics and technical requirements
- Scope & compatibility: Receptacles for single-way triaxial connectors used in aerospace digital data links; mates with EN 3716-004 plugs.
- Mechanical limits:
- Mass: ≤ 10 g
- Fixing nut torque: 1.13 N·m to 1.7 N·m
- Coupling torque: ≤ 1.13 N·m
- Insertion force: ≤ 14 N
- Retention force (wired contact): ≥ 9 N
- Rated life: 500 mating cycles
- Electrical and environmental:
- Temperature class: −65 °C to +150 °C
- Maximum current: 3 A
- Insulation resistance: ≥ 5 000 MΩ
- Dielectric strength: 900 V r.m.s. at sea level
- Contact resistance: ≤ 8 mΩ
- Corrosion resistance: salt spray 500 h
- Marking and designation: Manufacturer ID and date code (yy‑ww) marked on the fixing nut; standardized designation format (e.g., EN3716-003F1).
- Assembly instructions:
- Tooling: hot-air generator with minimum 800 W output; heating-zone temperature 420 °C ± 20 °C.
- Delivered as kit: connector body, contact, ferrule (when required), heat-shrink sleeve.
- Detailed step-by-step soldering and screening procedures for cables with single/double braid and Mu-metal braid options.
Applications and users
- Designed for aerospace and avionics applications requiring reliable digital data links with triaxial shielding (e.g., flight controls, sensor/data buses).
- Primary users:
- Aerospace connector manufacturers producing solder receptacles
- Cable-harness designers and assembly technicians
- Quality/qualification engineers and maintenance teams
- Procurement/specification writers in aircraft OEMs and MRO organizations
- Practical value: uniform assembly procedures, predictable mechanical/electrical performance, and interoperability with specified plugs and cable product standards.
Related standards
- EN 3716-001 - Technical specification (terms/definitions)
- EN 3716-002 - Conditions of use and list of product standards
- EN 3716-004 - Solder plug (mating plug)
- EN 3375-003 / EN 3375-004 / EN 3375-005 - Compatible bifilar cable product standards
Keywords: EN 3716-003:2006, triaxial connector, solder receptacle, aerospace connectors, digital data transmission, connector assembly instructions, avionics harness.
Get Certified
Connect with accredited certification bodies for this standard
National Aerospace and Defense Contractors Accreditation Program (NADCAP)
Global cooperative program for special process quality in aerospace.
NSF-ISR
NSF International Strategic Registrations.
Orion Registrar Inc.
US-based certification body for management systems.
Sponsored listings
Frequently Asked Questions
EN 3716-003:2006 is a standard published by the European Committee for Standardization (CEN). Its full title is "Aerospace series - Connectors, single-way with triaxial interface, for transmission of digital data - Part 003: Solder receptacle - Product standard". This standard covers: This standard specifies the requirements and assembly instructions for solder receptacles, with or without braid connection equipped with a male or female contact, used according to EN 3716-002 on cables conforming to EN 3375-003, EN 3375-004 or EN 3375-005.
This standard specifies the requirements and assembly instructions for solder receptacles, with or without braid connection equipped with a male or female contact, used according to EN 3716-002 on cables conforming to EN 3375-003, EN 3375-004 or EN 3375-005.
EN 3716-003:2006 is classified under the following ICS (International Classification for Standards) categories: 49.060 - Aerospace electric equipment and systems. The ICS classification helps identify the subject area and facilitates finding related standards.
EN 3716-003:2006 has the following relationships with other standards: It is inter standard links to EN 3716-002:2006, EN 3375-005:2007, EN 3375-003:2007, EN 3716-001:2006, EN 3375-004:2007, EN 3716-006:2006, EN 3716-004:2006, EN 3716-004:2014. Understanding these relationships helps ensure you are using the most current and applicable version of the standard.
EN 3716-003:2006 is available in PDF format for immediate download after purchase. The document can be added to your cart and obtained through the secure checkout process. Digital delivery ensures instant access to the complete standard document.

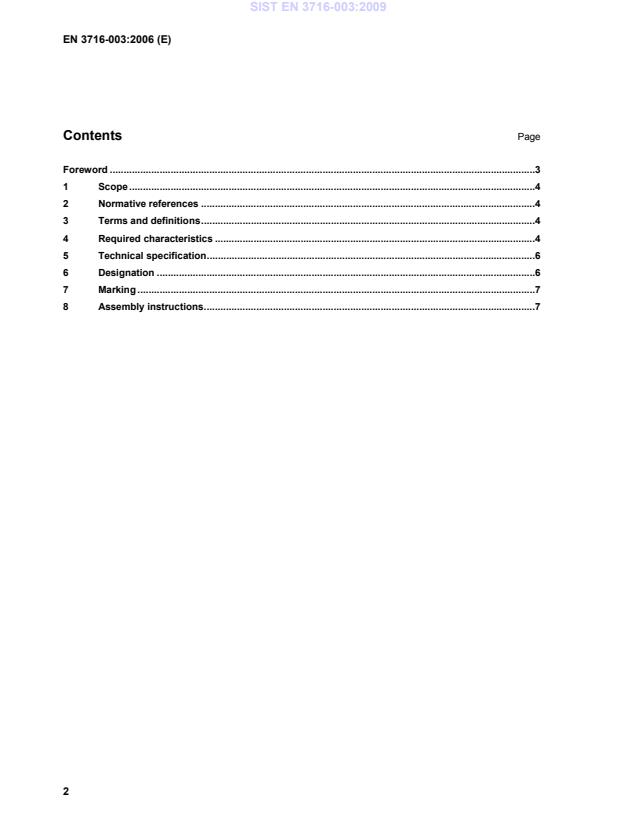

Standards Content (Sample)
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.Luft- und Raumfahrt - Steckverbinder, triaxial für digitale Datenübertragung in einer Richtung - Teil 003: Steckdose, lötbar - ProduktnormSérie aérospatiale - Connecteur, monovoie, avec interface triaxiale, pour transmission de données numériques - Partie 003 : Embase à souder - Norme de produitAerospace series - Connectors, single-way with triaxial interface, for transmission of digital data - Part 003: Solder receptacle - Product standard49.060Aerospace electric equipment and systemsICS:Ta slovenski standard je istoveten z:EN 3716-003:2006SIST EN 3716-003:2009en,de01-september-2009SIST EN 3716-003:2009SLOVENSKI
STANDARD
EUROPEAN STANDARDNORME EUROPÉENNEEUROPÄISCHE NORMEN 3716-003May 2006ICS 49.060 English VersionAerospace series - Connectors, single-way with triaxial interface,for transmission of digital data - Part 003: Solder receptacle -Product standardSérie aérospatiale - Connecteur, monovoie, avec interfacetriaxiale, pour transmission de données numériques - Partie003 : Embase à souder - Norme de produitLuft- und Raumfahrt - Steckverbinder, triaxial für digitaleDatenübertragung in einer Richtung - Teil 003: Steckdose,lötbar - ProduktnormThis European Standard was approved by CEN on 20 February 2006.CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this EuropeanStandard the status of a national standard without any alteration. Up-to-date lists and bibliographical references concerning such nationalstandards may be obtained on application to the Central Secretariat or to any CEN member.This European Standard exists in three official versions (English, French, German). A version in any other language made by translationunder the responsibility of a CEN member into its own language and notified to the Central Secretariat has the same status as the officialversions.CEN members are the national standards bodies of Austria, Belgium, Cyprus, Czech Republic, Denmark, Estonia, Finland, France,Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Romania,Slovakia, Slovenia, Spain, Sweden, Switzerland and United Kingdom.EUROPEAN COMMITTEE FOR STANDARDIZATIONCOMITÉ EUROPÉEN DE NORMALISATIONEUROPÄISCHES KOMITEE FÜR NORMUNGManagement Centre: rue de Stassart, 36
B-1050 Brussels© 2006 CENAll rights of exploitation in any form and by any means reservedworldwide for CEN national Members.Ref. No. EN 3716-003:2006: ESIST EN 3716-003:2009
...
