EN 3716-002:2006
(Main)Aerospace series - Connectors, single-way with triaxial interface, for transmission of digital data - Part 002: Conditions of use and list of product standards
Aerospace series - Connectors, single-way with triaxial interface, for transmission of digital data - Part 002: Conditions of use and list of product standards
This standard specifies the conditions of use common to single-way connectors with triaxial interface for transmission of digital data according to EN 3716-001 and gives the list of product standards.
Luft- und Raumfahrt - Steckverbinder, triaxial für digitale Datenübertragung in einer Richtung - Teil 002: Verwendungsbedingungen und Liste der Produktnormen
Diese Norm legt die Einsatzbedingungen, die üblich für einpolige, triaxiale Steckverbinder für digitale Daten¬übertragung sind, nach EN 3716 001 fest und enthält eine Auflistung der Produktnormen
Série aérospatiale - Connecteur, monovoie, avec interface triaxiale, pour transmission de données numériques - Partie 002 : Conditions d'utilisation et liste des normes de produits
Aeronavtika - Konektorji, enosmerni, triaksialni, za digitalni prenos podatkov - 002. del: Pogoji uporabe in seznam standardov za proizvod
General Information
- Status
- Published
- Publication Date
- 16-May-2006
- Withdrawal Date
- 29-Nov-2006
- Technical Committee
- ASD-STAN - Aerospace
- Drafting Committee
- ASD-STAN/D 2 - Electrical
- Current Stage
- 9093 - Decision to confirm - Review Enquiry
- Start Date
- 01-Jun-2017
- Completion Date
- 28-Jan-2026
Relations
- Effective Date
- 28-Jan-2026
- Effective Date
- 28-Jan-2026
- Effective Date
- 28-Jan-2026
- Effective Date
- 28-Jan-2026
- Effective Date
- 28-Jan-2026
- Effective Date
- 28-Jan-2026
- Effective Date
- 28-Jan-2026
- Effective Date
- 28-Jan-2026
- Effective Date
- 28-Jan-2026
Overview
EN 3716-002:2006 is a CEN/AECMA aerospace standard that defines the conditions of use and provides the list of product standards for single-way connectors with a triaxial interface used for the transmission of digital data. It complements the technical specification given in EN 3716-001 and establishes environmental, electrical and mechanical service limits and the referenced product standards for connector variants.
Key topics and technical requirements
This part of the EN 3716 series focuses on operational limits and referenced product documents rather than detailed connector geometry. Important technical points include:
- Scope: Conditions of use common to single-way triaxial digital-data connectors (per EN 3716-001).
- Permitted cables: EN 3375-003, EN 3375-004, EN 3375-005 (bifilar cable product standards).
- Electrical characteristics:
- Insulation resistance at ambient: 5 000 MΩ
- Voltage strength at sea level: 900 V r.m.s.
- Voltage strength at altitude (4.7 kPa): 200 V r.m.s.
- Designed for digital transmissions (references MIL-STD-1553B compatibility where applicable).
- Climatic and environmental limits:
- Service temperature range: −65 °C to +150 °C
- Salt spray resistance: 500 hours
- Fluid resistance: see EN 3716-001 (product/technical spec)
- Mechanical: Mechanical endurance - 500 operations
- Product standards listed (connector variants and accessories): EN 3716-003 through EN 3716-009 (covers solder/crimp plug & receptacle variants, braid connections, flight caps).
- Other notes:
- Keying: not applicable.
- Contacts: central contact is not removable after assembly.
- Rear accessories and tooling: not applicable in this part (see product standards).
Applications and who uses it
EN 3716-002 is targeted at professionals involved in the design, manufacture, procurement, testing and maintenance of avionics interconnects:
- Aerospace component manufacturers and connector suppliers (product compliance and specification).
- Avionics and systems engineers (selection and system integration for digital data buses).
- Cable assembly and harness designers (matching cable product standards EN 3375-003/004/005).
- Quality assurance, test labs and certification bodies (verify environmental/electrical limits).
- Maintenance and overhaul organizations specifying compatible replacement connectors.
Using EN 3716-002 helps ensure interoperability, consistent performance under defined environmental conditions, and traceable references to specific product standards for triaxial single-way connectors used in aerospace digital-data systems.
Related standards
- EN 3716-001 - Technical specification for single-way triaxial connectors (primary companion document).
- EN 3716-003 to EN 3716-009 - Product standards for solder/crimp plugs & receptacles and flight caps.
- EN 3375 series - Bifilar cable product standards for signal/data transmission.
- MIL-STD-1553B - Digital time division command/response multiplex data bus (referenced for digital transmission characteristics).
Get Certified
Connect with accredited certification bodies for this standard
National Aerospace and Defense Contractors Accreditation Program (NADCAP)
Global cooperative program for special process quality in aerospace.
NSF-ISR
NSF International Strategic Registrations.
Orion Registrar Inc.
US-based certification body for management systems.
Sponsored listings
Frequently Asked Questions
EN 3716-002:2006 is a standard published by the European Committee for Standardization (CEN). Its full title is "Aerospace series - Connectors, single-way with triaxial interface, for transmission of digital data - Part 002: Conditions of use and list of product standards". This standard covers: This standard specifies the conditions of use common to single-way connectors with triaxial interface for transmission of digital data according to EN 3716-001 and gives the list of product standards.
This standard specifies the conditions of use common to single-way connectors with triaxial interface for transmission of digital data according to EN 3716-001 and gives the list of product standards.
EN 3716-002:2006 is classified under the following ICS (International Classification for Standards) categories: 49.060 - Aerospace electric equipment and systems. The ICS classification helps identify the subject area and facilitates finding related standards.
EN 3716-002:2006 has the following relationships with other standards: It is inter standard links to EN 3375-004:2007, EN 3716-001:2006, EN 3375-005:2007, EN 3375-003:2007, EN 3716-005:2006, EN 3716-004:2014, EN 3716-003:2006, EN 3716-004:2006, EN 3716-006:2006. Understanding these relationships helps ensure you are using the most current and applicable version of the standard.
EN 3716-002:2006 is available in PDF format for immediate download after purchase. The document can be added to your cart and obtained through the secure checkout process. Digital delivery ensures instant access to the complete standard document.

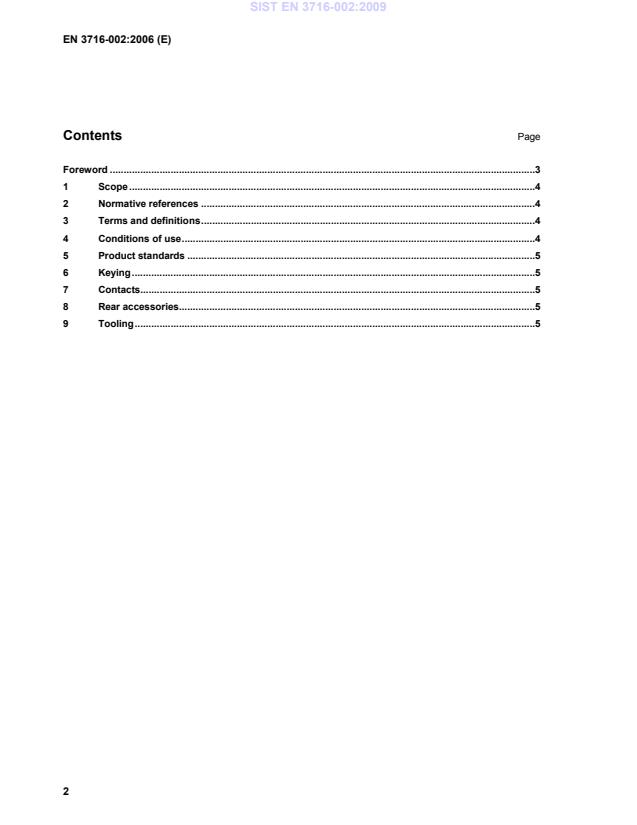

Standards Content (Sample)
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.Aeronavtika - Konektorji, enosmerni, triaksialni, za digitalni prenos podatkov - 002. del: Pogoji uporabe in seznam standardov za proizvodLuft- und Raumfahrt - Steckverbinder, triaxial für digitale Datenübertragung in einer Richtung - Teil 002: Verwendungsbedingungen und Liste der ProduktnormenSérie aérospatiale - Connecteur, monovoie, avec interface triaxiale, pour transmission de données numériques - Partie 002 : Conditions d'utilisation et liste des normes de produitsAerospace series - Connectors, single-way with triaxial interface, for transmission of digital data - Part 002: Conditions of use and list of product standards49.060Aerospace electric equipment and systemsICS:Ta slovenski standard je istoveten z:EN 3716-002:2006SIST EN 3716-002:2009en,de01-julij-2009SIST EN 3716-002:2009SLOVENSKI
STANDARD
EUROPEAN STANDARDNORME EUROPÉENNEEUROPÄISCHE NORMEN 3716-002May 2006ICS 49.060 English VersionAerospace series - Connectors, single-way with triaxial interface,for transmission of digital data - Part 002: Conditions of use andlist of product standardsSérie aérospatiale - Connecteur, monovoie, avec interfacetriaxiale, pour transmission de données numériques - Partie002 : Conditions d'utilisation et liste des normes de produitsLuft- und Raumfahrt - Steckverbinder, triaxial für digitaleDatenübertragung in einer Richtung - Teil 002:Verwendungsbedingungen und Liste der ProduktnormenThis European Standard was approved by CEN on 20 February 2006.CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this EuropeanStandard the status of a national standard without any alteration. Up-to-date lists and bibliographical references concerning such nationalstandards may be obtained on application to the Central Secretariat or to any CEN member.This European Standard exists in three official versions (English, French, German). A version in any other language made by translationunder the responsibility of a CEN member into its own language and notified to the Central Secretariat has the same status as the officialversions.CEN members are the national standards bodies of Austria, Belgium, Cyprus, Czech Republic, Denmark, Estonia, Finland, France,Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Romania,Slovakia, Slovenia, Spain, Sweden, Switzerland and United Kingdom.EUROPEAN COMMITTEE FOR STANDARDIZATIONCOMITÉ EUROPÉEN DE NORMALISATIONEUROPÄISCHES KOMITEE FÜR NORMUNGManagement Centre: rue de Stassart, 36
B-1050 Brussels© 2006 CENAll rights of exploitation in any form and by any means reservedworldwide for CEN national Members.Ref. No. EN 3716-002:2006: ESIST EN 3716-002:2009
...
