EN ISO 14819-6:2006
(Main)Traffic and Traveller Information (TTI) - TTI messages via traffic message coding - Part 6: Encryption and conditional access for the Radio Data System - Traffic Message Channel ALERT C coding (ISO 14819-6:2006)
Traffic and Traveller Information (TTI) - TTI messages via traffic message coding - Part 6: Encryption and conditional access for the Radio Data System - Traffic Message Channel ALERT C coding (ISO 14819-6:2006)
ISO 14819-6:2006 establishes a method of encrypting certain elements of the ALERT-C coded data carried in the RDS-TMC type 8A data group, such that without application by a terminal or receiver of an appropriate keys, the information conveyed is virtually worthless.
Before a terminal is able to decrypt the data, the terminal requires two "keys". The first is given in confidence by the service provider to terminal manufacturers with whom they have a commercial relationship; the second is broadcast in the "Encryption Administration Group," which is also a type 8A group. This specification explains the purpose of the two keys and how often and when the transmitted key may be changed.
Before an individual terminal may present decrypted messages to the end-user, it must have been activated to do so. Activation requires that a PIN code be entered. The PIN code controls access rights to each service and subscription period, allowing both lifetime and term business models to co-exist.
The specification also describes the considerations for service providers wishing to introduce an encrypted RDS-TMC service, migrating from either a "free-to-air" service based on public "Location Tables" or a commercial service based on a proprietary Location Table.
Finally, "hooks" have been left in the bit allocation of the type 8A group to allow extension of encryption to other RDS-TMC services.
Verkehrs- und Reiseinformationen-TTI - Meldungen über Verkehrsmeldungscodierung - Teil 6: Verschlüsselung und Zugangsbedingungen für das Radio Datensystem - Verkehrsmeldungskanal ALERT C Kodierung (ISO 14819-6:2006)
Informations sur le trafic et le tourisme (TTI) - Messages TTI via le codage de messages sur le trafic - Partie 6: Accès au cryptage et accès conditionnel pour le système de radiodiffusion de données - Codage ALERT C du canal de messages sur le trafic (ISO 14819-6:2006)
L'ISO 14819-6:2006 établit une méthode de chiffrement de certains éléments de données codées en ALERT-C transportés dans le groupe de données RDS-TMC du type 8A afin que les informations acheminées n'aient virtuellement aucune valeur sans l'application par un terminal ou récepteur d'une clé adéquate.
Avant qu'un terminal ne puisse déchiffrer les données, il lui faut deux «clés». La première est donnée en toute confiance par le prestataire de services aux fabricants de terminaux avec lesquels il entretient une relation commerciale; la seconde est diffusée dans le «Groupe de gestion du chiffrement», qui est aussi un groupe de type 8A. L'ISO 14819-6:2006 explique le but des deux clés ainsi que la fréquence et le moment auxquels il est permis de changer la clé émise.
Avant qu'un terminal individuel ne puisse présenter des messages déchiffrés à l'utilisateur final, il faut l'activer à cet effet. L'activation requiert la saisie d'un code PIN. Le code PIN commande les droits d'accès à chaque service et la période d'abonnement, permettant la coexistence de modèles commerciaux tant à terme qu'à vie.
L'ISO 14819-6:2006 décrit aussi les considérations pour les prestataires de services souhaitant introduire un service RDS-TMC chiffré, en migrant d'un service «à diffuser en clair» basé sur des «Tables de localisants» publiques ou d'un service commercial basé sur une «Table de localisants» propriétaire.
Finalement, des «crochets» ont été laissés dans l'allocation des bits du groupe de type 8A pour permettre l'extension du chiffrement à d'autres services du RDS-TMC.
Prometne in potovalne informacije (TTI) - Sporočila TTI prek kodiranih prometnih sporočil – 6. del: Enkripcija in pogojni dostop za radijski podatkovni sistem (RDS) – Prometni sporočilni kanal s kodiranjem ALERT C (ISO 14819-6:2006)
General Information
Standards Content (Sample)
SLOVENSKI STANDARD
01-september-2006
3URPHWQHLQSRWRYDOQHLQIRUPDFLMH77,6SRURþLOD77,SUHNNRGLUDQLKSURPHWQLK
VSRURþLO±GHO(QNULSFLMDLQSRJRMQLGRVWRS]DUDGLMVNLSRGDWNRYQLVLVWHP5'6
±3URPHWQLVSRURþLOQLNDQDOVNRGLUDQMHP$/(57&,62
Traffic and Traveller Information (TTI) - TTI messages via traffic message coding - Part
6: Encryption and conditional access for the Radio Data System - Traffic Message
Channel ALERT C coding (ISO 14819-6:2006)
Verkehrs- und Reiseinformationen-TTI - Meldungen über Verkehrsmeldungscodierung -
Teil 6: Verschlüsselung und Zugangsbedingungen für das Radio Datensystem -
Verkehrsmeldungskanal ALERT C Kodierung (ISO 14819-6:2006)
Informations sur le trafic et le tourisme (TTI) - Messages TTI via le codage de messages
sur le trafic - Partie 6: Acces au cryptage et acces conditionnel pour le systeme de
radiodiffusion de données - Codage ALERT C du canal de messages sur le trafic (ISO
14819-6:2006)
Ta slovenski standard je istoveten z: EN ISO 14819-6:2006
ICS:
03.220.20 Cestni transport Road transport
35.240.60 Uporabniške rešitve IT v IT applications in transport
transportu in trgovini and trade
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.
EUROPEAN STANDARD
EN ISO 14819-6
NORME EUROPÉENNE
EUROPÄISCHE NORM
April 2006
ICS 03.220.20; 35.240.60
English Version
Traffic and Traveller Information (TTI) - TTI messages via traffic
message coding - Part 6: Encryption and conditional access for
the Radio Data System - Traffic Message Channel ALERT C
coding (ISO 14819-6:2006)
Informations sur le trafic et le tourisme (TTI) - Messages Verkehrs- und Reiseinformationen-TTI - Meldungen über
TTI via le codage de messages sur le trafic - Partie 6: Verkehrsmeldungscodierung - Teil 6: Verschlüsselung und
Accès au cryptage et accès conditionnel pour le système Zugangsbedingungen für das Radio Datensystem -
de radiodiffusion de données - Codage ALERT C du canal Verkehrsmeldungskanal ALERT C Kodierung (ISO 14819-
de messages sur le trafic (ISO 14819-6:2006) 6:2006)
This European Standard was approved by CEN on 20 March 2006.
CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this European
Standard the status of a national standard without any alteration. Up-to-date lists and bibliographical references concerning such national
standards may be obtained on application to the Central Secretariat or to any CEN member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by translation
under the responsibility of a CEN member into its own language and notified to the Central Secretariat has the same status as the official
versions.
CEN members are the national standards bodies of Austria, Belgium, Cyprus, Czech Republic, Denmark, Estonia, Finland, France,
Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Romania,
Slovakia, Slovenia, Spain, Sweden, Switzerland and United Kingdom.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION
EUROPÄISCHES KOMITEE FÜR NORMUNG
Management Centre: rue de Stassart, 36 B-1050 Brussels
© 2006 CEN All rights of exploitation in any form and by any means reserved Ref. No. EN ISO 14819-6:2006: E
worldwide for CEN national Members.

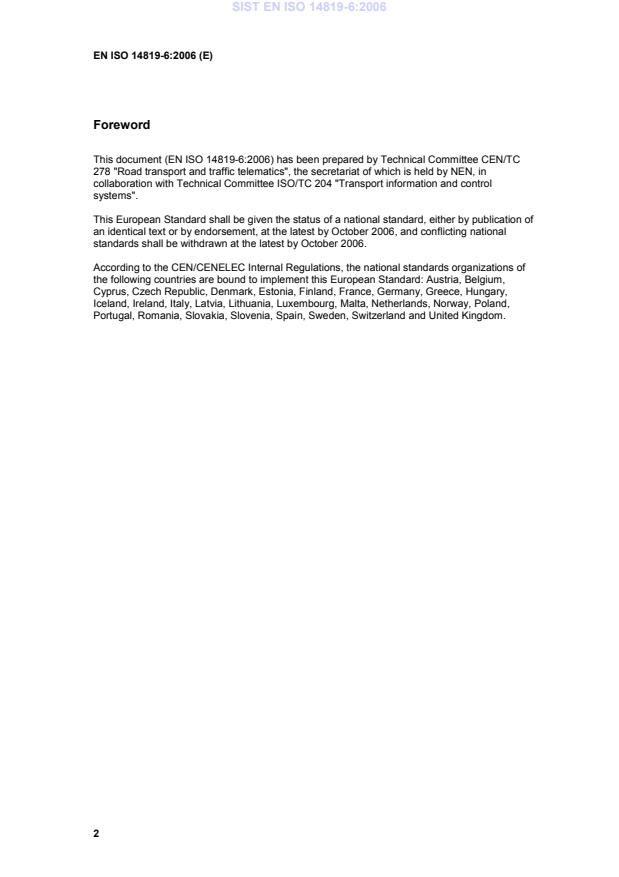

Foreword
This document (EN ISO 14819-6:2006) has been prepared by Technical Committee CEN/TC
278 "Road transport and traffic telematics", the secretariat of which is held by NEN, in
collaboration with Technical Committee ISO/TC 204 "Transport information and control
systems".
This European Standard shall be given the status of a national standard, either by publication of
an identical text or by endorsement, at the latest by October 2006, and conflicting national
standards shall be withdrawn at the latest by October 2006.
According to the CEN/CENELEC Internal Regulations, the national standards organizations of
the following countries are bound to implement this European Standard: Austria, Belgium,
Cyprus, Czech Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary,
Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland,
Portugal, Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland and United Kingdom.
INTERNATIONAL ISO
STANDARD 14819-6
First edition
2006-04-15
Traffic and Traveller Information (TTI) —
TTI messages via traffic message
coding —
Part 6:
Encryption and conditional access for the
Radio Data System — Traffic Message
Channel ALERT C coding
Informations sur le trafic et le tourisme (TTI) — Messages TTI via le
codage de messages sur le trafic —
Partie 6: Accès au cryptage et accès conditionnel pour le système de
radiodiffusion de données — Codage ALERT C du canal de messages
sur le trafic
Reference number
ISO 14819-6:2006(E)
©
ISO 2006
ISO 14819-6:2006(E)
PDF disclaimer
This PDF file may contain embedded typefaces. In accordance with Adobe's licensing policy, this file may be printed or viewed but
shall not be edited unless the typefaces which are embedded are licensed to and installed on the computer performing the editing. In
downloading this file, parties accept therein the responsibility of not infringing Adobe's licensing policy. The ISO Central Secretariat
accepts no liability in this area.
Adobe is a trademark of Adobe Systems Incorporated.
Details of the software products used to create this PDF file can be found in the General Info relative to the file; the PDF-creation
parameters were optimized for printing. Every care has been taken to ensure that the file is suitable for use by ISO member bodies. In
the unlikely event that a problem relating to it is found, please inform the Central Secretariat at the address given below.
© ISO 2006
All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form or by any means,
electronic or mechanical, including photocopying and microfilm, without permission in writing from either ISO at the address below or
ISO's member body in the country of the requester.
ISO copyright office
Case postale 56 • CH-1211 Geneva 20
Tel. + 41 22 749 01 11
Fax + 41 22 749 09 47
E-mail copyright@iso.org
Web www.iso.org
Published in Switzerland
ii © ISO 2006 – All rights reserved
ISO 14819-6:2006(E)
Contents Page
Foreword. iv
Introduction . v
1 Scope . 1
2 Normative references . 1
3 Terms and definitions. 2
4 Symbols and abbreviations . 3
5 Notation . 4
6 Application description. 4
6.1 Introduction to RDS group bit pattern and notation . 4
6.2 RDS-TMC and Open Data Application . 5
6.3 Summary of TMC data elements in type 8A groups. 7
7 Principles of the Encryption and Conditional Access methodology . 8
8 Encryption by the service provider. 9
8.1 Service provider’s requirements. 9
8.2 Use of type 8A groups for RDS-TMC encryption. 9
8.3 Encryption Administration group . 10
8.4 Encrypting location codes. 12
9 Access to decrypted services by a terminal. 13
9.1 Terminal manufacturer’s basic requirements. 13
9.2 Activation of a terminal . 14
9.3 Identifying an encrypted RDS-TMC service . 15
9.4 Decrypting location codes. 15
10 Introduction of Encrypted services . 16
10.1 Terminal responses. 17
10.2 De facto strategy valid only for service providers wishing to generate revenue, prior to
general availability of encryption. 17
10.3 Actions for existing providers of unencrypted TMC services . 17
10.4 Actions for potential providers of TMC services. 18
10.5 Timescales. 18
Bibliography . 19
ISO 14819-6:2006(E)
Foreword
ISO (the International Organization for Standardization) is a worldwide federation of national standards bodies
(ISO member bodies). The work of preparing International Standards is normally carried out through ISO
technical committees. Each member body interested in a subject for which a technical committee has been
established has the right to be represented on that committee. International organizations, governmental and
non-governmental, in liaison with ISO, also take part in the work. ISO collaborates closely with the
International Electrotechnical Commission (IEC) on all matters of electrotechnical standardization.
International Standards are drafted in accordance with the rules given in the ISO/IEC Directives, Part 2.
The main task of technical committees is to prepare International Standards. Draft International Standards
adopted by the technical committees are circulated to the member bodies for voting. Publication as an
International Standard requires approval by at least 75 % of the member bodies casting a vote.
Attention is drawn to the possibility that some of the elements of this document may be the subject of patent
rights. ISO shall not be held responsible for identifying any or all such patent rights.
ISO 14819-6 was prepared by Technical Committee ISO/TC 204, Intelligent transport systems, in
collaboration with CEN Technical Committee CEN/TC 278, Road transport and traffic telematics, the
secretariat of which is held by NEN.
ISO 14819 consists of the following parts, under the general title Traffic and Traveller Information (TTI) — TTI
messages via traffic message coding:
— Part 1: Coding protocol for Radio Data System — Traffic Message Channel (RDS-TMC) using ALERT-C
— Part 2: Event and information codes for Radio Data System — Traffic Message Channel (RDS-TMC)
— Part 3: Location referencing for ALERT-C
— Part 6: Encryption and conditional access for the Radio Data System — Traffic Message Channel ALERT
C coding
iv © ISO 2006 – All rights reserved
ISO 14819-6:2006(E)
Introduction
Traffic and traveller information may be disseminated through a number of services or means of
communication. For such services, the data to be disseminated and the message structure involved in the
various interfaces require clear definition and standard formats, in order to allow competitive products to exist
with any received data.
The most widely supported data specification for TTI messages within Europe and elsewhere is RDS-TMC,
specified in Parts 1, 2 and 3 of EN ISO 14819. In RDS-TMC, TTI messages are conveyed using type 8A
groups with the Radio Data System, itself specified in EN 62106.
The RDS-TMC standard was developed principally for the purposes of disseminating TTI data ‘free-to-air’,
using a public-service model.
However, in many countries, the adoption and continuance of TTI services requires a business model based
on commercial principals whereby the costs for the collection of the data and its dissemination may be
recovered by charging end-users or intermediaries to receive and use the data. In this model, a convenient
way that this may be achieved is to encrypt the data in some way, the key to decrypt the data being made
available on payment of a subscription or fee. In order to avoid a proliferation of different
...
